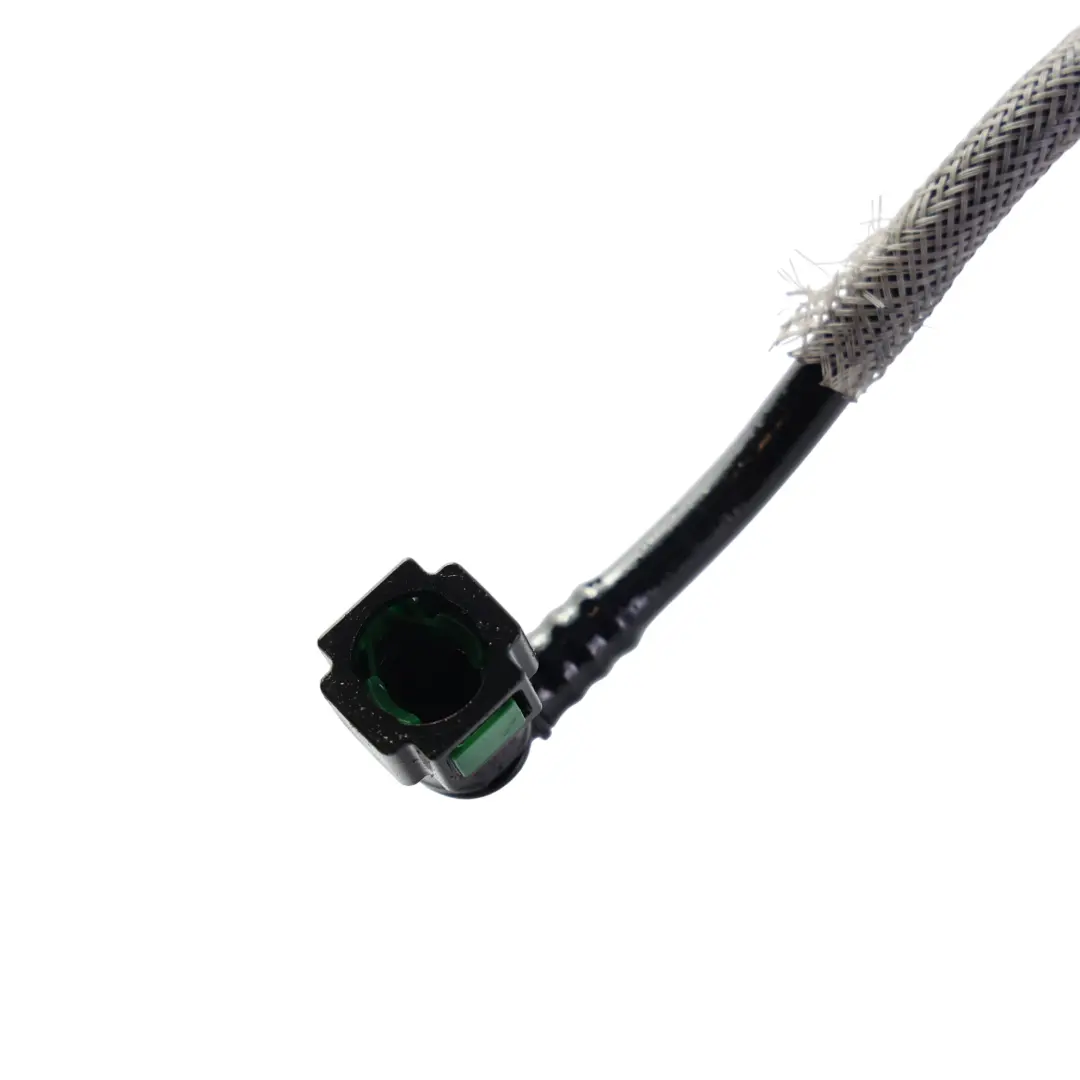

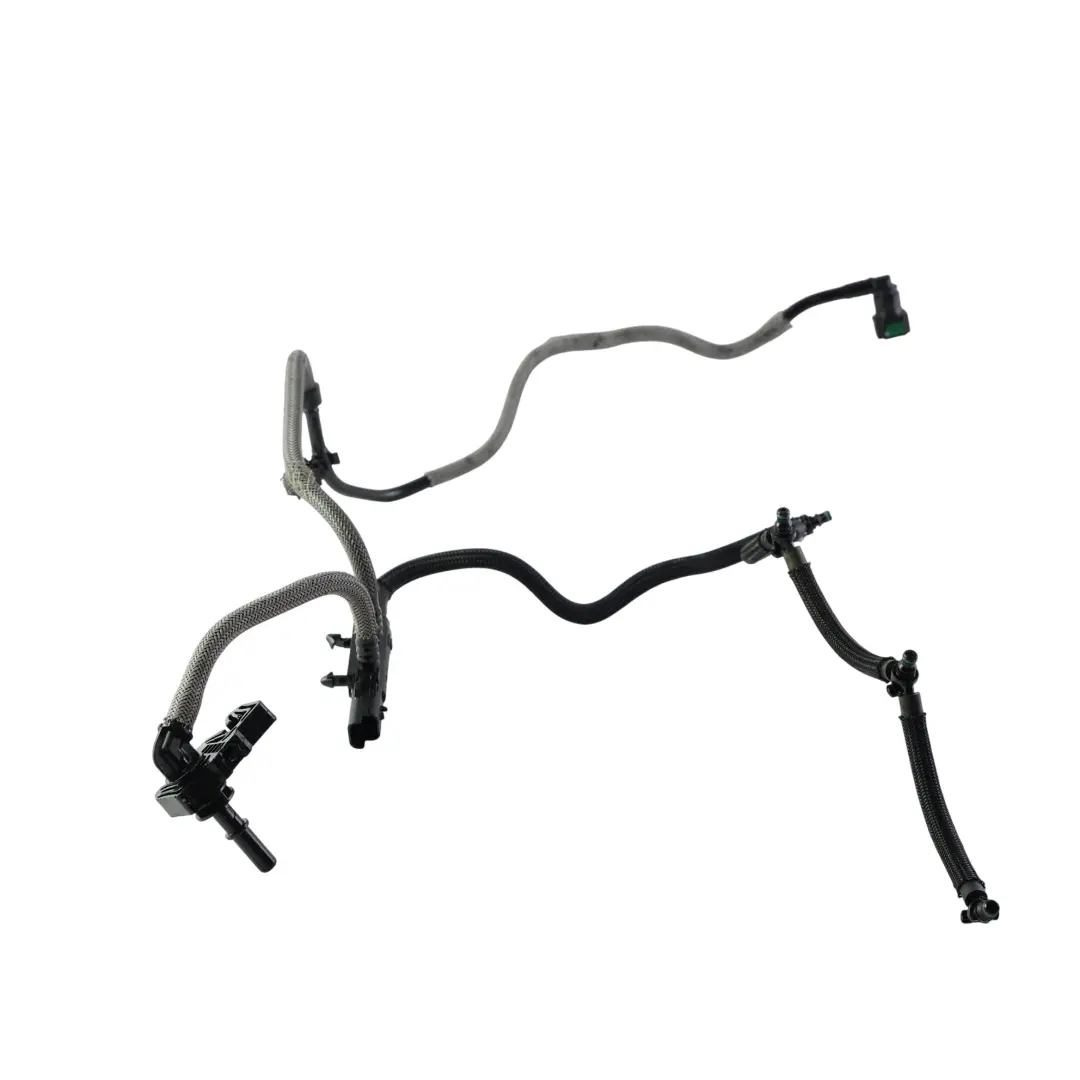

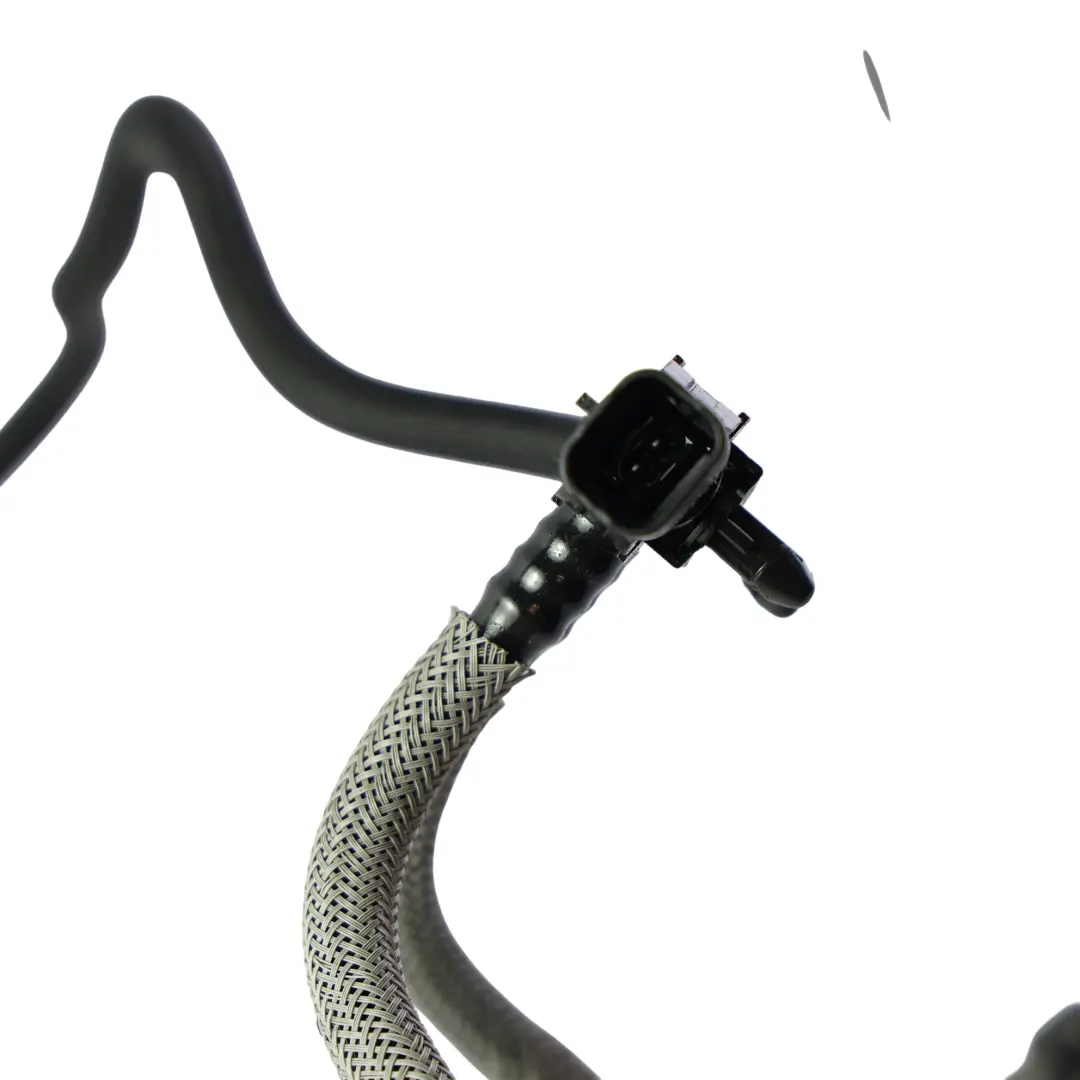

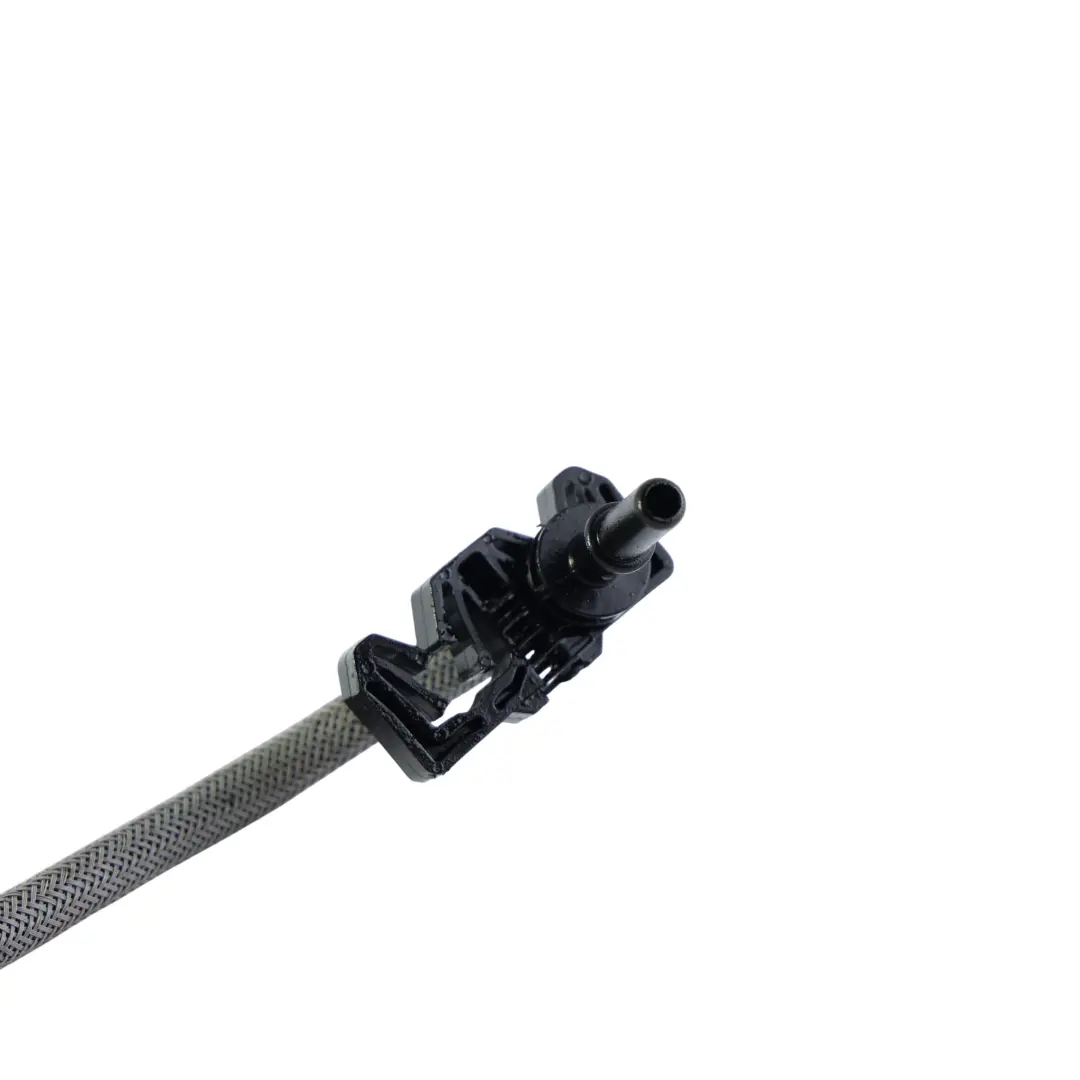

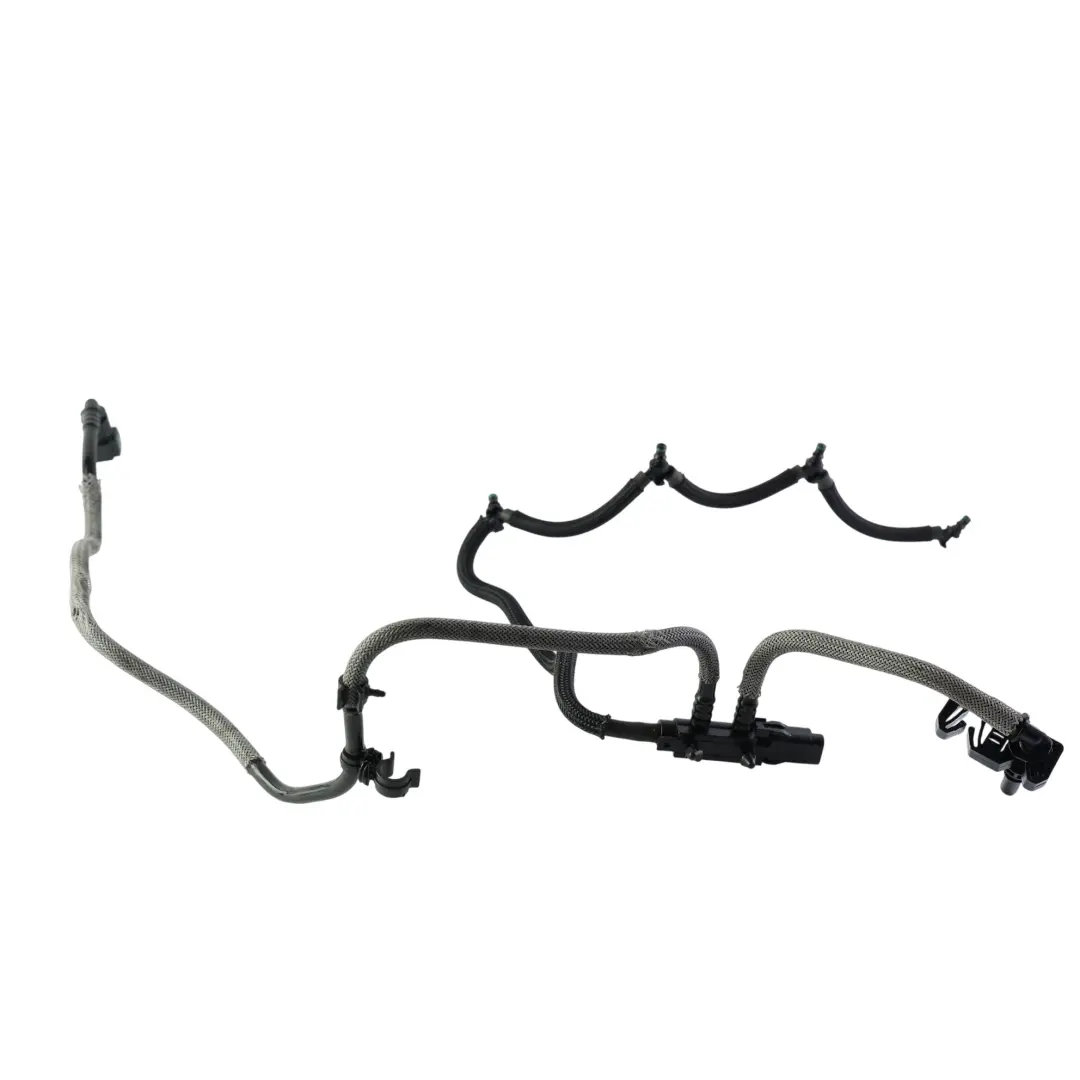

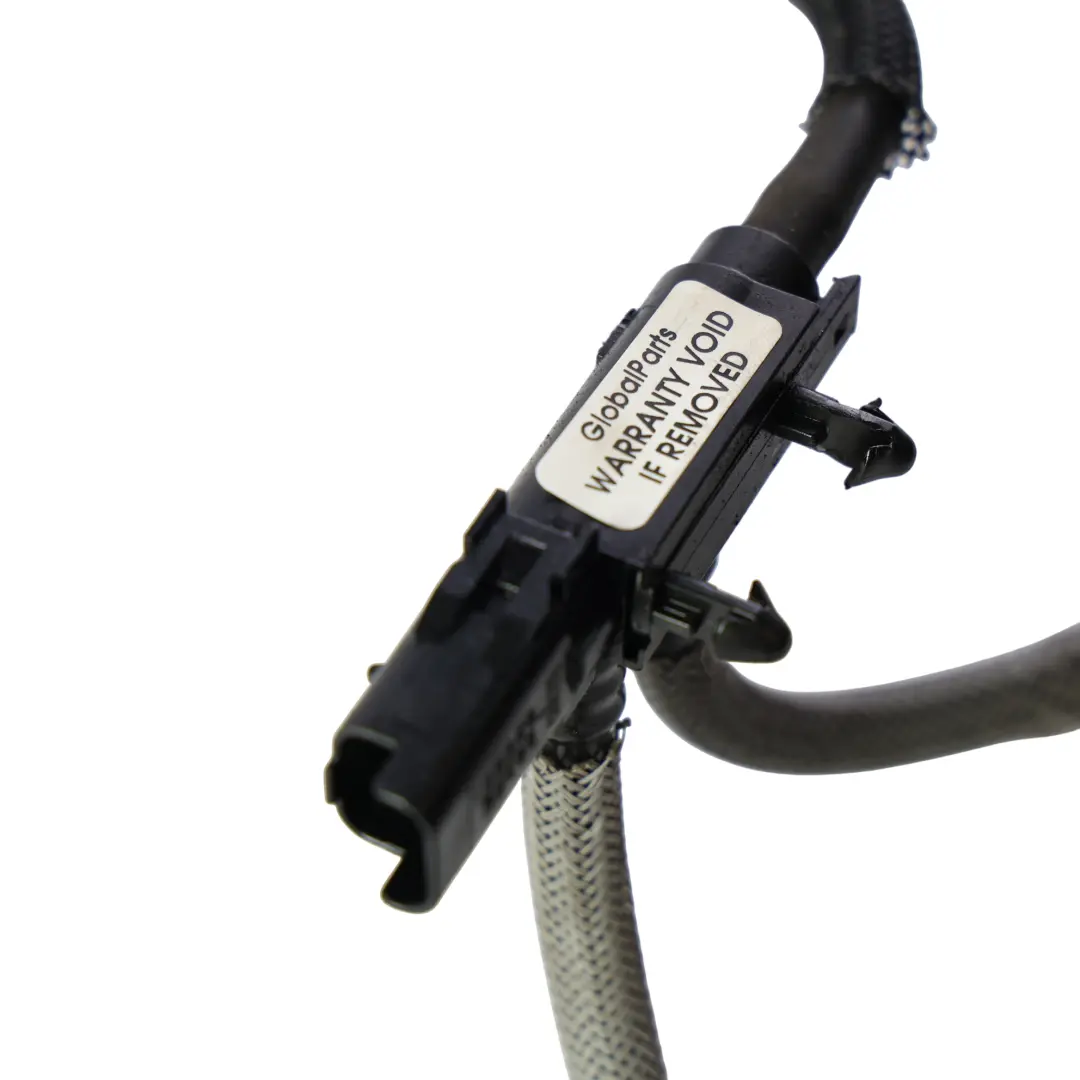

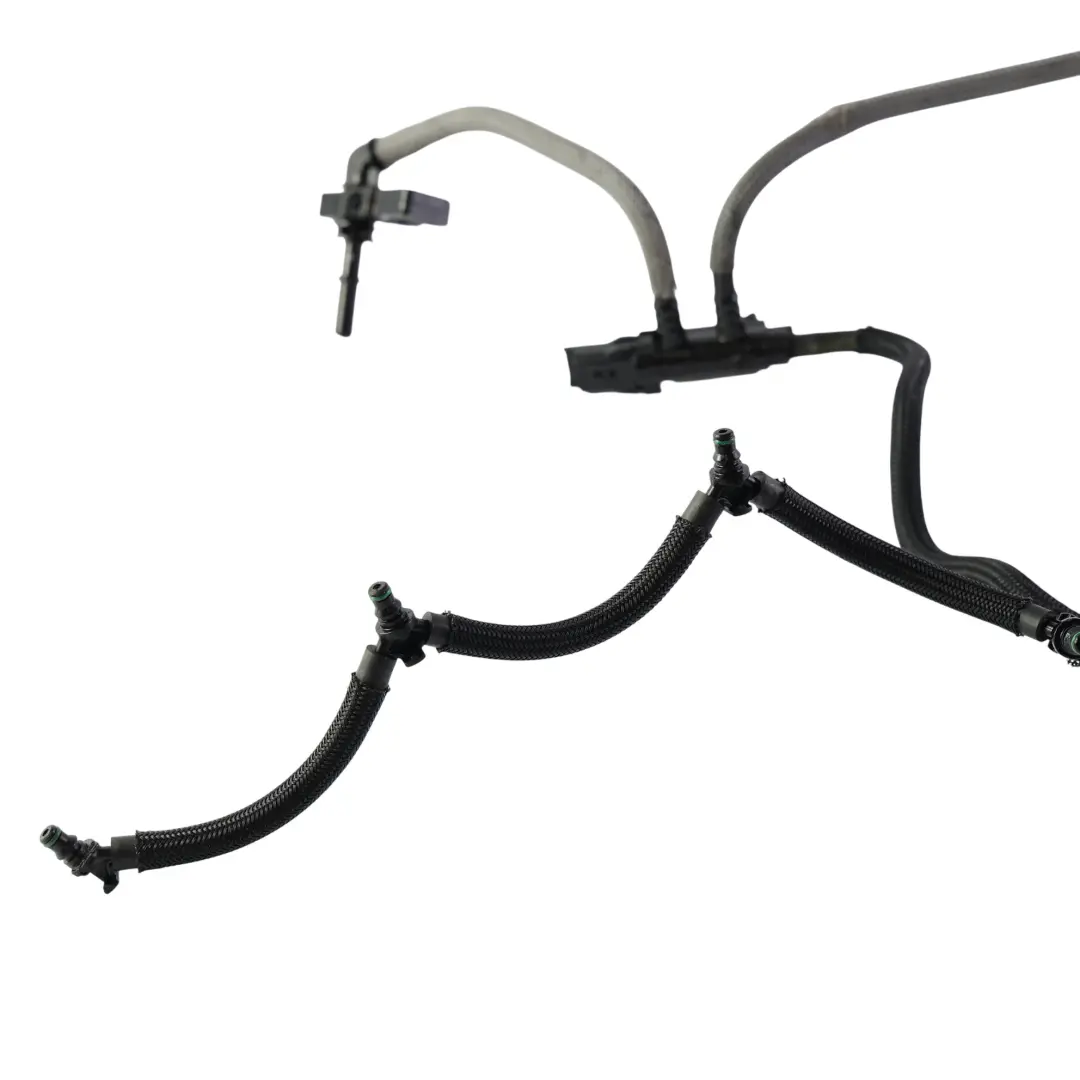

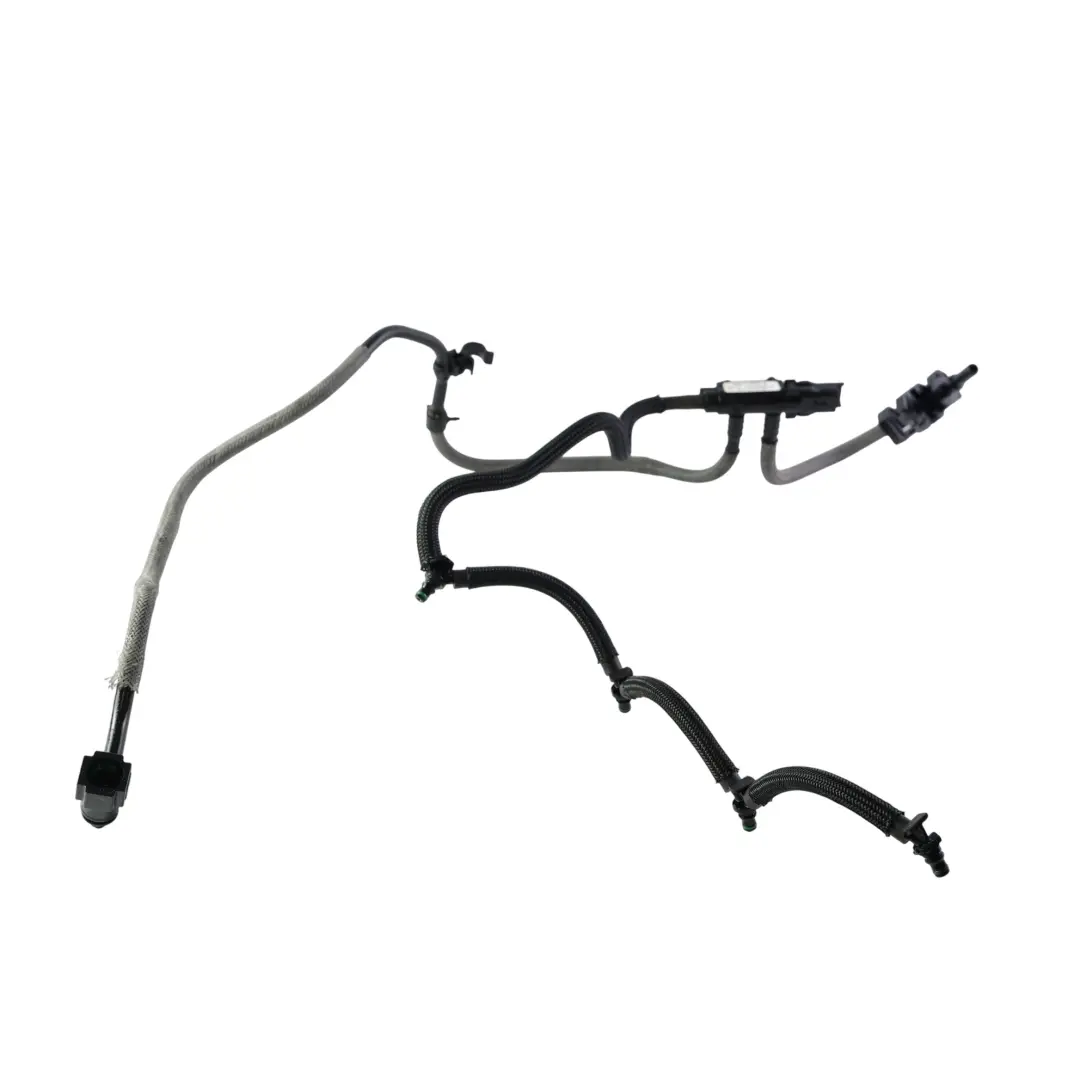

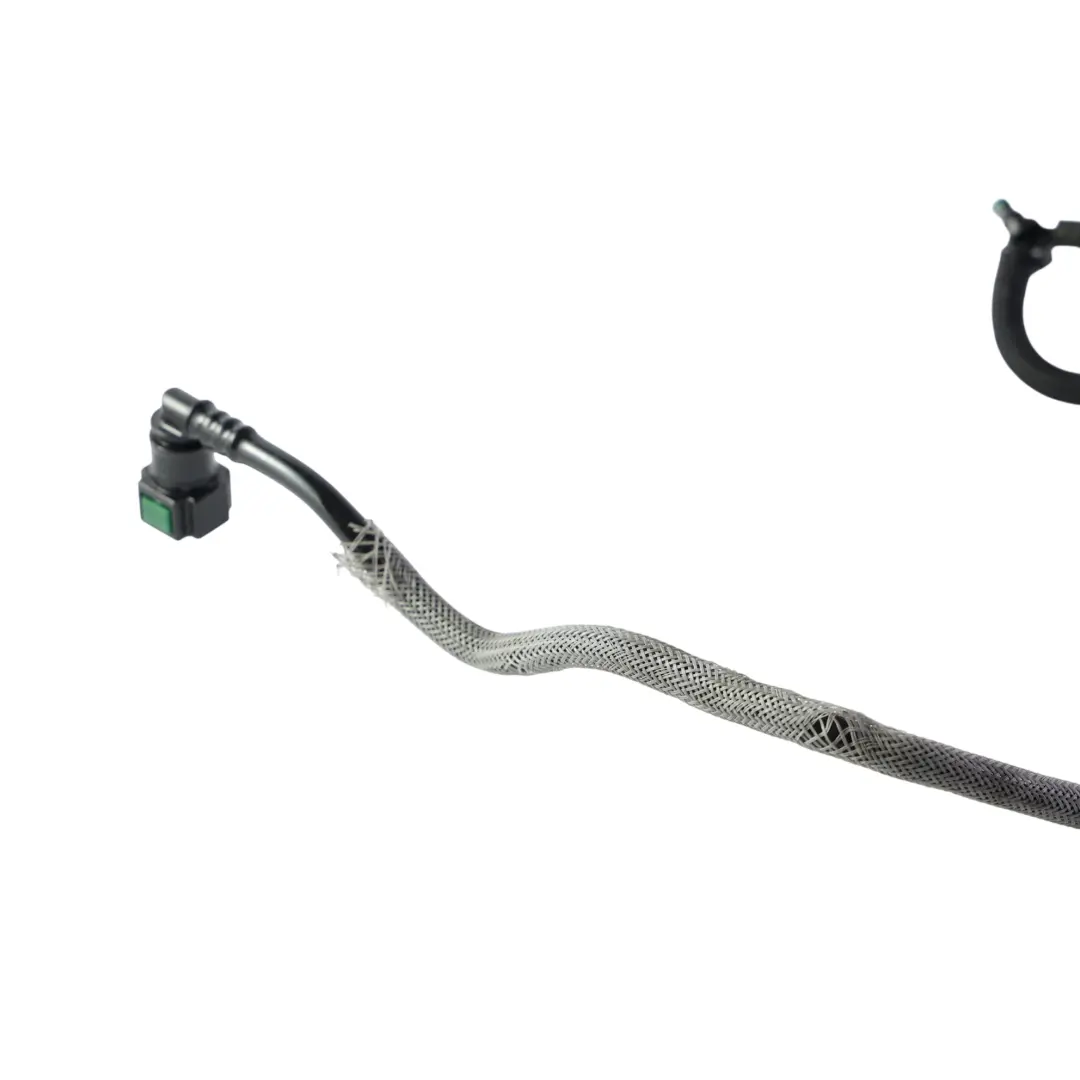

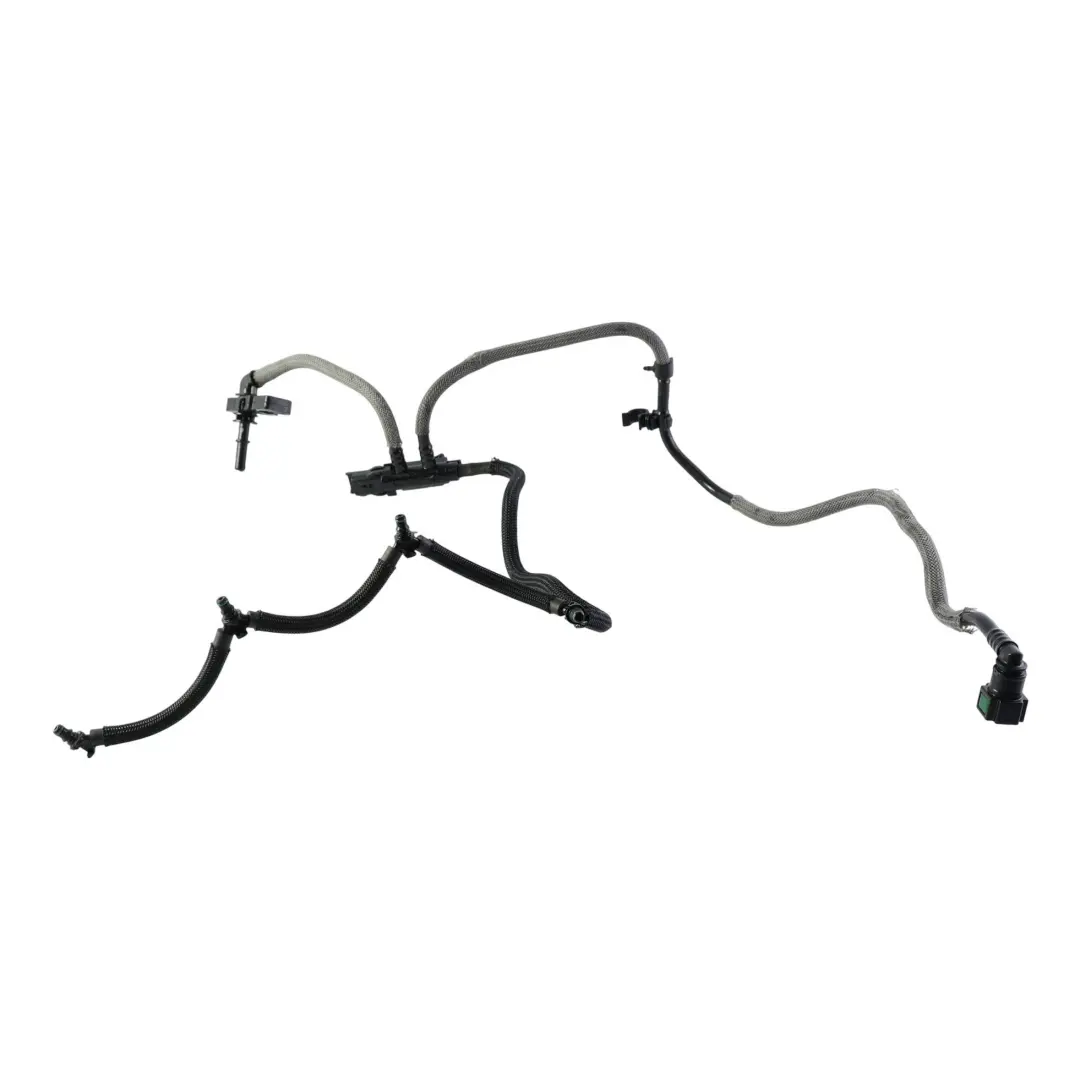

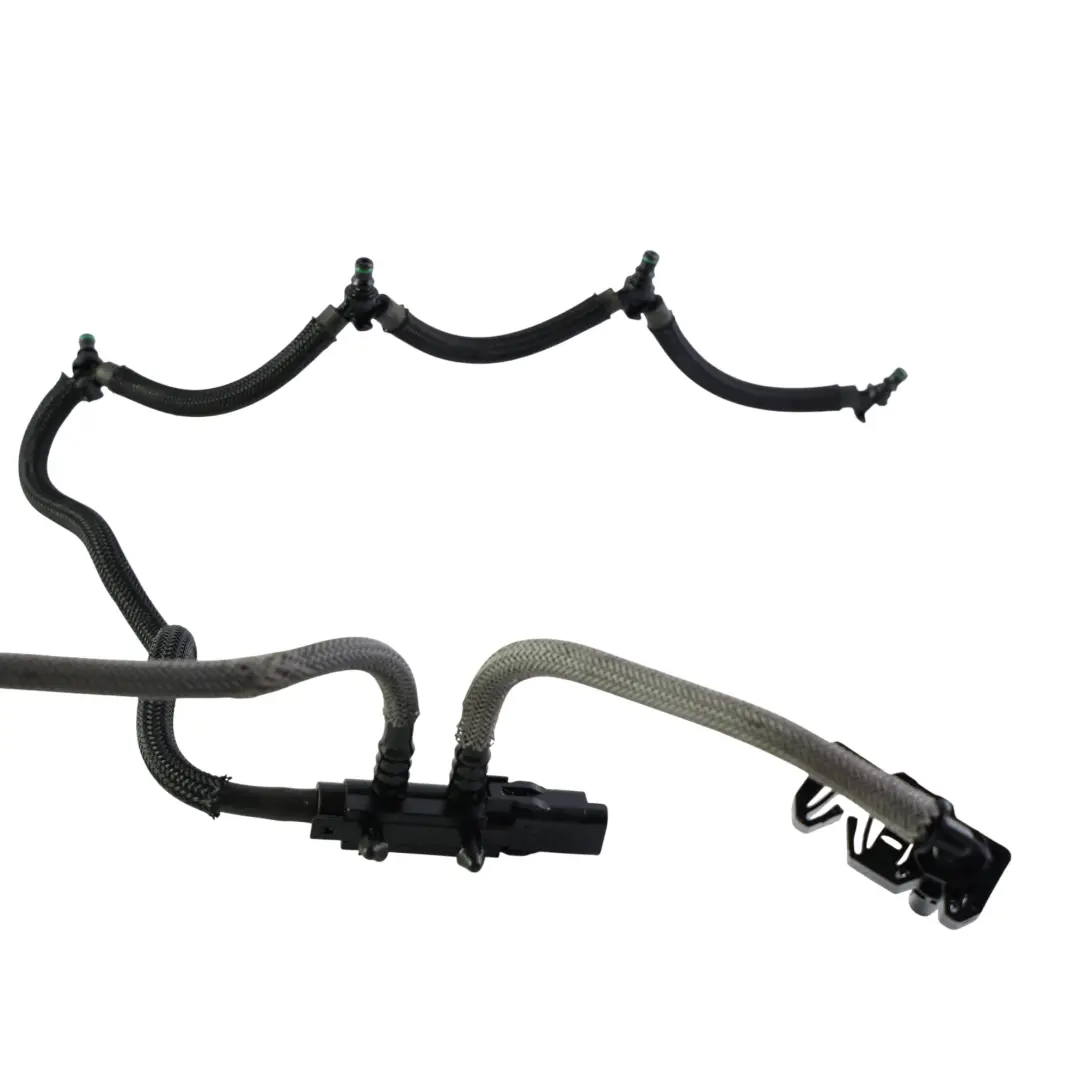

Ford Mondeo Mk4 Fuel Injection Bleed Line Pipe 2.0 TDCi 7G9Q-9B337-CB

Ford Mondeo Mk4 Fuel Injection Bleed Line Pipe is an original fuel system component designed for TDCi diesel engines in this model. It ensures controlled return of excess fuel from the injectors, which supports stable operation of the entire injection system and helps maintain consistent operating pressure. Thanks to its factory origin, the pipe is precisely matched to the geometry of the 2.0 TDCi unit, facilitating installation and reducing the risk of leaks.

Specifications and technical data

• SKU: 1497376
• Mark: Ford
• Condition: Used
• OEM Part Number: 1497376
• Substitutable numbers: 7G9Q-9B337-CB, 7G9Q9B337CB, 1497376
• Part type: Fuel Valve
• Category: Additional Fuel Injection Parts

The role of the bleed line in the injection system

The fuel bleed line in the 2.0 TDCi engine is responsible for draining excess fuel from the injectors to the return line, stabilizing the operation of the entire system. A properly functioning component:

• reduces the risk of injector overheating through constant fuel flow,
• supports the maintenance of proper pressure in the fuel rail,
• decreases the system's susceptibility to airlocks and power drops,
• helps maintain smooth operation of the diesel unit. For TDCi engines, where precision in fuel dosing is crucial, a functional bleed line is an essential element ensuring correct operating parameters and predictable responses to load.

Dedicated application for Ford Mondeo Mk4 2.0 TDCi

The offered pipe has been designed specifically for the injection system in the Ford Mondeo Mk4 with a 2.0 TDCi engine. This means compatibility with factory routing, correct segment lengths, and matched connectors for the injectors and fuel return. As a result, installation is straightforward, without the need for modifications or the use of additional adapters. The original design of the pipe helps limit the risk of micro-leaks, which in common rail systems can lead to starting problems, idle fluctuations, or fuel pressure-related errors. Precise fitment with engine accessories translates into stable operation under typical road conditions.

Characteristics of the used component

The fuel bleed line comes from dismantling, which allows for combining an attractive purchase cost with the preservation of the manufacturer's original specifications. The used component, sourced from a factory system, retains the correct geometry and type of connectors, while enabling an economical repair of the fuel system in the Ford Mondeo Mk4. Choosing such a solution is particularly beneficial when servicing older vehicles, where a reasonable balance between durability and cost is important. An original pipe from dismantling is an alternative to replacements with uncertain fitment, allowing for the maintenance of the integrity of the entire injection system.

Practical installation and maintenance tips

When replacing the fuel bleed line in a 2.0 TDCi unit, it is worth paying attention to a few technical aspects:

• thorough cleaning of injector seats and return ports before installation,
• checking the condition of seals on the pipe connectors,
• verifying that the pipe is not twisted or excessively stressed after installation,
• starting the engine and observing for any potential leaks around the injectors and the return rail. This approach allows for fully utilizing the component's potential and limiting the risk of needing to intervene in the fuel system again. A properly installed bleed line supports smooth engine operation and stable fuel pressure parameters.

Related Ford injection system components

If you are planning a comprehensive repair or upgrade of the injection system area in your Ford and need other components from the same group, such as return lines, small connectors, or additional fuel line sections, check the available parts in the Other Ford injection system parts category.

More on selecting fuel system components

When working with injection systems, it is worth paying attention to the condition of the entire fuel path – from the tank, through the pump, filter, and rail, to the bleed lines. Proper selection of components from dismantling and their verification before installation helps avoid costly failures. Additional practical tips regarding diagnostics and purchasing fuel system components can be found in the article: fuel dosing problems and choosing used injection system components. For users interested in general principles of safely selecting original used parts – including methods of verification by manufacturer markings and the practice of using components from dismantling – the following guide material may also be helpful: how original used parts affect the durability and precision of premium class cars.
