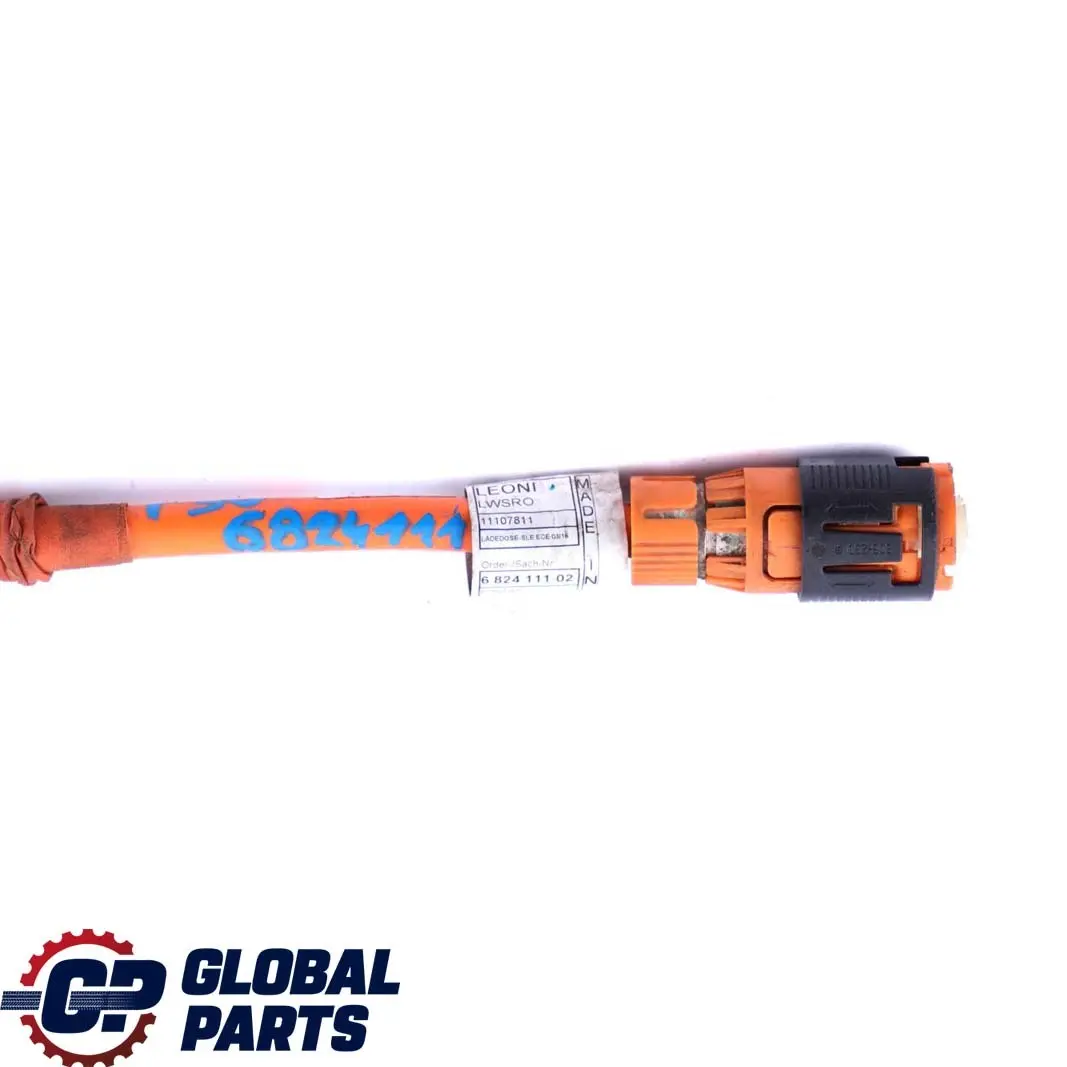

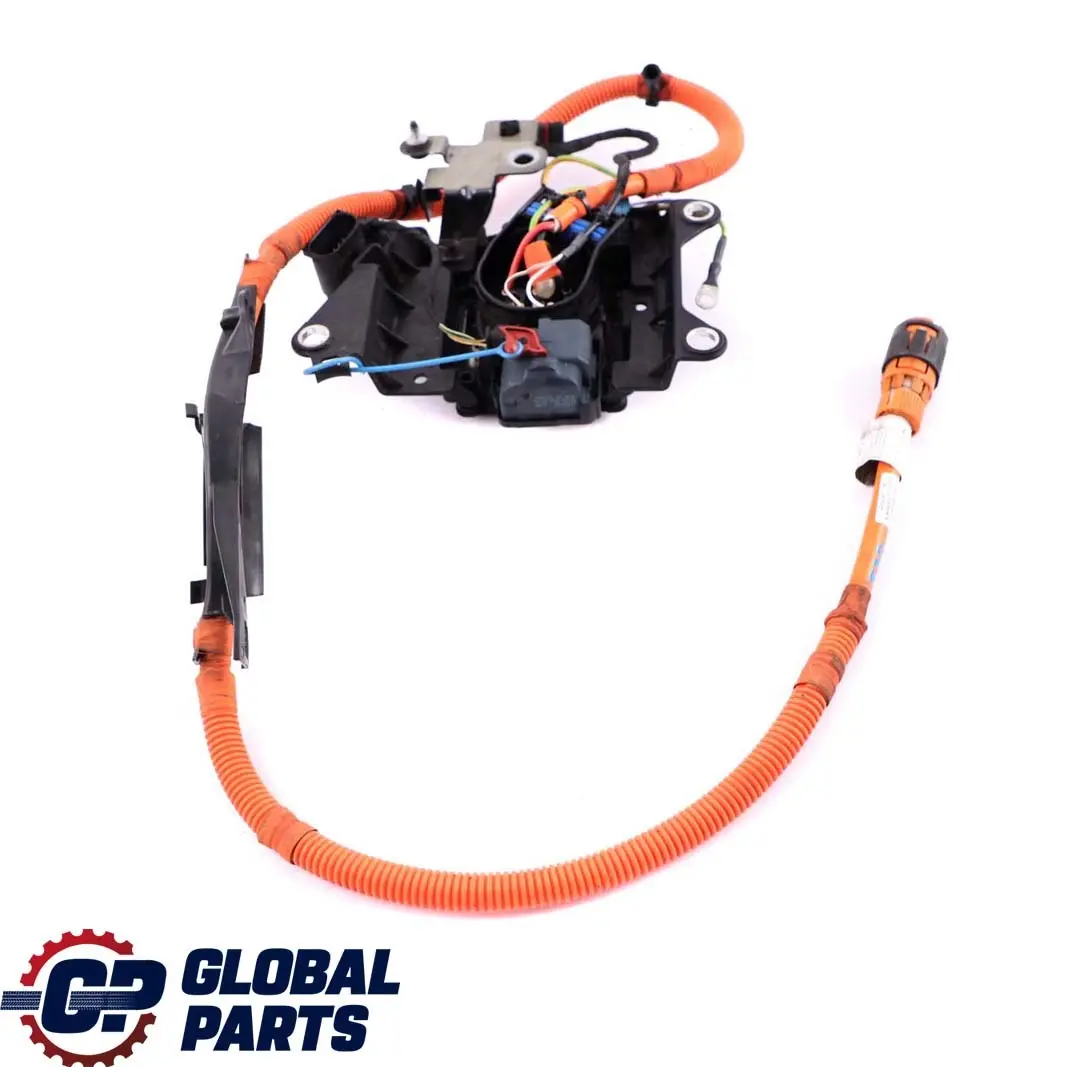

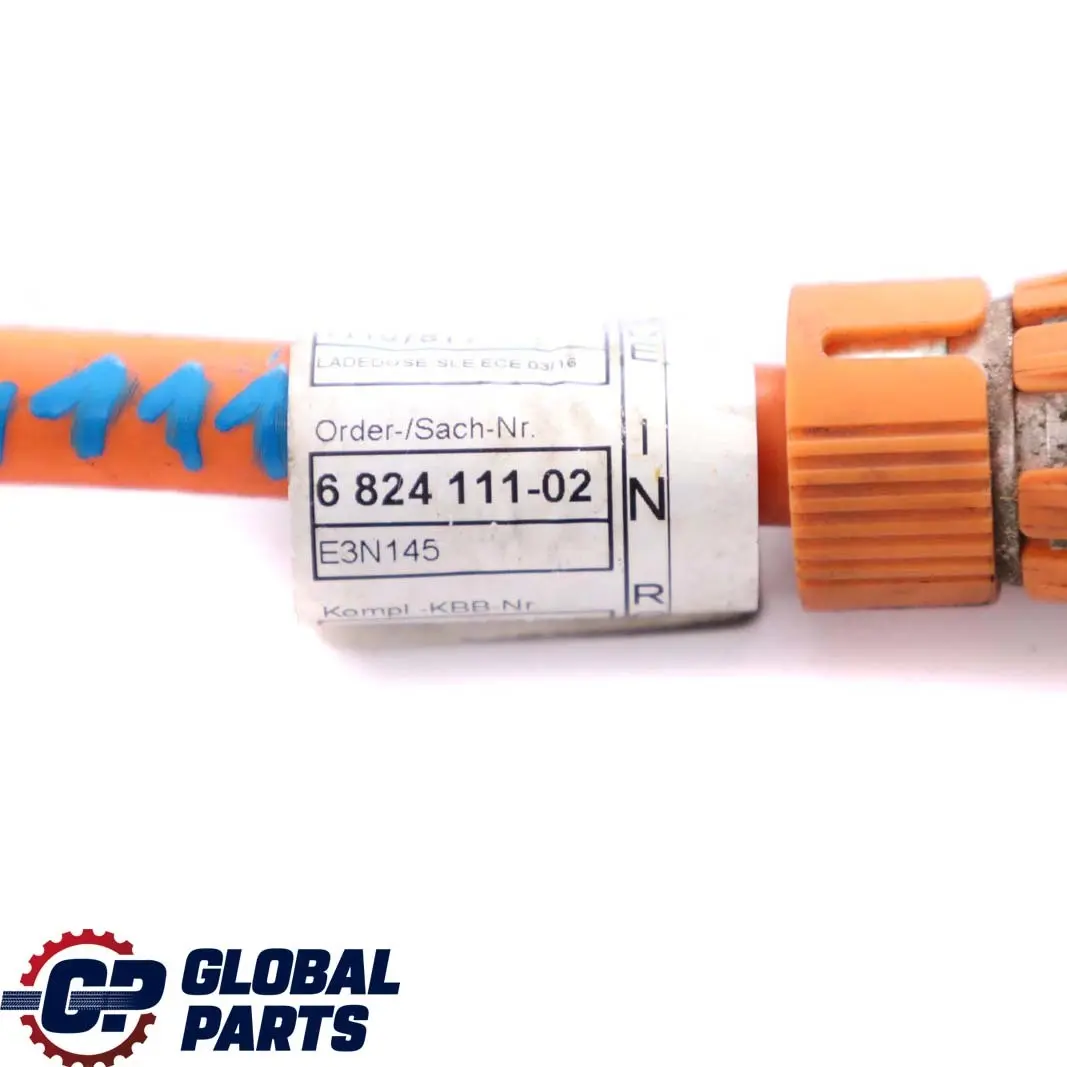

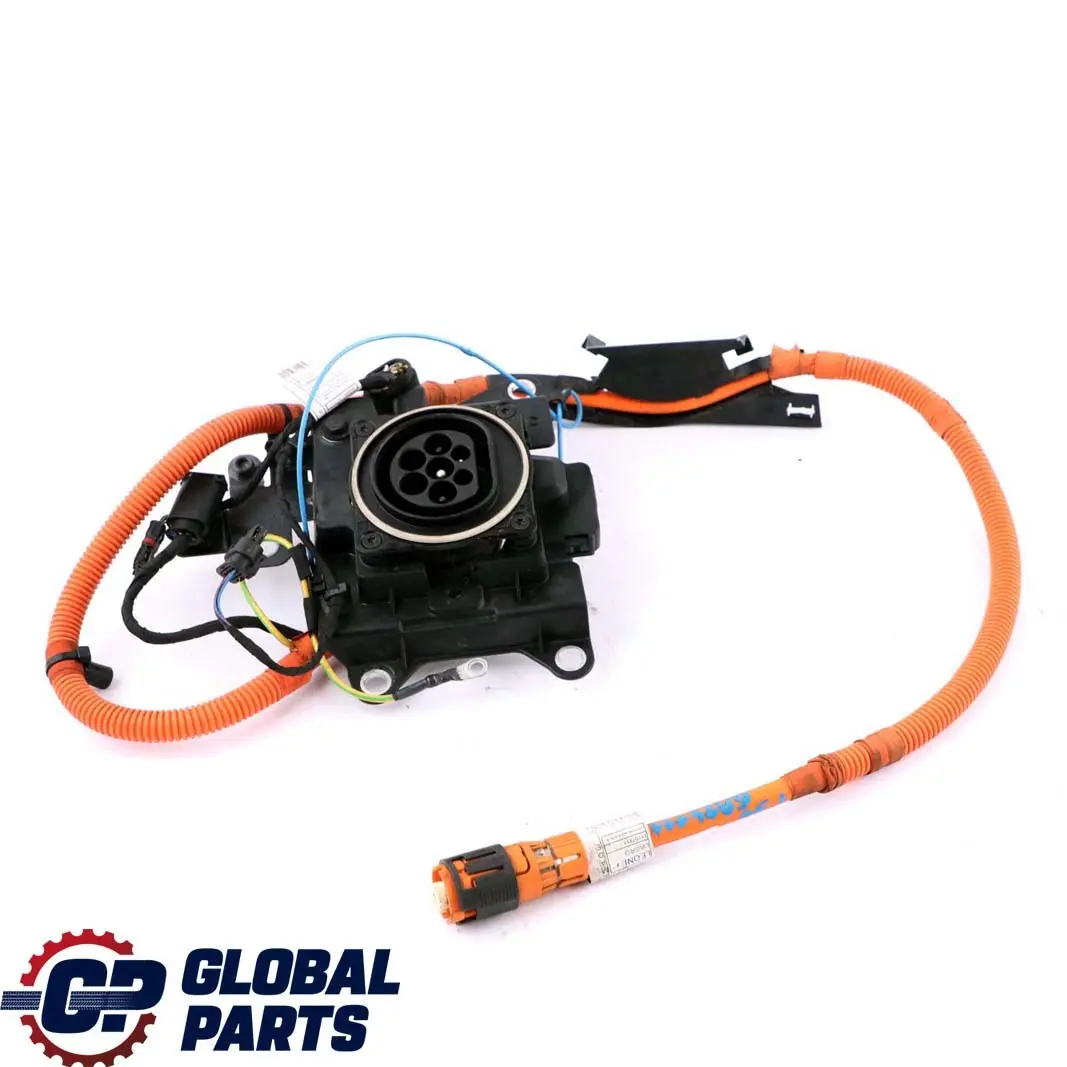

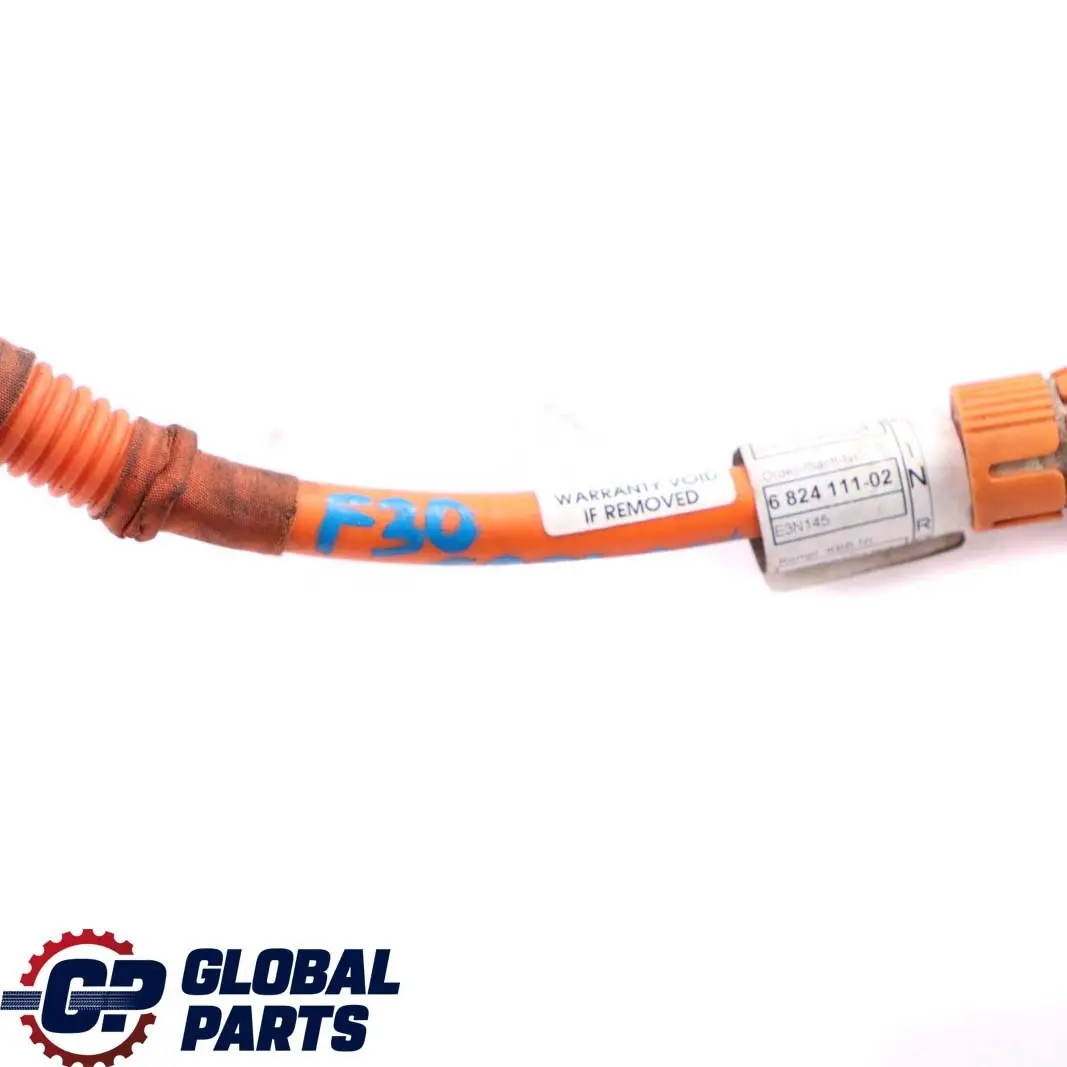

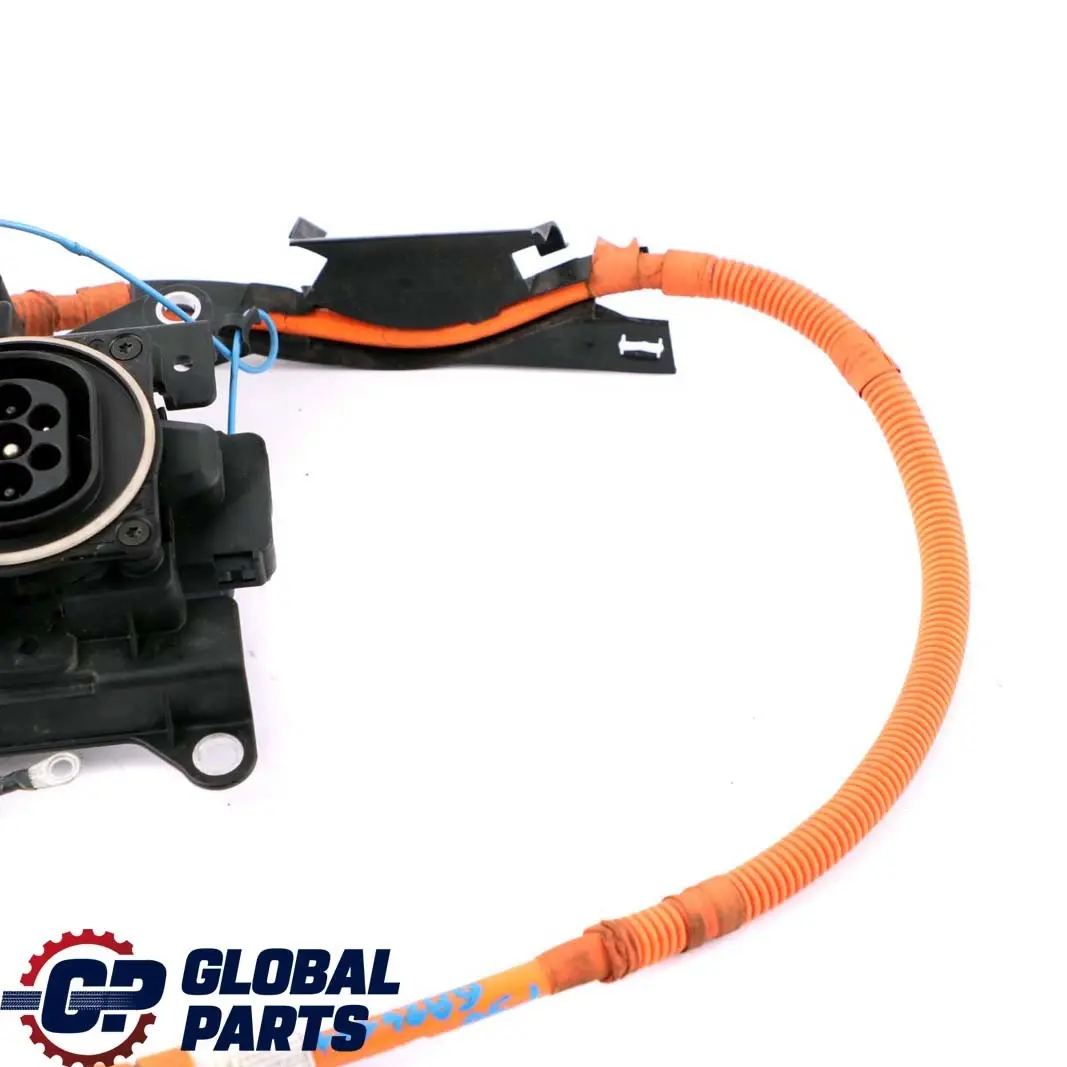

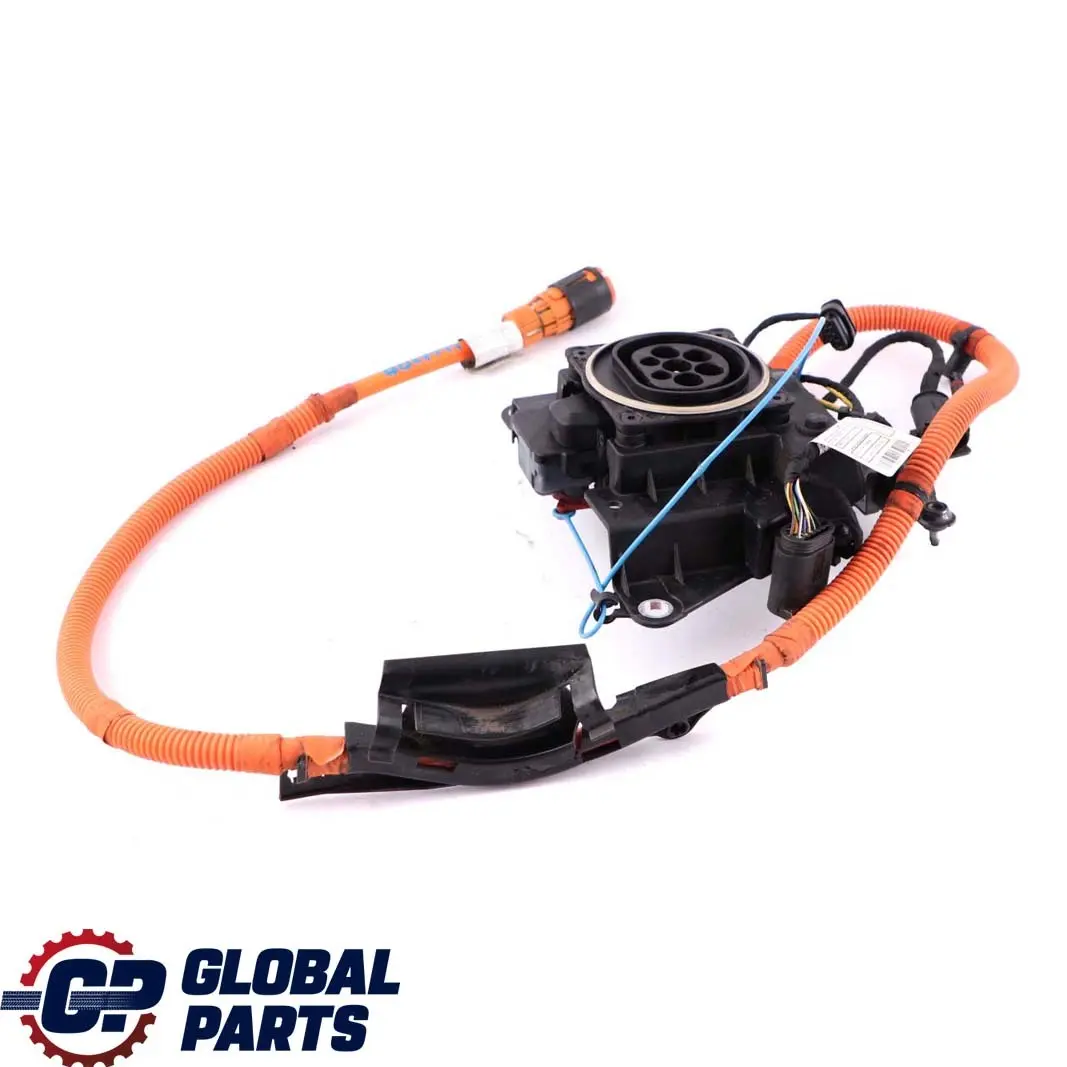

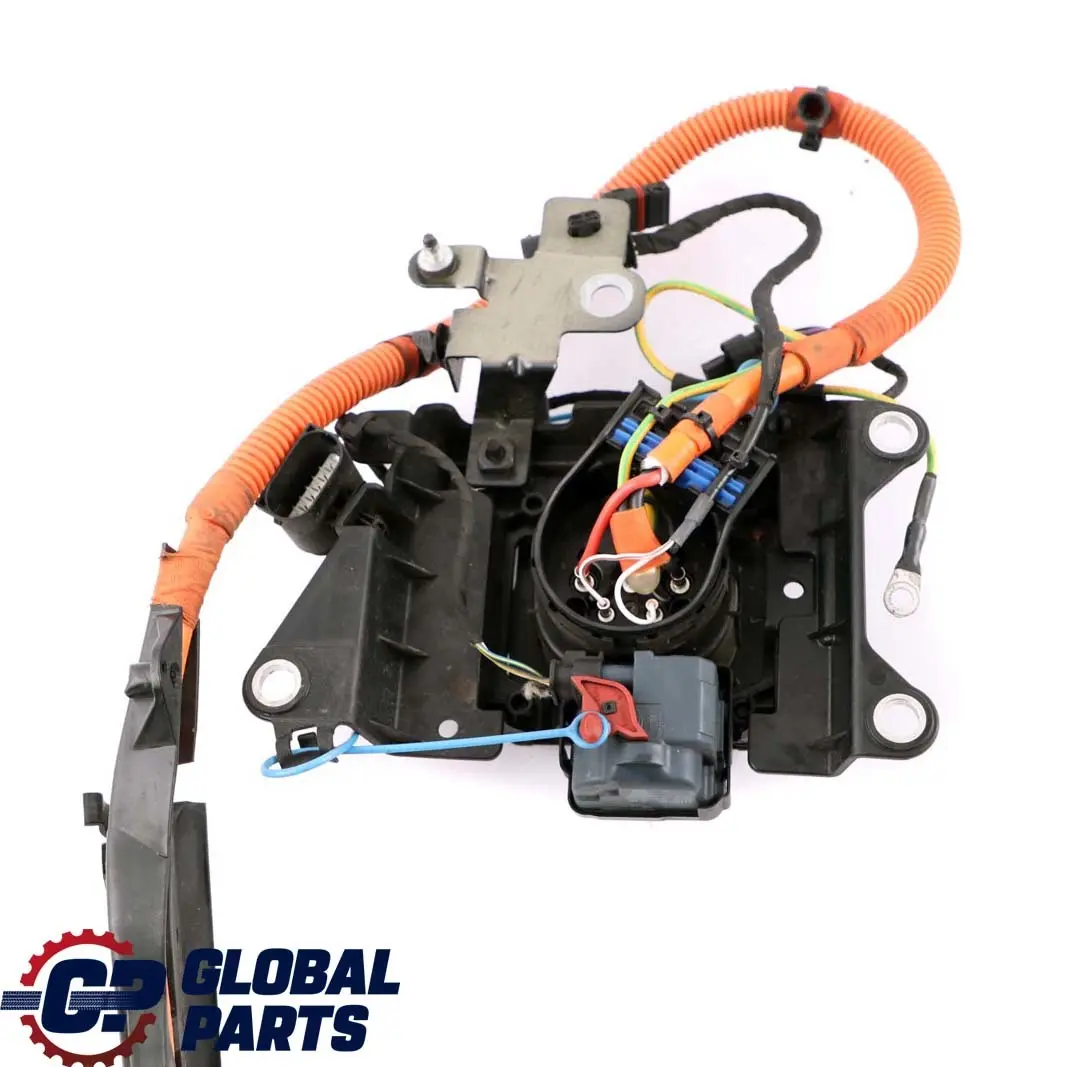

BMW F30 LCI 330e B48X High Voltage Charging Socket Port Cable Wiring 6824111

The BMW F30 LCI 330e B48X Hybrid Charging Socket Cable is an original part from the Charging Cables category, designed for the hybrid charging system in the facelifted BMW 3 Series model. It ensures a stable connection between the charging socket and the vehicle's electrical system, contributing to the safe and predictable operation of the entire high-voltage system.

Specifications and technical data

• SKU: 6824111
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6824111
• Substitutable numbers: 61126824111, 6824111
• Category: Charging Cables

Purpose and Role in the Charging System

The hybrid charging socket cable in the BMW F30 LCI 330e B48X is responsible for transferring energy from an external charger to the vehicle's onboard electrical system. It is a crucial component of the power supply path that must meet the following requirements:

• resistance to current loads typical for plug-in hybrid charging,
• stability of electrical connections under urban and highway operating conditions,
• safe interaction with the battery management system and control electronics.

Thanks to its factory-matched fit for the specific B48X drive version, the cable works seamlessly with the original charging socket and wiring harness, minimizing the risk of compatibility issues.

Construction and Fit for BMW F30 LCI 330e

The offered part has been specifically designed for the hybrid powertrain of the facelifted BMW 3 Series F30, specifically the 330e version. This means that:

• the cable's geometry is adapted to the factory routing within the F30 LCI body,
• the connectors used are compatible with the original charging socket and the vehicle's electrical system,
• compliance with factory mounting points and wiring harness routing is maintained.

This precise fit facilitates installation and preserves the manufacturer's original design concept, which is particularly important in the area of high-voltage systems.

Benefits of Using an Original Charging Cable

Using a charging socket cable dedicated to the BMW F30 LCI 330e B48X offers a number of practical benefits:

• Consistency with the Factory Electrical System – the cable is part of a system designed by BMW, promoting seamless integration with control electronics and safety systems.
• Reduced Risk of Charging Errors – proper shielding and connector design help maintain stable charging parameters and communication between the vehicle and the charger.
• Professional Installation Fit – no need for electrical system modifications, cutting, or adaptations, which is especially important for high-voltage systems.

This solution is recommended for both accident repairs and for resolving issues related to charging interruptions or hybrid system error messages.

Condition, Verification, and Service Application

The item is a used part and is classified as a used charging cable, making it an attractive cost-effective alternative to a new OEM component. This type of part is particularly suitable for:

• operational repairs after mechanical damage to the cable or connectors,
• servicing fleet vehicles where cost optimization is key while maintaining compliance with factory specifications,
• restoring full charging system functionality after bodywork and painting interventions in the vicinity of the socket.

For workshops specializing in BMW plug-in hybrids, this is a practical component that allows for efficient restoration of charging system functionality without the need for aftermarket solutions.
