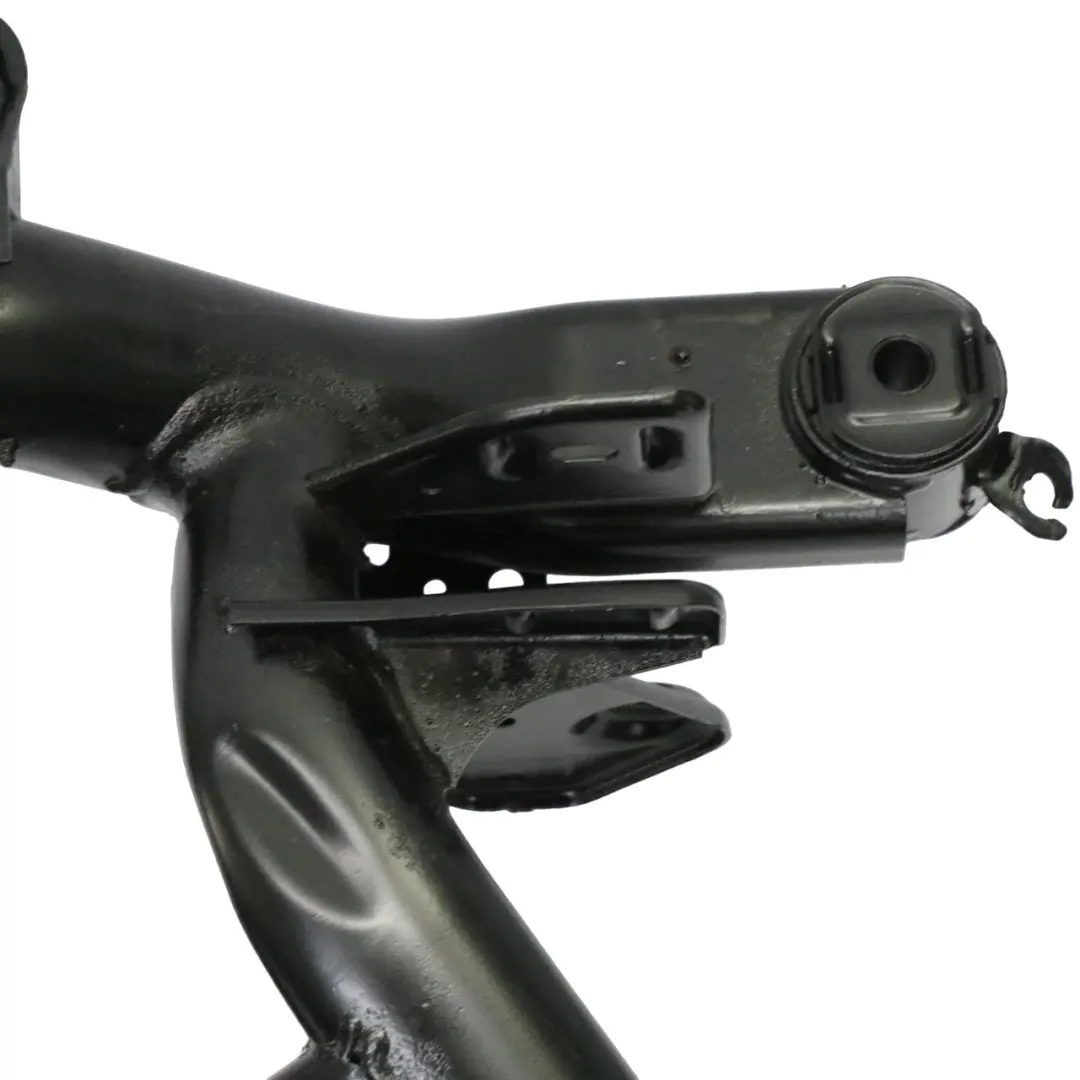

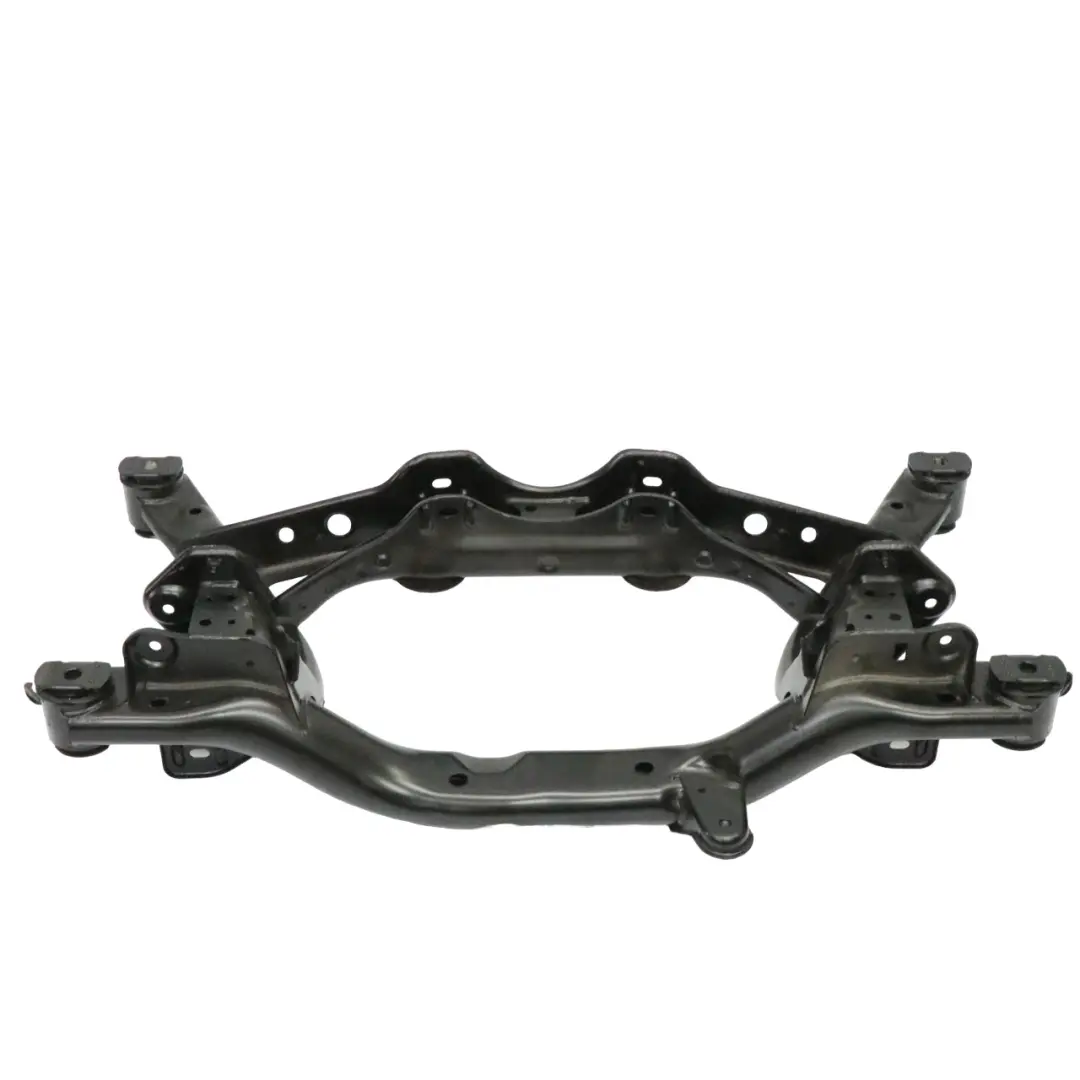

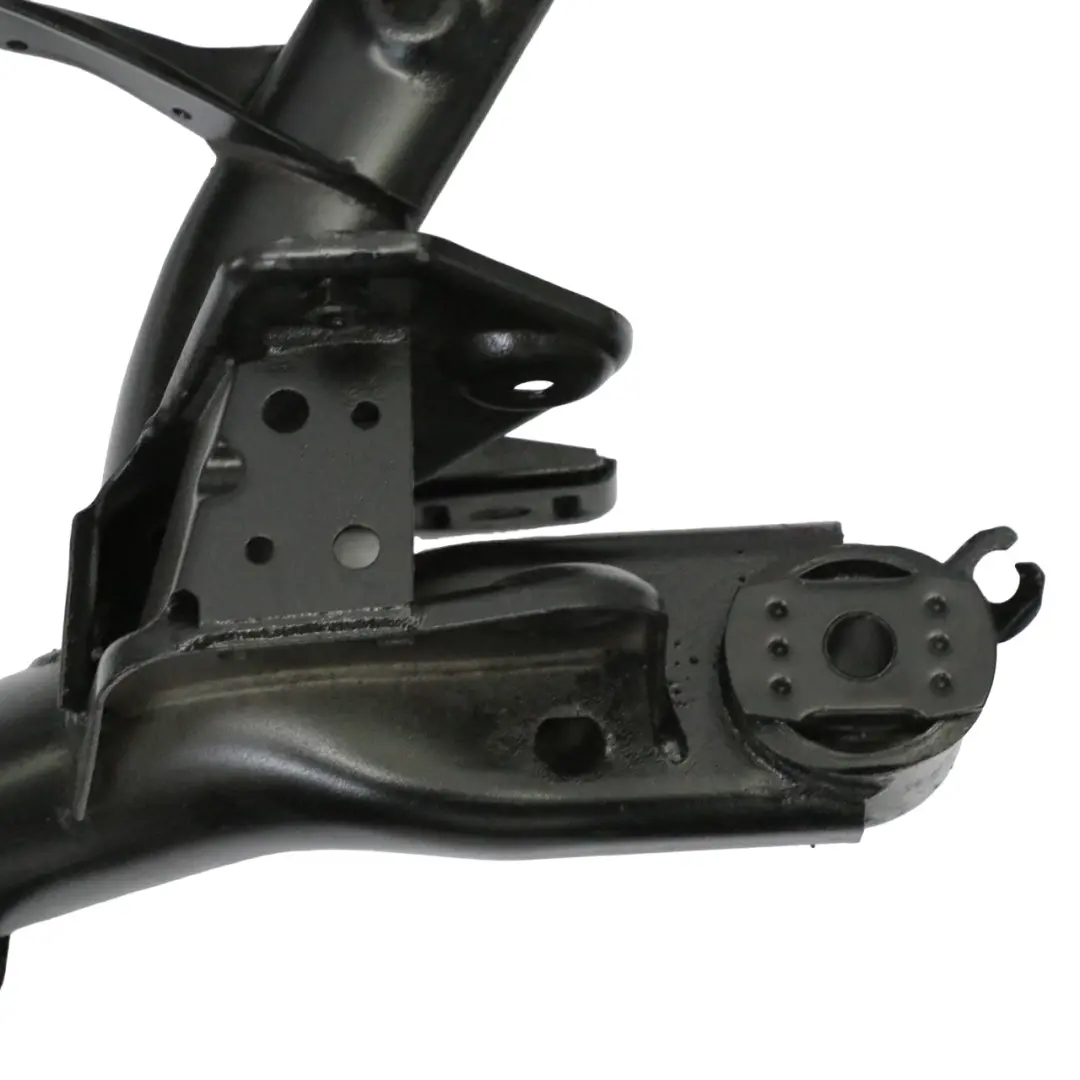

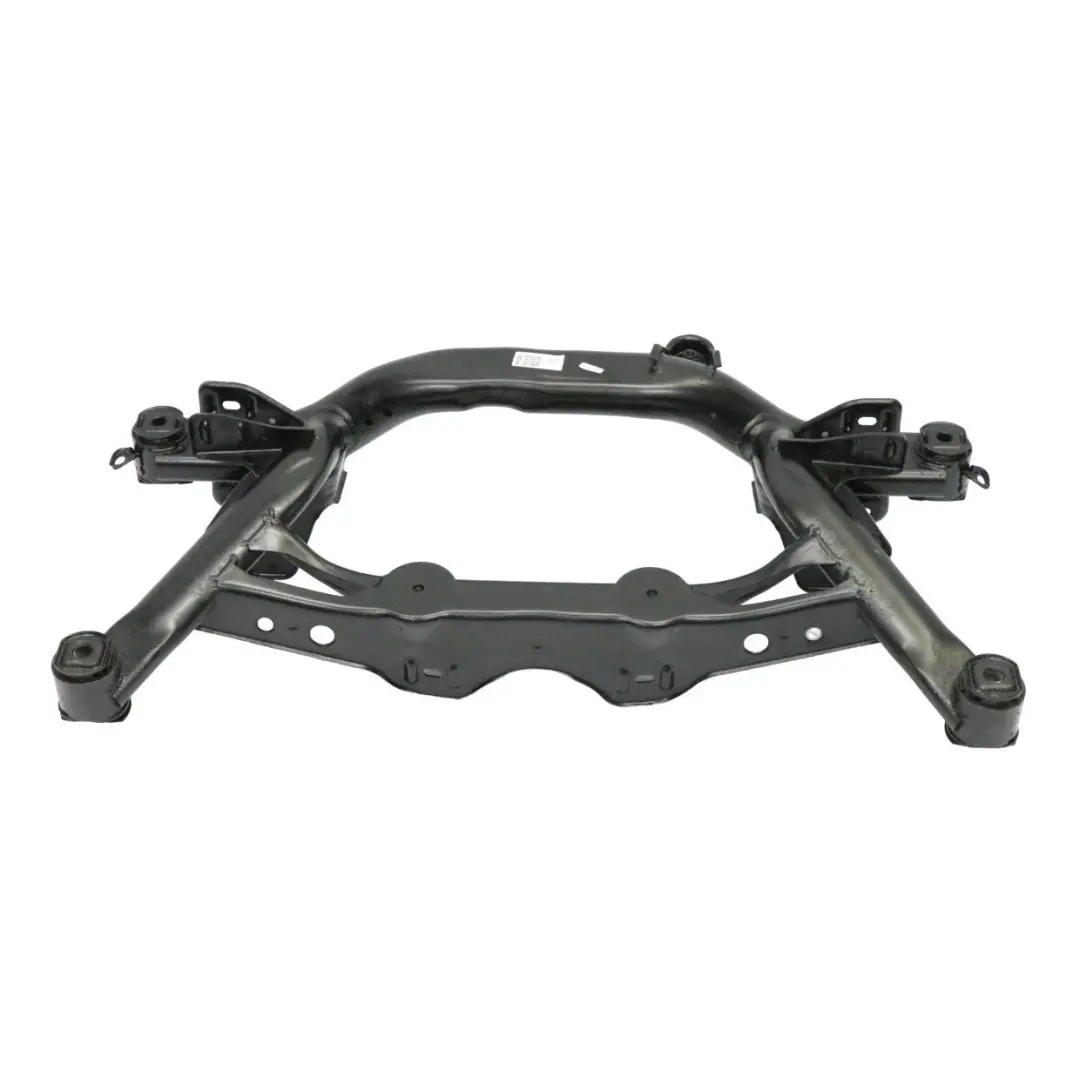

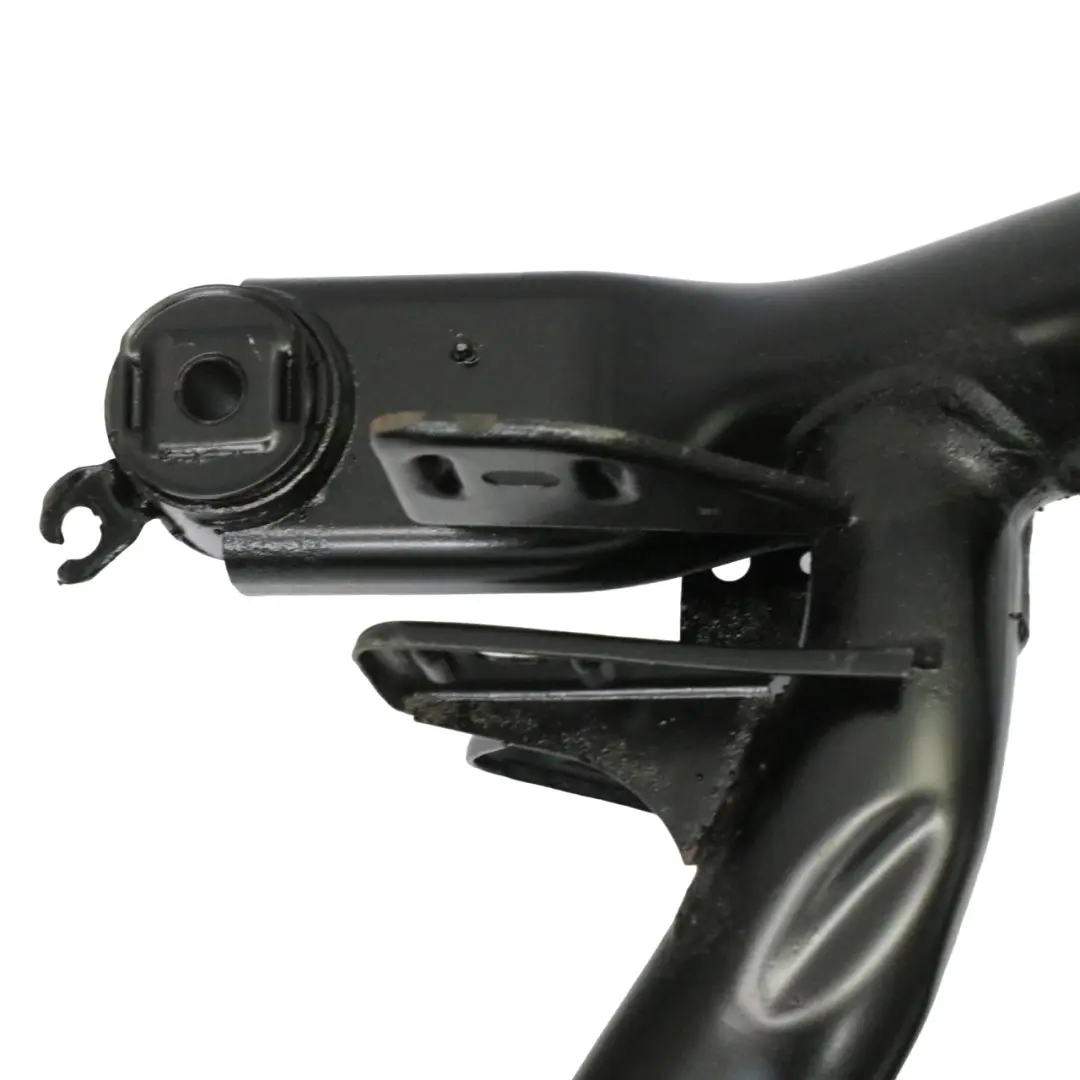

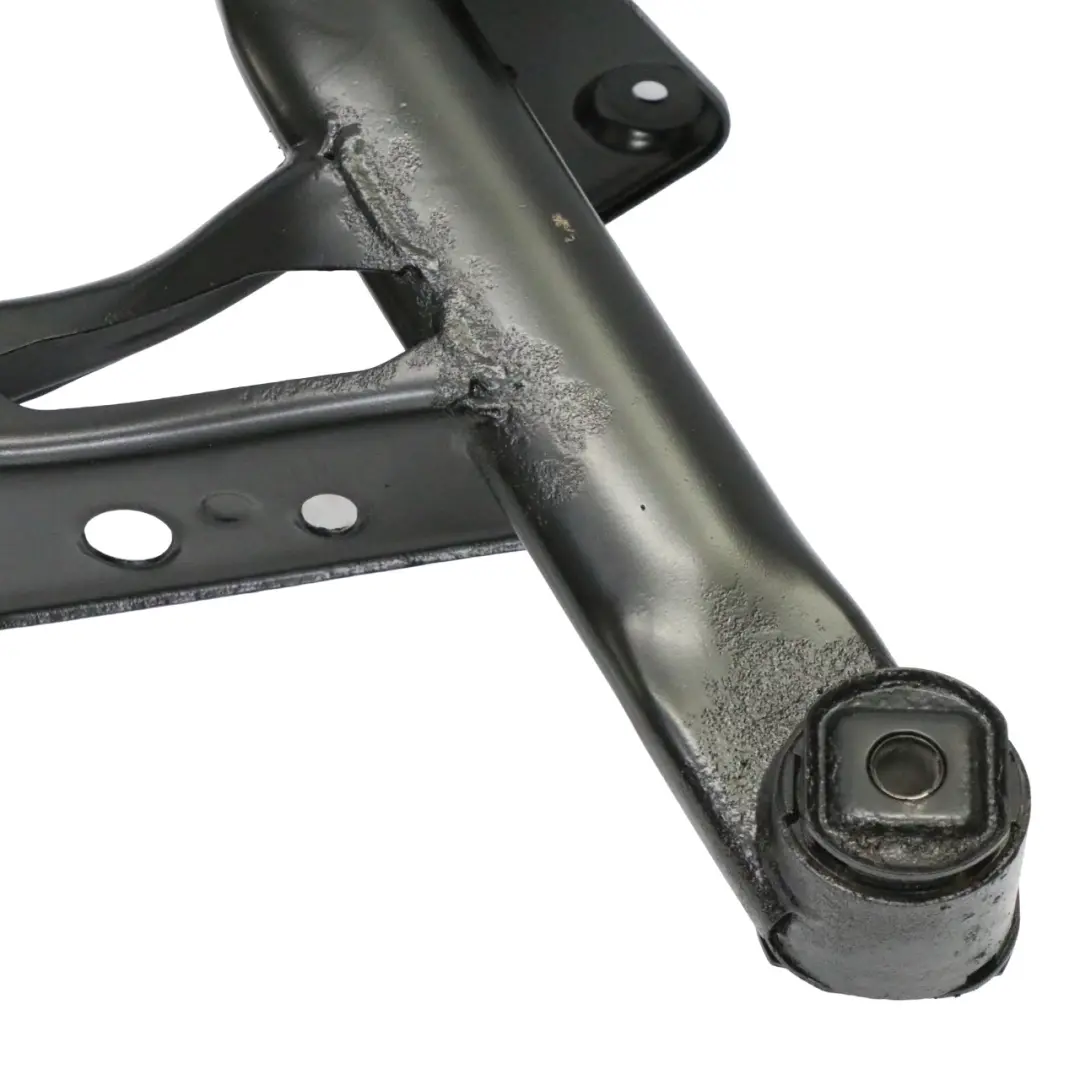

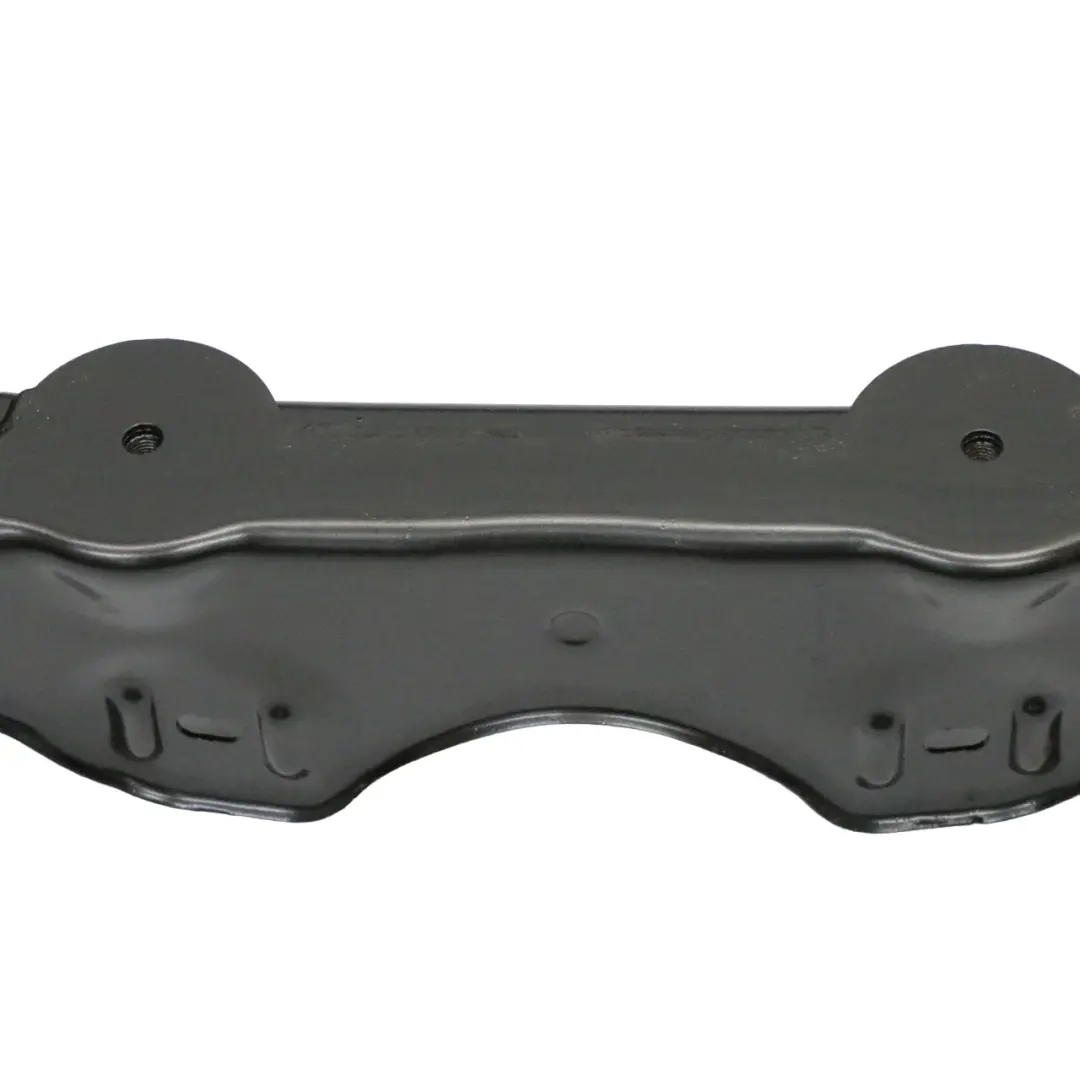

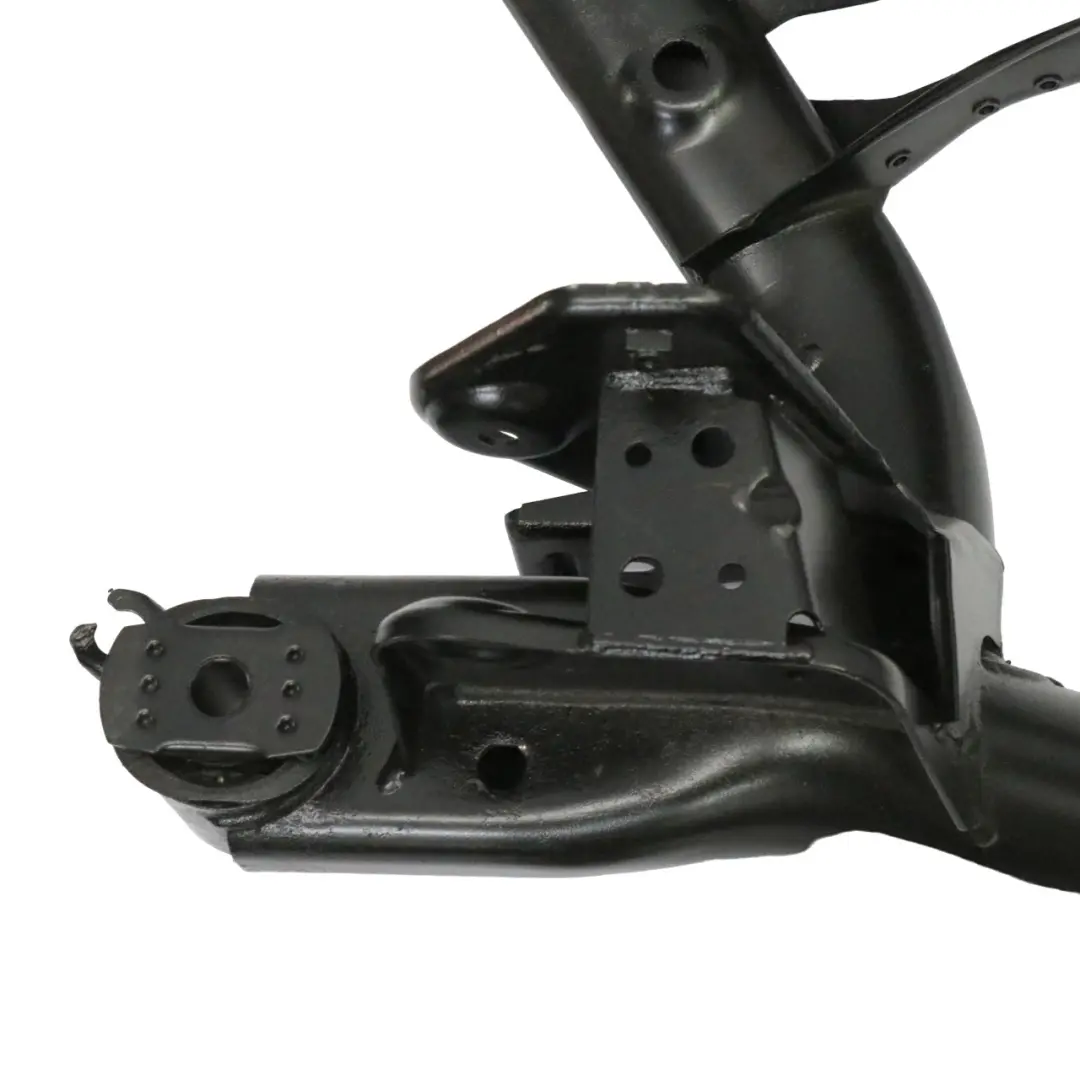

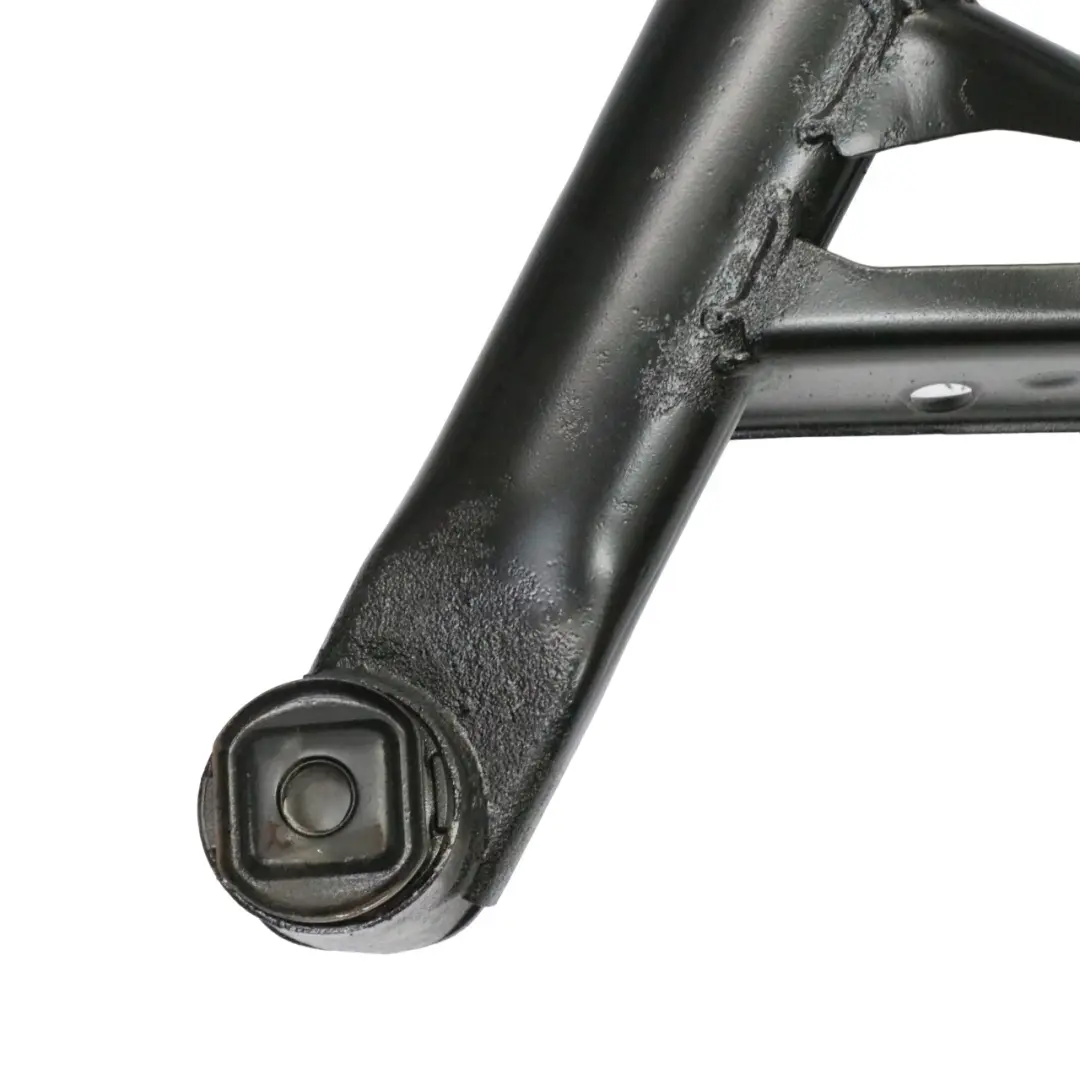

VW Volkswagen Tiguan 5N Rear Axle Suspension Cradle Subframe Carrier 5N0505235L

The VW Volkswagen Tiguan 5N Rear Subframe Cradle Carrier is a structural component of the rear suspension, belonging to the category of longitudinal body frame parts and brackets. Designed by Volkswagen for stable handling and proper load transfer, it forms a solid base for the other components of the rear suspension in the Tiguan 5N.

Specifications and technical data

• SKU: 5N0505235L
• Mark: Volkswagen
• Condition: Used

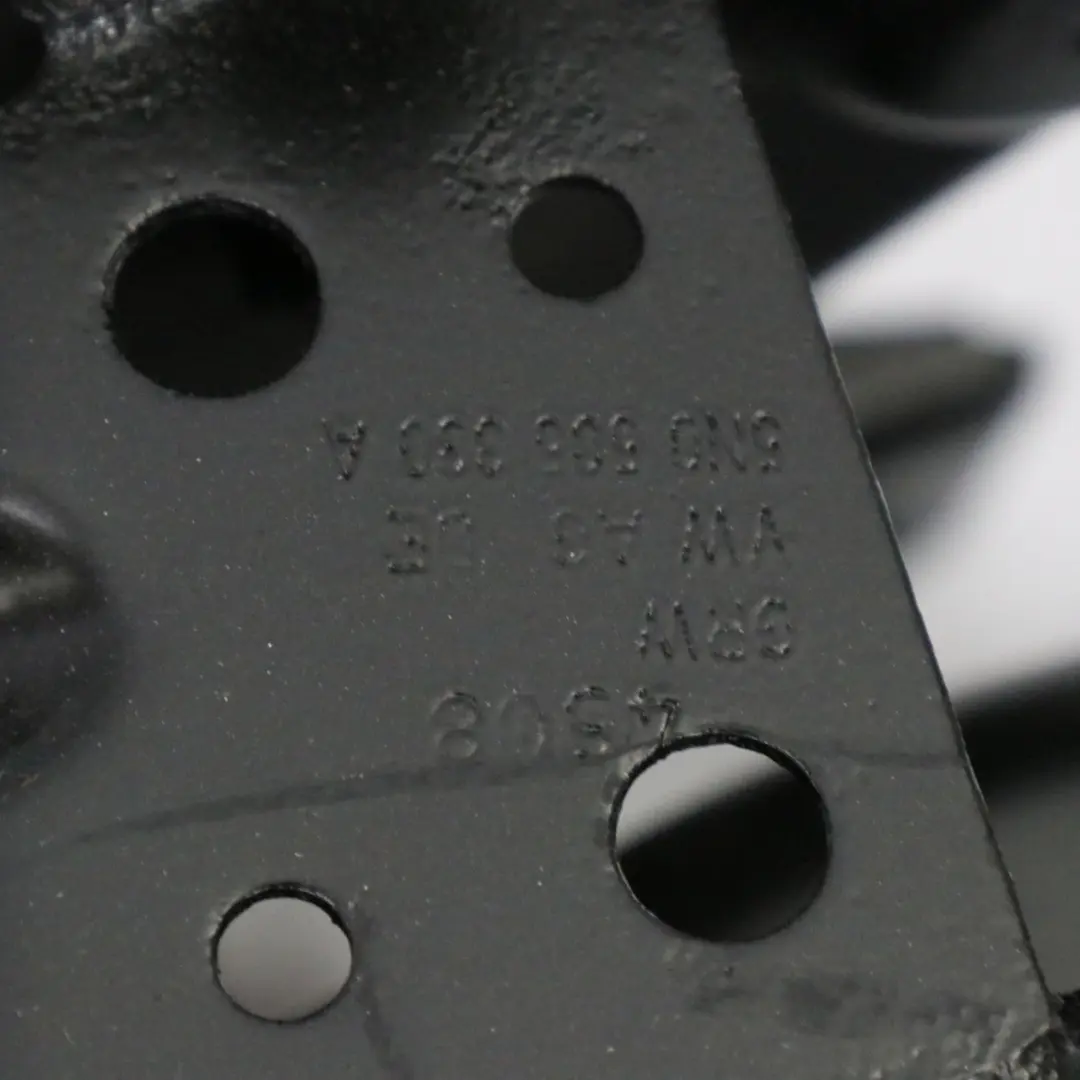

• OEM Part Number: 5N0505235L
• Substitutable numbers: 5N0505235L, 5N0 505 235 L
• Location on the vehicle: Rear
• Category: Frame Rails & Subframes

Purpose and Function in the Vehicle

The described rear subframe serves as a load-bearing bracket for suspension elements and partially for the drivetrain in the rear of the body. As a part mounted in the rear of the vehicle, it is responsible for:

• stable mounting of control arms, bushings, and other rear suspension components,
• transferring forces acting on the body during driving, braking, and encountering uneven surfaces,
• maintaining the geometry of the rear axle within the manufacturer's specifications,
• limiting deformation of the structure in the suspension mounting area.

Thanks to its appropriately selected rigidity and geometry, the subframe helps maintain predictable handling of the Tiguan 5N in corners and during load changes.

Construction and Technical Features

The subframe belongs to the group of longitudinal body frame parts and brackets, meaning it is an integral part of the load-bearing structure in the rear of the vehicle. The construction was developed by the Volkswagen brand with consideration for:

• precise mounting points for the suspension and associated elements,
• appropriate torsional rigidity, allowing for control of suspension operation,
• dimensional compatibility with the Tiguan 5N body,
• maintaining factory reference points for setting toe and camber angles.

A part designed in this way enables proper transfer of loads from the wheels to the body, which translates to stable driving and driving comfort.

Benefits of Using an Original Rear Subframe

Choosing an original component from the Volkswagen group allows for driving parameters close to factory specifications. Key advantages include:

• factory fit to the Tiguan 5N's structure, without the need for modifications to mounting points,
• consistency with the body design, which facilitates maintaining correct rear axle geometry,
• appropriate structural rigidity, supporting the operation of shock absorbers and springs,
• the ability to restore original driving characteristics after a collision or corrosion of the previous component.

By using an original subframe, you minimize the risk of issues with toe alignment, uneven tire wear, or unwanted noises from the rear suspension.

Condition, Installation, and Part Selection

The offered element is a used part, which in practice means a favorable compromise between cost and maintaining the original Volkswagen construction. Before installation, standard workshop verification is recommended regarding straightness, mounting points, and any signs of previous repairs.

When selecting a rear subframe for a specific Tiguan 5N model, it is advisable to base your choice on the vehicle's identification data and part numbers. This will ensure full dimensional compatibility and avoid problems with installation or suspension geometry.
