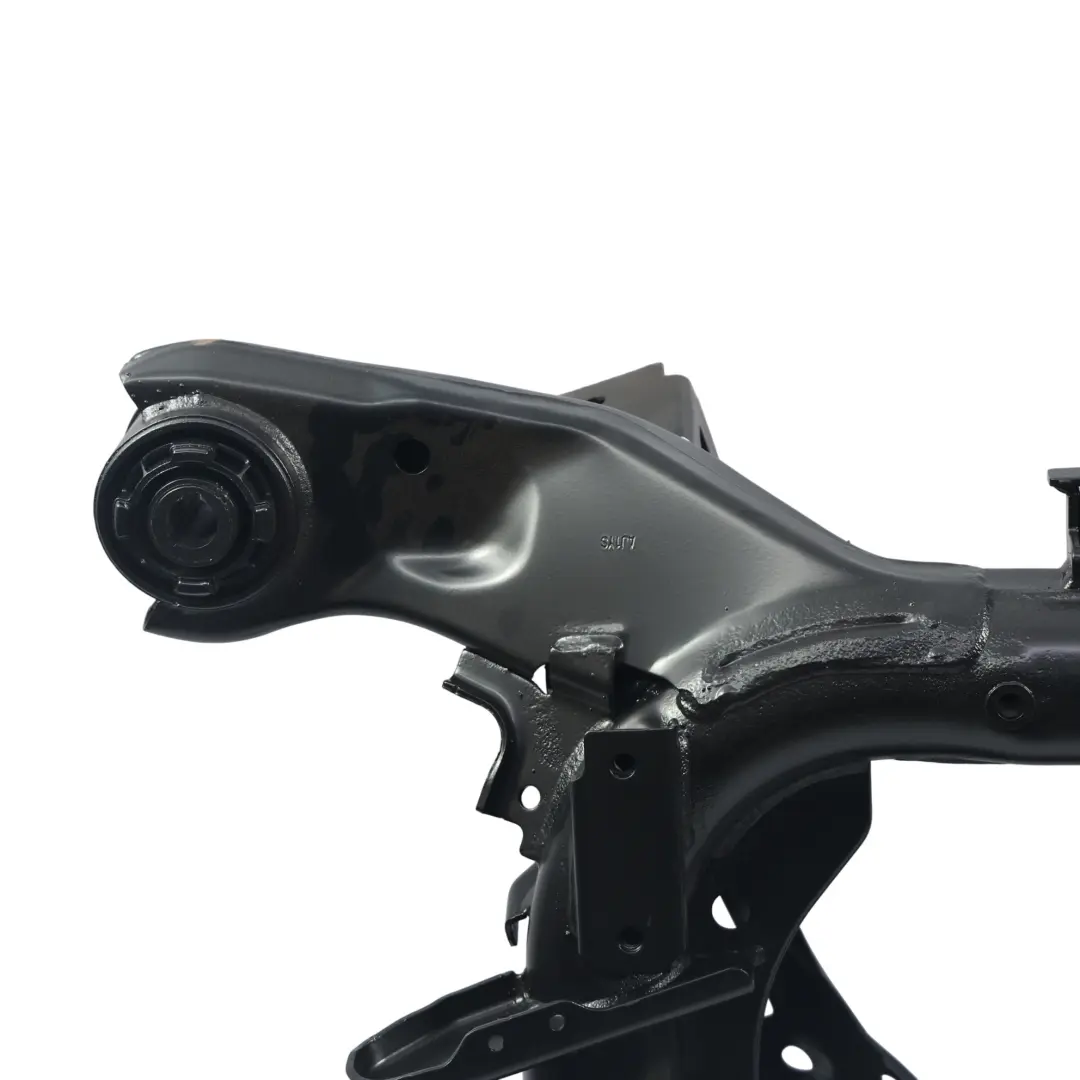

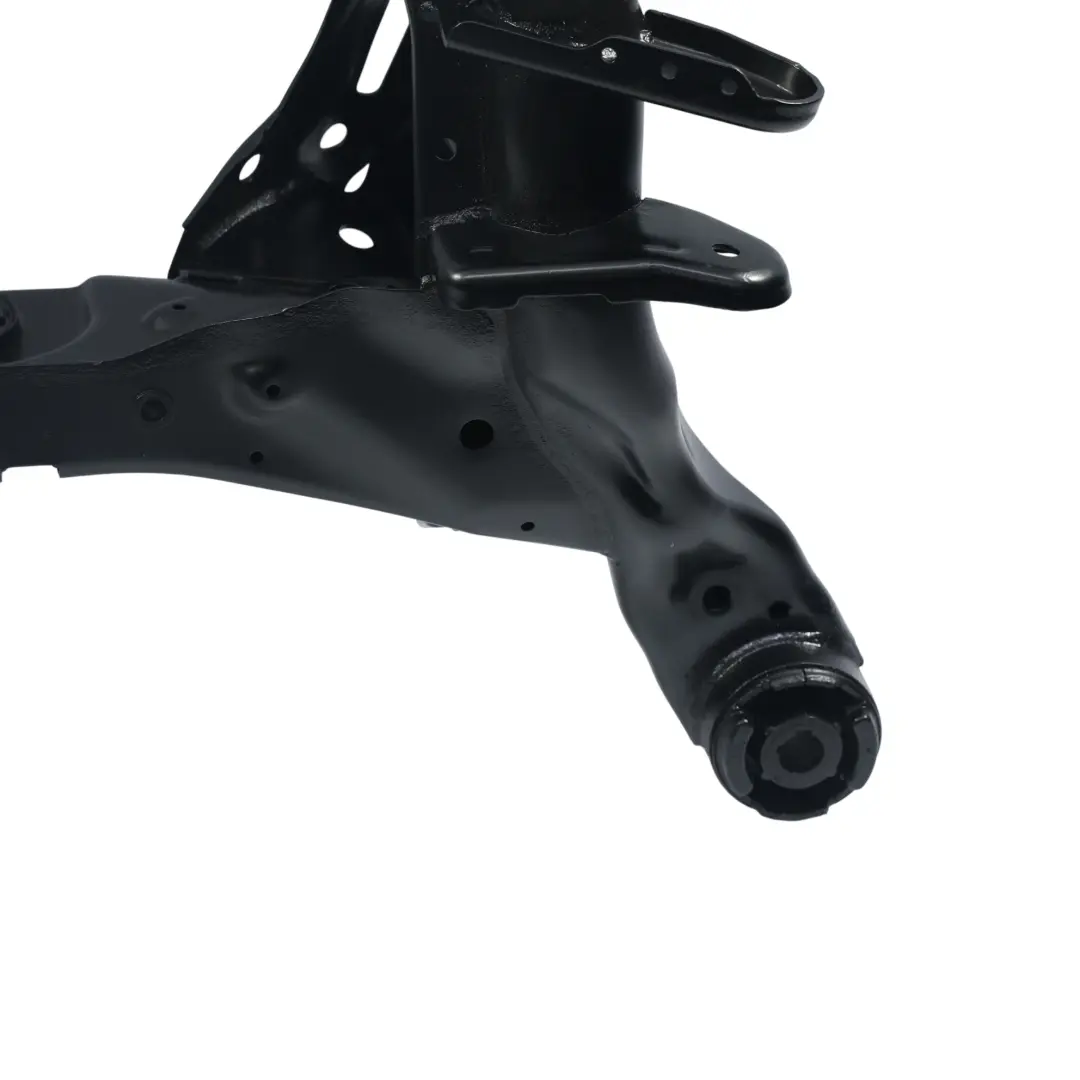

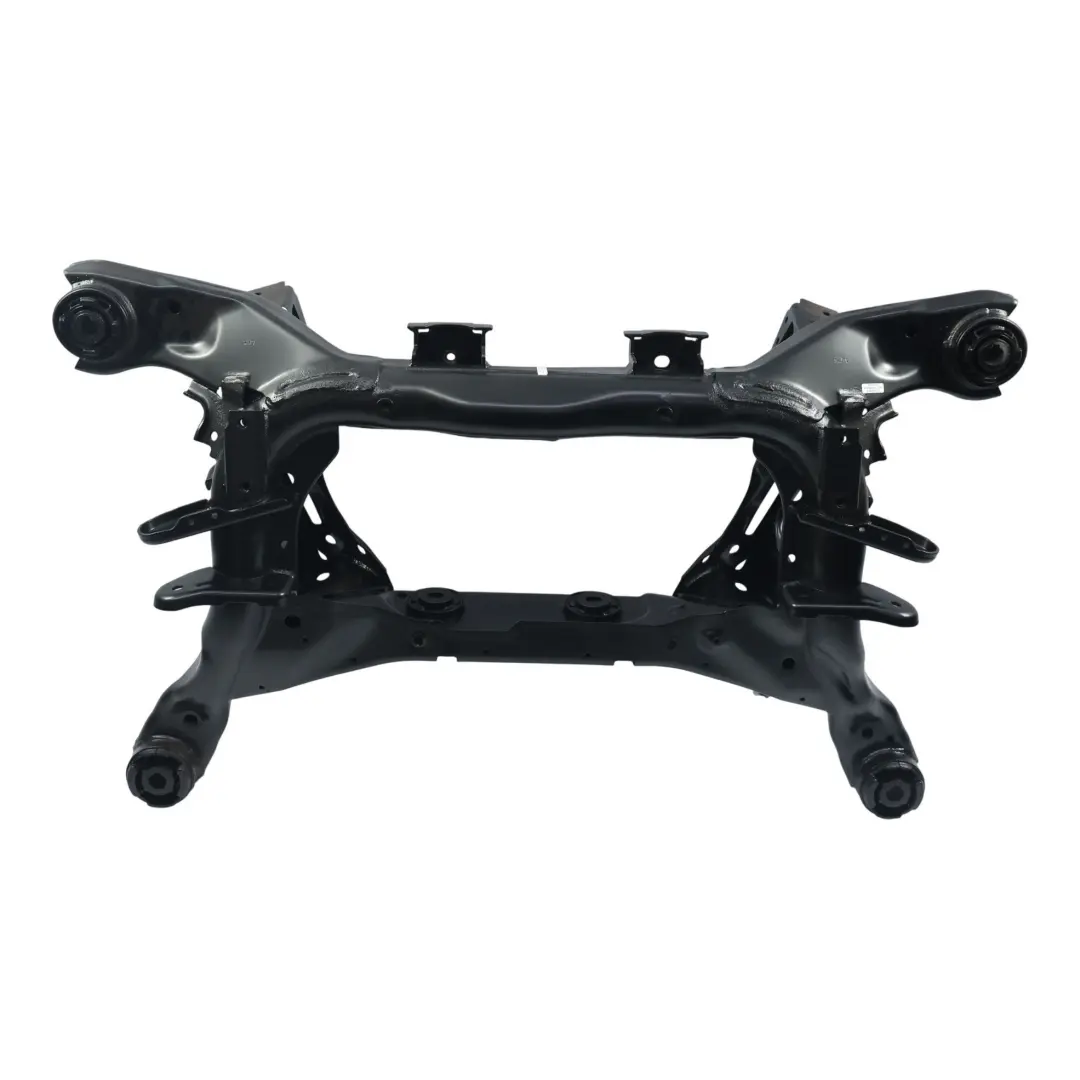

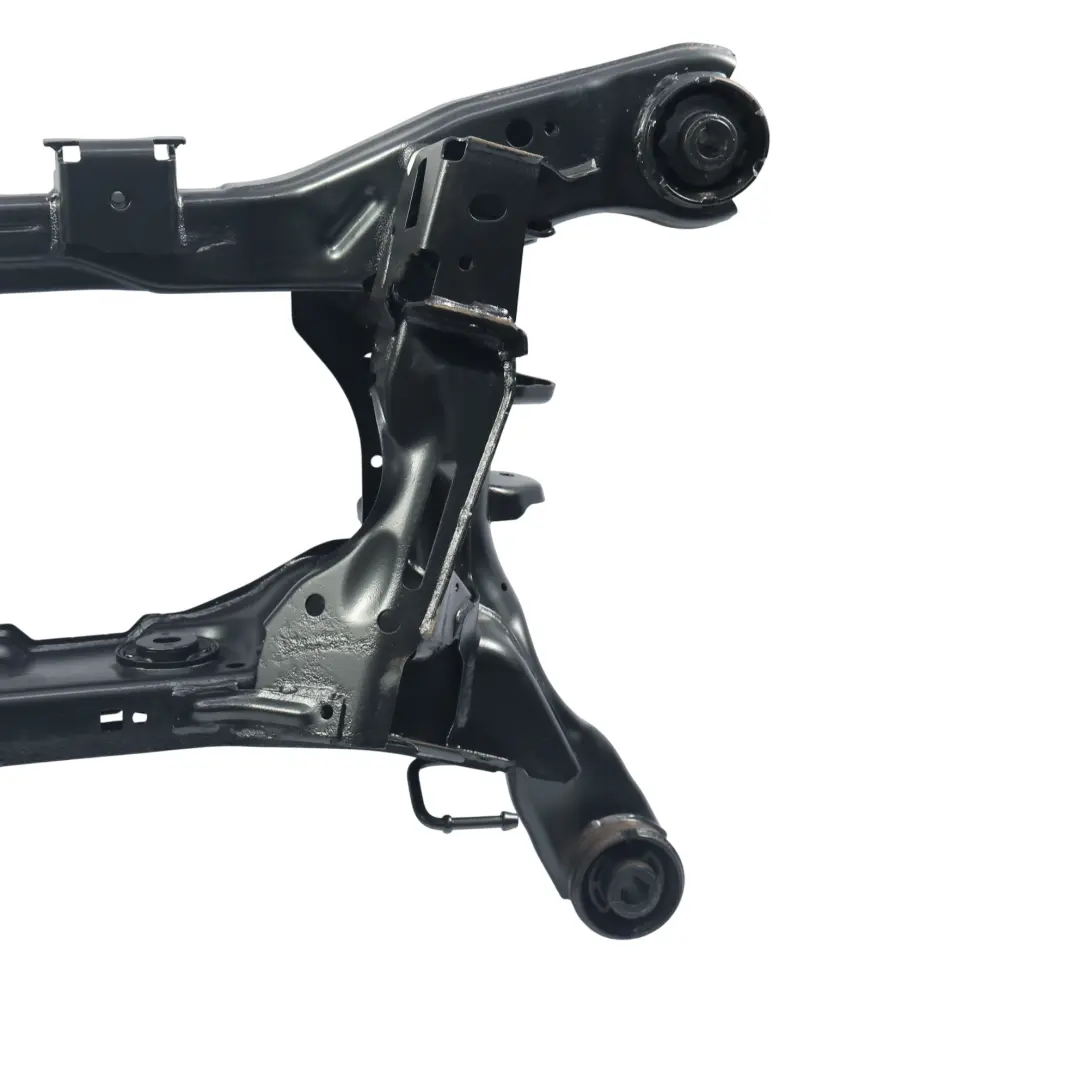

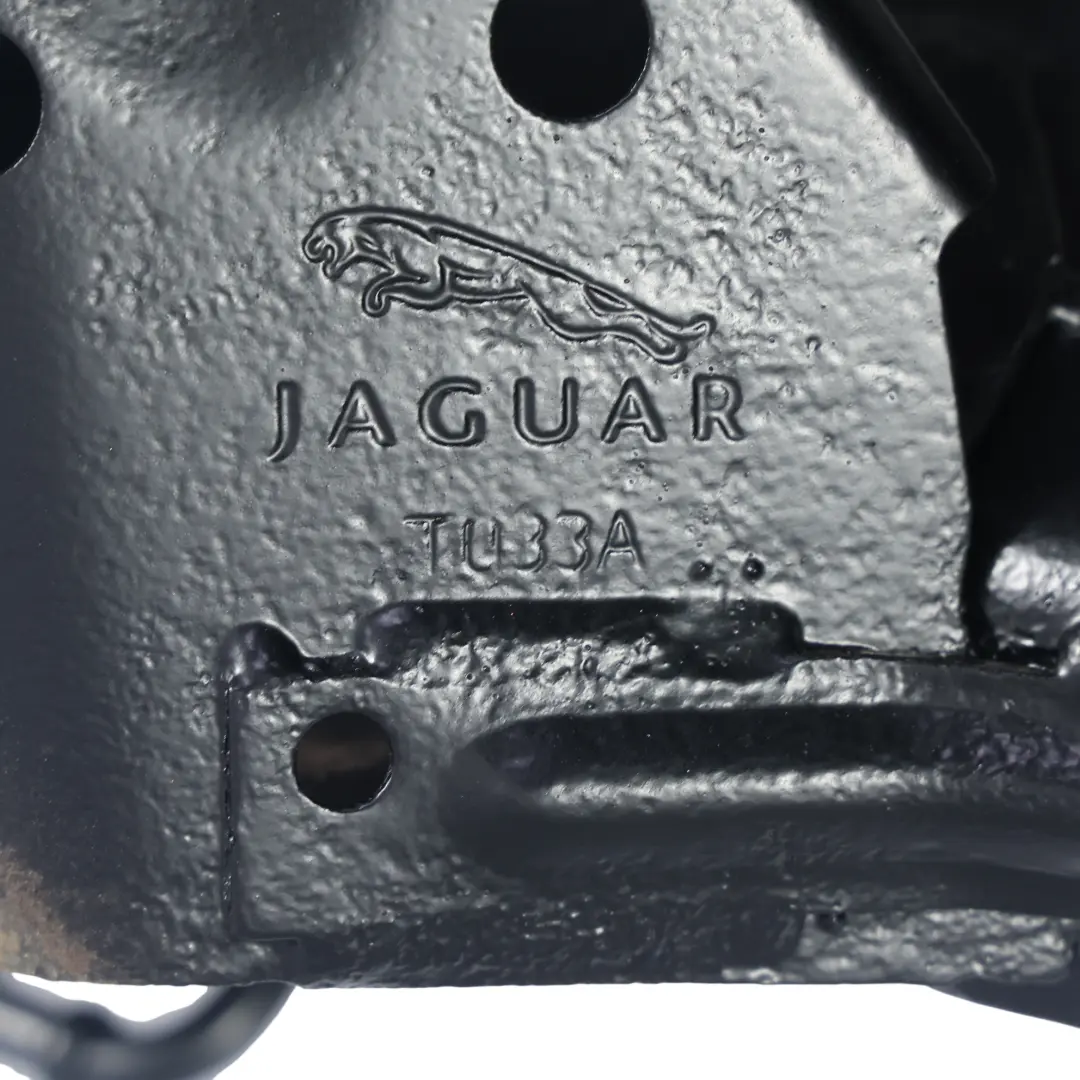

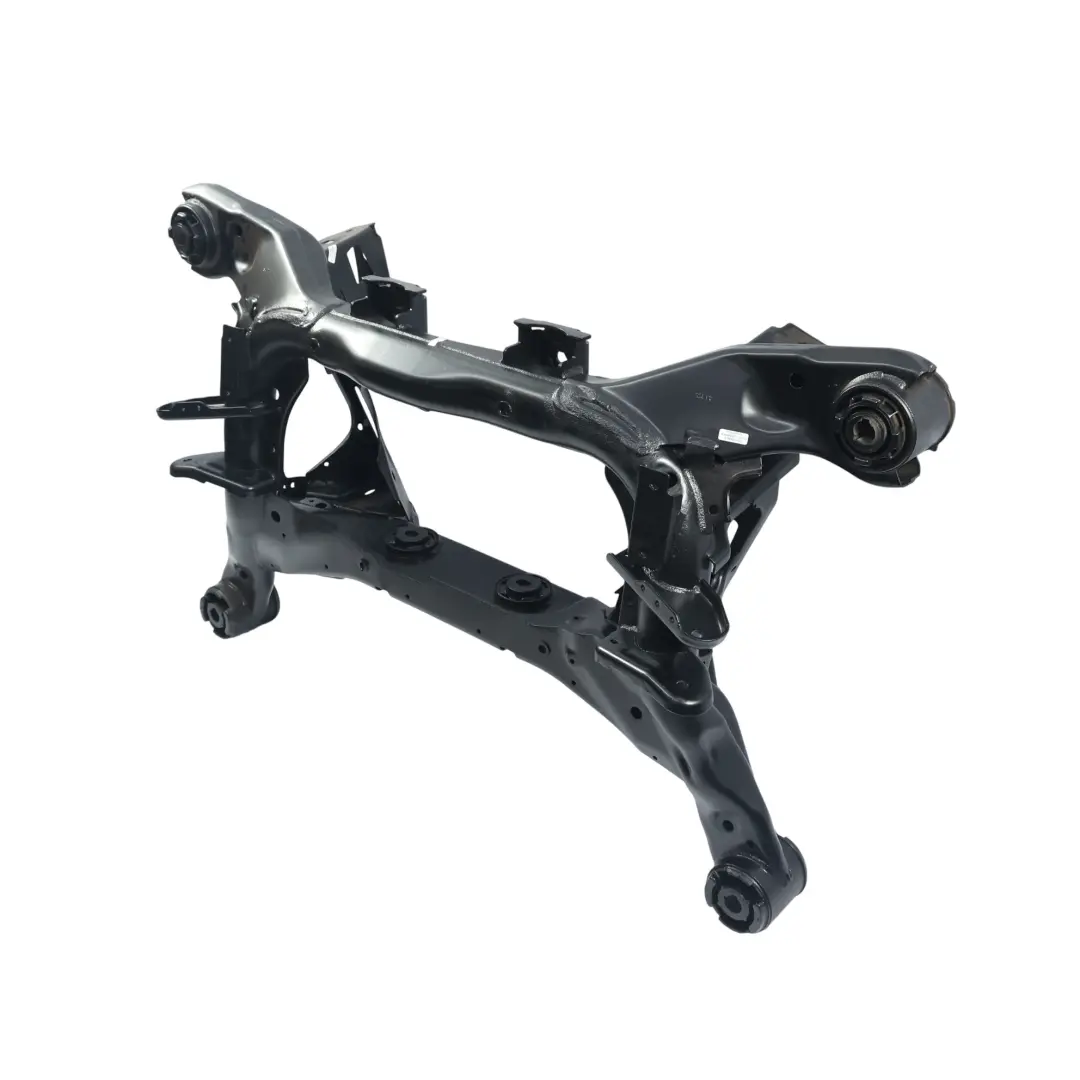

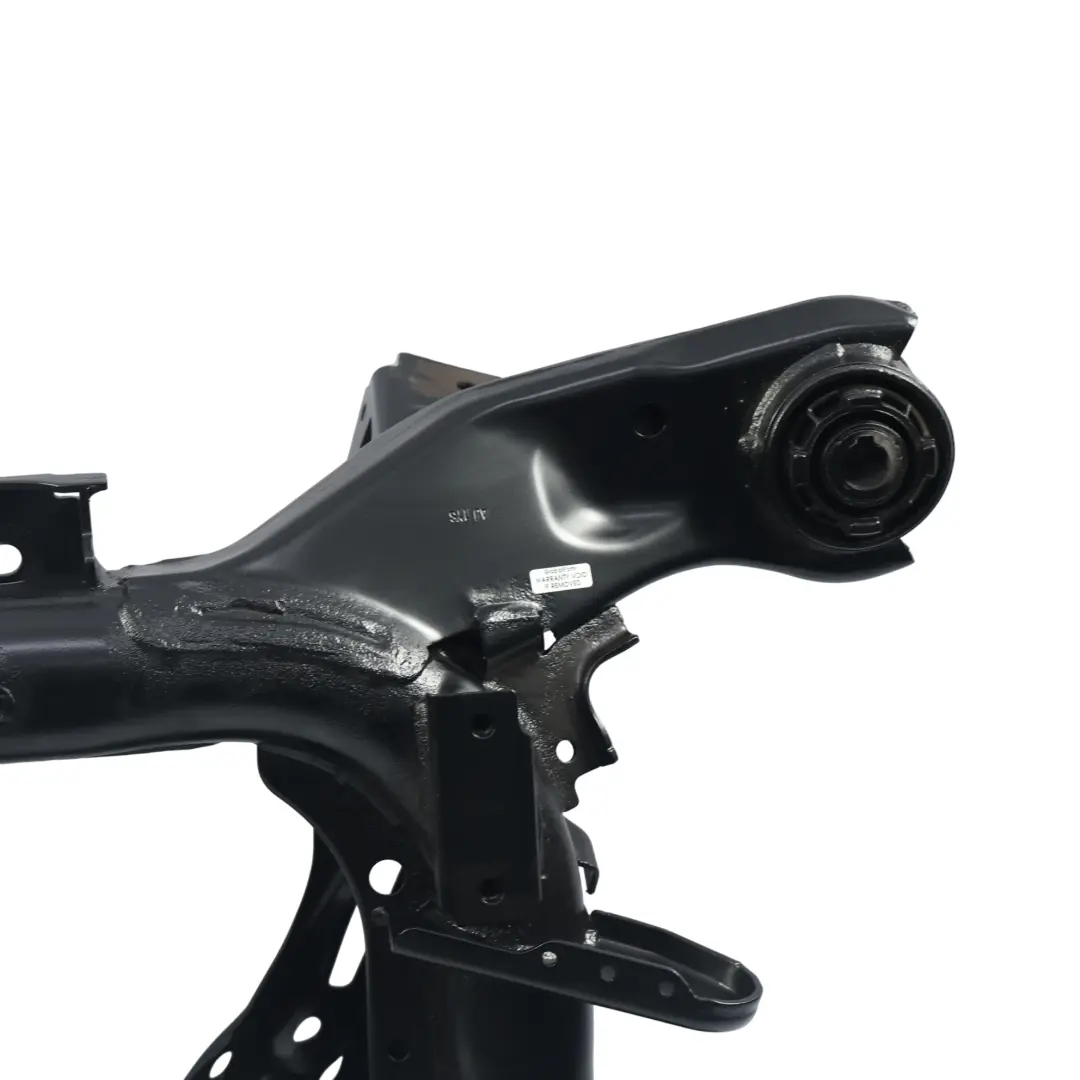

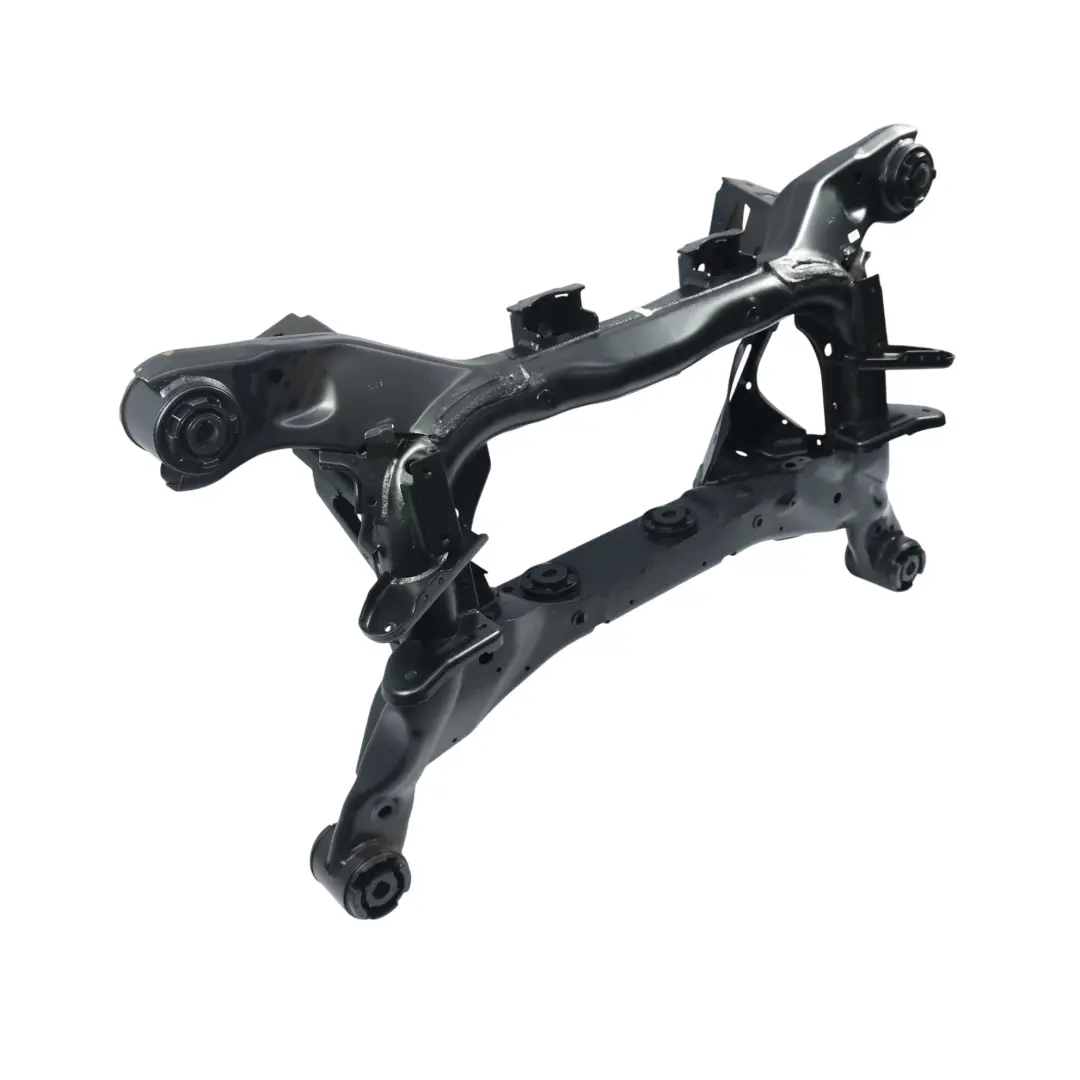

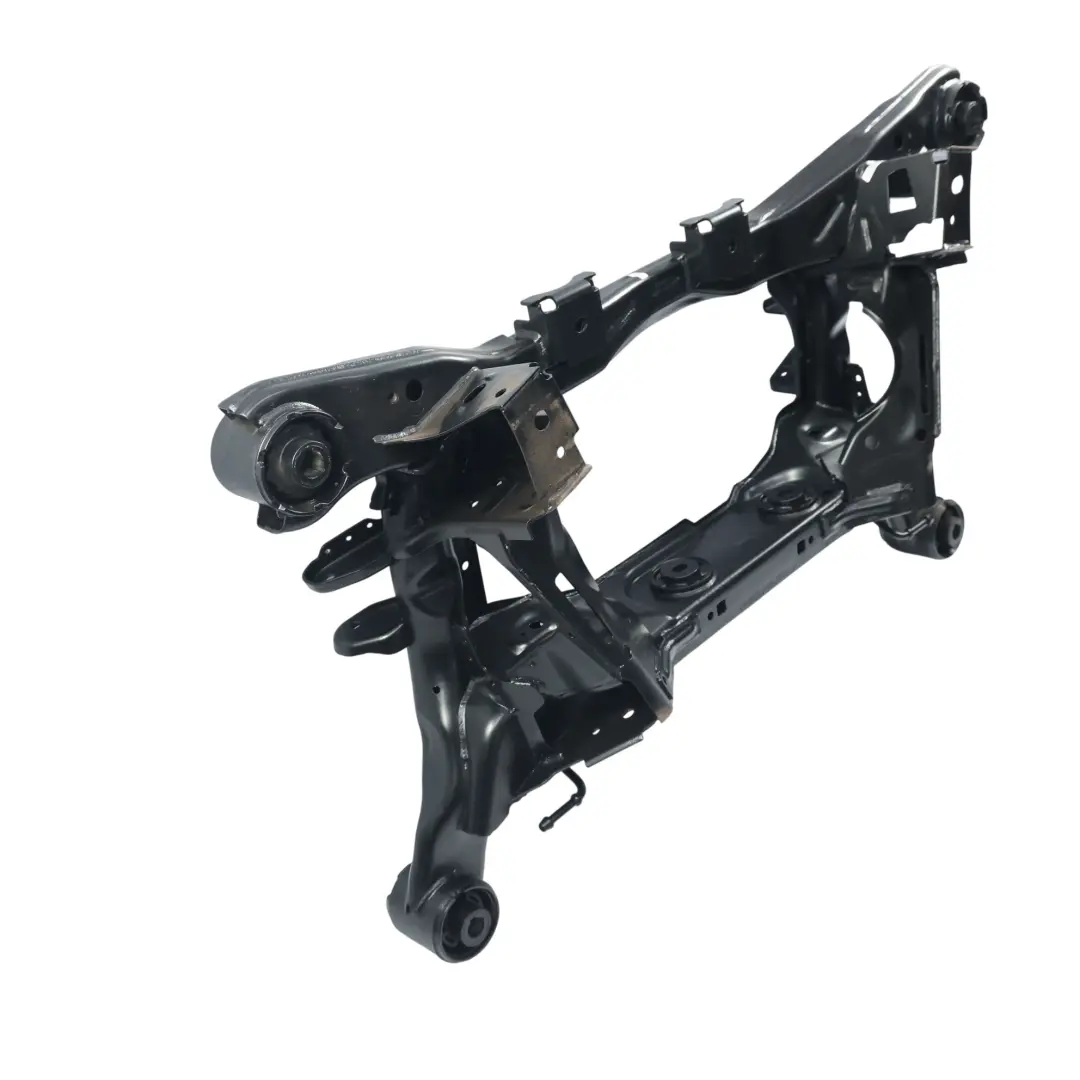

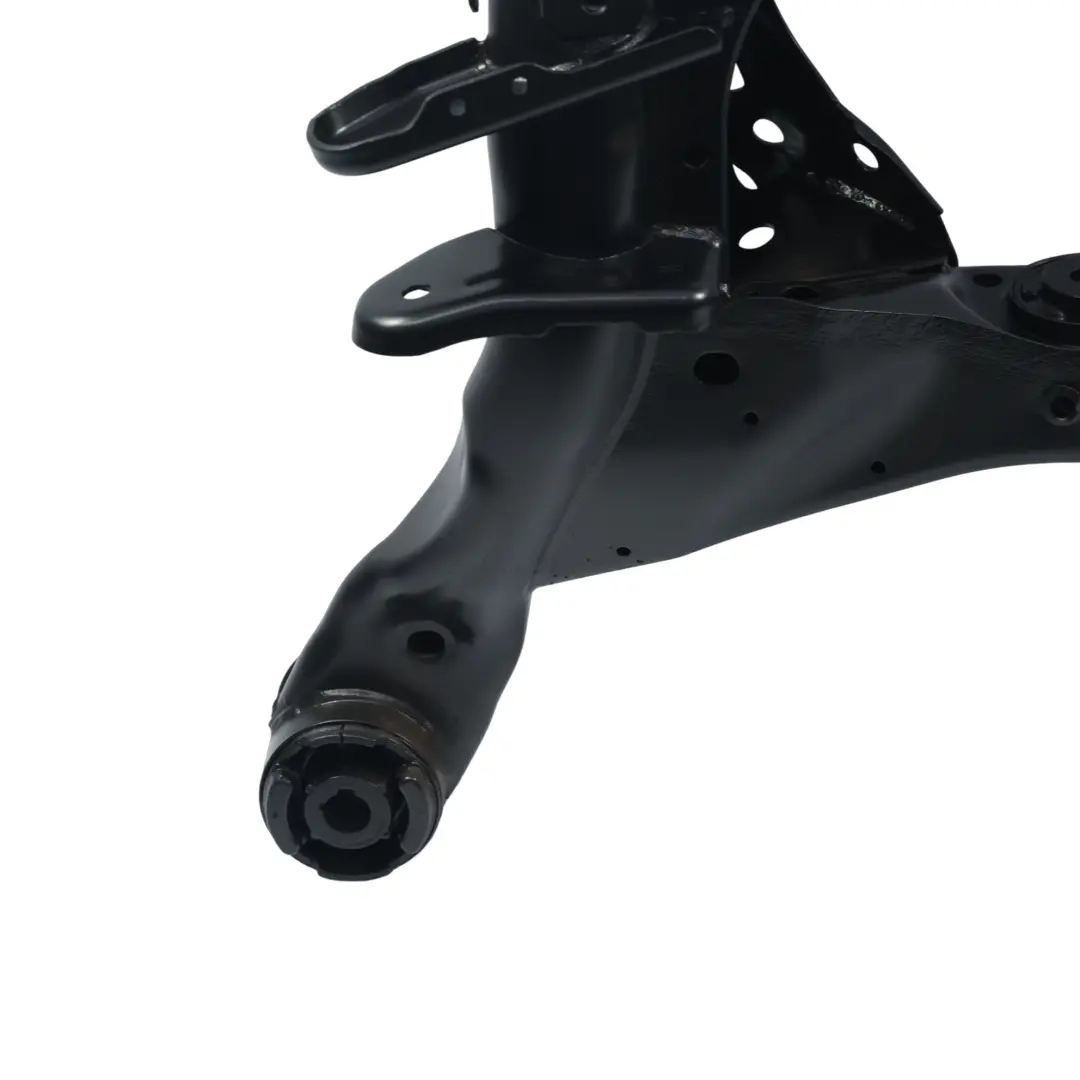

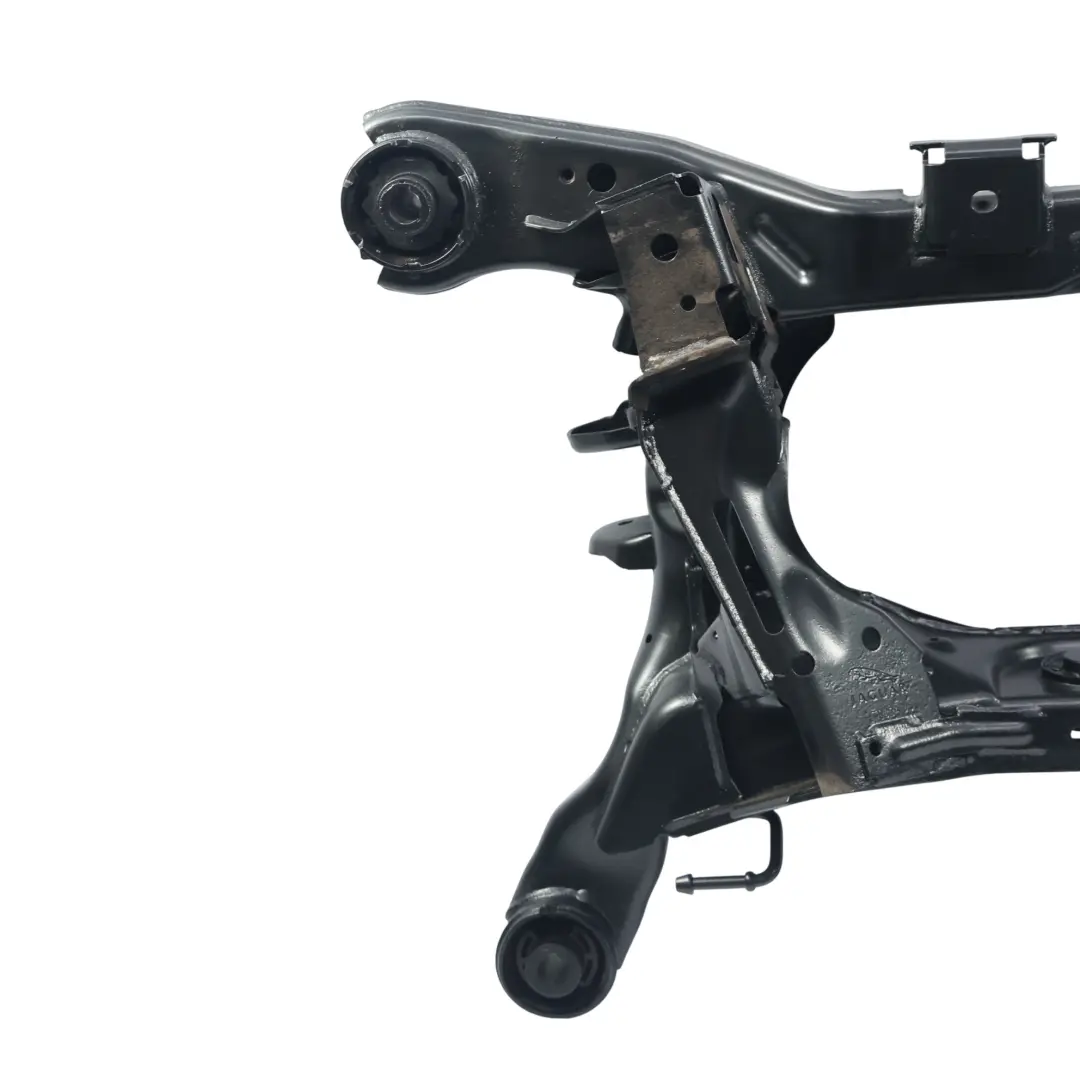

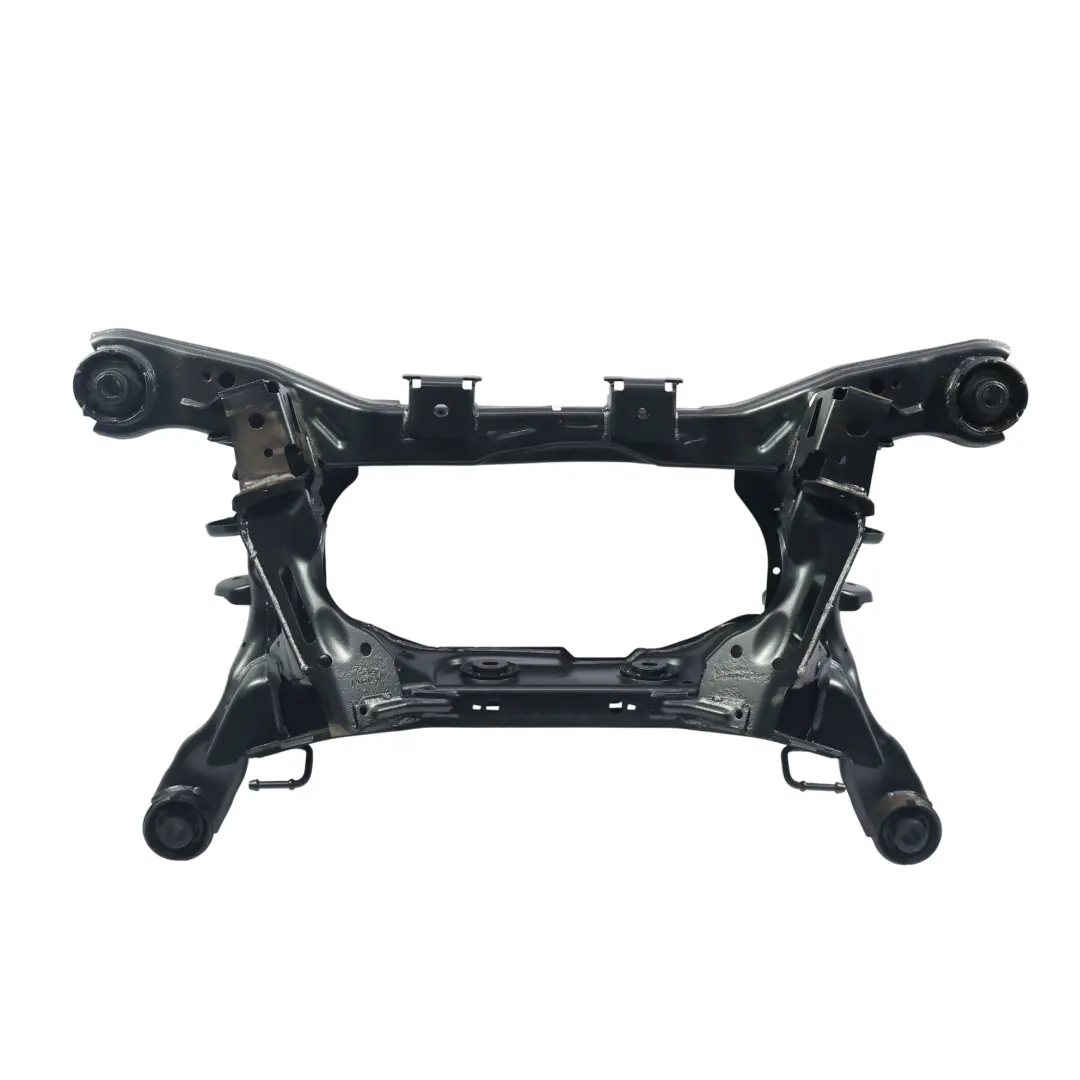

Jaguar XF X260 Rear Axle Subframe Suspension Cradle Carrier Beam T2H37179

Jaguar XF X260 Rear Axle Subframe Suspension Cradle Carrier Beam is an original rear suspension structural component, designed to precisely support control arms, mount guiding elements, and stably transfer loads to the chassis. As part of the Longitudinal body frame parts and brackets group, it ensures proper axle geometry, structural rigidity, and predictable vehicle handling. This used OEM component allows for maintaining factory driving characteristics without the need for compromise solutions.

Specifications and technical data

• SKU: T2H37179
• Mark: Jaguar
• Condition: Used
• OEM Part Number: T2H37179
• Substitutable numbers: T2H37179, T2H51867, GX735K091AF, GX73-5K091-AF, T2H40954, W780934SJ90, GX635K091AD, GX63-5K091-AD
• Location on the vehicle: Rear
• Part type: Subframe
• Category: Frame Rails & Subframes

Function and role of the rear suspension subframe

The rear cradle / subframe in the Jaguar XF X260 plays a key role as a load-bearing rear suspension frame, to which guiding and damping elements are attached. It is responsible for:

• maintaining the correct rear axle wheel geometry under load,
• a stable connection between the suspension and the chassis,
• even distribution of forces generated during acceleration, braking, and cornering,
• reduction of vibrations transmitted from the suspension to the cabin. Thanks to the factory Jaguar design, compatibility with stock mounting points is maintained, which facilitates installation and allows for the restoration of the vehicle's original driving properties.

Benefits of using an original suspension subframe

Using an original rear suspension subframe in a Jaguar XF X260 translates into a number of practical operational advantages. The most important include:

• Factory fitment – compatibility with the body and suspension design without the need for modifications.
• Consistency with safety systems – the correct positioning of suspension elements promotes the proper operation of electronic stability control systems.
• Optimal handling – maintaining the comfort and rigidity characteristics intended by the manufacturer.
• Ability to use existing mounting points – simplified service process and shorter repair time. This solution is particularly recommended for post-accident repairs, geometry correction, or replacing corroded load-bearing elements.

Vehicle placement and application

The presented cradle is intended for installation in the rear part of the vehicle, as the main support for rear axle suspension components. Its task is to ensure stable, axial wheel guidance and to maintain the correct track width and alignment angles relative to the chassis. Replacing this element is recommended in situations where:

• mechanical damage has occurred in the rear suspension area,
• permanent deformation of the load-bearing structure has been identified,
• local repair does not guarantee the restoration of proper geometry. A properly selected suspension subframe helps avoid problems with wheel alignment, uneven tire wear, or unstable vehicle behavior at higher speeds.

Product characteristics and condition

The offered element comes from the group of original Jaguar components and is classified as used, which represents a favorable compromise between repair cost and maintaining factory quality. This type of part is particularly attractive in the case of advanced structural elements, where precision of workmanship and compliance with the manufacturer's design have a direct impact on safety and durability. The product is intended for users and workshops expecting to maintain the original suspension architecture, without the risk resulting from the use of unreliable replacements with different geometry or material quality.

Selection and additional technical information

Before purchasing, it is recommended to verify the compatibility of the part with the specific equipment version and vehicle year, based on the manufacturer's catalog data and reference numbers available in the specification. This allows for precise component selection and avoids installation issues. In case of doubt, it is worth comparing the construction of the removed suspension subframe with the offered element, paying attention to:

• the arrangement of mounting points to the chassis,
• mounting points for control arms and guiding elements,
• intended mounting locations for additional brackets or accessories. Such an approach facilitates efficient replacement and allows for maintaining the consistency of the entire suspension system. If you are planning a comprehensive repair or upgrade of the rear suspension load-bearing zone in your Jaguar and need other elements from the same group, such as additional brackets, longitudinal profiles, or mounting elements, check the available parts in the Jaguar longitudinal body frame parts and brackets category. To better understand why original used structural components are often a more durable and safer choice than cheap replacements, it is worth reading the article Why do original dismantled parts fit better (and last longer) than cheap equivalents?, which discusses in detail the advantages of using OEM dismantled parts in professional repairs.
