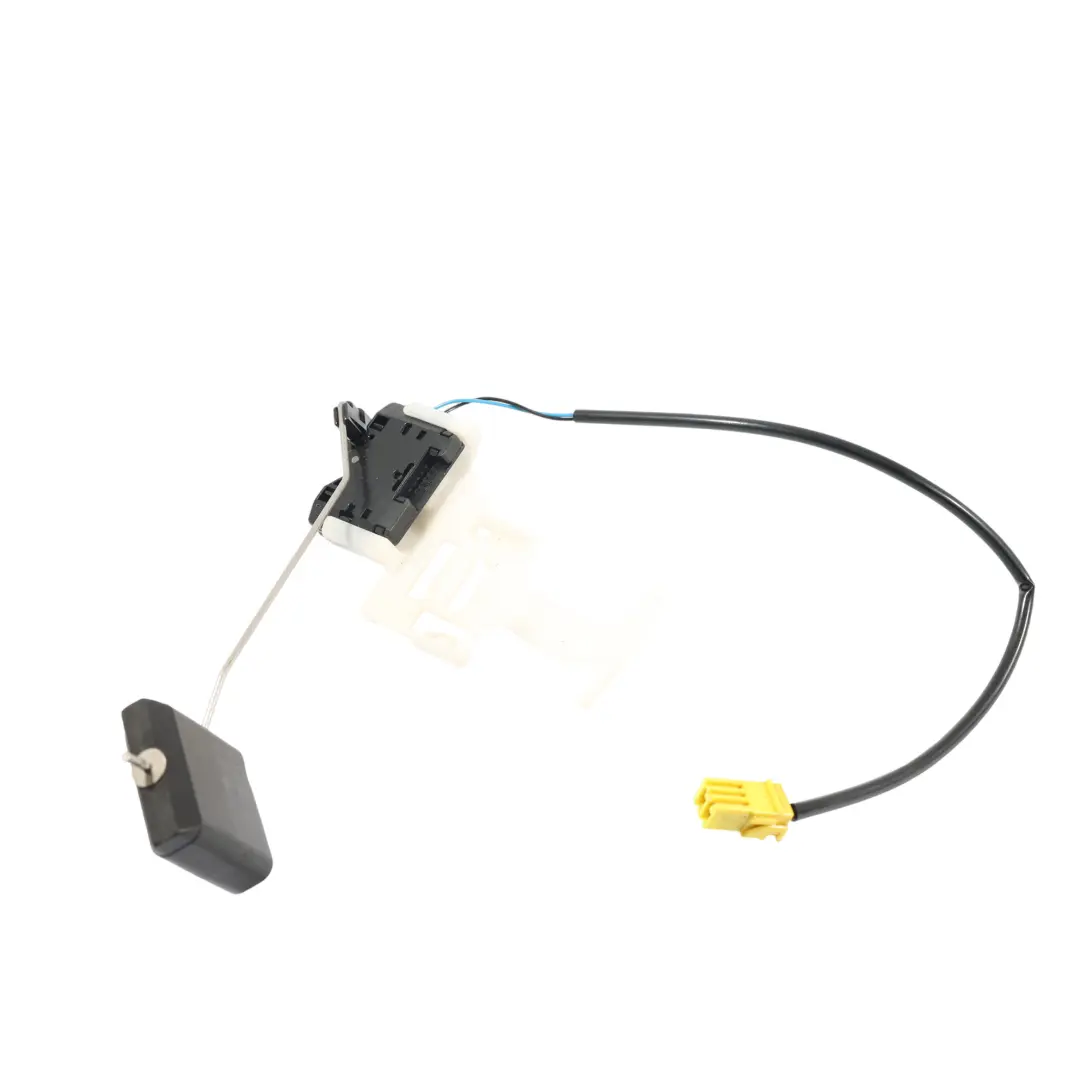

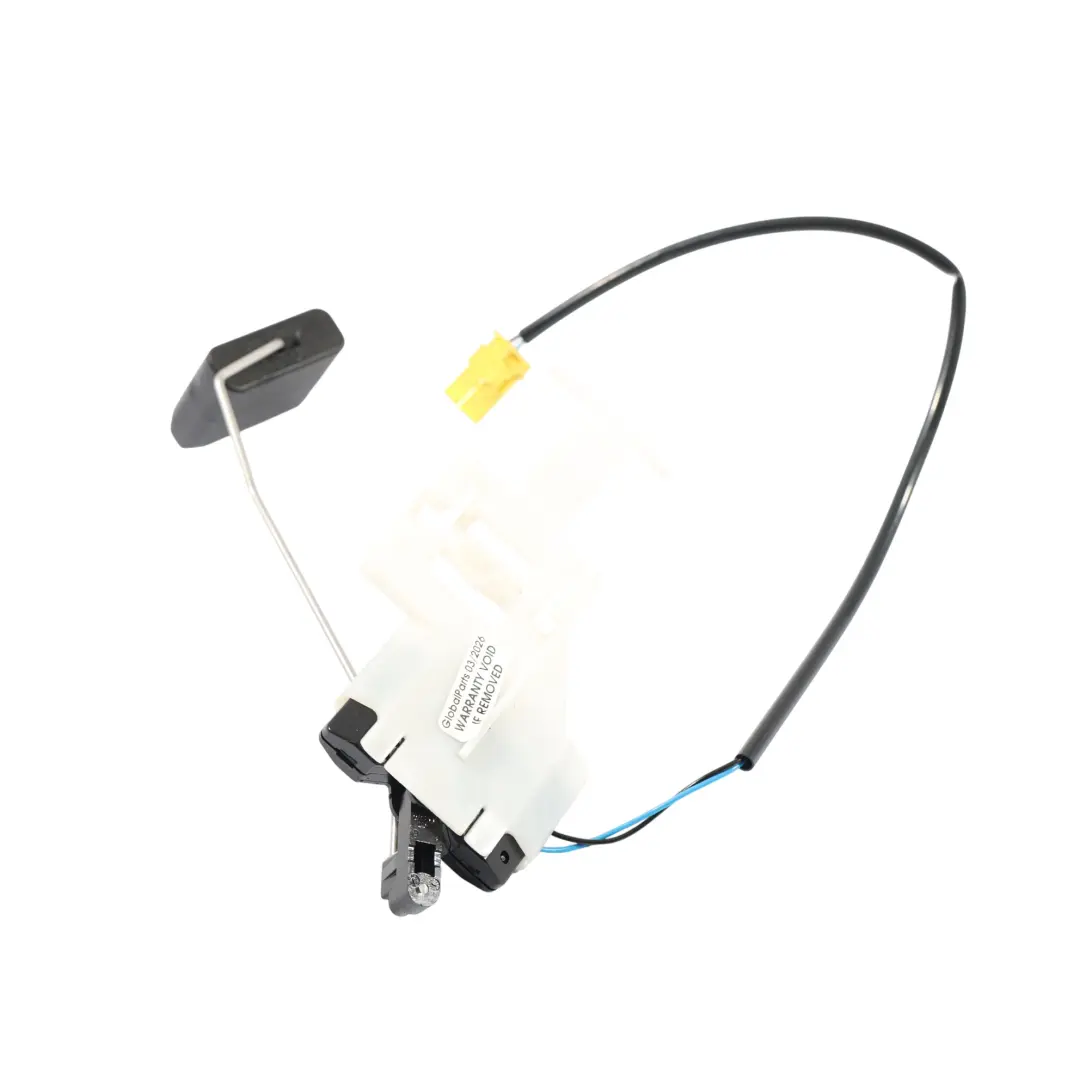

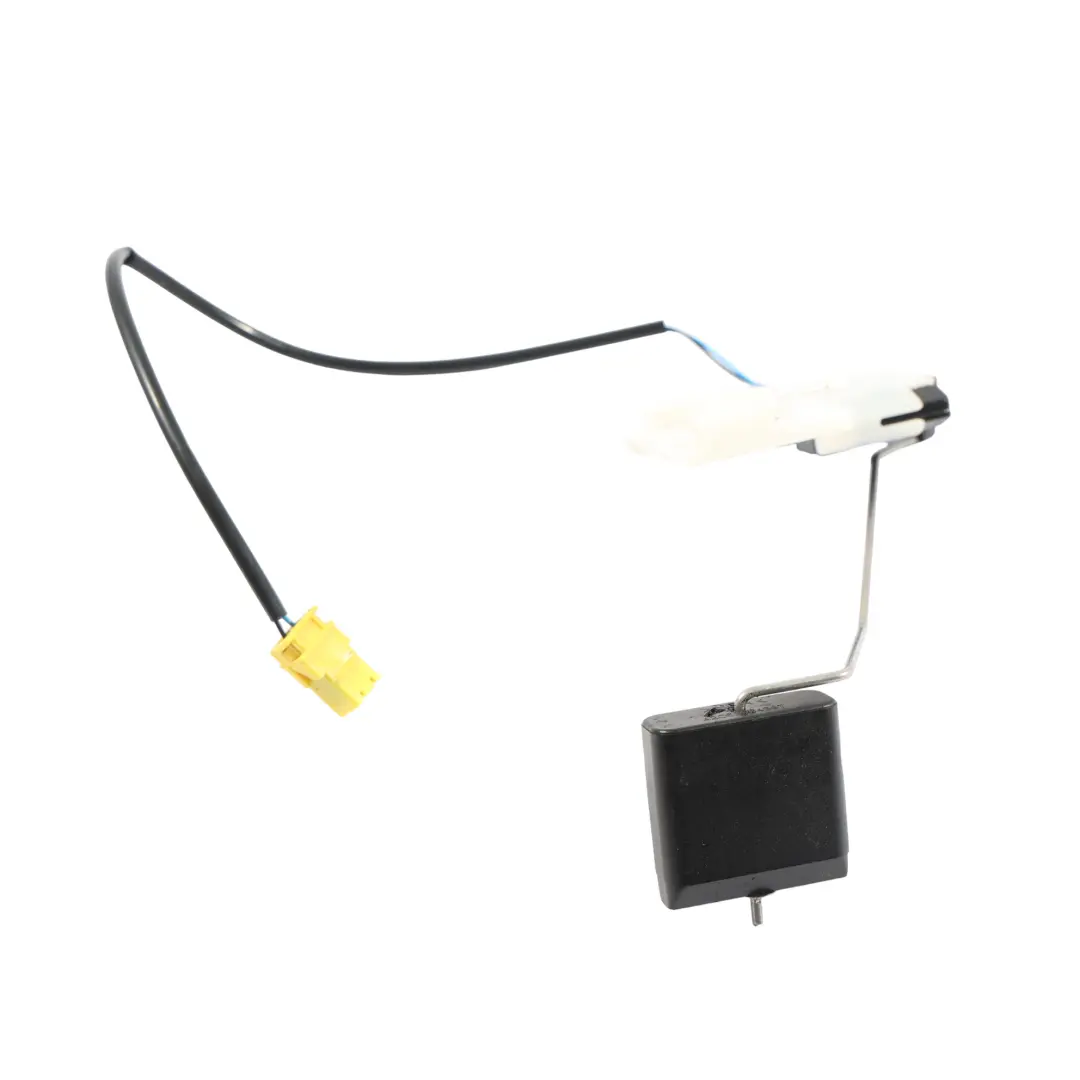

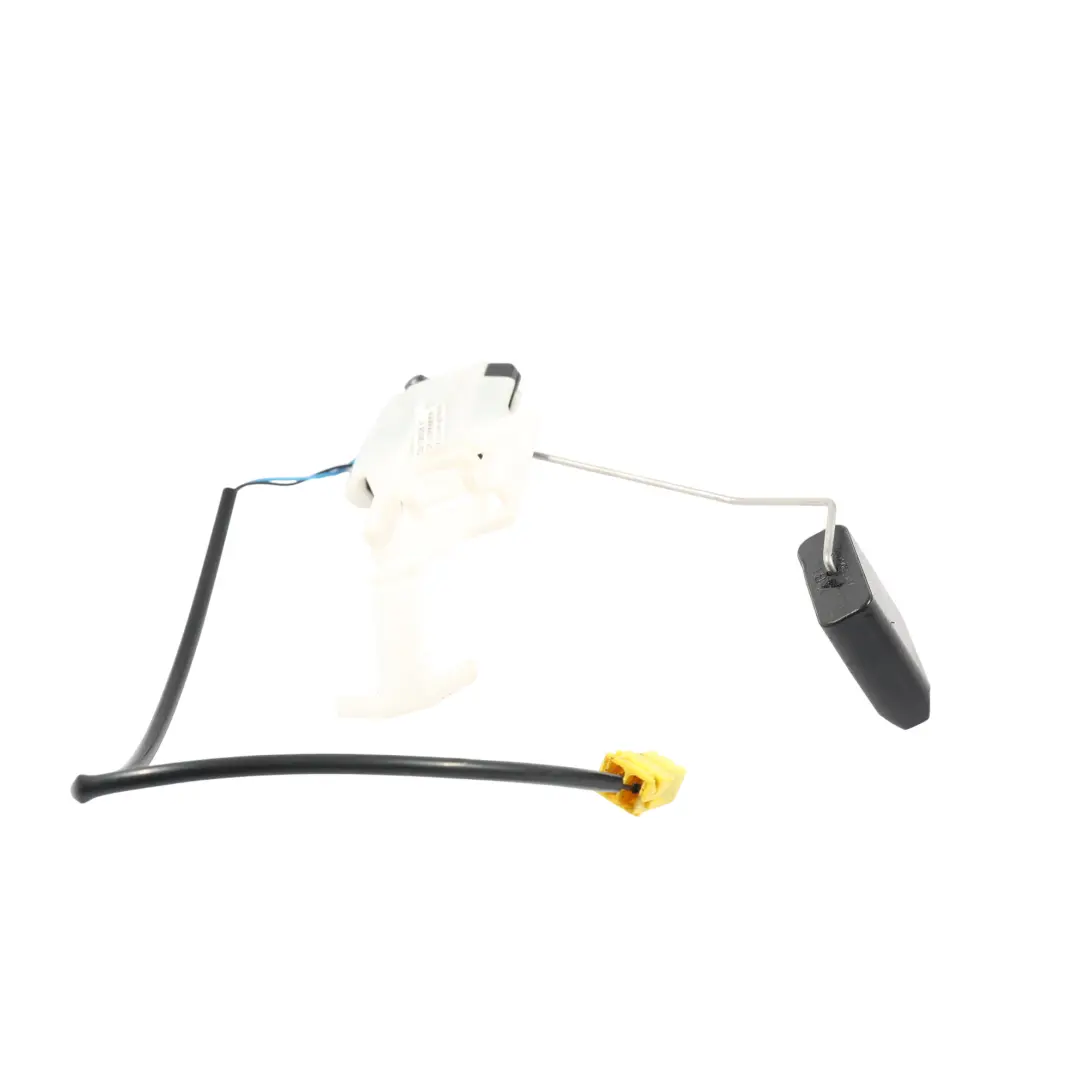

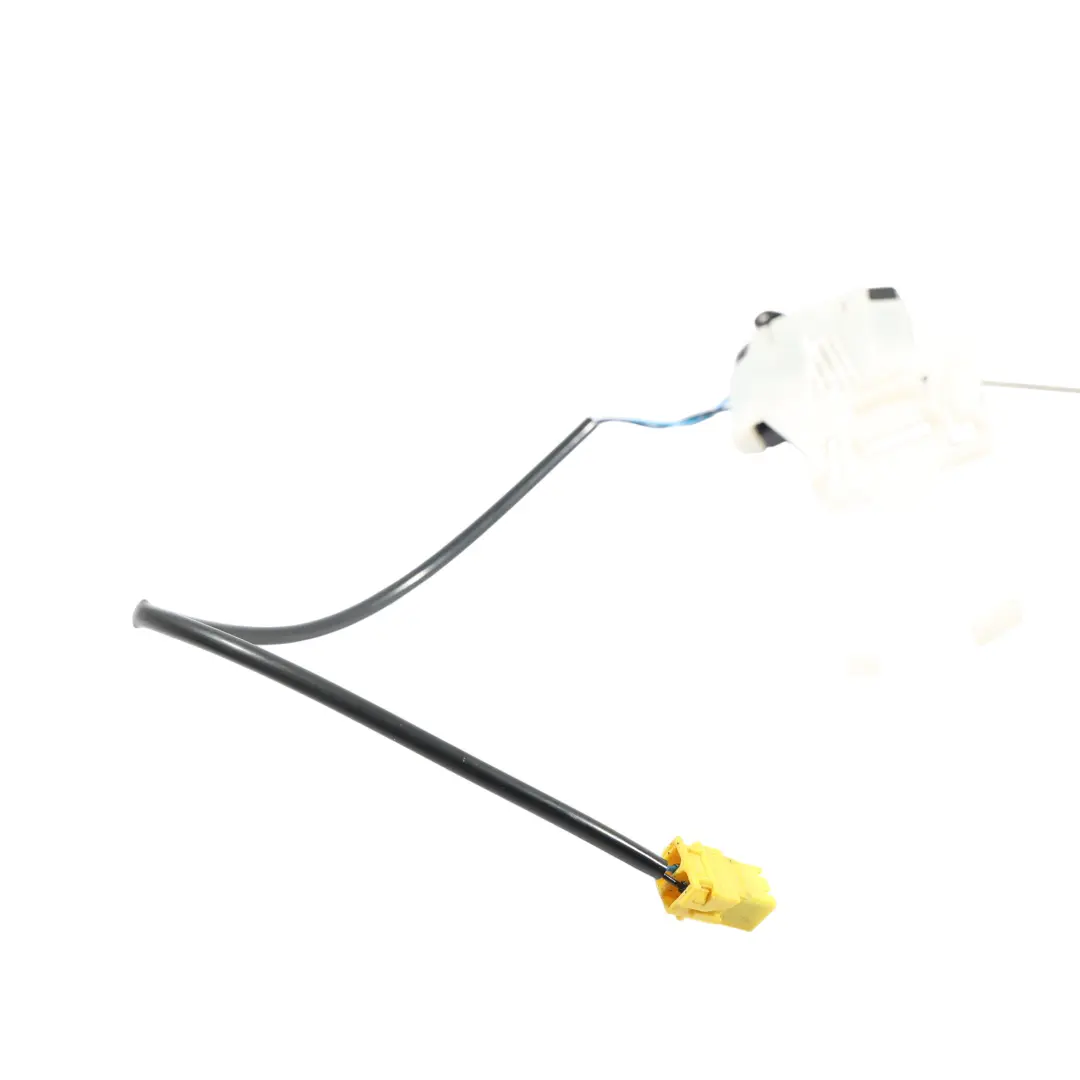

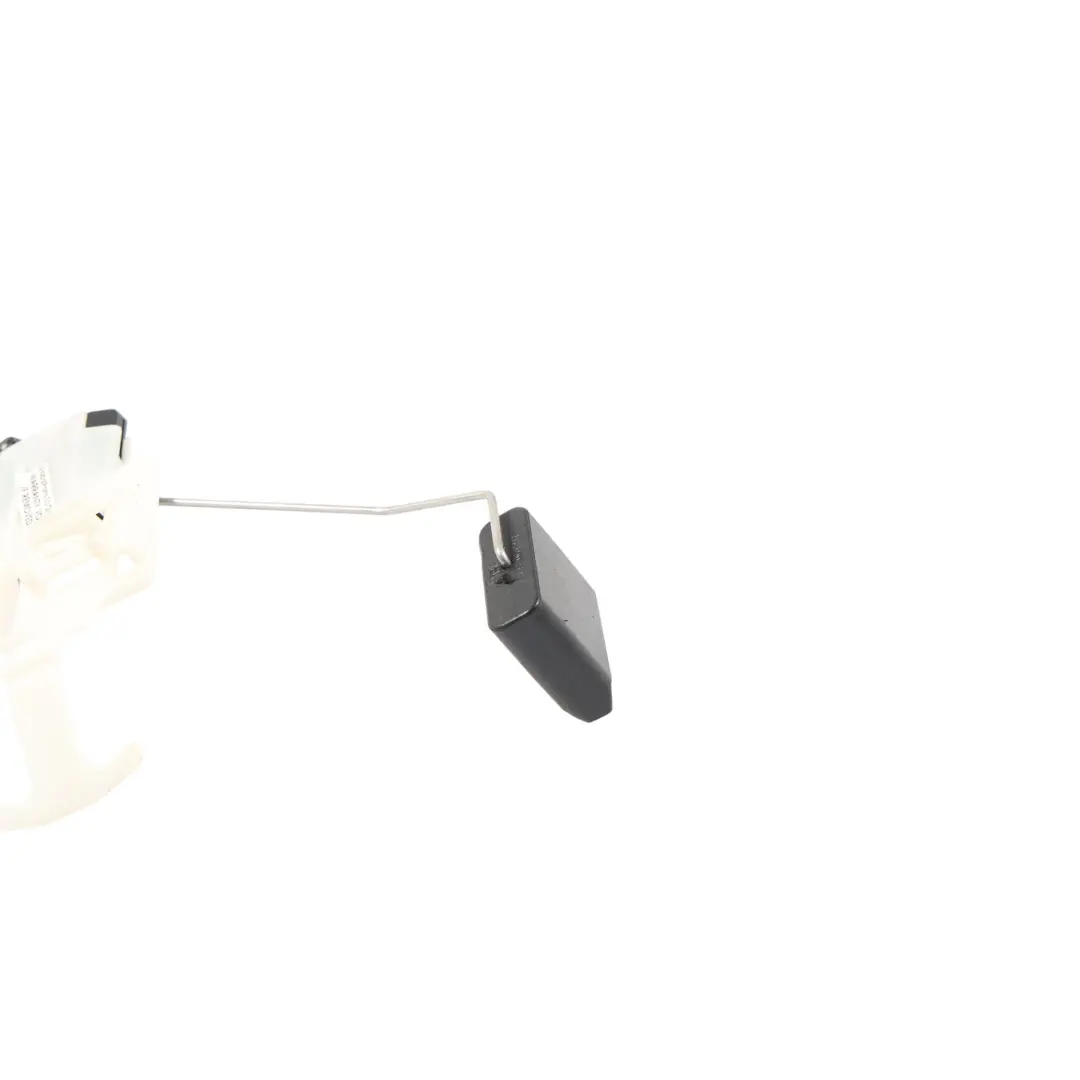

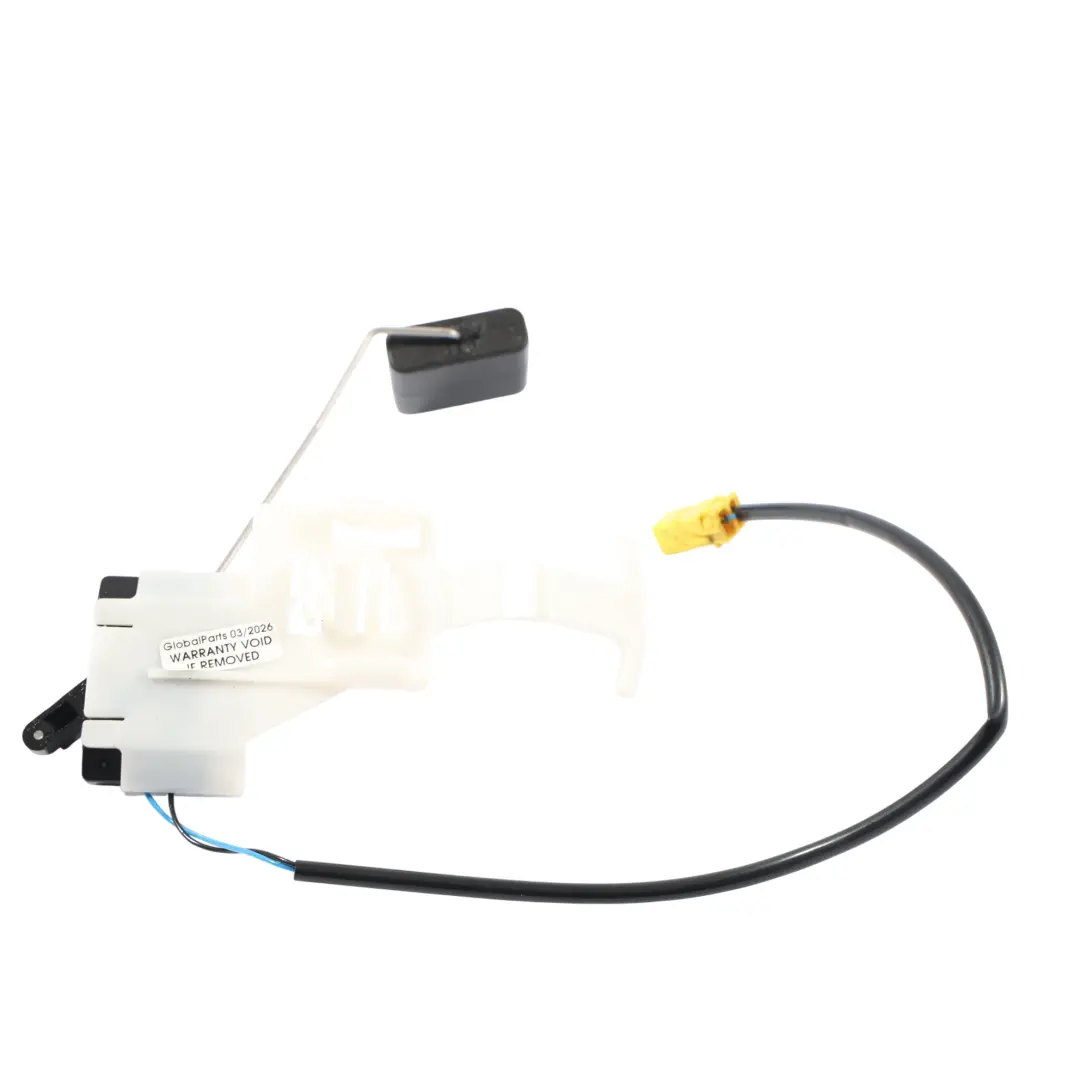

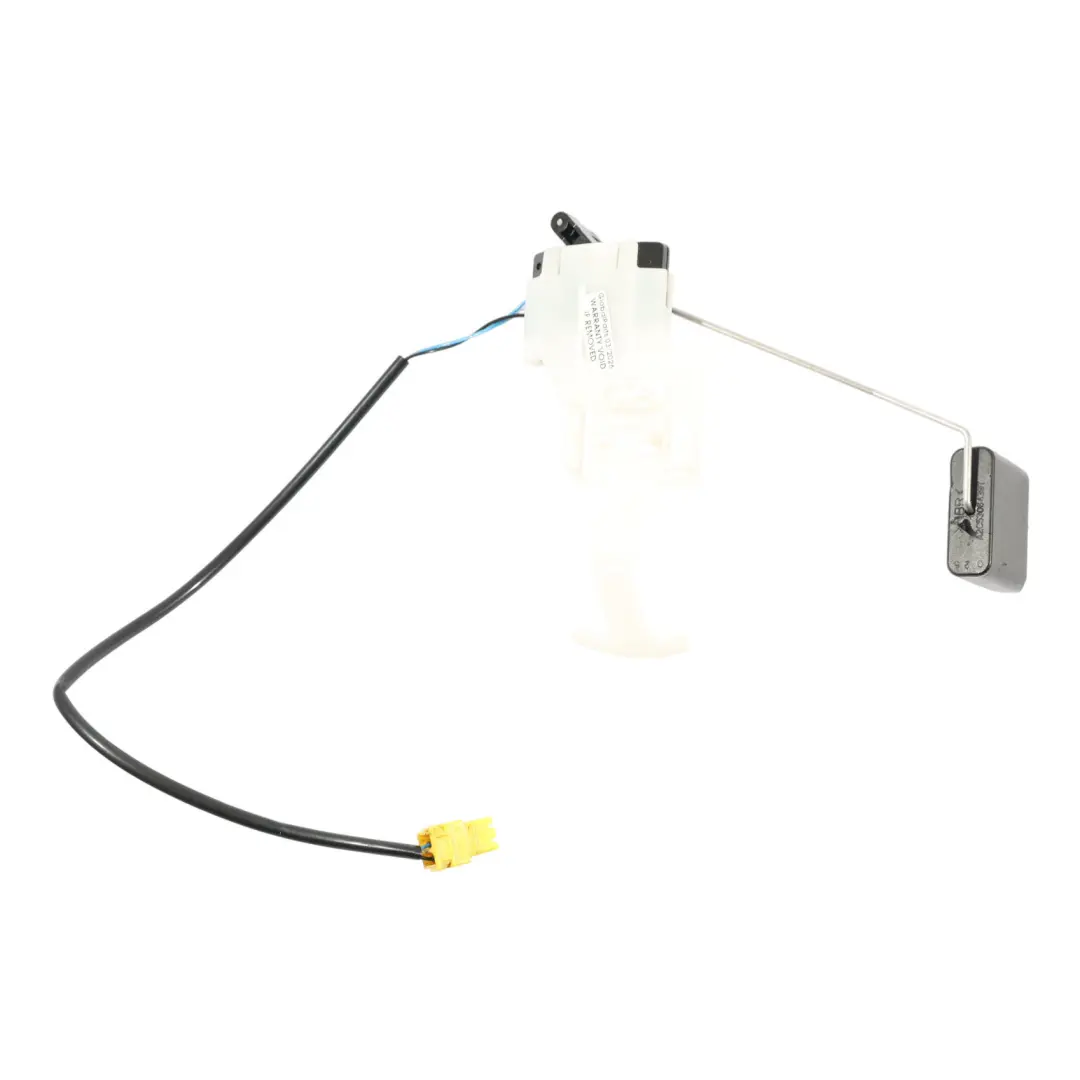

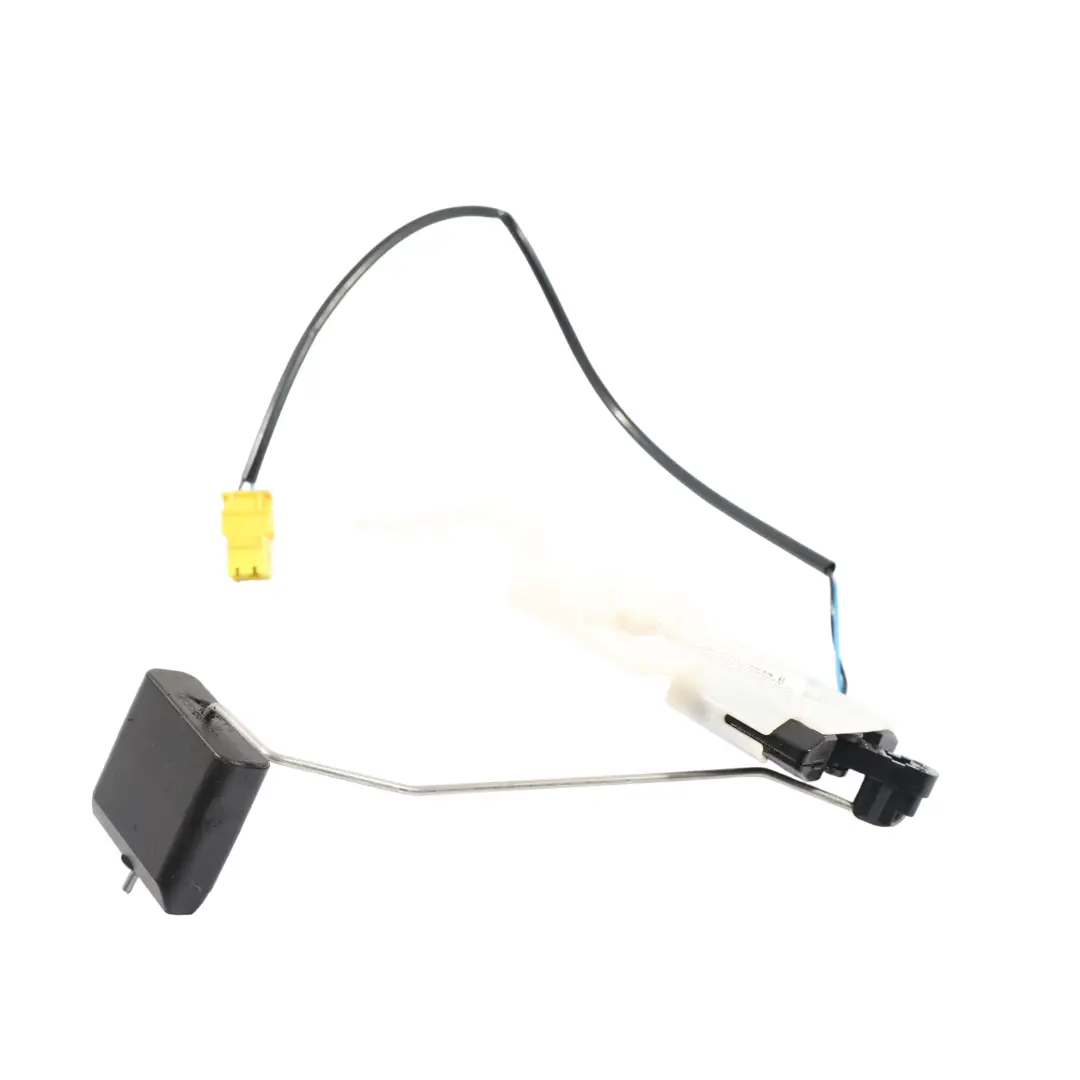

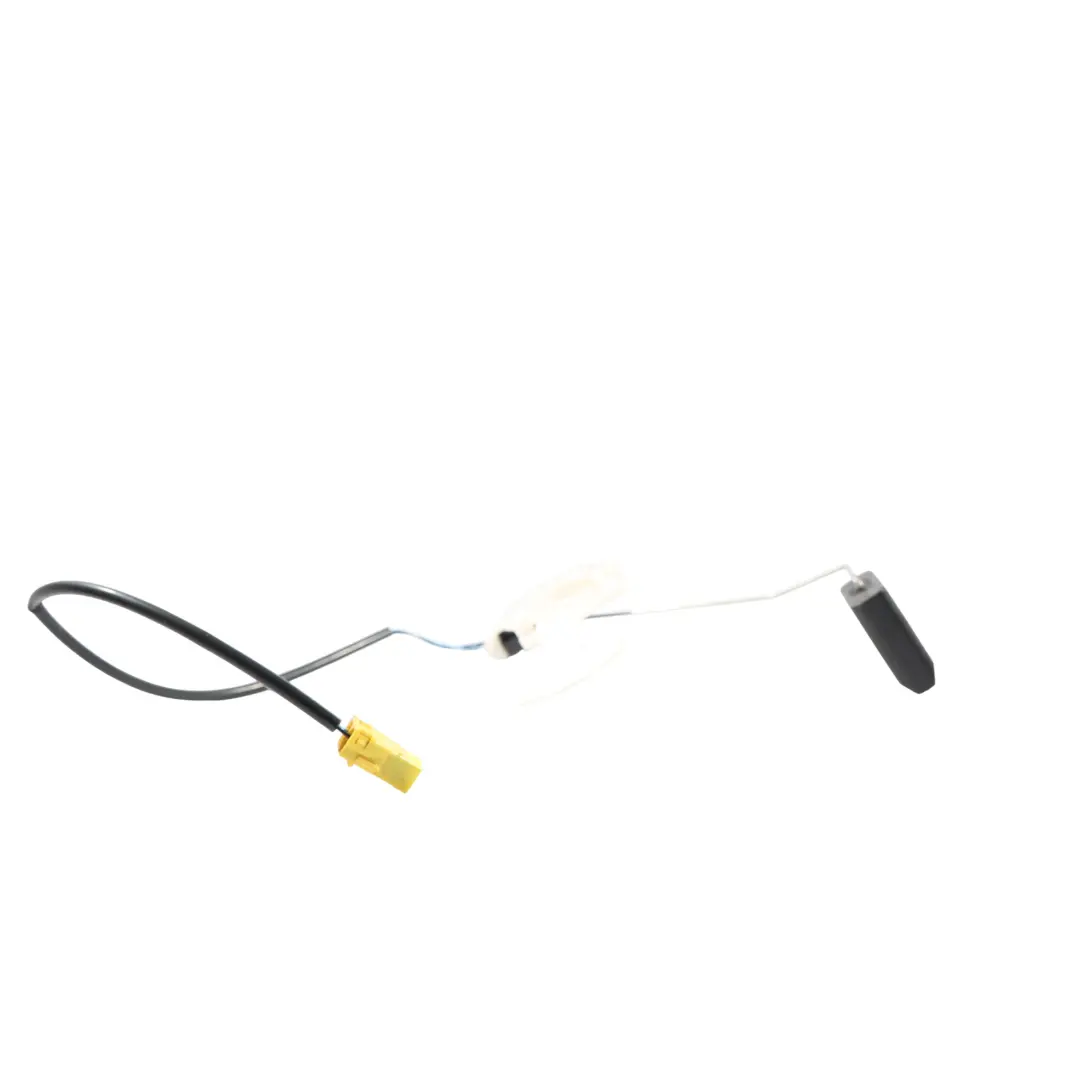

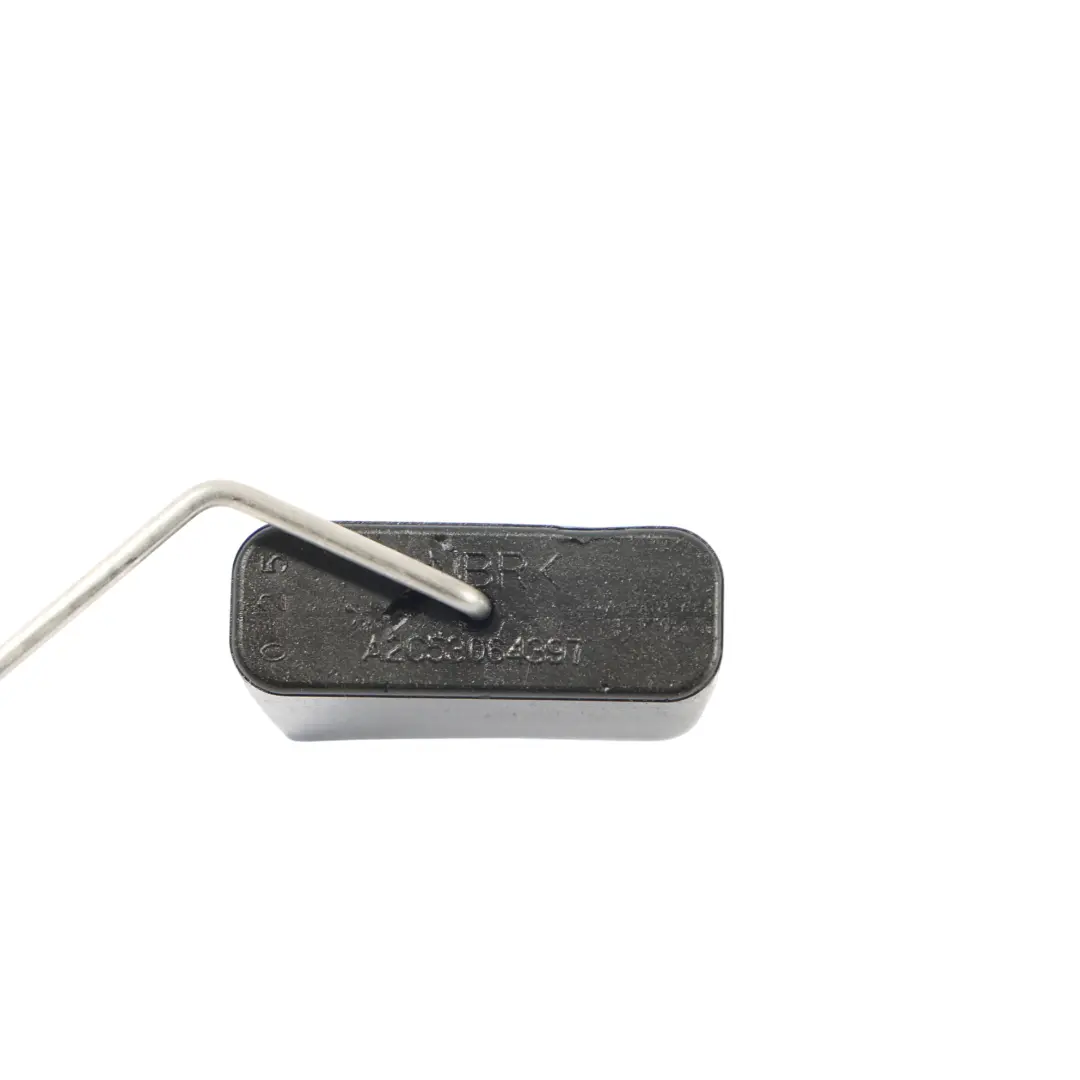

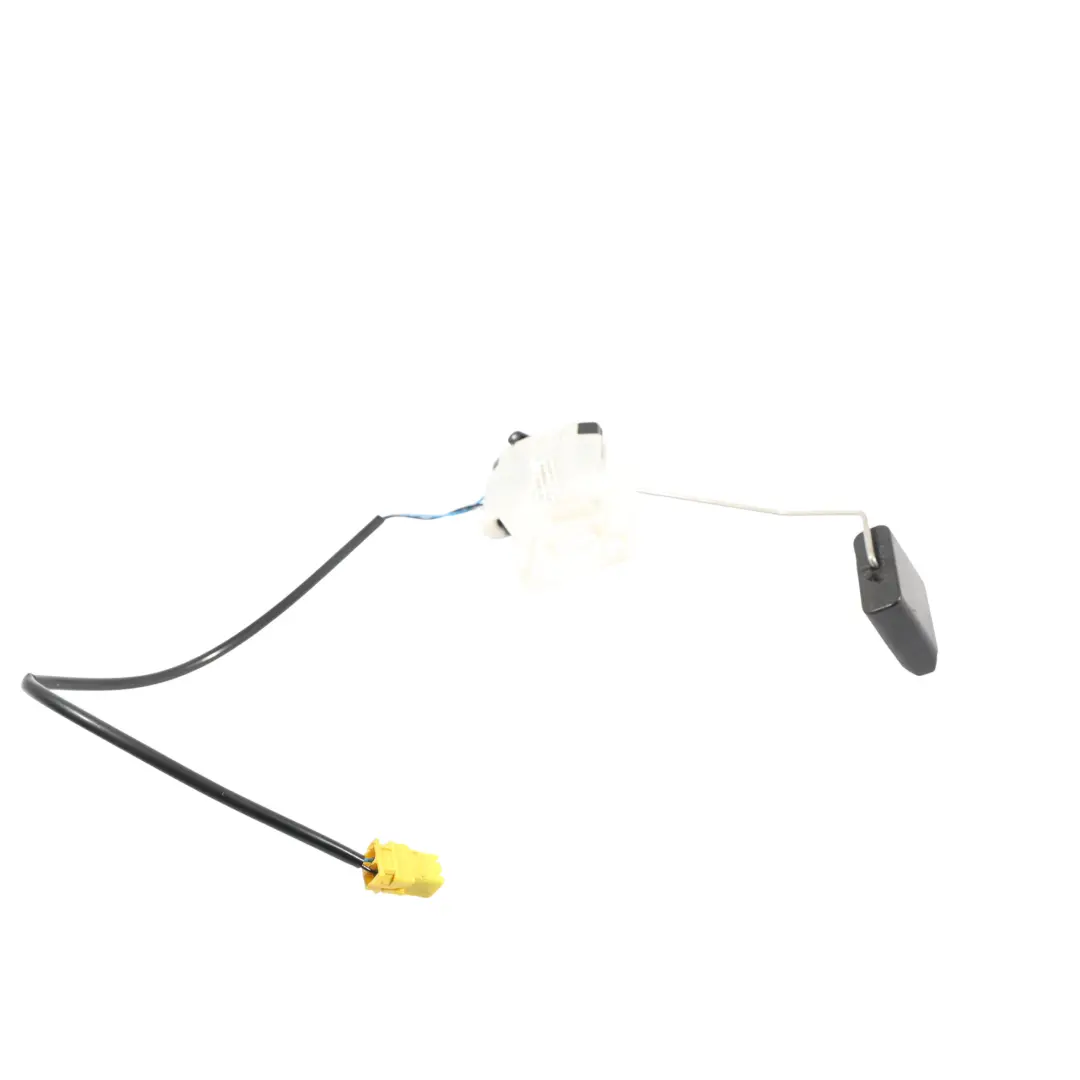

Range Rover Sport L320 Fuel Pump In Tank Sender Unit Rear 2.7 TDV6 WGI500120

The Range Rover Sport L320 Fuel Pump Float Rear 2.7 TDV6 is a precise component from the Fuel Pumps and Level Sensors group, responsible for reliable reading of the diesel fuel level in the tank. Designed to work with the 2.7 TDV6 engine, it provides stable information for the instrument cluster and control units, leading to predictable vehicle operation. This solution is dedicated to users who expect a proven, factory design adapted to the rear part of the fuel system.

Specifications and technical data

• SKU: WGI500120
• Mark: Range Rover
• Condition: Used
• OEM Part Number: WGI500120
• Substitutable numbers: WGI500120, 5H32-9T295-FA, 5H329T295FA
• Location on the vehicle: Rear
• Fuel type: Diesel
• Category: Fuel Pumps & Sending Units

Purpose and Function in the Fuel System

The fuel pump float installed in the rear of the vehicle is responsible for accurate measurement of the fuel level in the tank and transmitting the signal to the speedometer and control systems. For the 2.7 TDV6 diesel engine, correct cooperation between the sensor and the car's electronics is crucial for driving comfort, planning refuelling, and diagnosing potential fuel system faults.

This component is dedicated to Range Rover vehicles, meaning it maintains the correct operating characteristics, float arm geometry, and measuring track resistance, in line with the vehicle manufacturer's requirements.

Construction and Fit for Range Rover Sport L320

The presented float works with the rear section of the fuel pump assembly in the Range Rover Sport L320 with a diesel engine. The construction is prepared for installation in the factory tank socket, with proper float arm guidance and an electrical connector matched to the vehicle's wiring. This ensures correct fitment with the original fuel system and stable operation of the fuel gauge on the dashboard.

Its placement in the rear of the vehicle facilitates servicing within the fuel tank area and allows for component replacement without interfering with other mechanical parts, provided access to the module is ensured according to the manufacturer's procedure.

Benefits of Using a Dedicated Float

• Compatibility with the fuel system of the 2.7 TDV6 diesel engine in the Range Rover Sport L320.
• Stable fuel level reading, reducing the risk of incorrect gauge indications.
• Adapted float arm geometry to the shape of the fuel tank.
• Can be used in the diagnosis and repair of the fuel system without the need for electrical adaptation.

By maintaining the original design concept, the float works with factory control units, promoting seamless integration with the vehicle's electronics and reducing the risk of errors related to incorrect fuel level signals.

Condition and Service Application

This component is from the used parts group, making it an attractive cost-effective alternative for fuel system repairs in the Range Rover Sport L320. It is suitable for replacing a damaged fuel level sensor as well as during comprehensive servicing of the tank and fuel pump assembly when restoring correct dashboard readings is necessary.

Selecting a float that matches the specific model and engine version is crucial for the correct operation of the fuel gauge. Therefore, before installation, it is advisable to verify the part's compatibility with the vehicle's documentation or reference numbers in the technical specifications.

Technical Support and Related Components

If you are planning a comprehensive repair or upgrade of the fuel system area in your Range Rover and need other components from the same group, such as pump modules, level sensors, or fuel basket elements, check the available parts in the Range Rover Fuel Pumps and Level Sensors category.

To better understand the operation of the float, pump, and the entire diesel engine fuel supply line, it is worth consulting a guide describing diagnostics, selection by part numbers, and operating principles – this is detailed in the article Fuel System – Injectors, Pumps, and Fuel Tank: Maintenance and Repair, which helps in consciously planning repairs and inspections for diesel vehicles.
