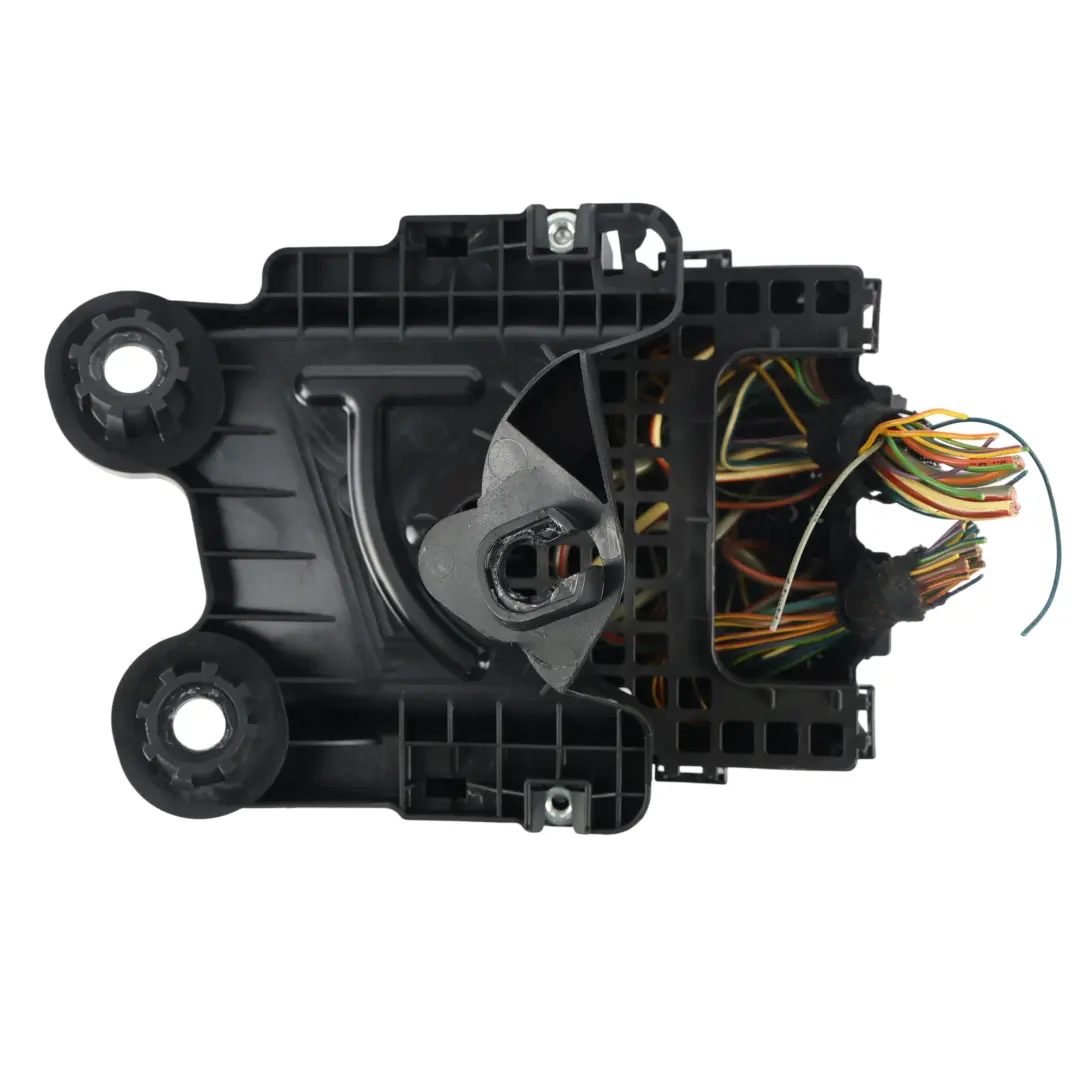

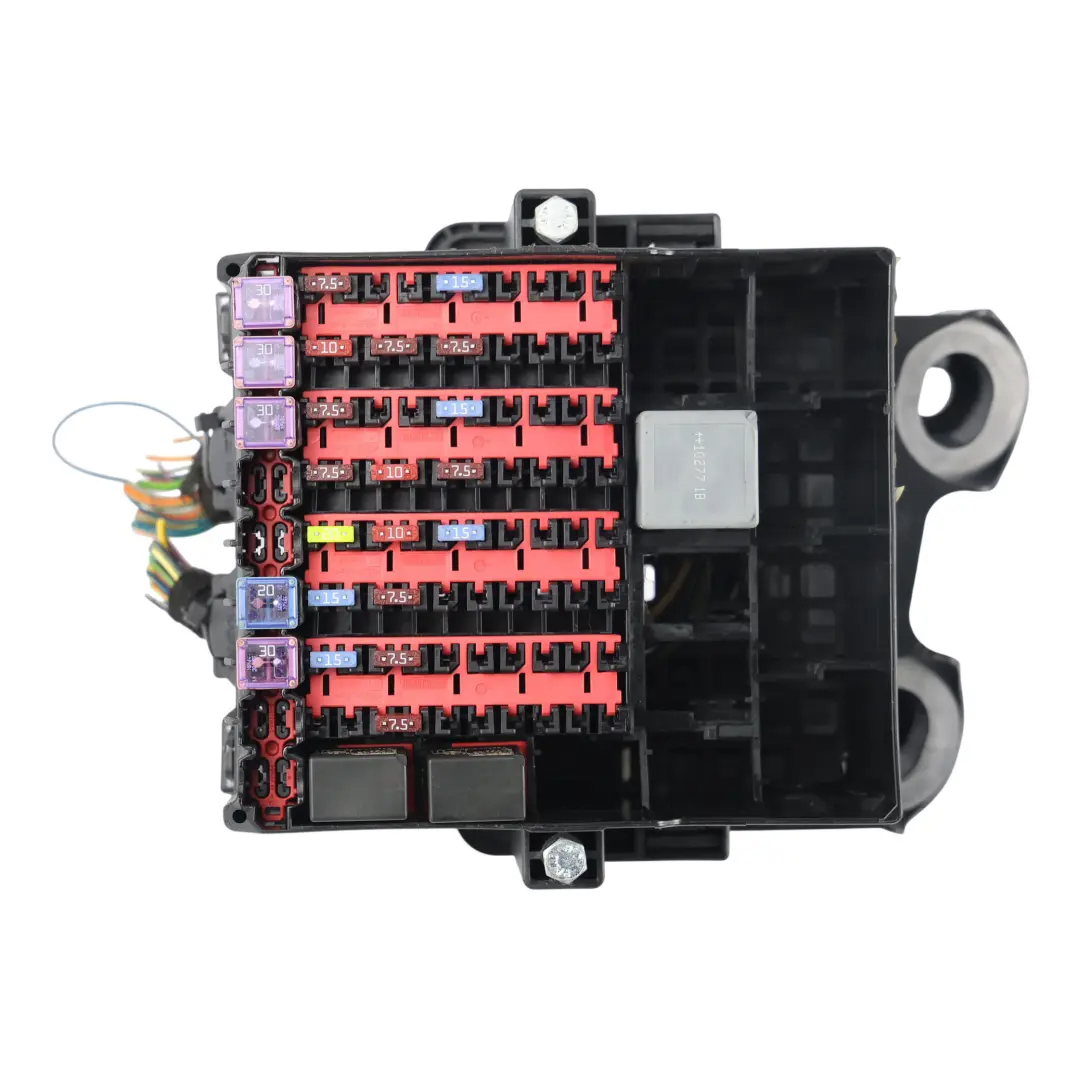

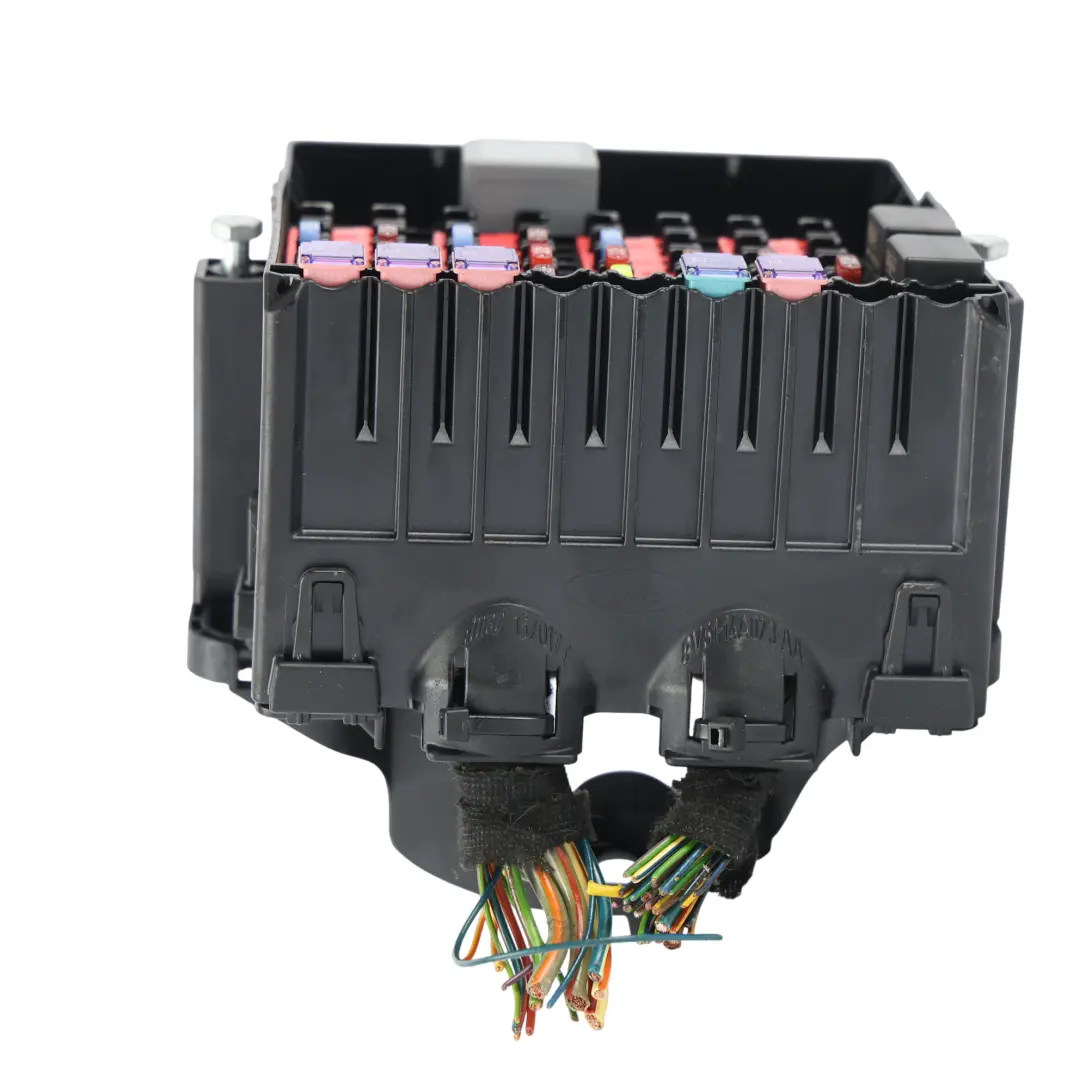

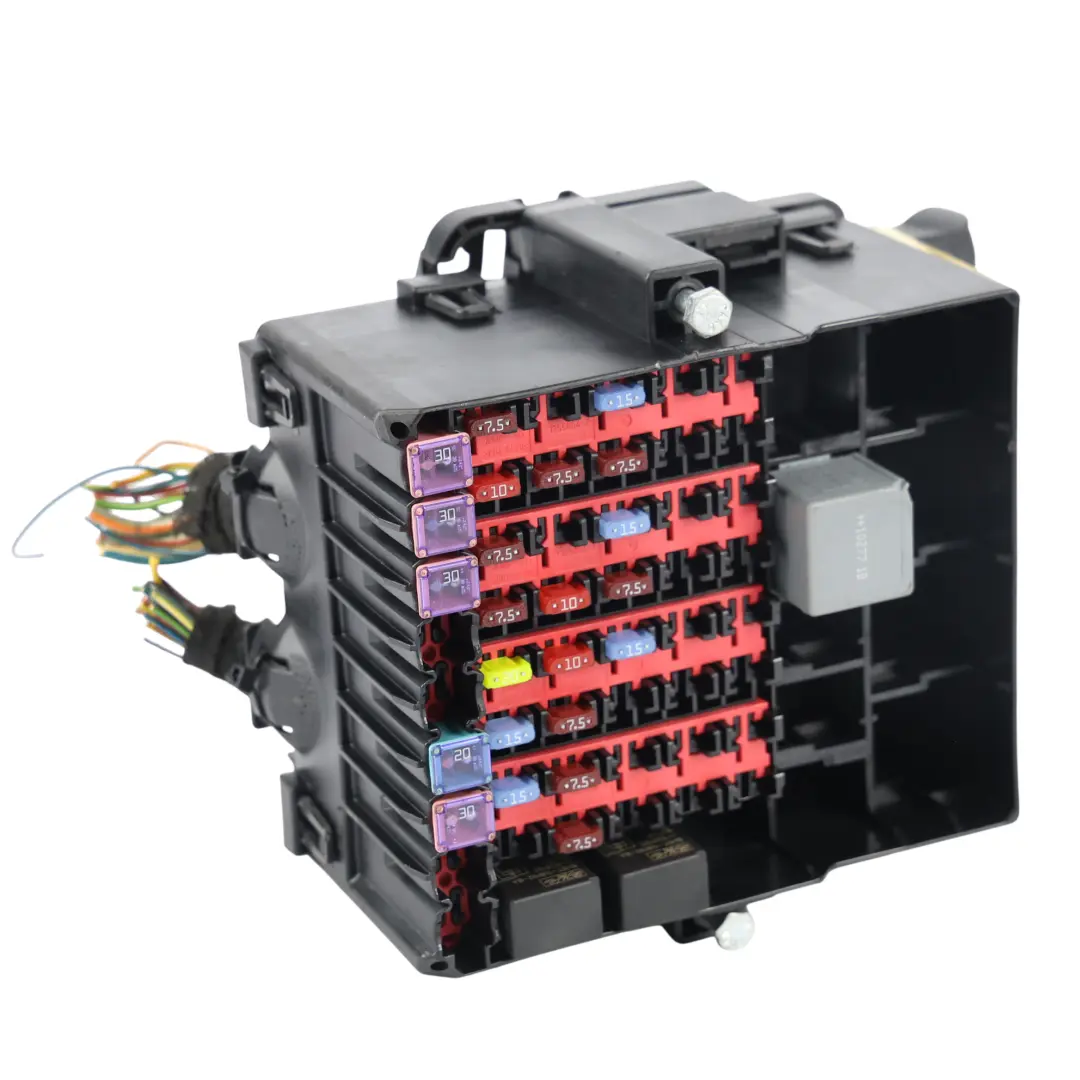

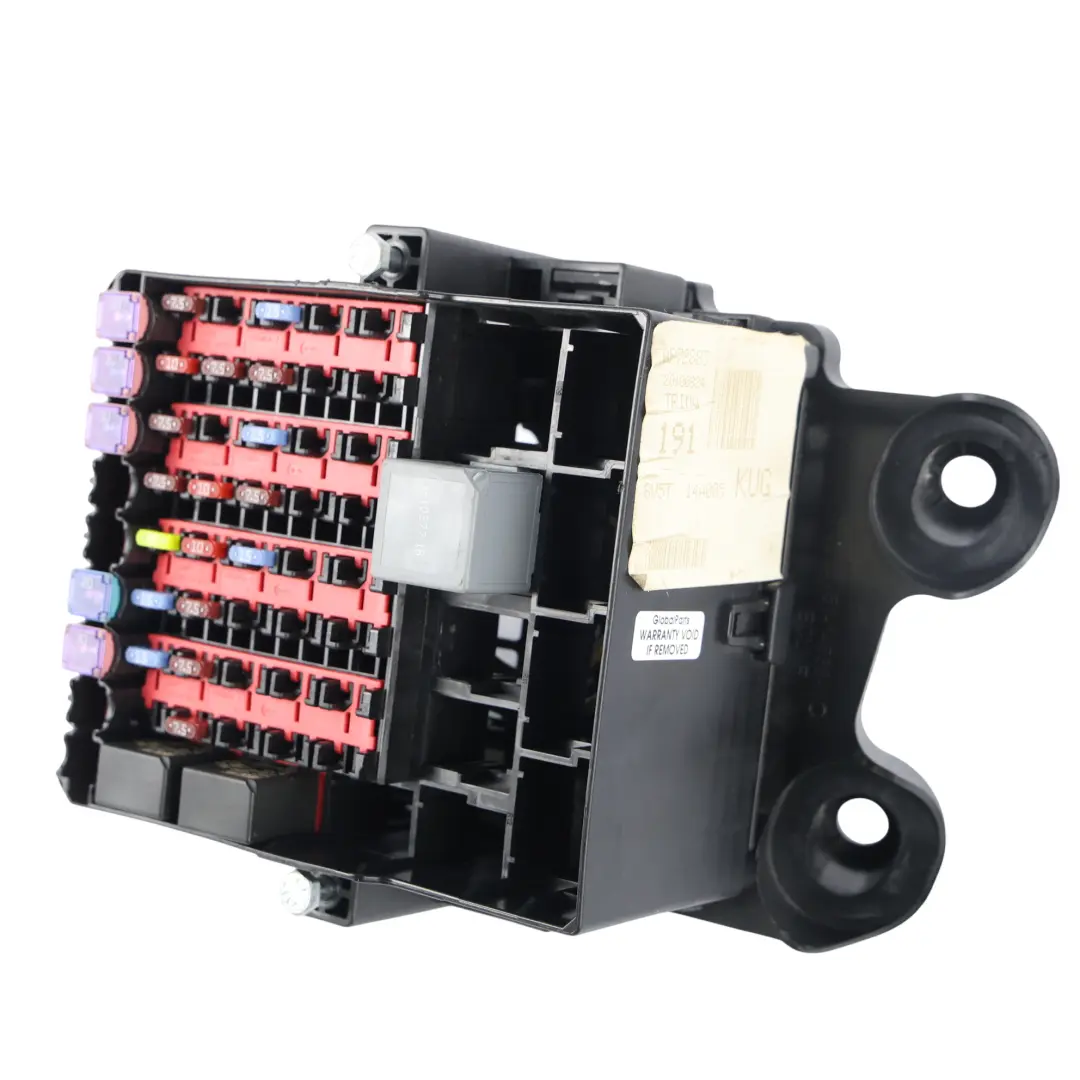

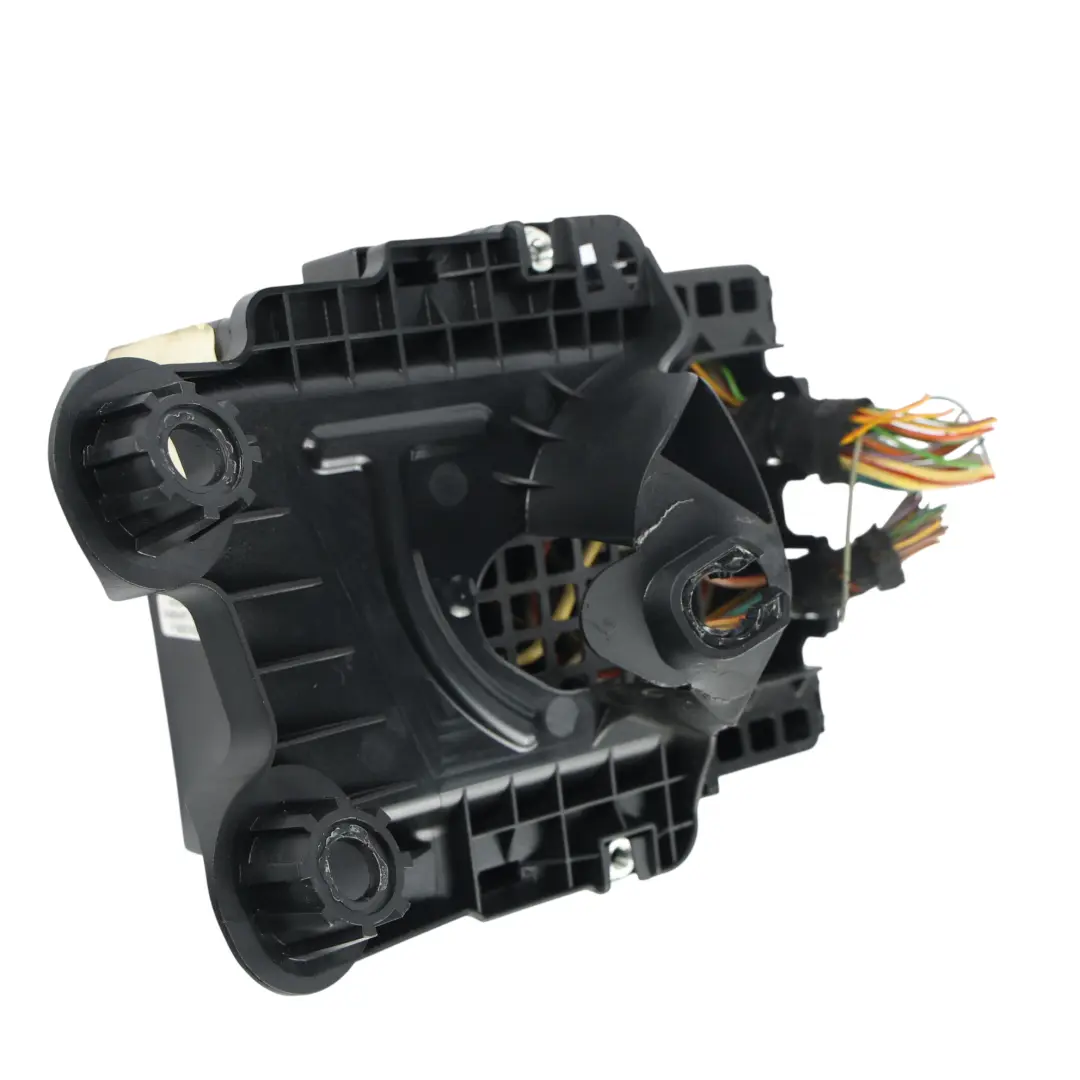

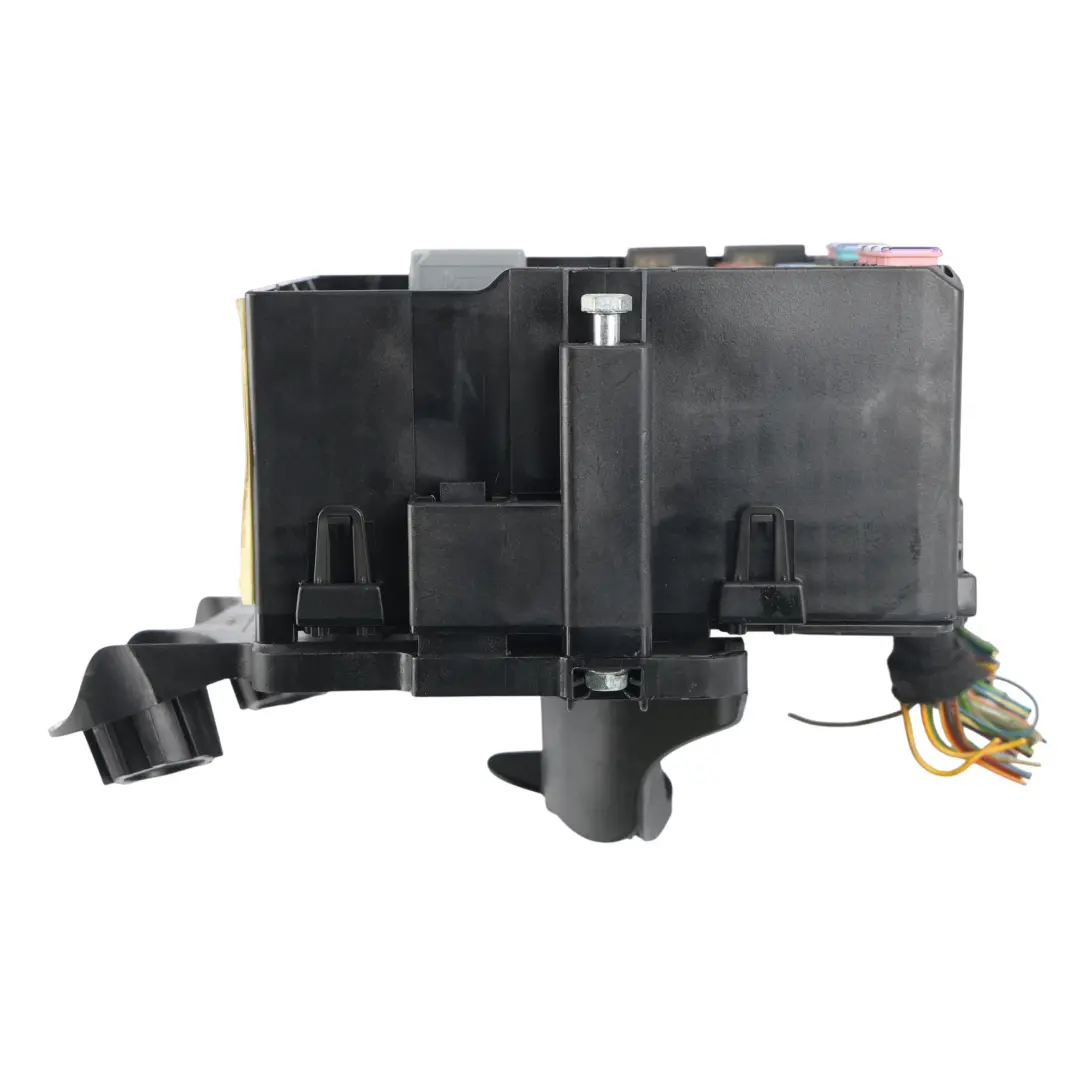

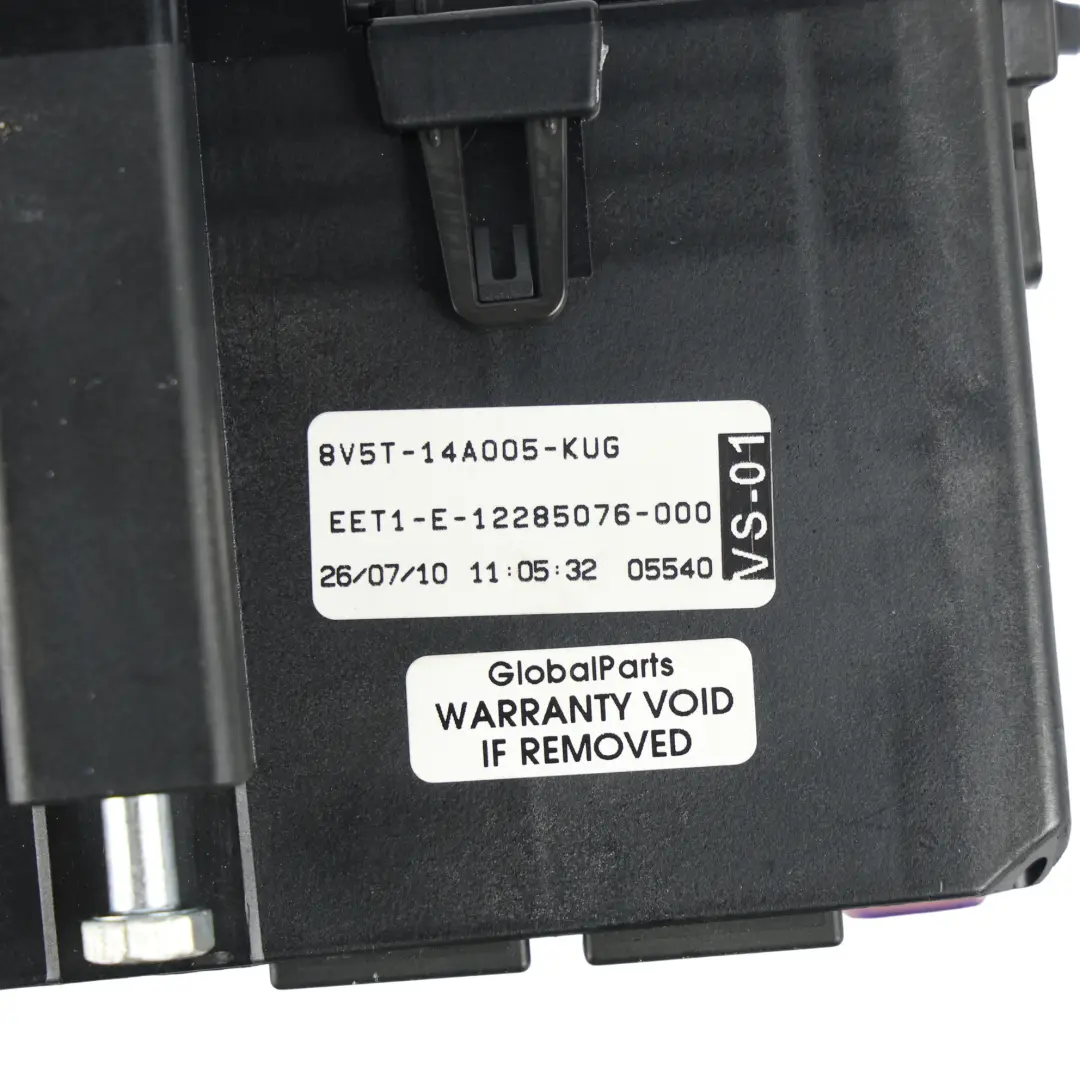

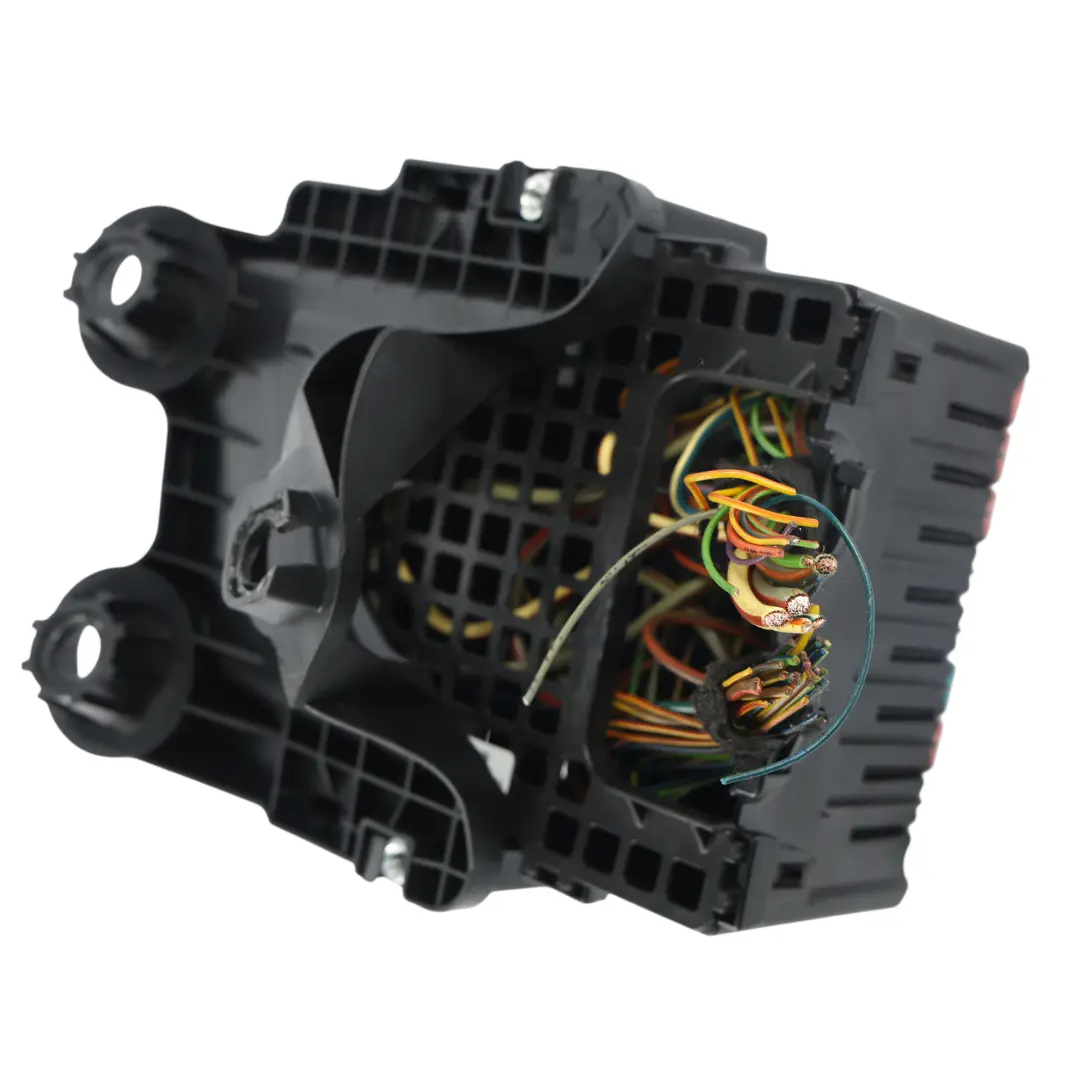

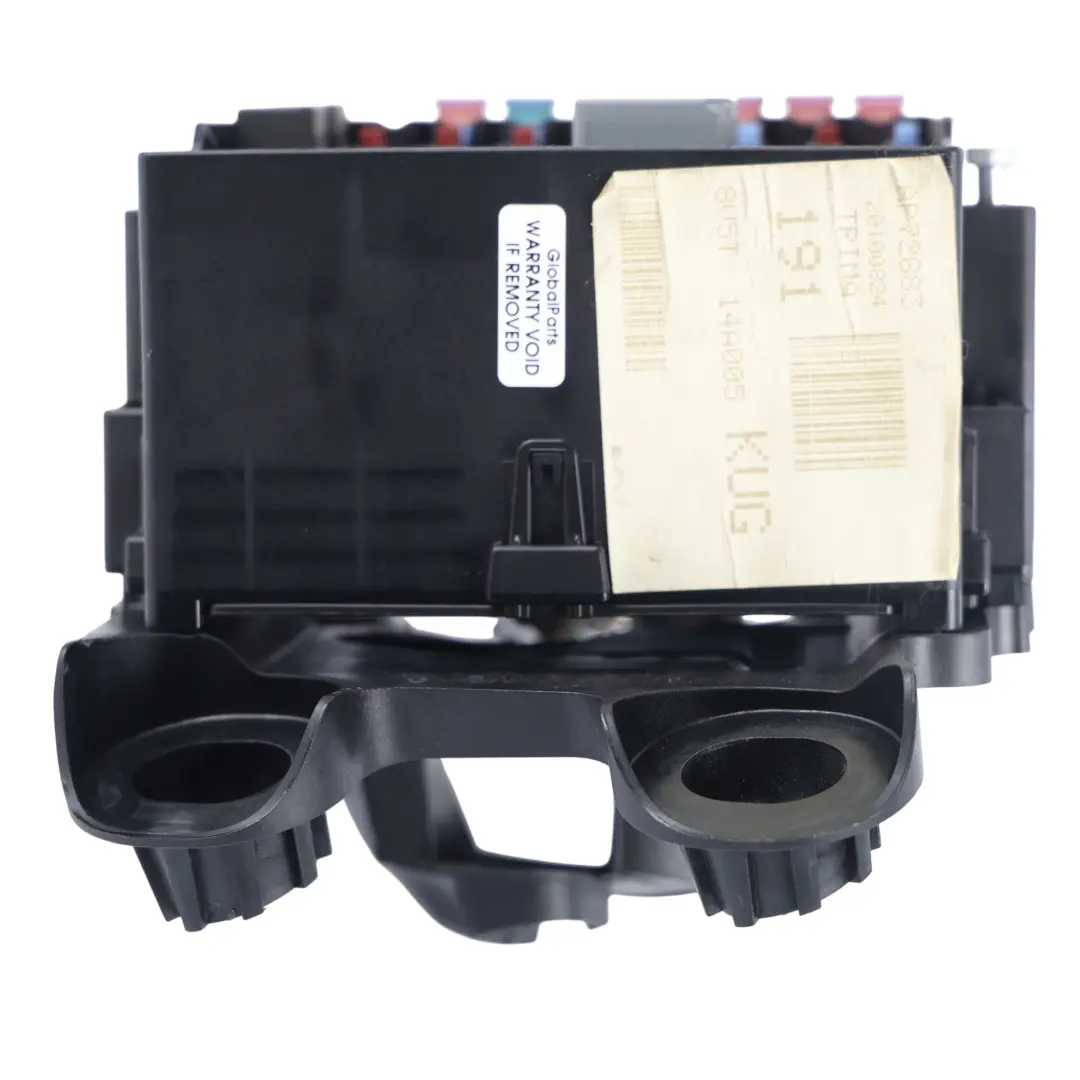

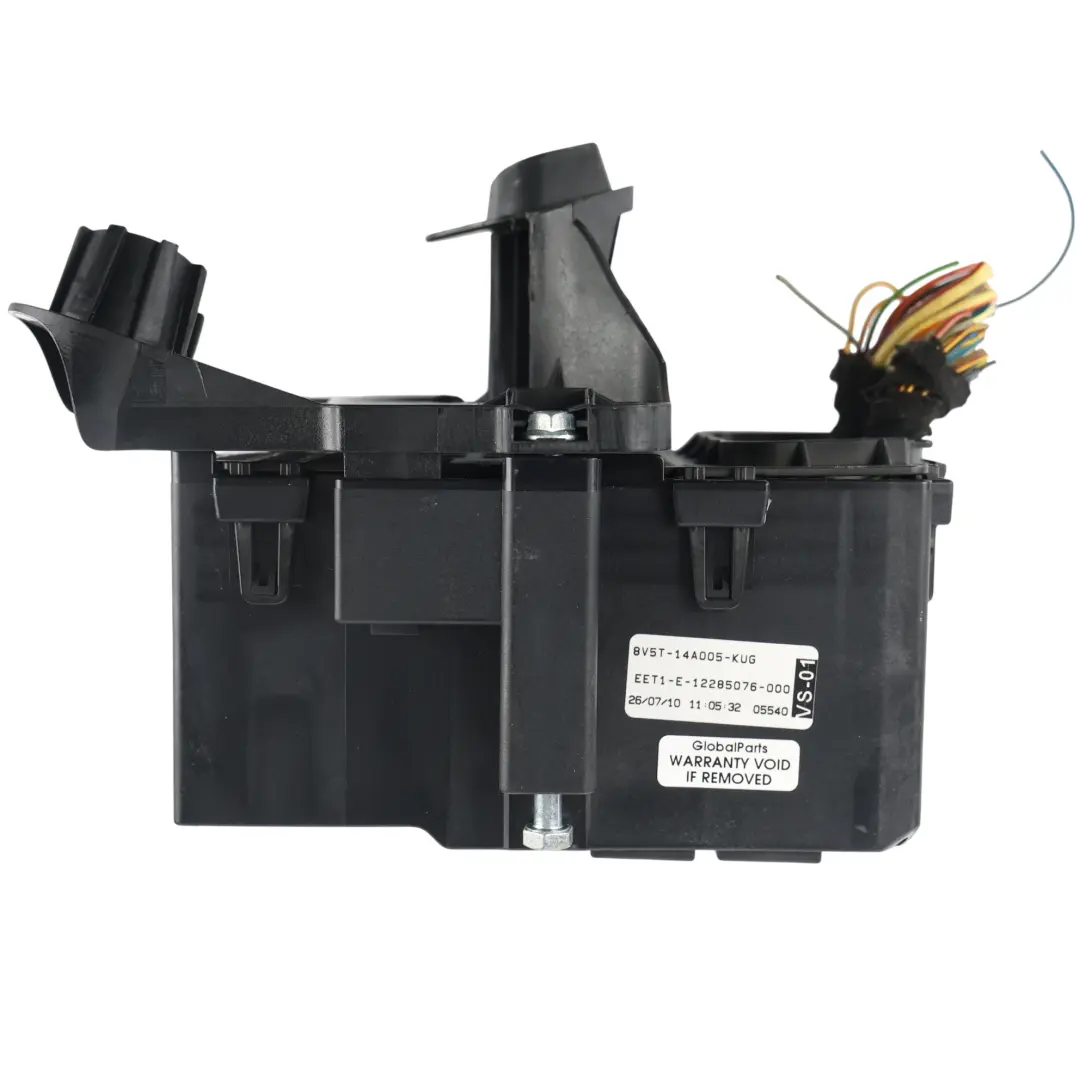

Ford Fiesta Mk7 Fusebox Fuse Relay Box 1.6 TDCI Diesel TZJA 8V5T-14A005-KUG

Ford Fiesta Mk7 Fusebox Fuse Relay Box 1.6 TDCI Diesel TZJA is an original electrical system component designed for diesel engine versions. The fuse box is responsible for safe power distribution and protecting the vehicle's key electrical circuits against overloads and short circuits. It is a practical solution for users who need a proven module for professional electrical system repairs.

Specifications and technical data

• SKU: 1693207
• Mark: Ford
• Condition: Used
• OEM Part Number: 1693207

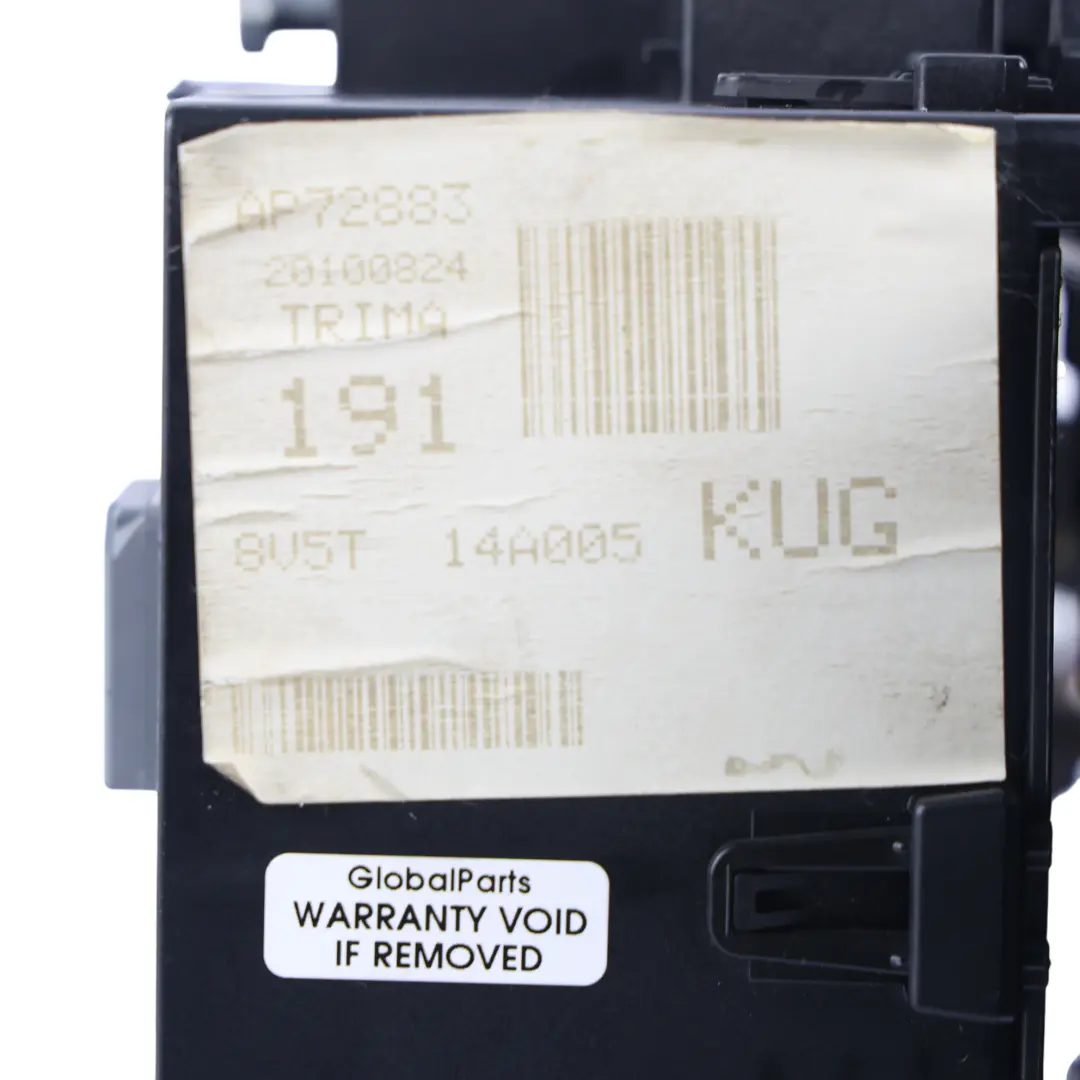

• Substitutable numbers: 1693207, 8V5T-14A005-KUG, 8V5T14A005KUG
• Fuel type: Diesel
• Part type: Fuse Box
• Category: Fuses & Fuse Boxes

Purpose and function in the electrical system

The fuse box in the Ford Fiesta Mk7 acts as a central power distribution point for many consumers – from basic onboard systems to comfort features. In the 1.6 TDCI Diesel version, it is adapted to the characteristics of the diesel unit, which translates into the appropriate layout and load capacity of individual circuits. A correctly selected fuse box helps maintain system stability and facilitates the diagnosis of potential faults.

Construction and compatibility

The presented fuse box is an item from the Fuses and fuse boxes group, designed specifically for the Ford brand. This ensures the preservation of factory connector geometry, proper socket layout, and compatibility with the wiring harness used in the given model. As a result, installation is orderly, without the need for wiring modifications or the use of additional adapters. Its original Ford origin helps maintain the consistency of electrical parameters, such as the permissible loads of individual power paths. This is especially important in diesel cars, where the starting and preheating systems have higher current requirements than in gasoline units.

Application in diesel vehicles

Diesel versions, such as the 1.6 TDCI, generate specific loads for the electrical system – this applies, among other things, to the starting system, glow plugs, or additional consumers related to engine accessories. The fuse box dedicated to the Ford Fiesta Mk7 with a diesel engine is configured to meet these requirements, providing adequate protection and circuit division. In practice, this translates into more stable system operation and a lower risk of failures resulting from overloads.

Benefits of using an original fuse box

Using a factory fuse box in a Ford Fiesta Mk7 brings a number of practical benefits:

• compliance with service documentation and electrical diagrams,
• secure fitment to the wiring harness and mounting points in the vehicle compartment,
• orderly access to fuses and relays during diagnostics,
• reduction of risks resulting from non-original solutions. For workshops and users, this means more efficient service and easier localization of potential faults in power circuits.

Condition and service application

This item comes from the used parts group, making it a reasonable choice for repairs where the cost-to-functionality ratio is important. This type of component is particularly useful for damage resulting from flooding, overheating, or mechanical damage to the original box. Replacing it with a functional module allows for the restoration of proper operation of many electrical systems without the need to interfere with the entire wiring harness. If you are planning a comprehensive repair or upgrade of the electrical system area in your Ford and need other elements from the same group, such as additional protection modules, fuse sockets, or connector housings, check the available parts in the Ford Fuses and fuse boxes category.

Additional information and selection support

When selecting a fuse box for a specific version of the Ford Fiesta Mk7, it is crucial to match it to the engine type and equipment configuration. In case of doubt, it is worth comparing the connector layout and socket arrangement with the element currently installed in the vehicle. For users interested in optimizing the repair process and reducing vehicle downtime in the workshop, an article describing the importance of a wide range of parts available from a single warehouse may be helpful – more information can be found in the material No more weeks of waiting – how does a wide range of parts in one warehouse actually shorten your car's downtime at the mechanic?.
