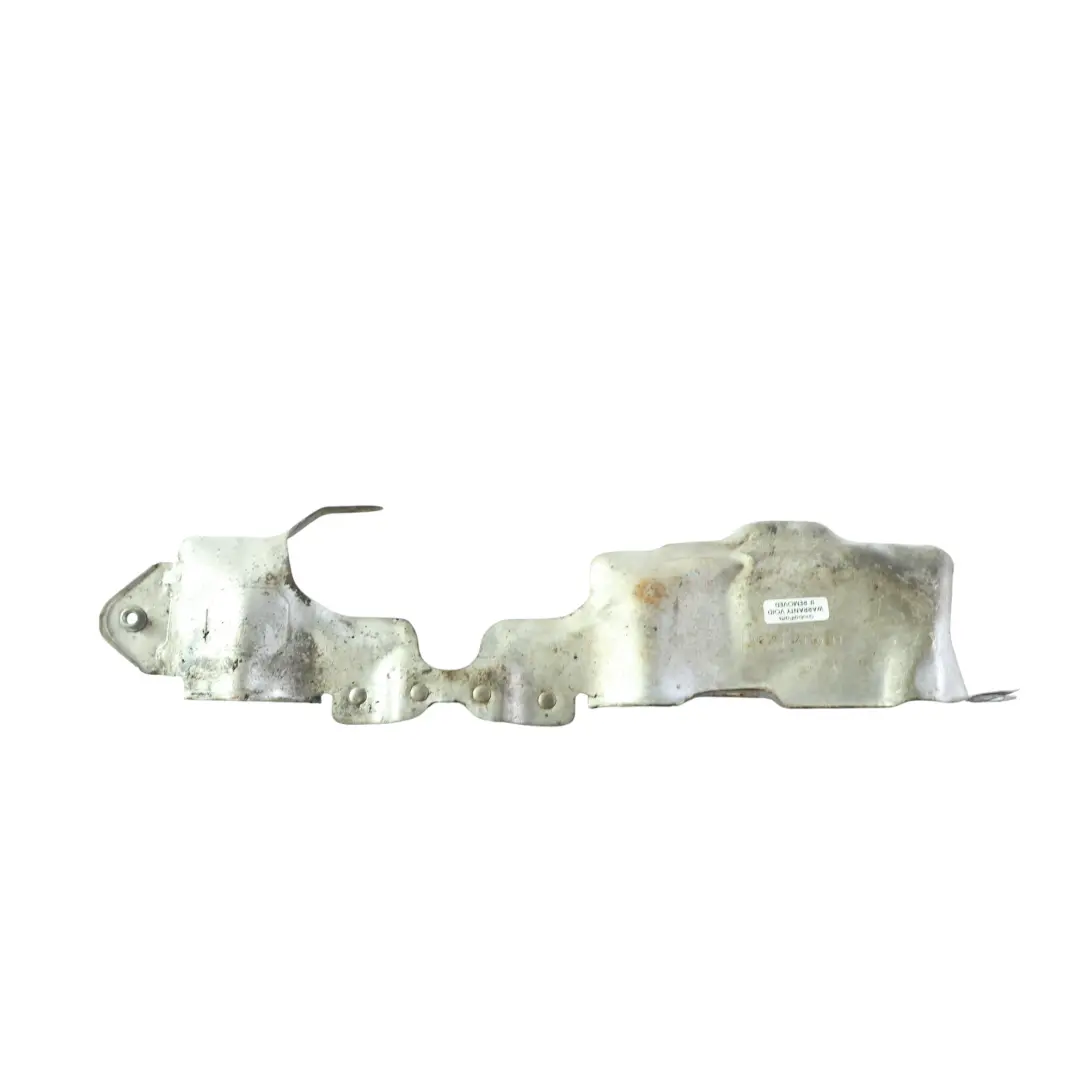

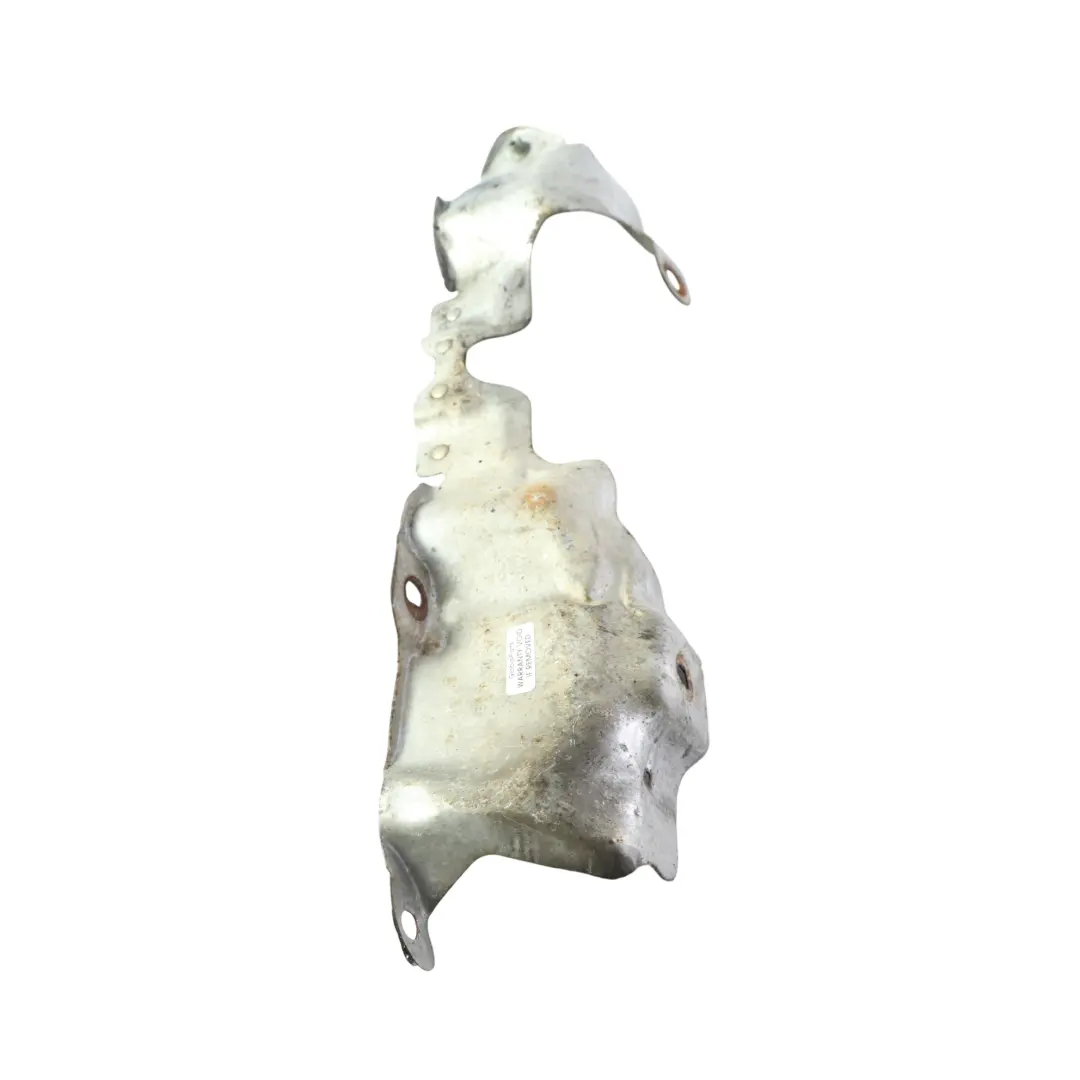

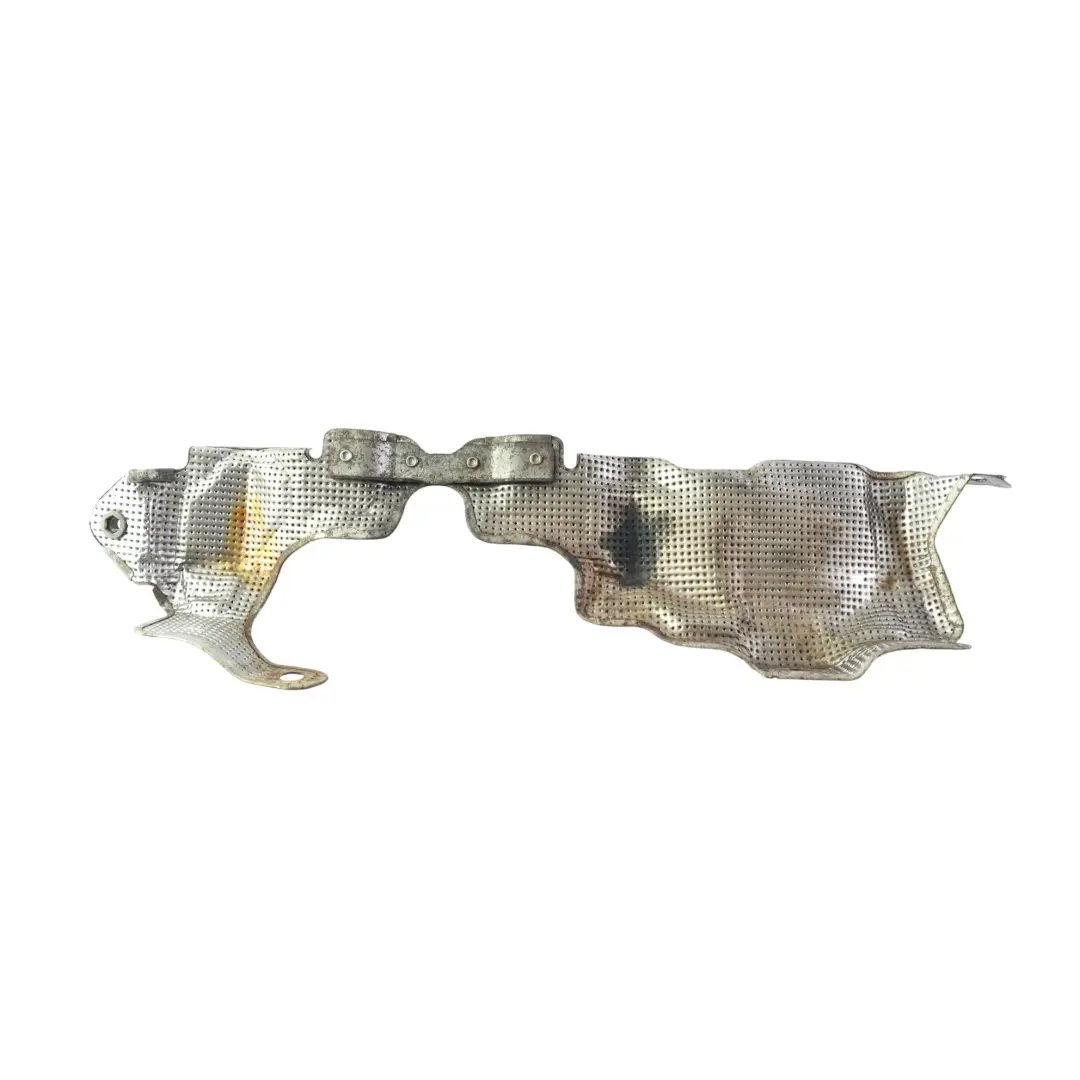

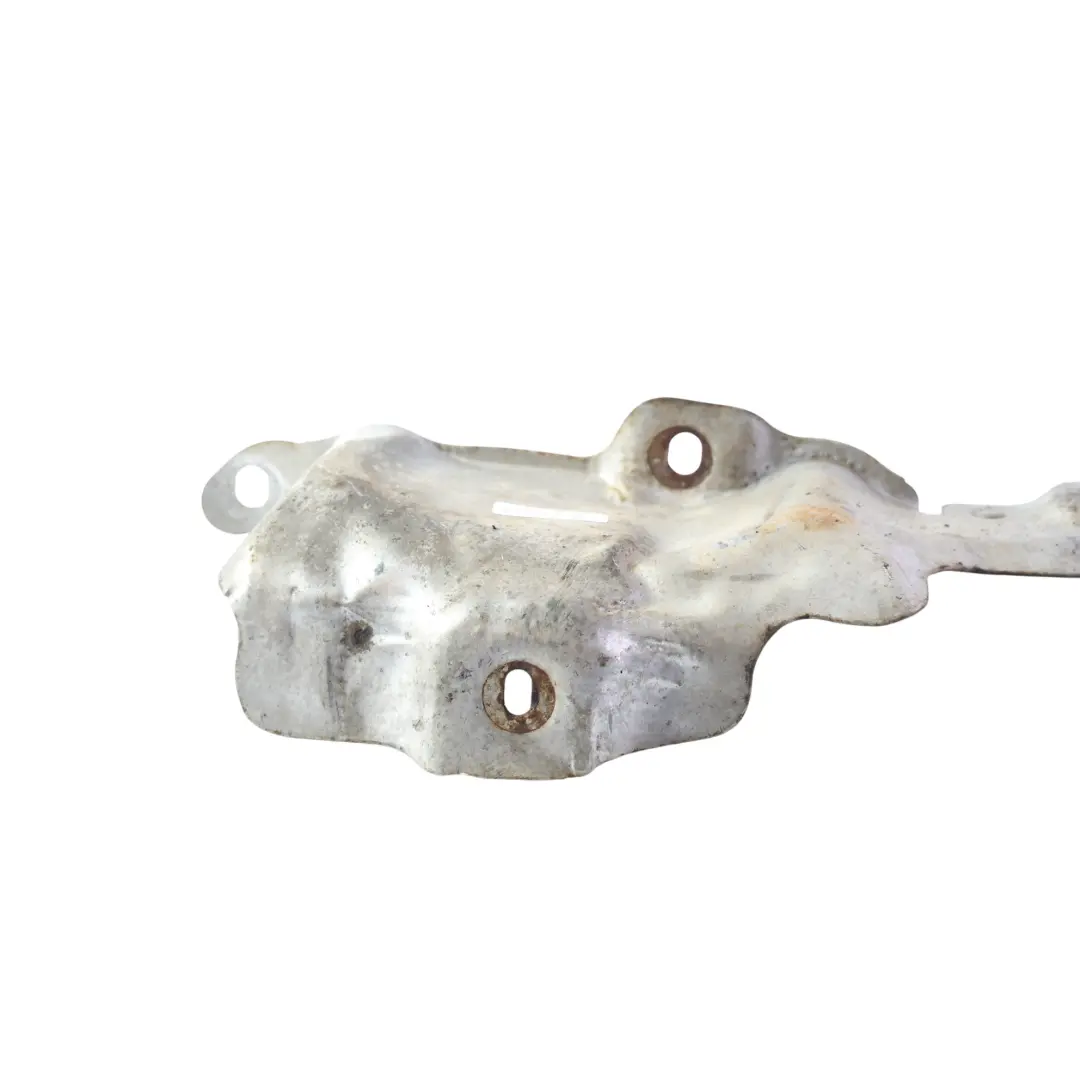

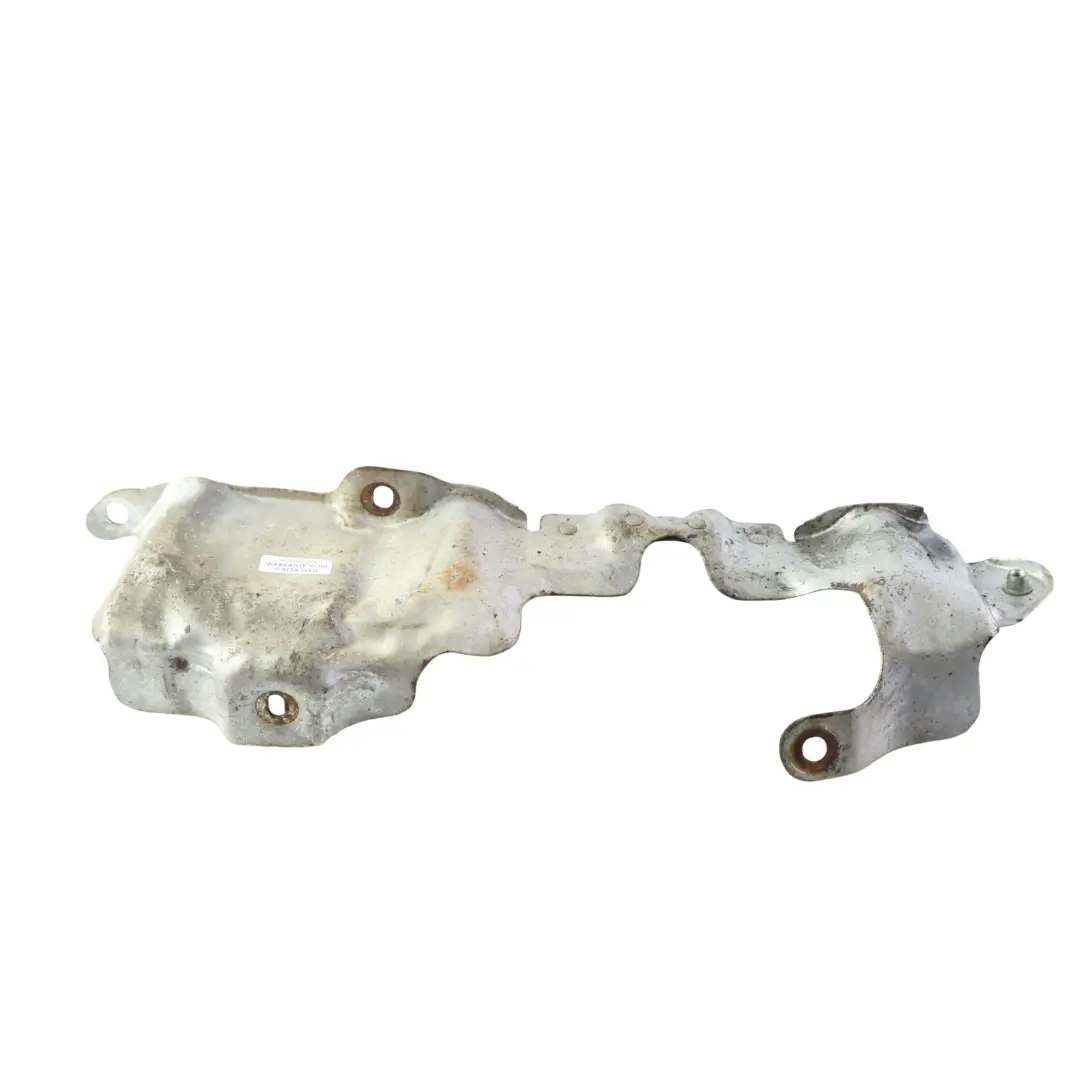

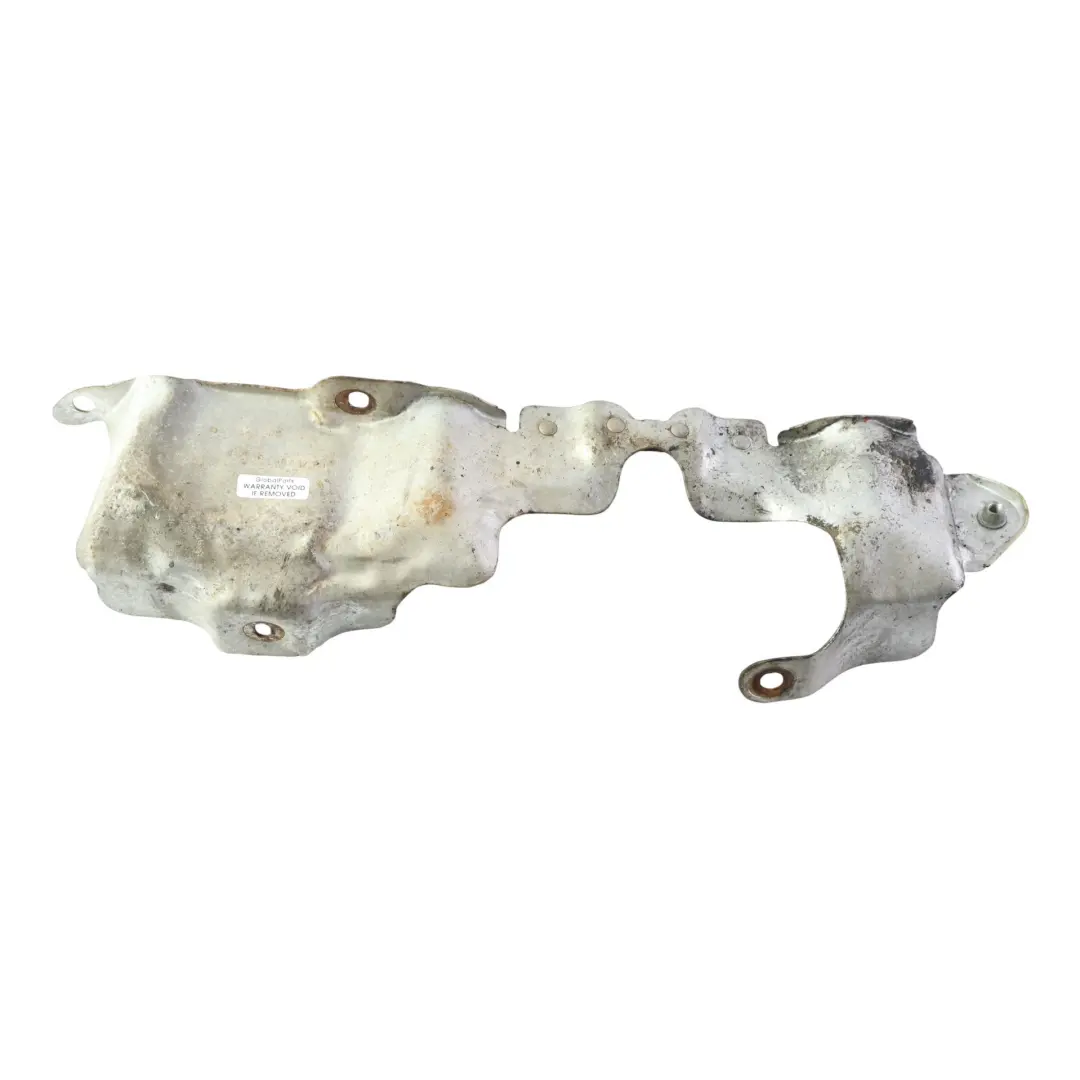

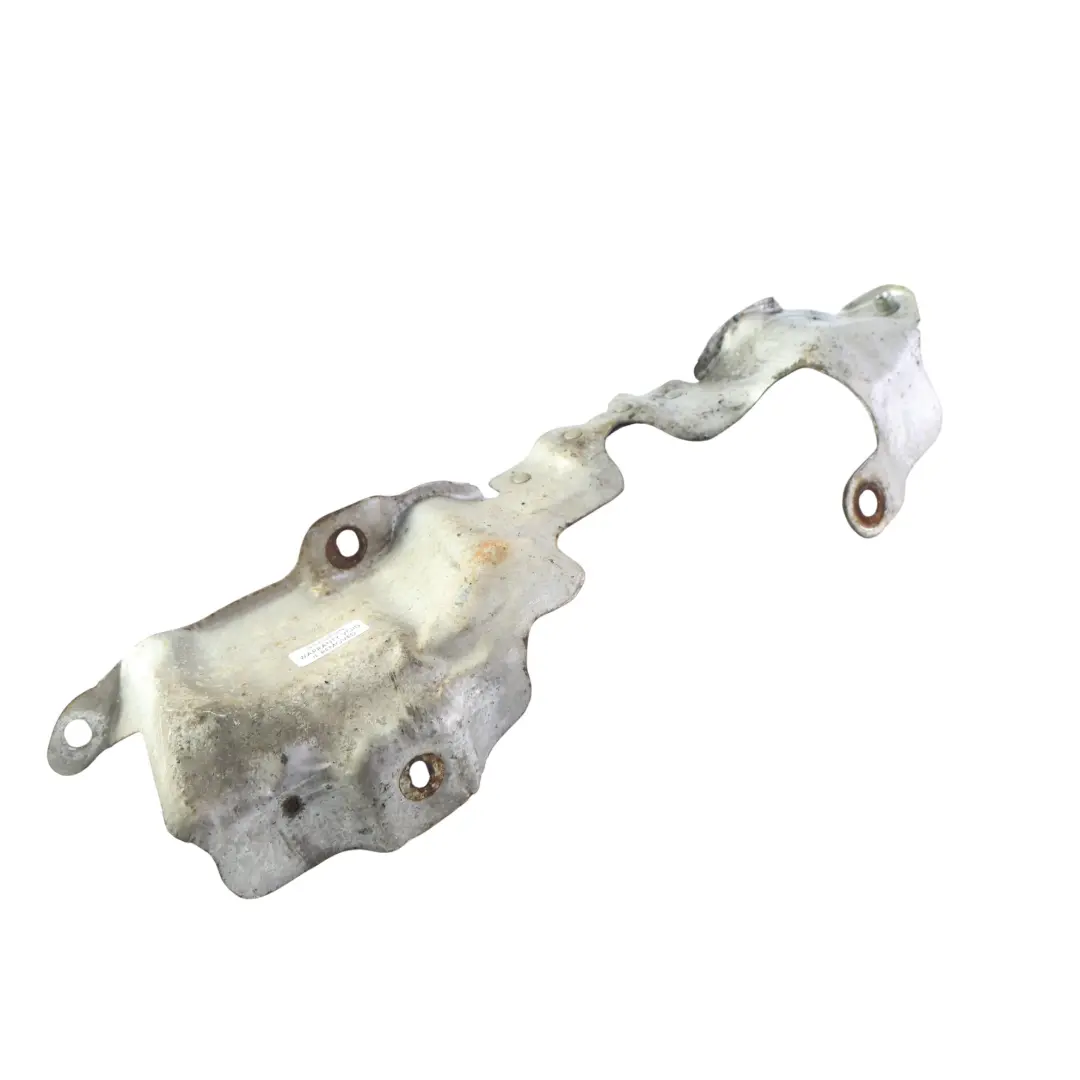

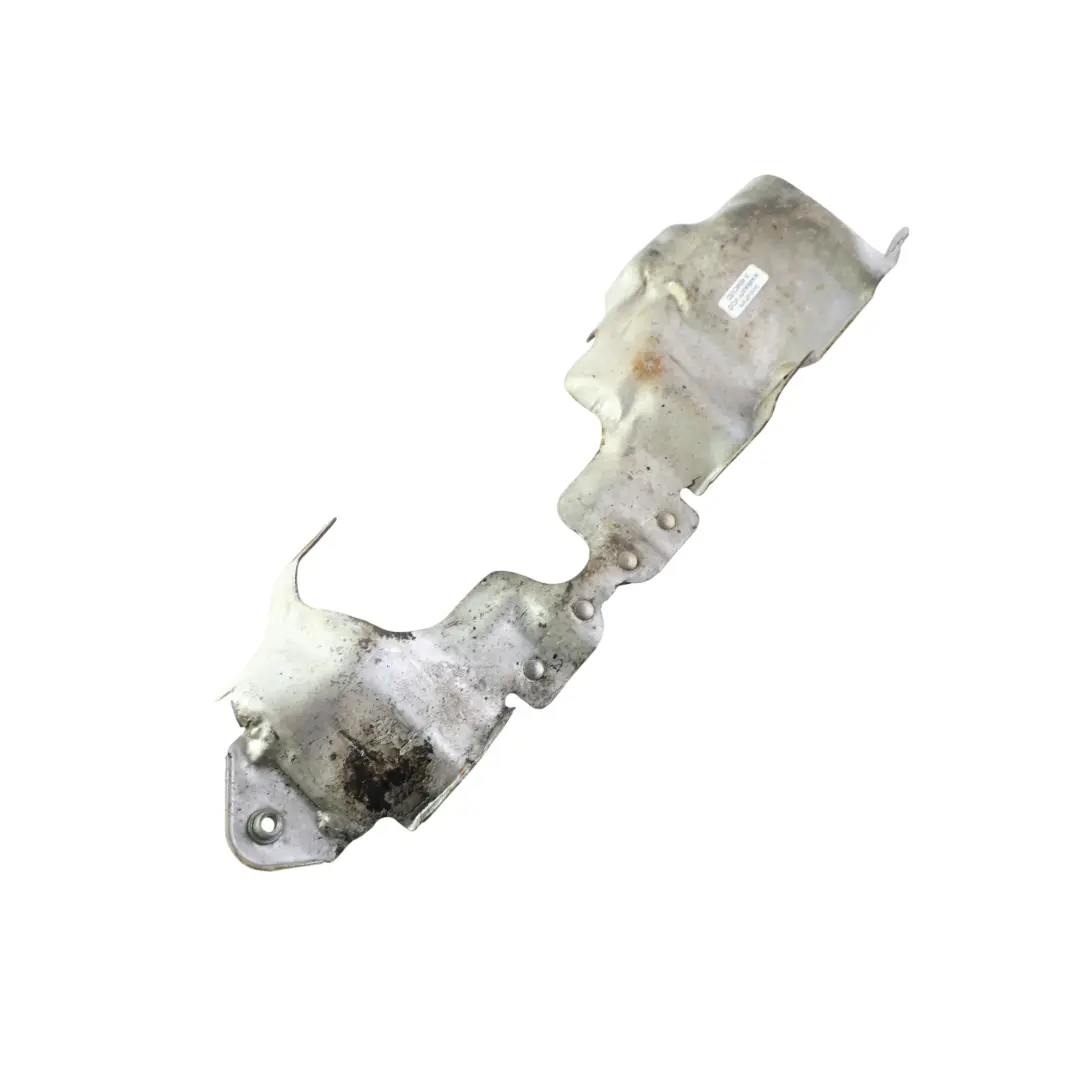

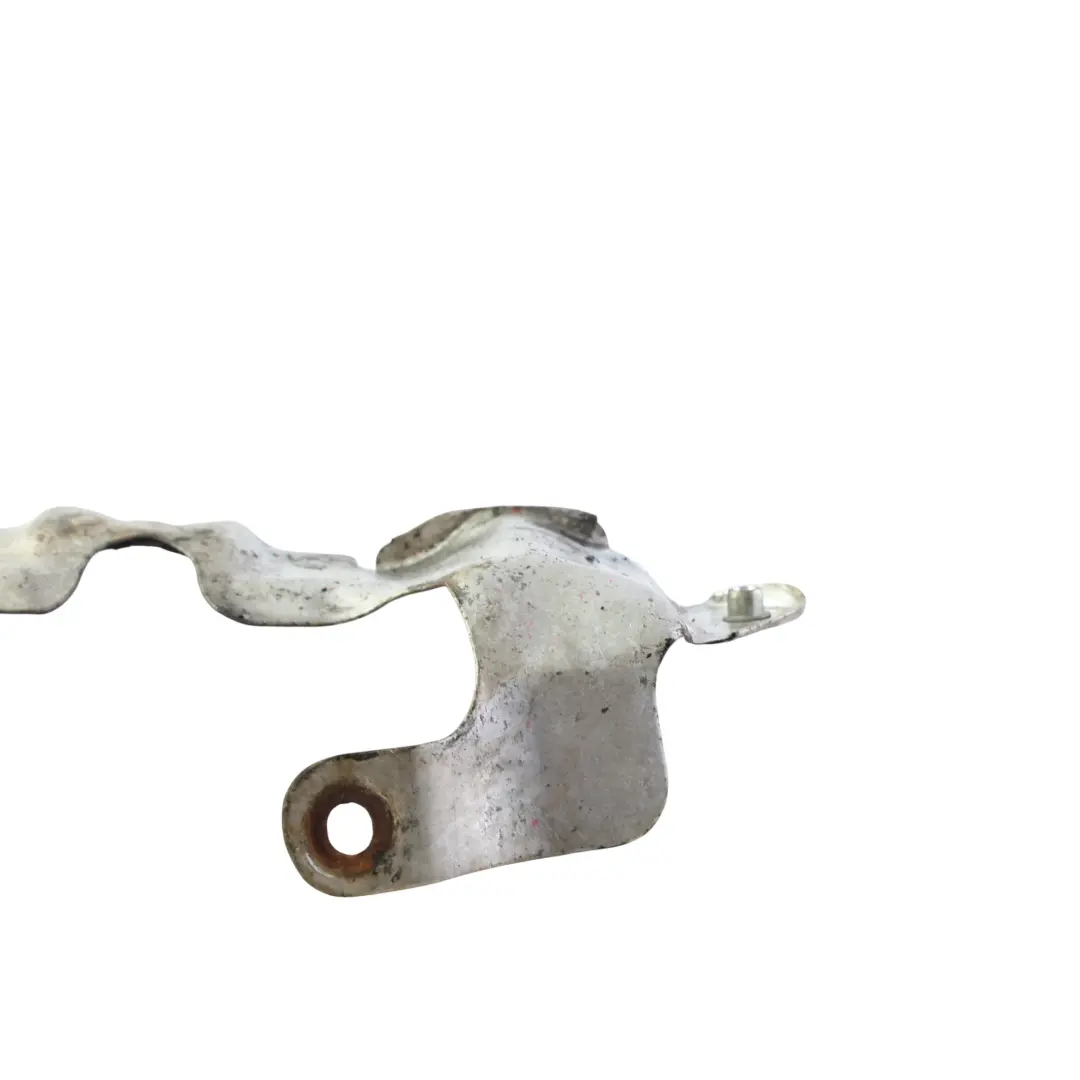

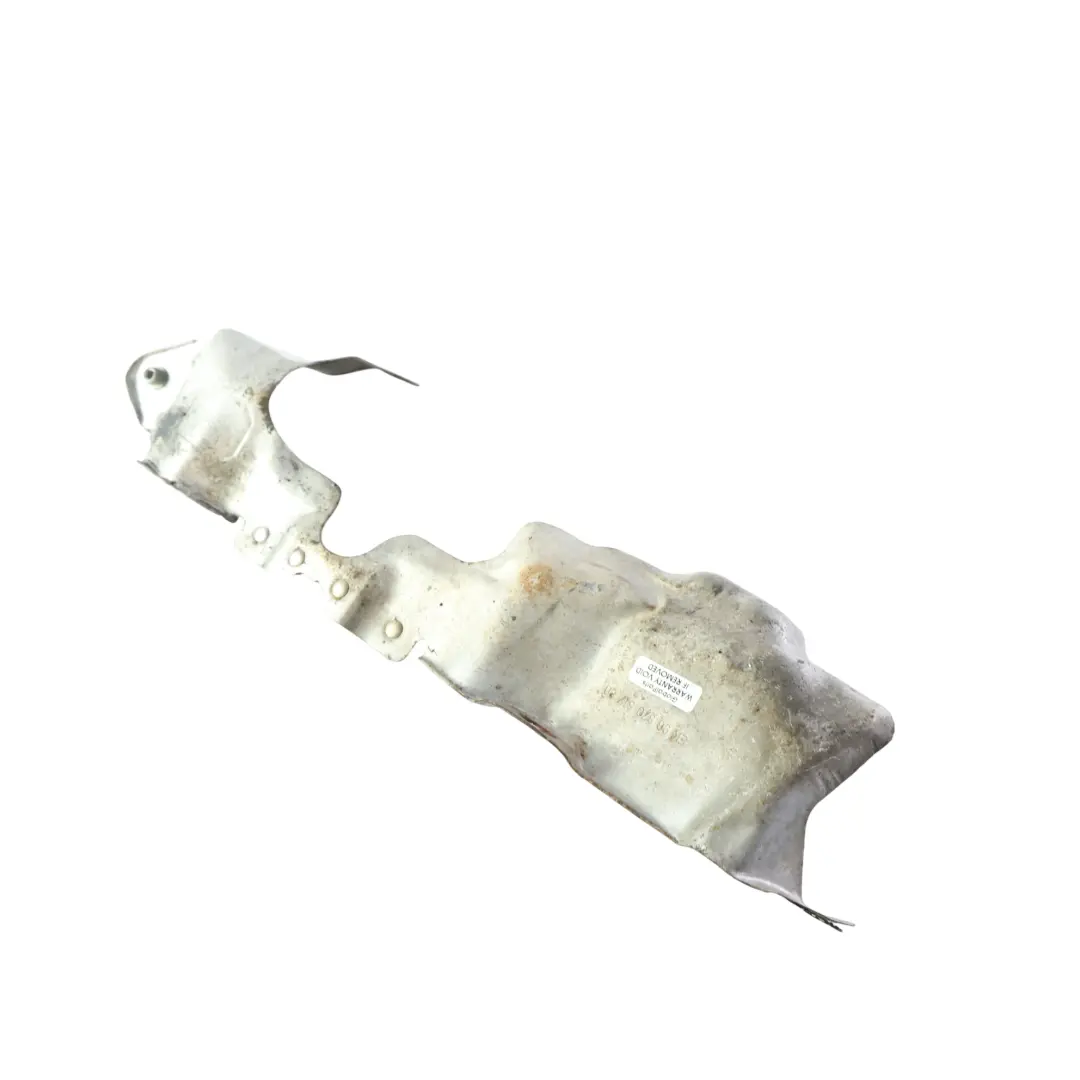

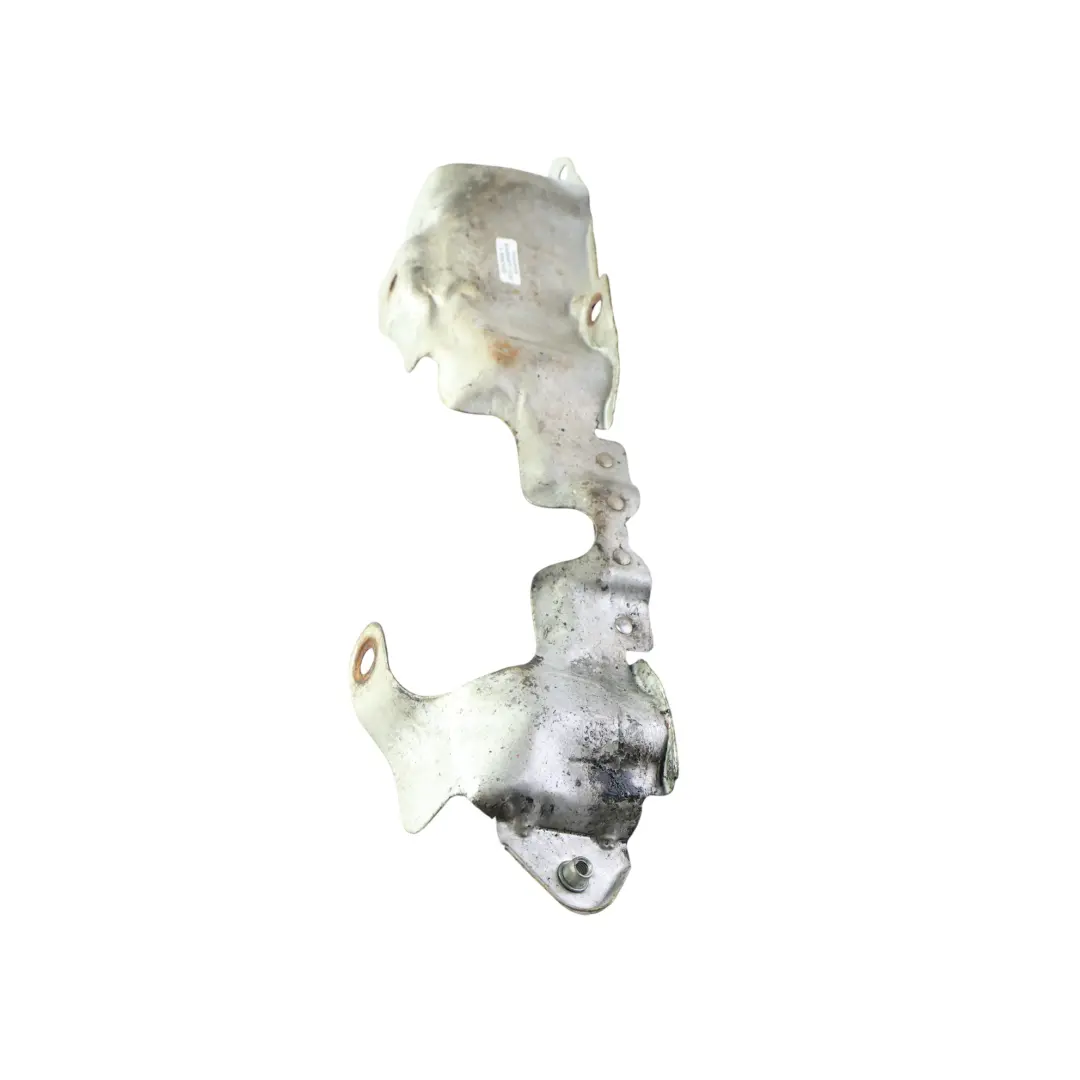

Ford S-Max Engine Heat Insulation Heat Shield Cover Protection 9687051780

Ford S-Max Engine Heat Insulation Heat Shield Cover Protection is an original component from the Heat shields, connectors and sleeves group, designed for operation in the engine compartment of this model. It effectively limits heat transfer from the power unit to adjacent components, supporting stable operating conditions and proper thermal management. This is a practical solution for users who want to keep the powertrain in good operating condition.

Specifications and technical data

• SKU: 9687051780
• Mark: Ford
• Condition: Used
• OEM Part Number: 9687051780

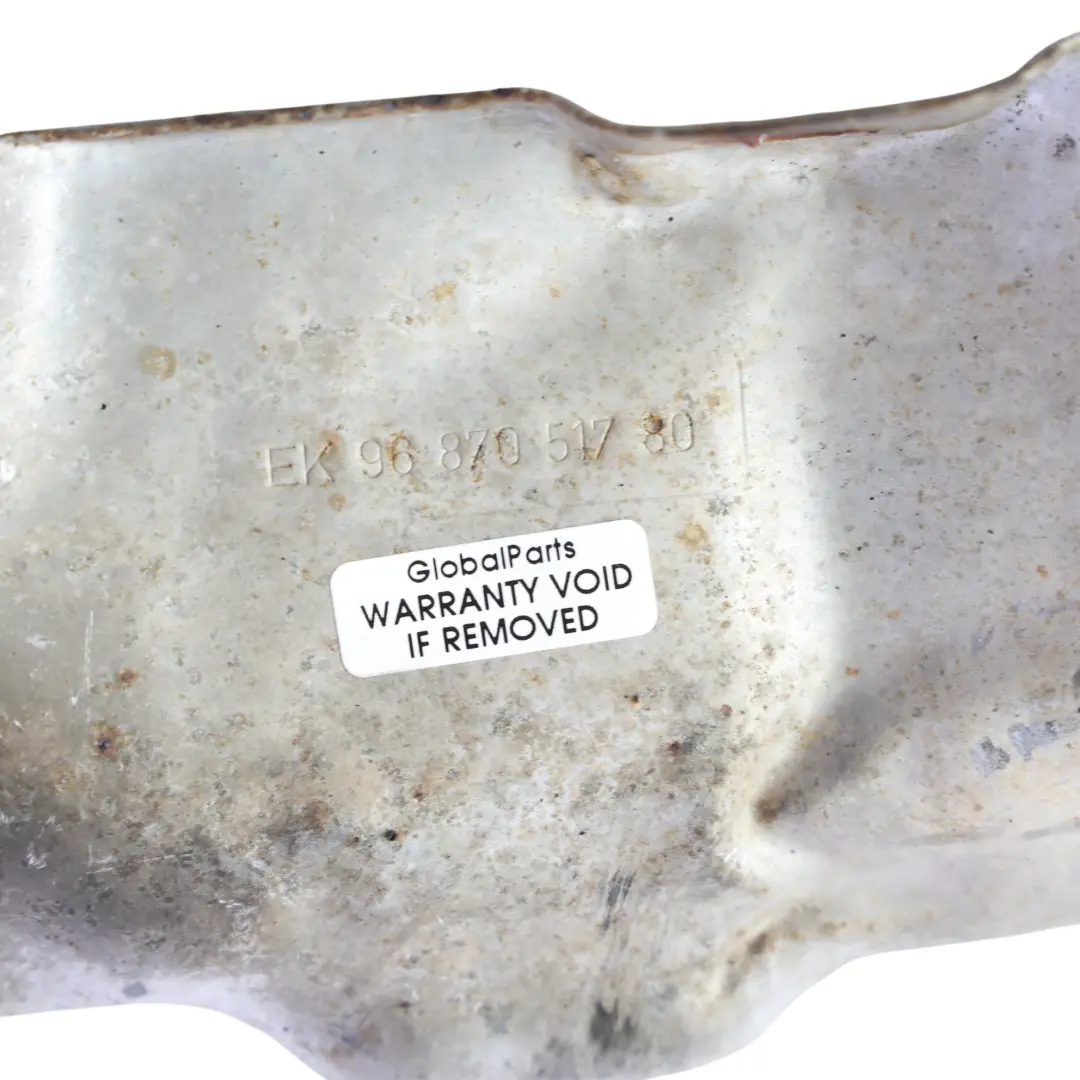

• Substitutable numbers: 98 870 517 80, 9687051780
• Part type: Heat Shield
• Category: Heat Shields, Wraps & Sleeves

Purpose and function of the heat shield

The engine heat shield in the Ford S-Max plays a key role in protecting components located in the immediate vicinity of the power unit. Its task is to:

• limit heat radiation from the engine to the electrical system, hoses, and plastic components,
• stabilize temperature in selected zones of the engine compartment,
• support the durability of accessories by reducing local overheating,
• improve operating comfort through better heat management. Thanks to its appropriately selected design, the shield works with the factory cooling system and air ducting without disrupting airflow in the engine compartment.

Benefits of using an original Ford shield

Using an original heat shield dedicated to the Ford S-Max ensures proper fitment to the mounting points and the thermal protection zones intended by the manufacturer. The factory geometry of the component facilitates installation and minimizes the risk of incorrect positioning relative to the engine and adjacent components. A used component of this class allows for an economical replacement of a worn or damaged shield while maintaining compliance with the vehicle's design. This is a sensible solution for users who want to restore proper thermal protection without compromising on parts with the parameters specified by the manufacturer.

Condition of the component and installation aspects

The offered heat shield is in used condition, meaning it comes from disassembly and is suitable for further use after proper installation. Before installation, a standard inspection of the working surfaces and mounting points is recommended to ensure that the component will be correctly seated in the engine compartment. Installation should be carried out in accordance with the Ford S-Max service procedure, maintaining the correct sequence of disassembly and assembly of adjacent components. Proper positioning of the shield relative to the power unit and exhaust system has a direct impact on the effectiveness of thermal protection.

Application in the engine thermal system

The engine heat shield works with other elements of the cooling and air ducting system, creating a coherent temperature management system in the engine compartment. Its presence helps to limit the impact of high temperatures on:

• fuel and vacuum lines,
• electrical harnesses and connectors,
• plastic elements exposed to long-term heat exposure. As a result, the risk of accelerated material aging and potential failures resulting from overheating of local components is reduced.
