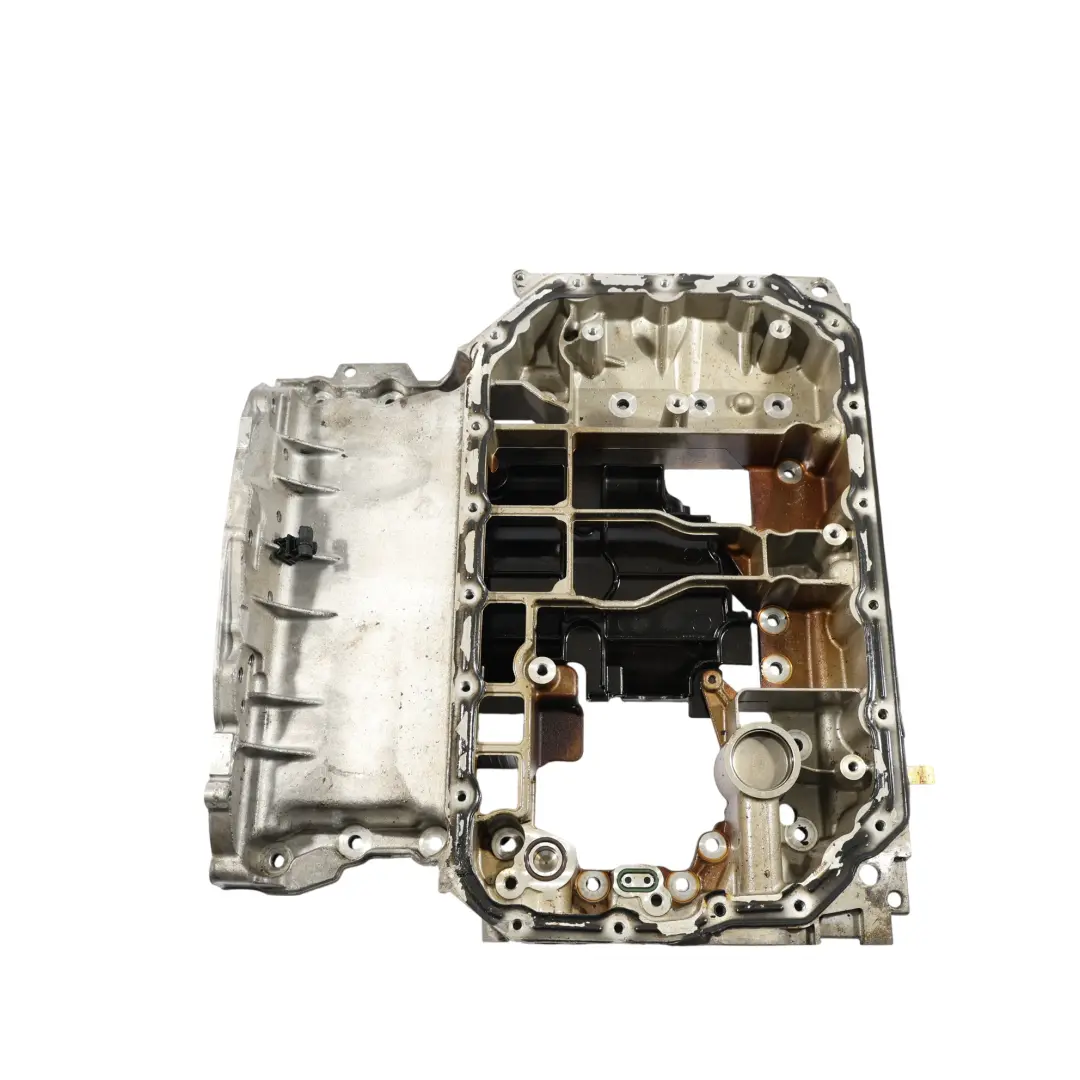

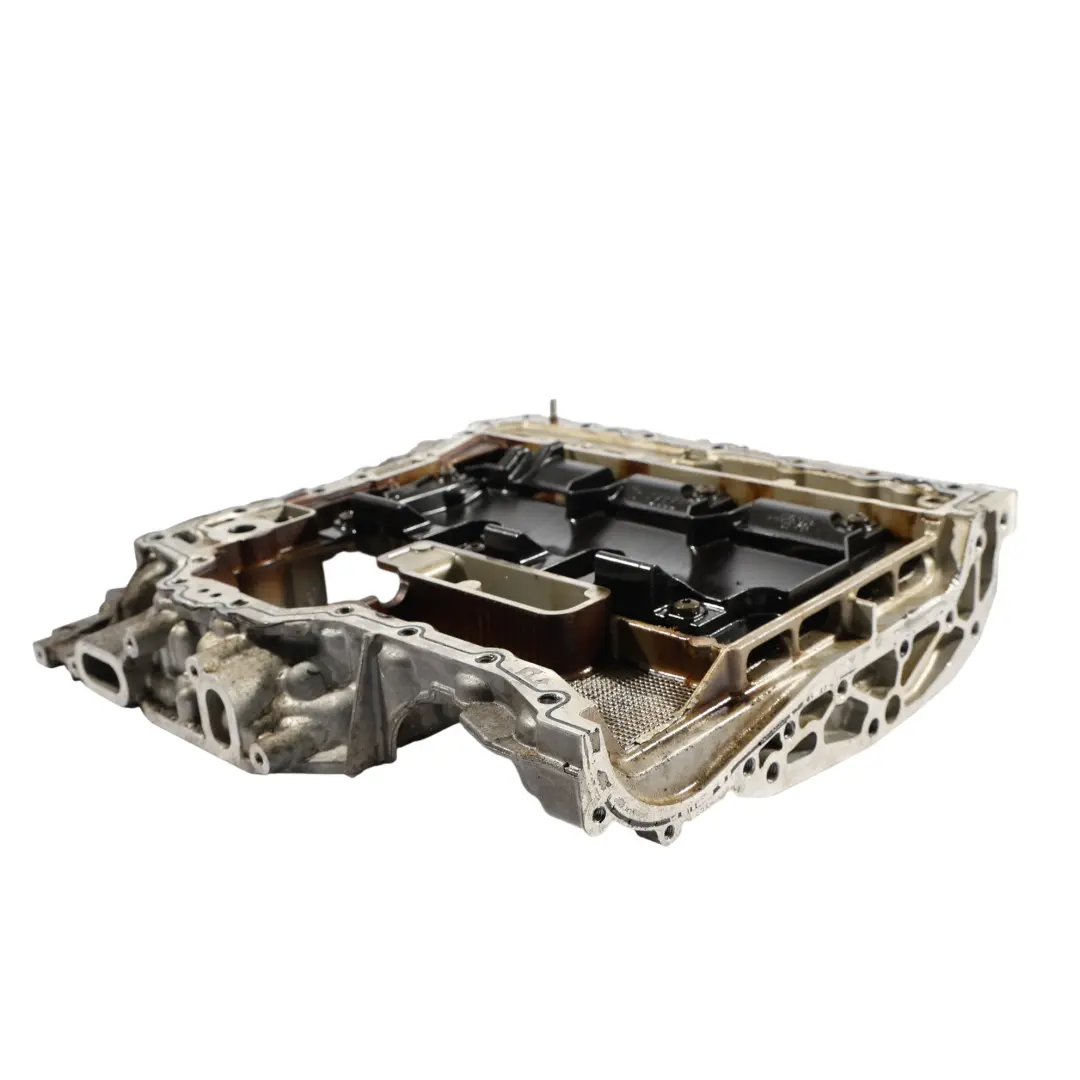

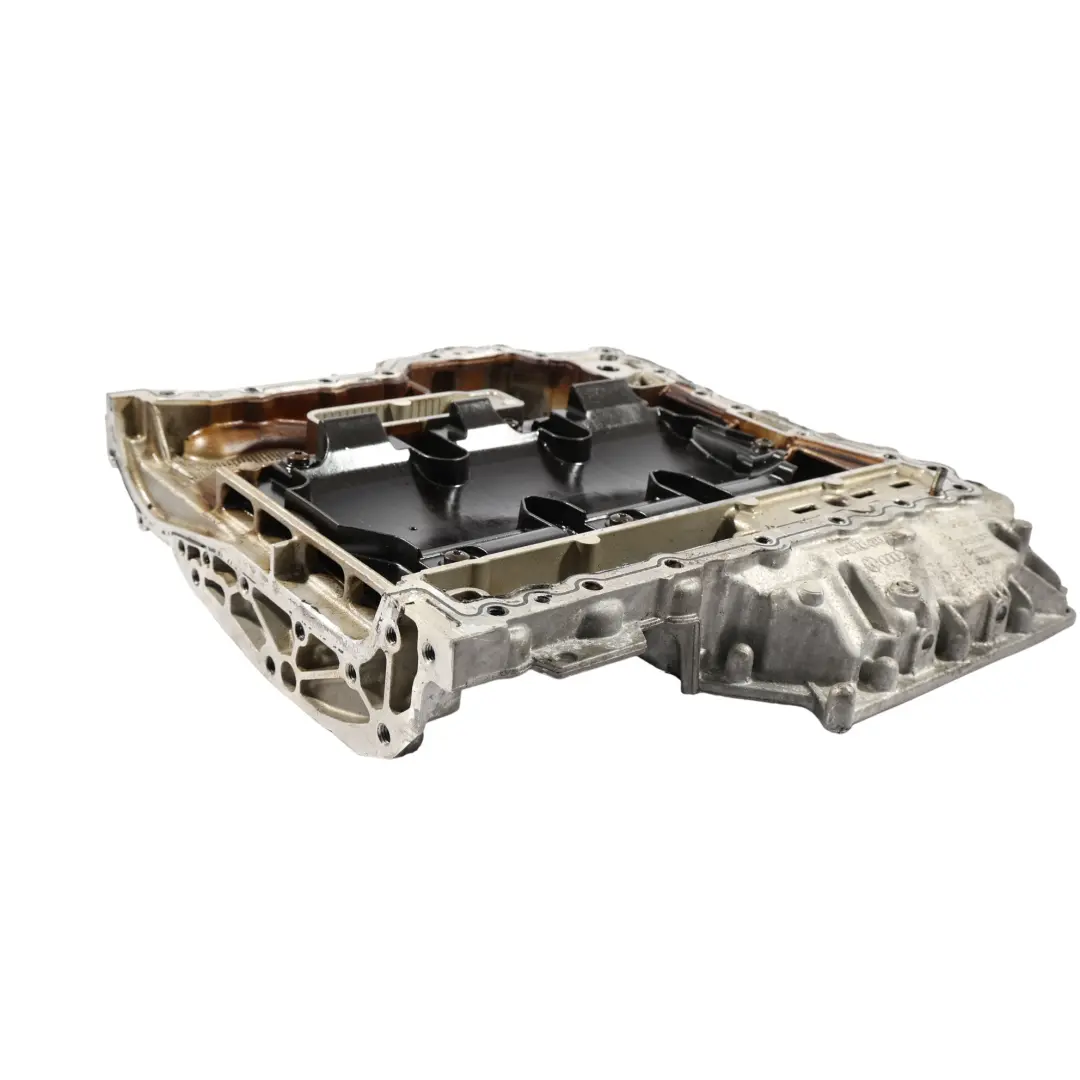

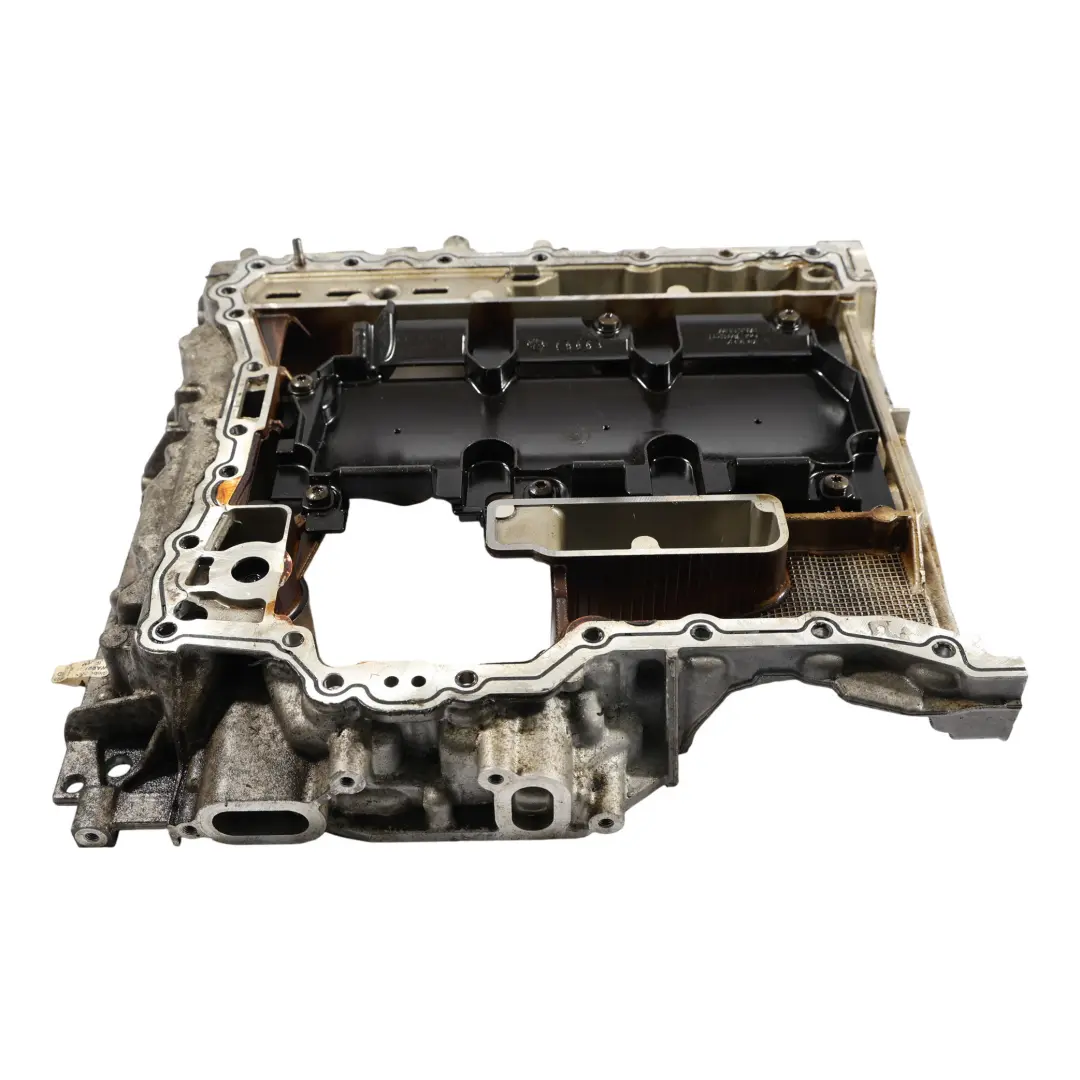

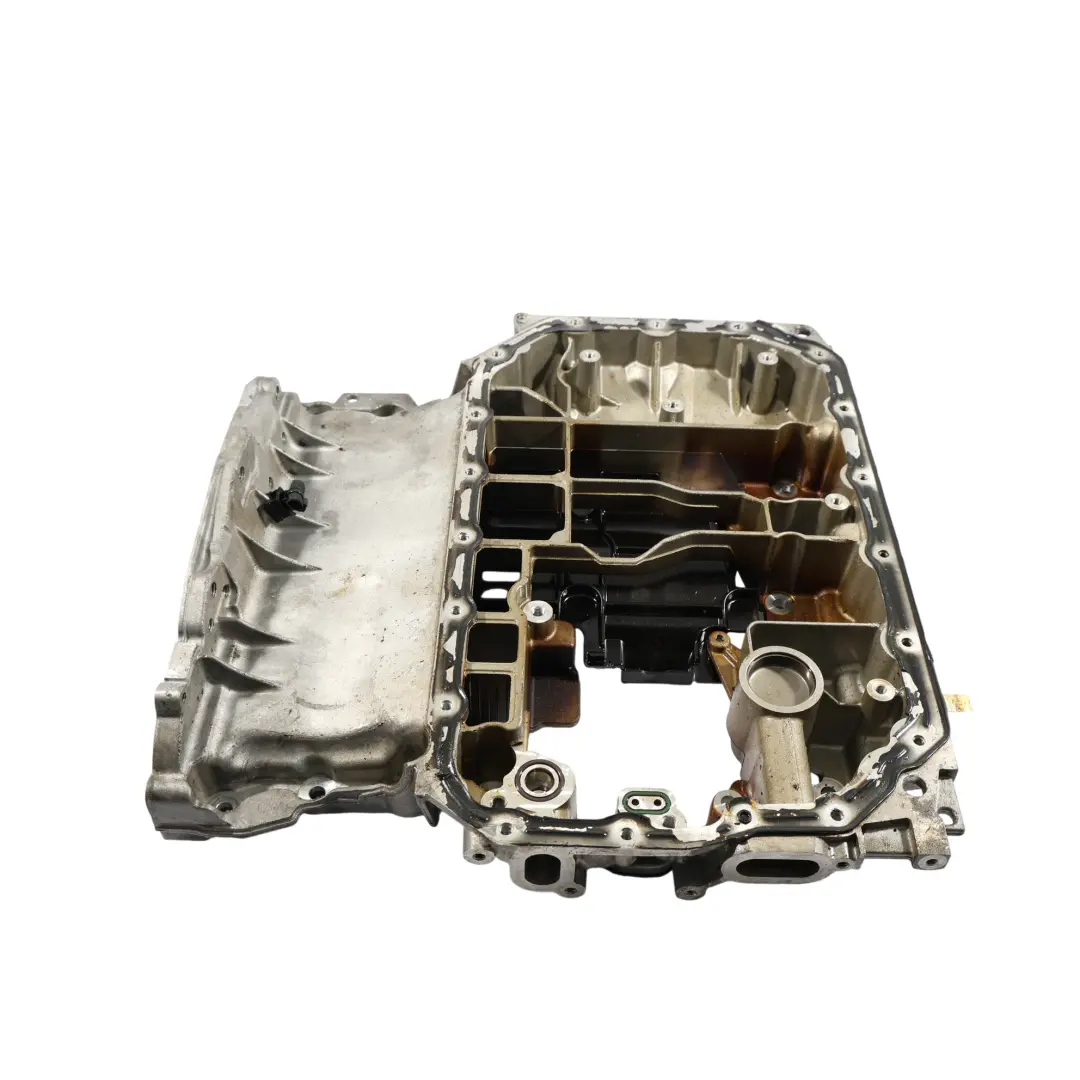

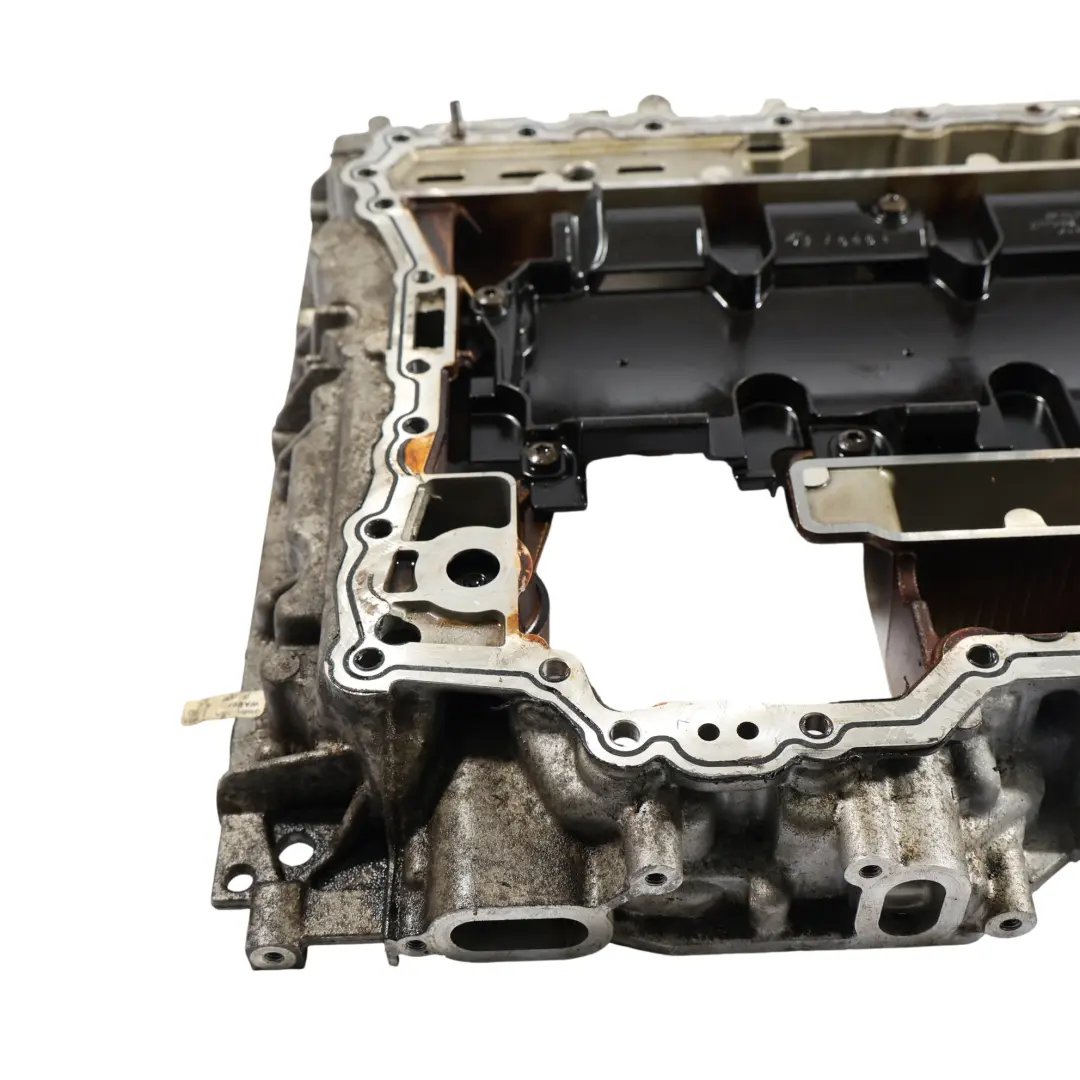

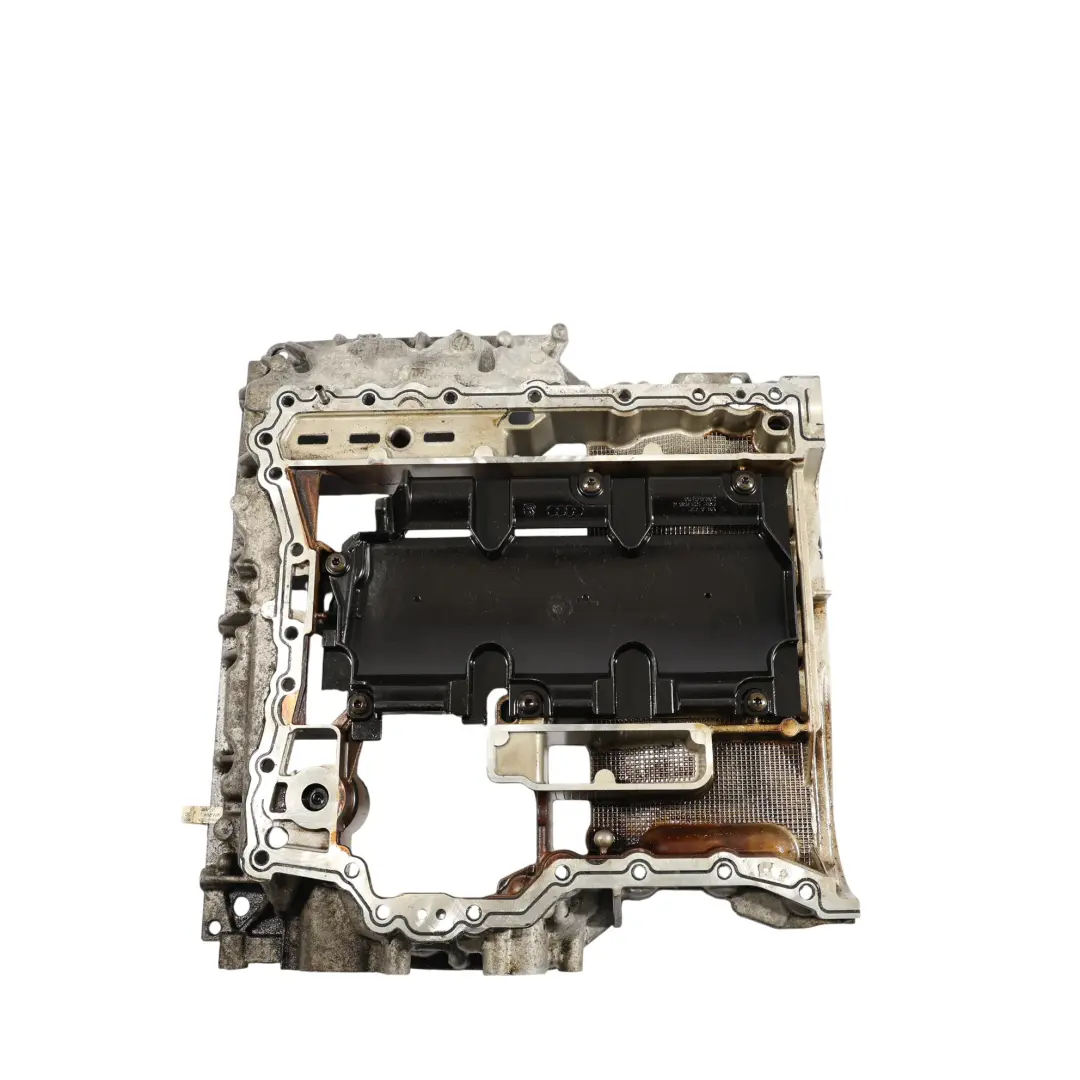

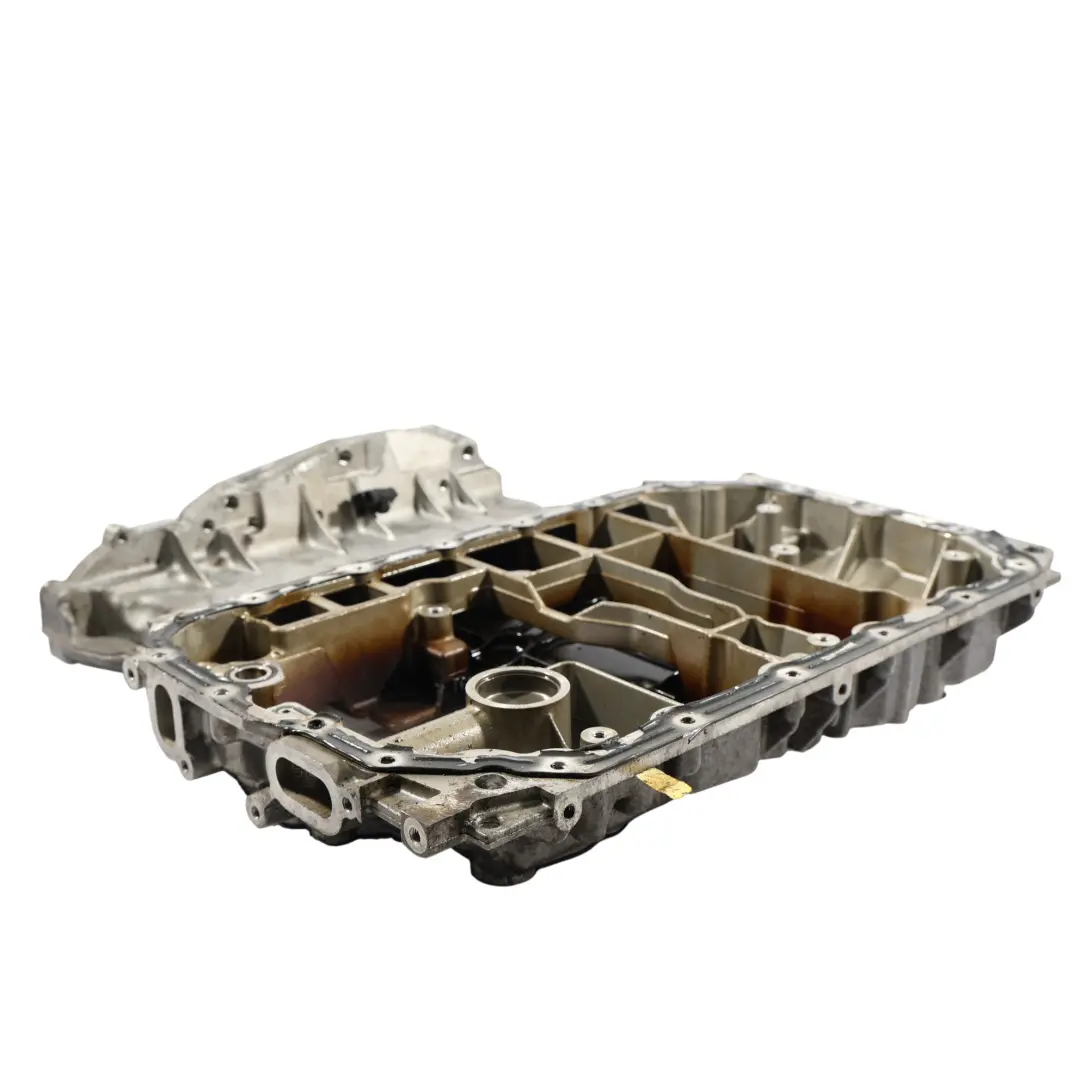

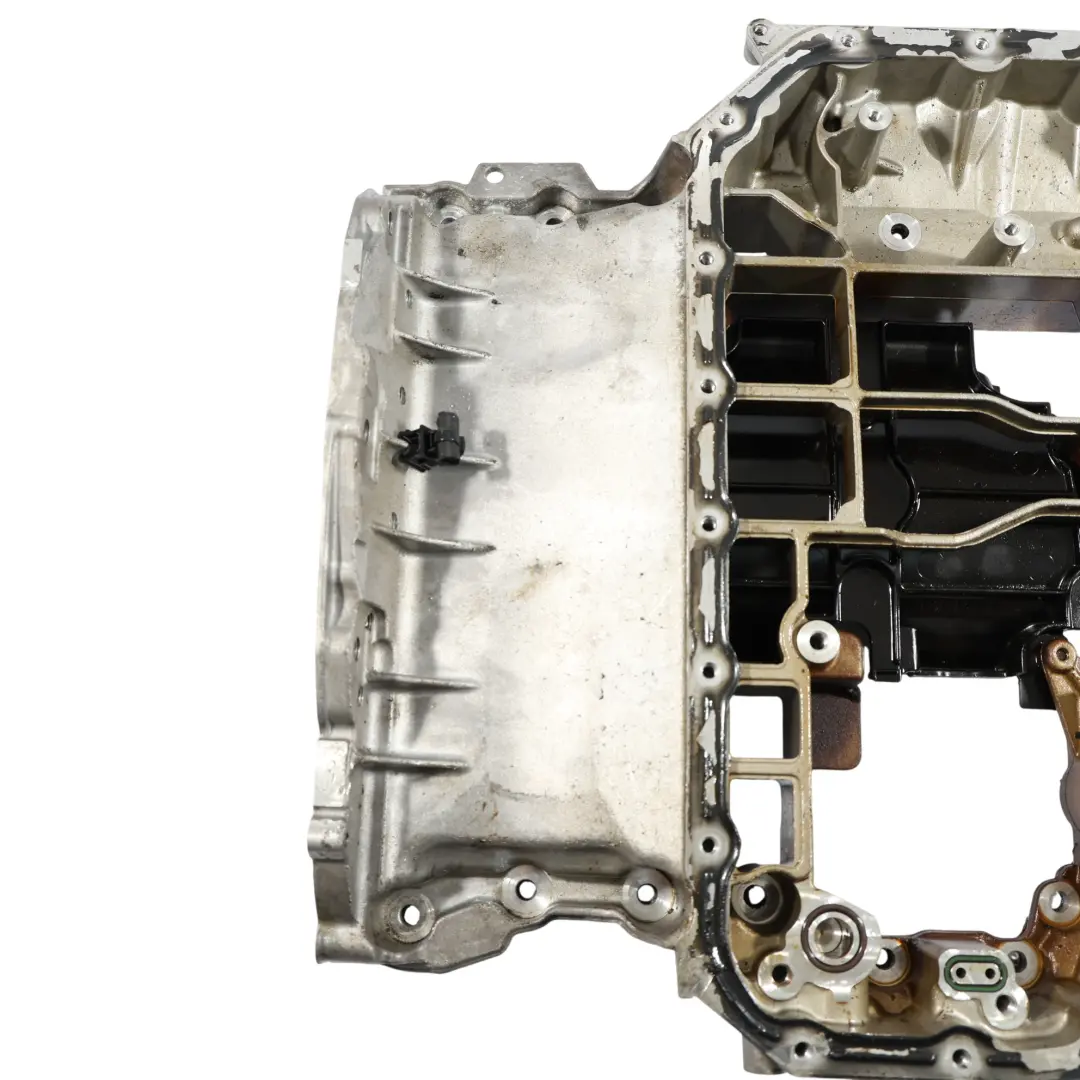

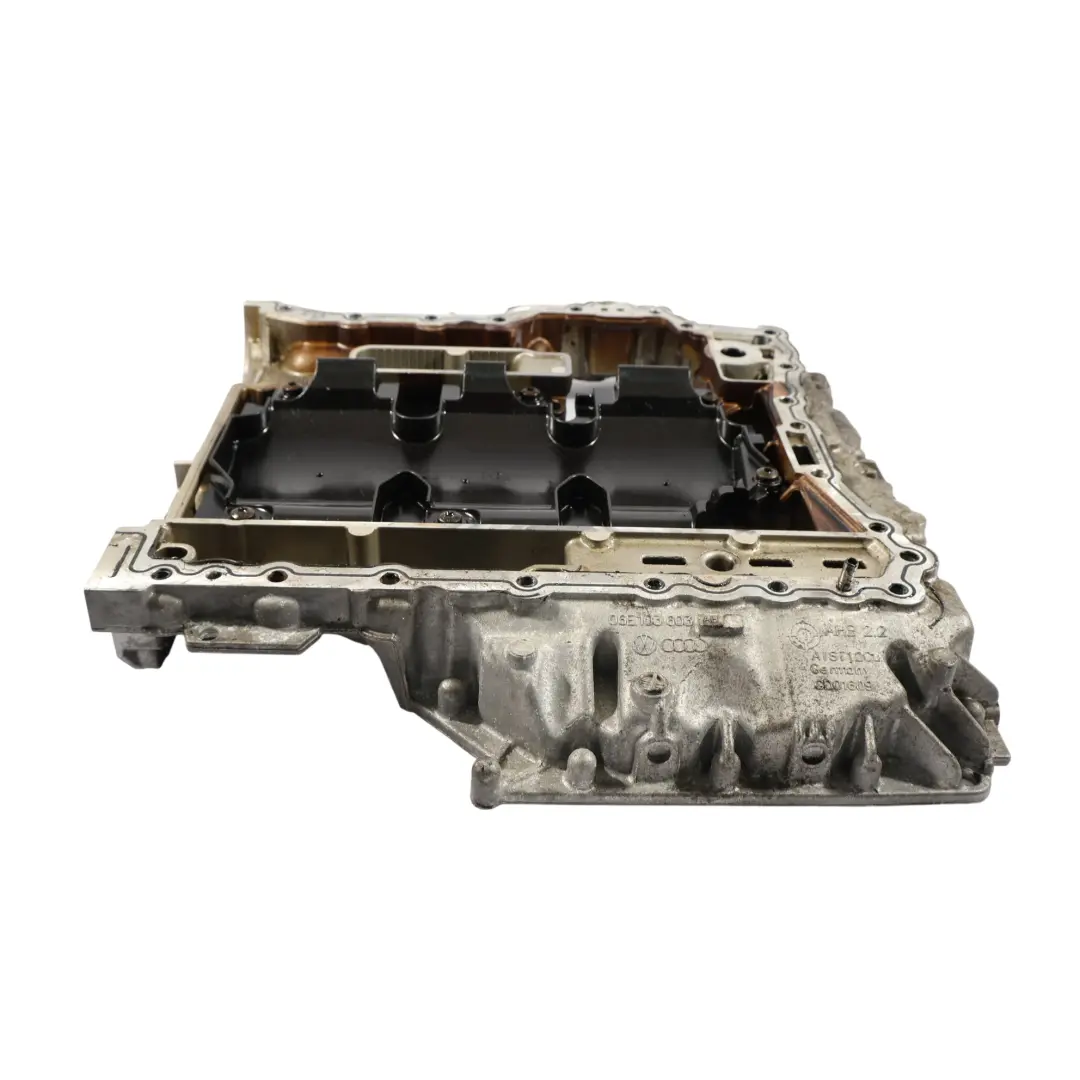

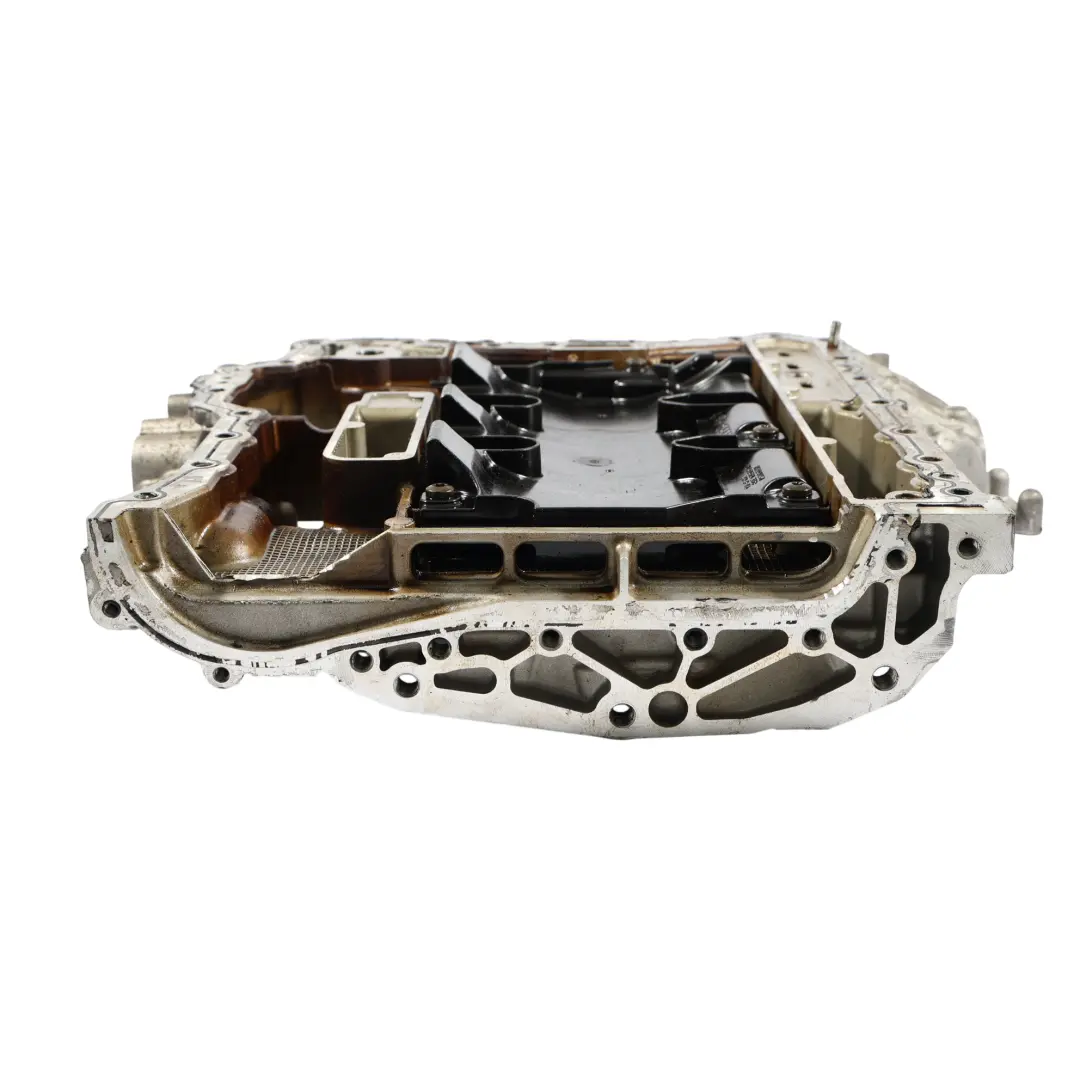

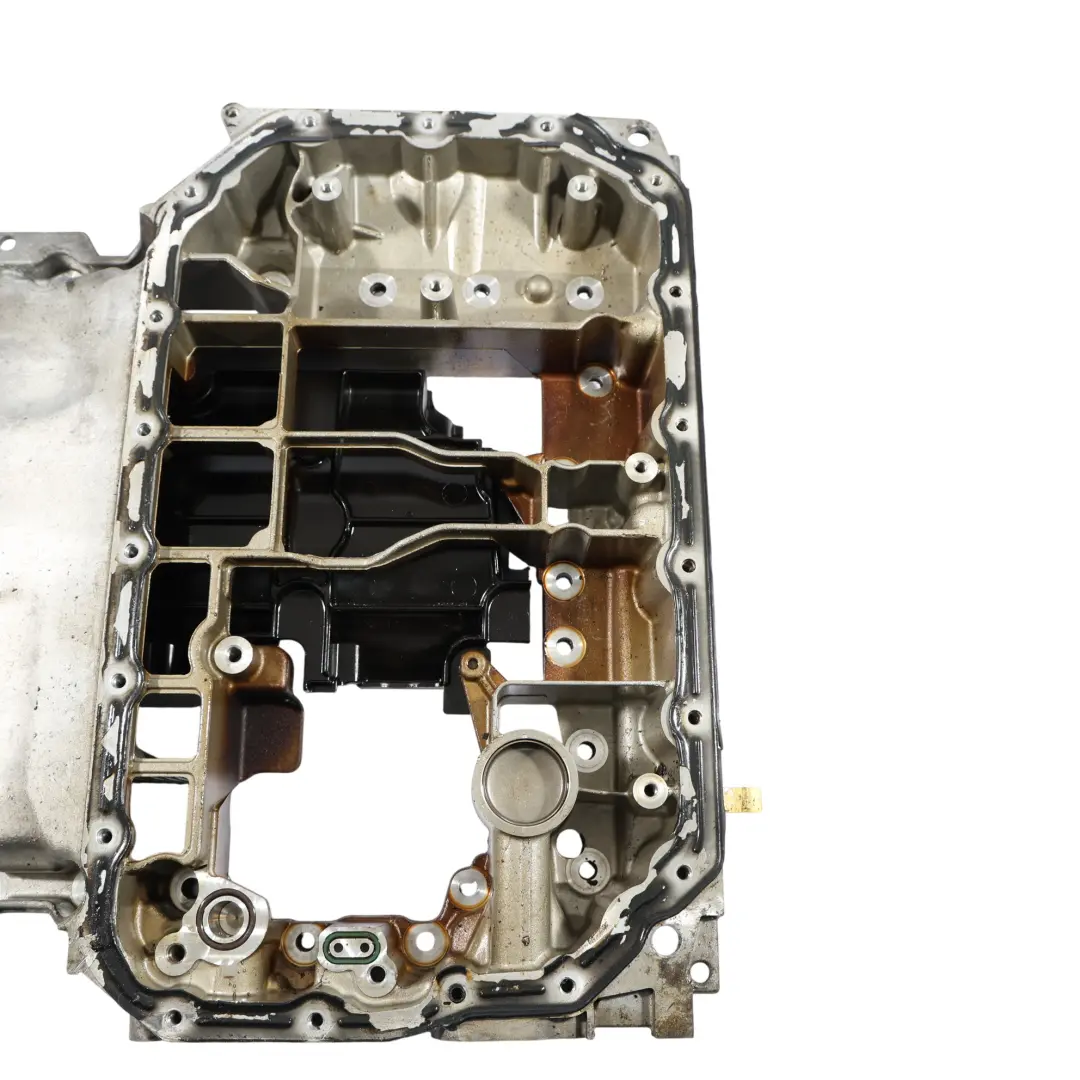

Audi Q5 SQ5 8R Engine Top Upper Part Oil Pan Sump 3.0 TFSI Petrol 06E103603AH

Audi Q5 SQ5 8R Engine Upper Oil Pan 3.0 TFSI Gasoline is an original lubrication system component designed for 3.0 TFSI gasoline engines in Audi Q5 and SQ5 8R generation models. The upper part of the oil pan ensures stable mounting of the lower pan, proper oil flow, and a sealed connection to the engine block.

Specifications and technical data

• SKU: 06E103603AH
• Mark: Audi
• Condition: Used
• OEM Part Number: 06E103603AH
• Substitutable numbers: 06E103603AH, 06E 103 603 AH, 06M 103 603 AE, 06M103603AE
• Fuel type: Petrol
• Part type: Oil Sump
• Category: Oil Sumps

Purpose and Function in the 3.0 TFSI Engine

The upper oil pan in the 3.0 TFSI engine is responsible for a rigid connection to the block and the correct shaping of oil flow channels. This component works with the lubrication system, supports maintaining the proper oil level, and serves as a base for the lower oil pan and accessories mounted in the lower part of the engine.

In TFSI gasoline engines, the precise fit of the upper oil pan is crucial for:

• maintaining the tightness of the lubrication system at the interface with the engine block,
• stable mounting of the lower oil pan and accessory components,
• proper oil distribution in the lower part of the engine.

Original Audi Origin and Mounting Compatibility

The presented upper oil pan belongs to the category of Audi oil pans and is an OEM-class component designed specifically for use in 3.0 TFSI gasoline engines in Audi Q5 / SQ5 8R. This means maintaining factory geometry, mounting points, and sealing surfaces, which facilitates installation and reduces the risk of fitting issues.

The original design ensures:

• compatibility with factory seals and mounting bolts,
• correct positioning relative to the engine block and the lower oil pan,
• adherence to factory tolerances, which are important for the durability of the lubrication system.

Used Condition and Benefits of Choosing OEM Parts

The component is offered in used condition, allowing for economical repair while maintaining original manufacturing quality. For the upper oil pan, it is crucial that the body is straight, free from cracks, and has intact mating surfaces – a used OEM part meeting these conditions is a sensible service choice.

Choosing an original, used oil pan allows for:

• reduced repair costs compared to a new part,
• preservation of the factory design intended by the engine manufacturer,
• reduced risk of installation problems, typical for aftermarket replacements with poorer geometry.

TFSI Gasoline Engine – Oil Pan Requirements

In TFSI gasoline engines, the lubrication system operates under significant load, so the upper oil pan must ensure stable operation of the oil pump and appropriate conditions for lubricant circulation. A correctly selected component helps maintain:

• constant oil pressure across a wide range of RPMs,
• safe lubrication of moving parts in the lower part of the engine,
• adequate structural rigidity in the lower crankcase area.
