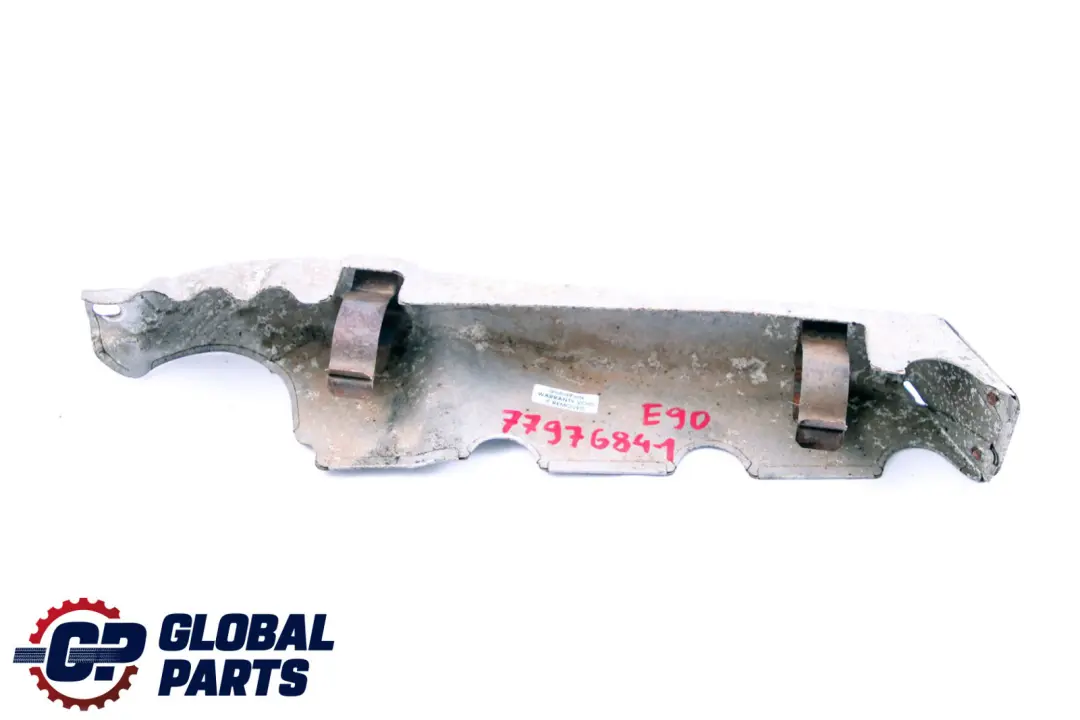

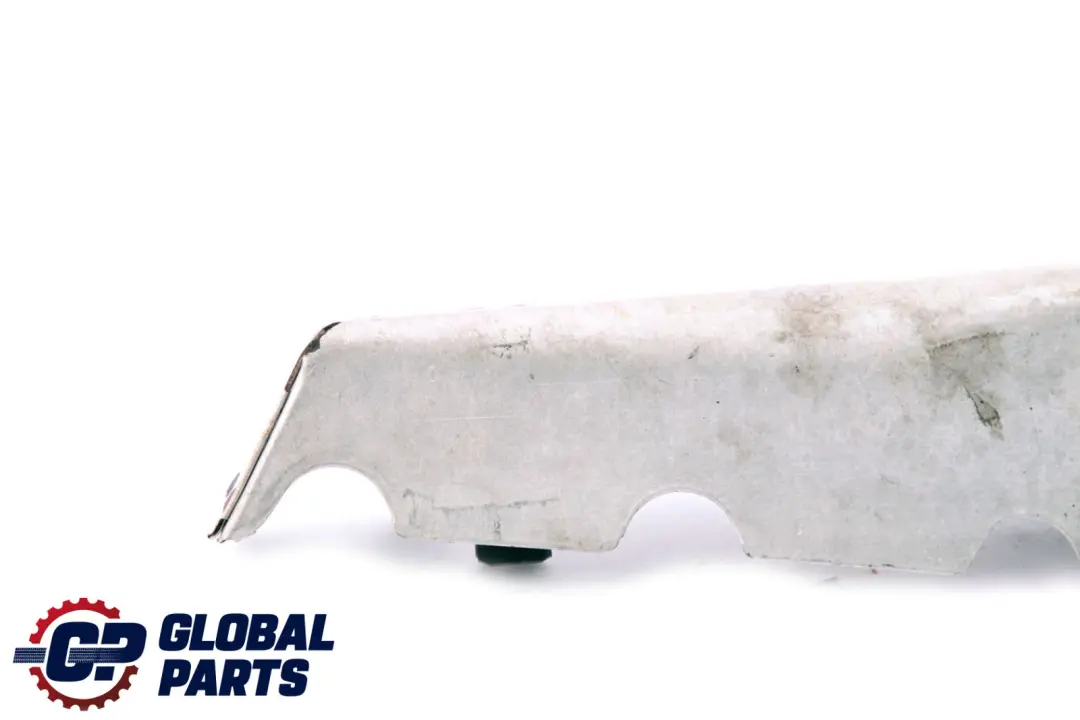

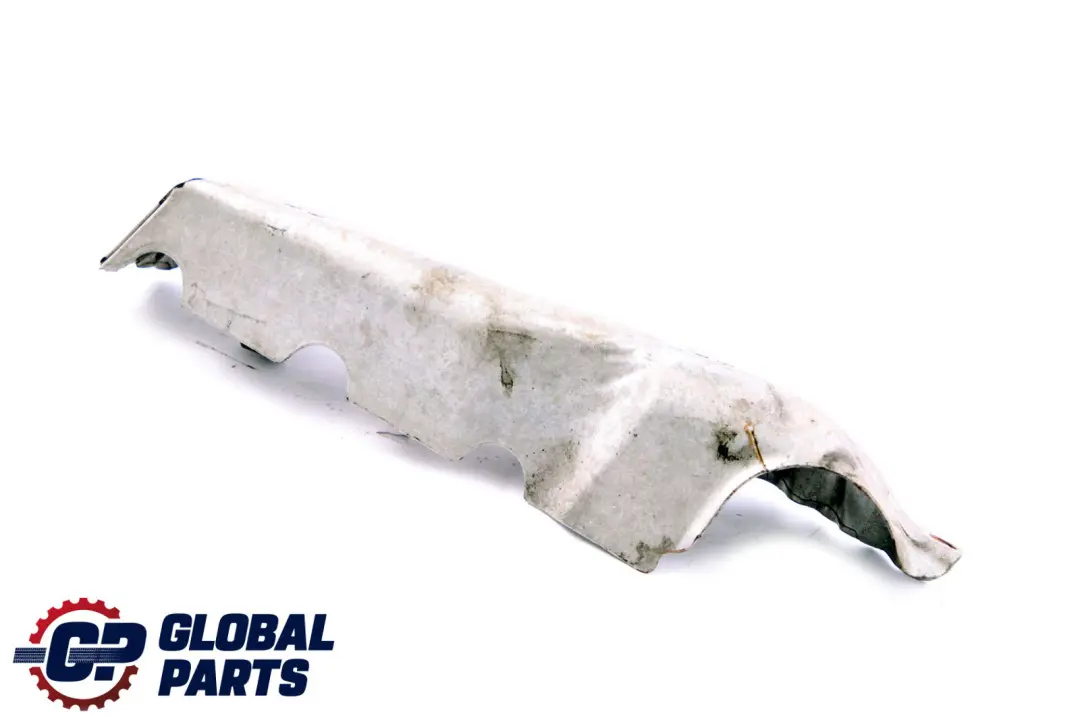

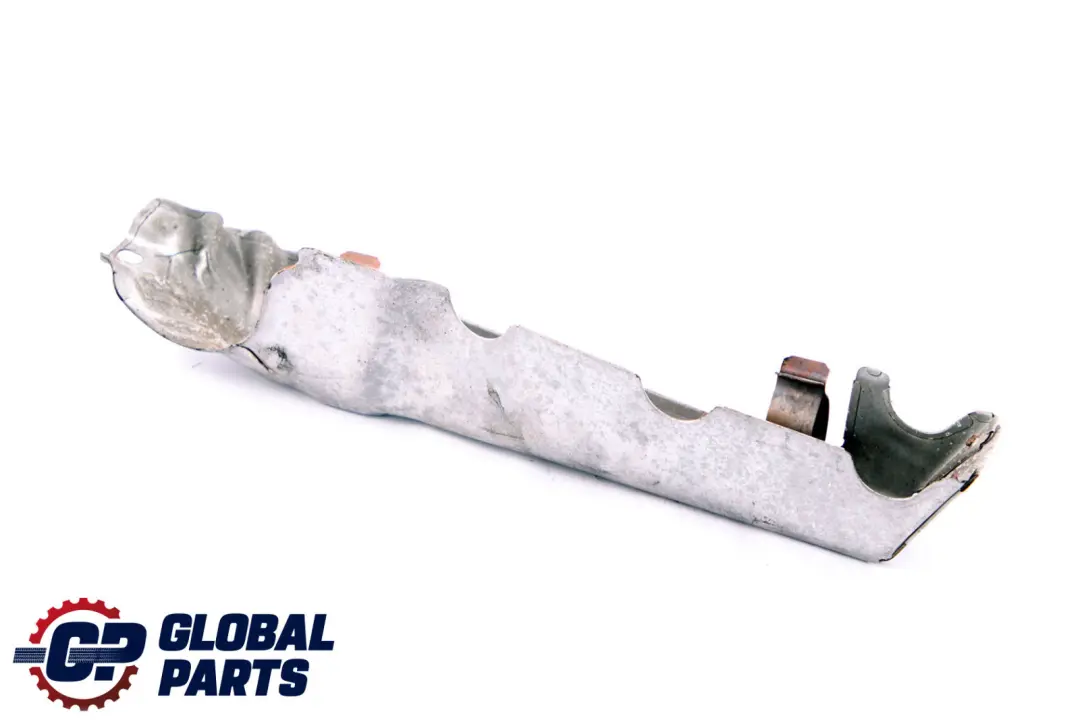

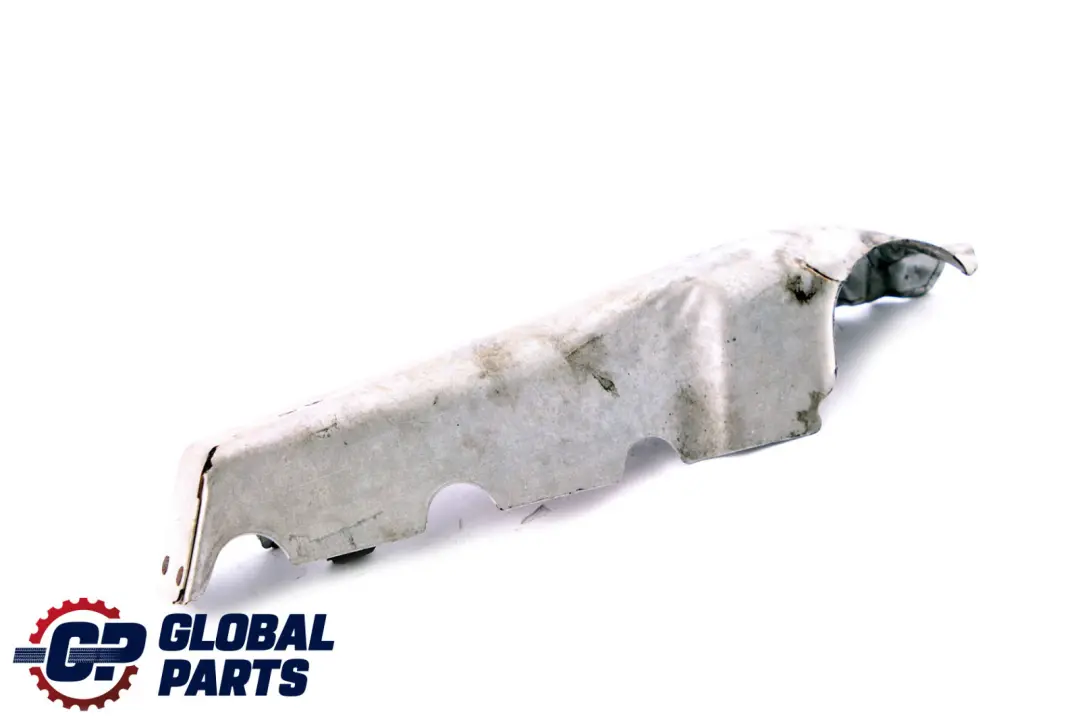

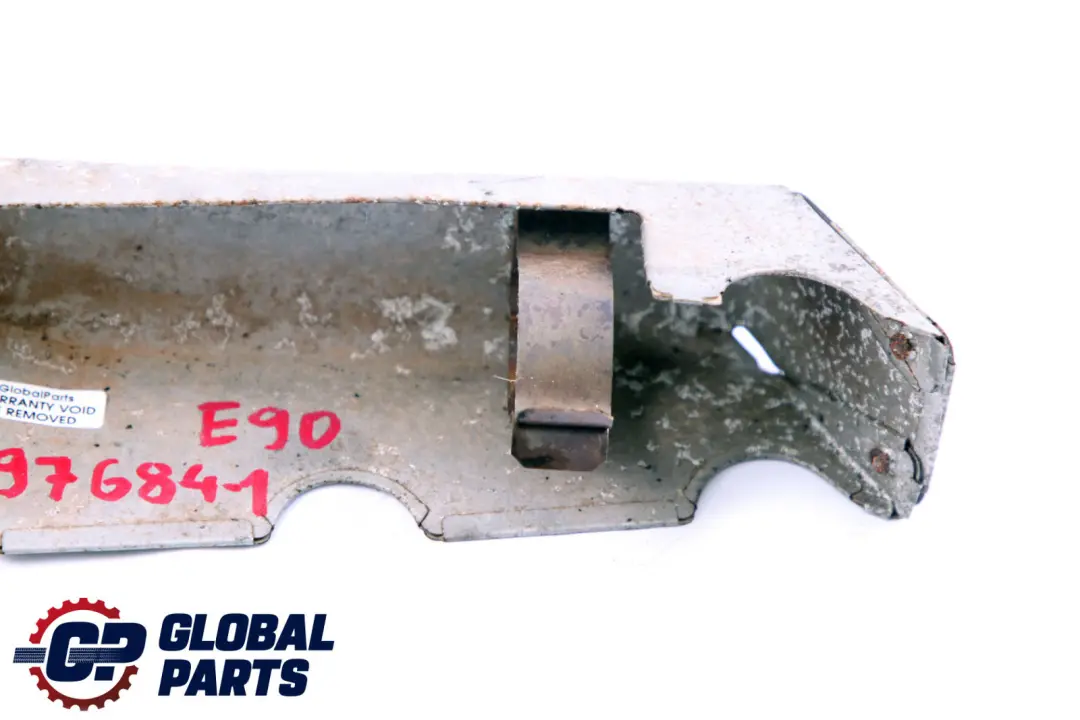

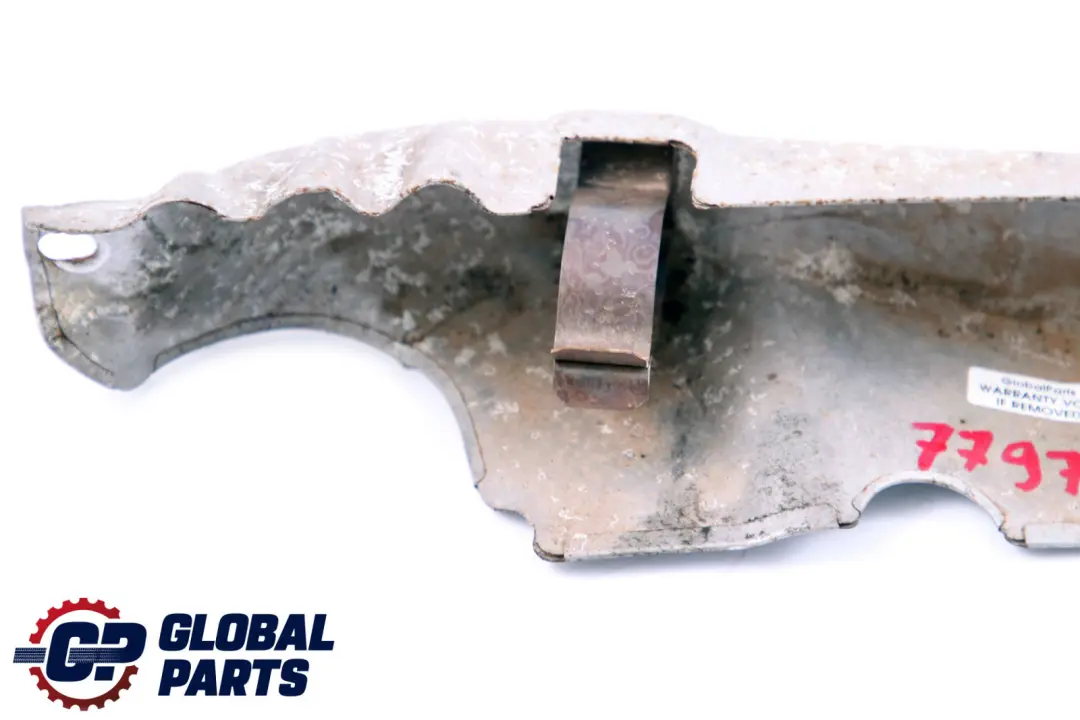

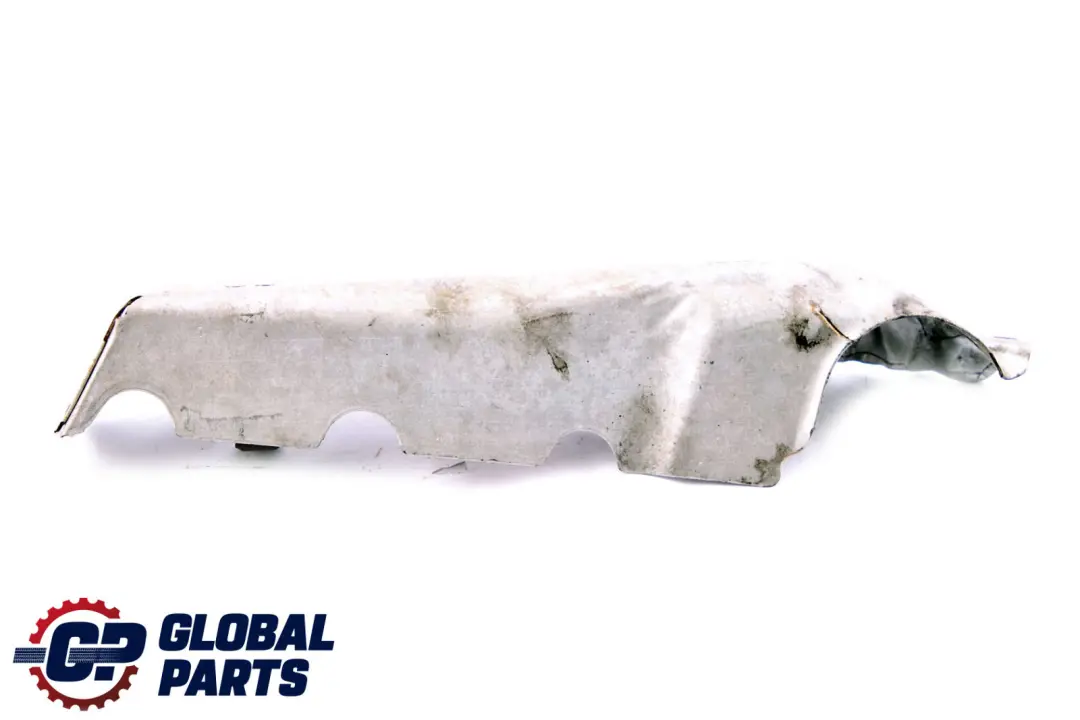

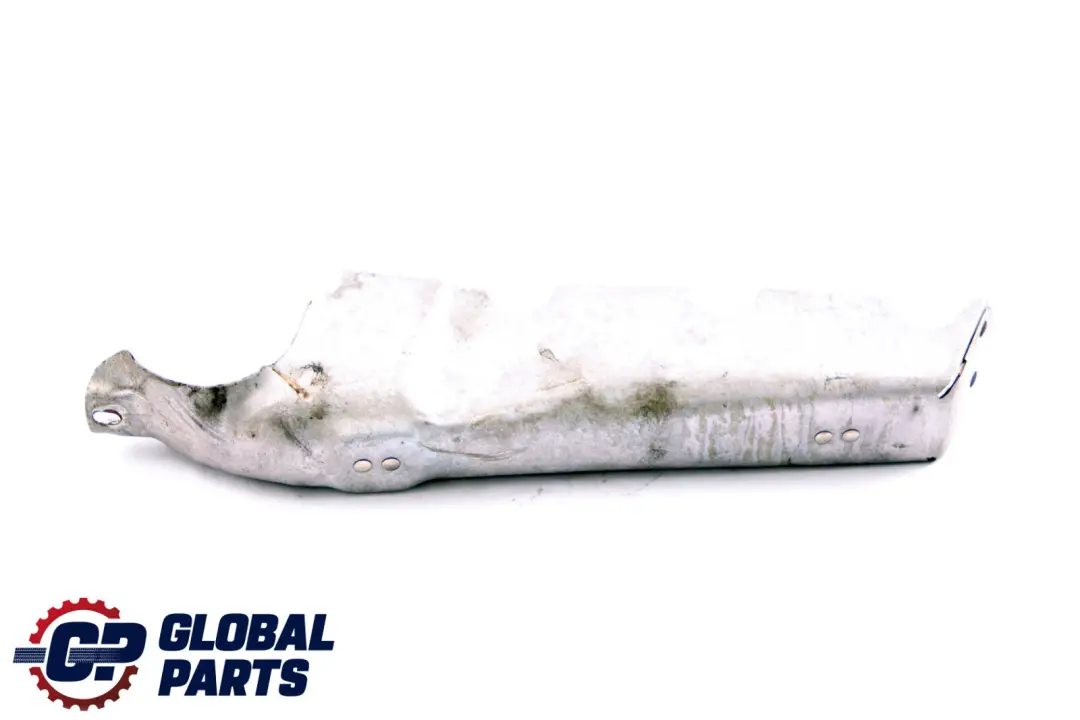

Heat Protection BMW X3 X5 X6 E70 E71 E90 E91 E92 E93 Heat Shield 7797684

The BMW X3 X5 X6 E70 E71 E90 E91 E92 E93 Heat Shield 7797684 is an original BMW part designed for thermal protection of selected components in popular X-series and 3-series models. Engineered as an OEM part, this shield ensures stable operating conditions for components exposed to high temperatures within or in close proximity to the engine bay.

Specifications and technical data

• SKU: 7797684-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7797684
• Substitutable numbers: 11627797684, 7797684
• Category: Other Interior Parts & Accessories

Purpose and Function of the Heat Shield

The heat shield in BMW X3, X5, X6, and E90–E93 series models plays a crucial role in managing temperature in the area of the power unit and associated components. Its function is to limit heat radiation to adjacent components, such as hoses, electrical harnesses, or plastic parts, thereby reducing the risk of overheating and accelerated material aging.

Using a dedicated shield in its factory location helps maintain the operating conditions designed by the manufacturer, contributing to stable engine parameters, improving driving comfort, and supporting the long-term reliability of the system.

Benefits of Using an Original BMW Shield

Choosing an original BMW heat shield results in precise fitment to the body and drivetrain. The part is prepared for installation at factory-intended mounting points, simplifying servicing and minimizing the need for additional modifications.

• maintaining the factory heat flow geometry in the engine bay,
• protecting sensitive components from localized overheating,
• ensuring compliance with BMW service documentation,
• enabling seamless replacement within standard workshop procedures.

This makes the shield a practical solution for both routine repairs and comprehensive restoration of the engine bay or exhaust system in BMW X3, X5, X6, and 3-series E9x generation vehicles.

Product Condition and Service Application

The offered heat shield is a used part, allowing for economical repair while maintaining the original BMW construction. This type of part is particularly suitable for situations where the factory shield has sustained mechanical damage, thermal deformation, or was removed during previous repairs.

In workshop practice, the shield can be installed during, among other things:

• engine unit replacement or servicing,
• work on the exhaust system,
• modernization or reconstruction of the engine bay after a collision,
• restoring a vehicle to a near-factory condition.

Fitment for BMW Models and Part Number Compatibility

The shield was developed by BMW for specific body and engine variants of the X3, X5, X6, and 3-series E90, E91, E92, E93, ensuring proper fit and correct heat flow management. The part is linked to a dedicated OEM part number and has assigned interchangeable numbers, facilitating compatibility verification in service catalogs and parts selection systems.

Before purchasing, it is advisable to compare the designations in your vehicle's documentation or parts selection programs with the data in the specifications tab to confirm compatibility with your specific BMW configuration.
