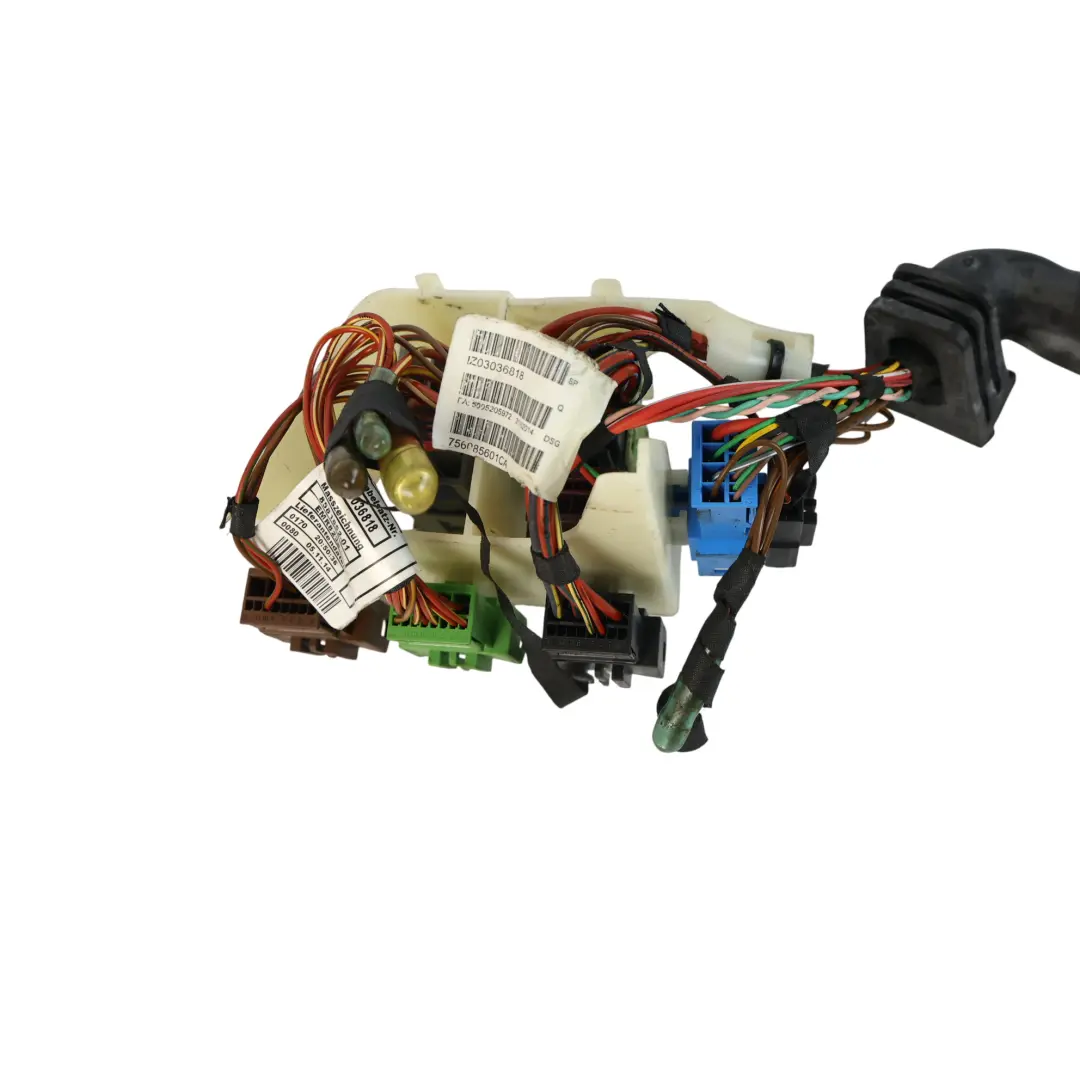

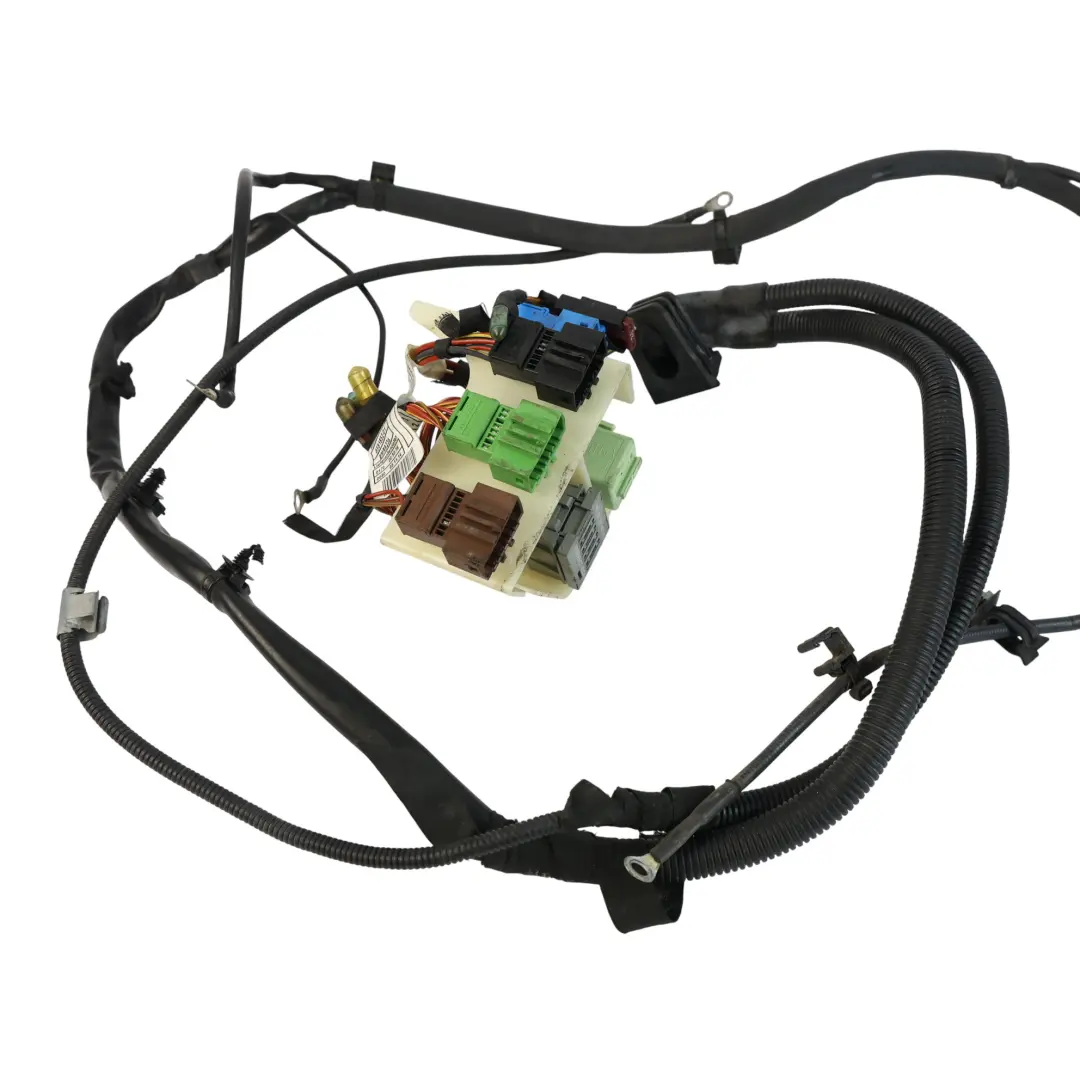

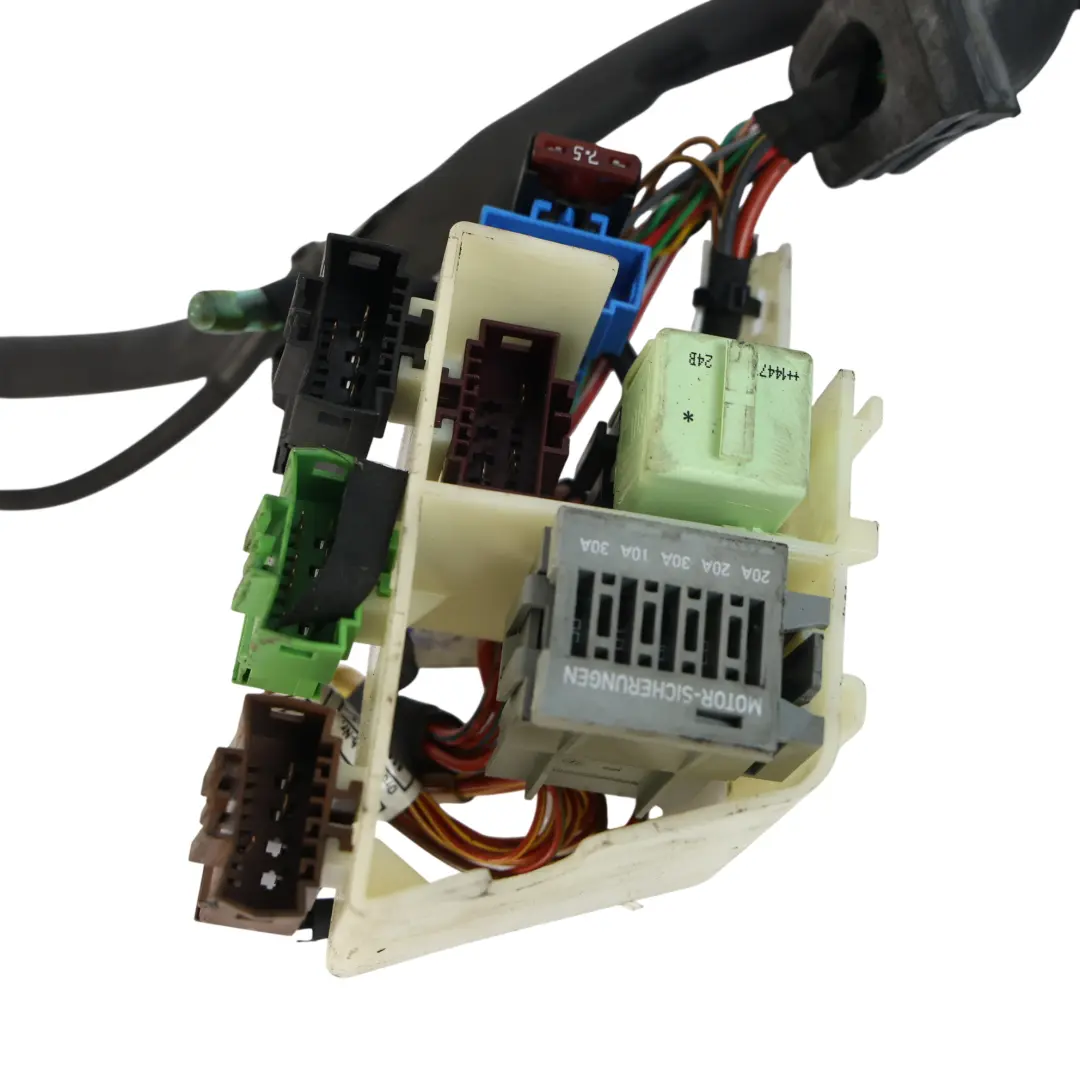

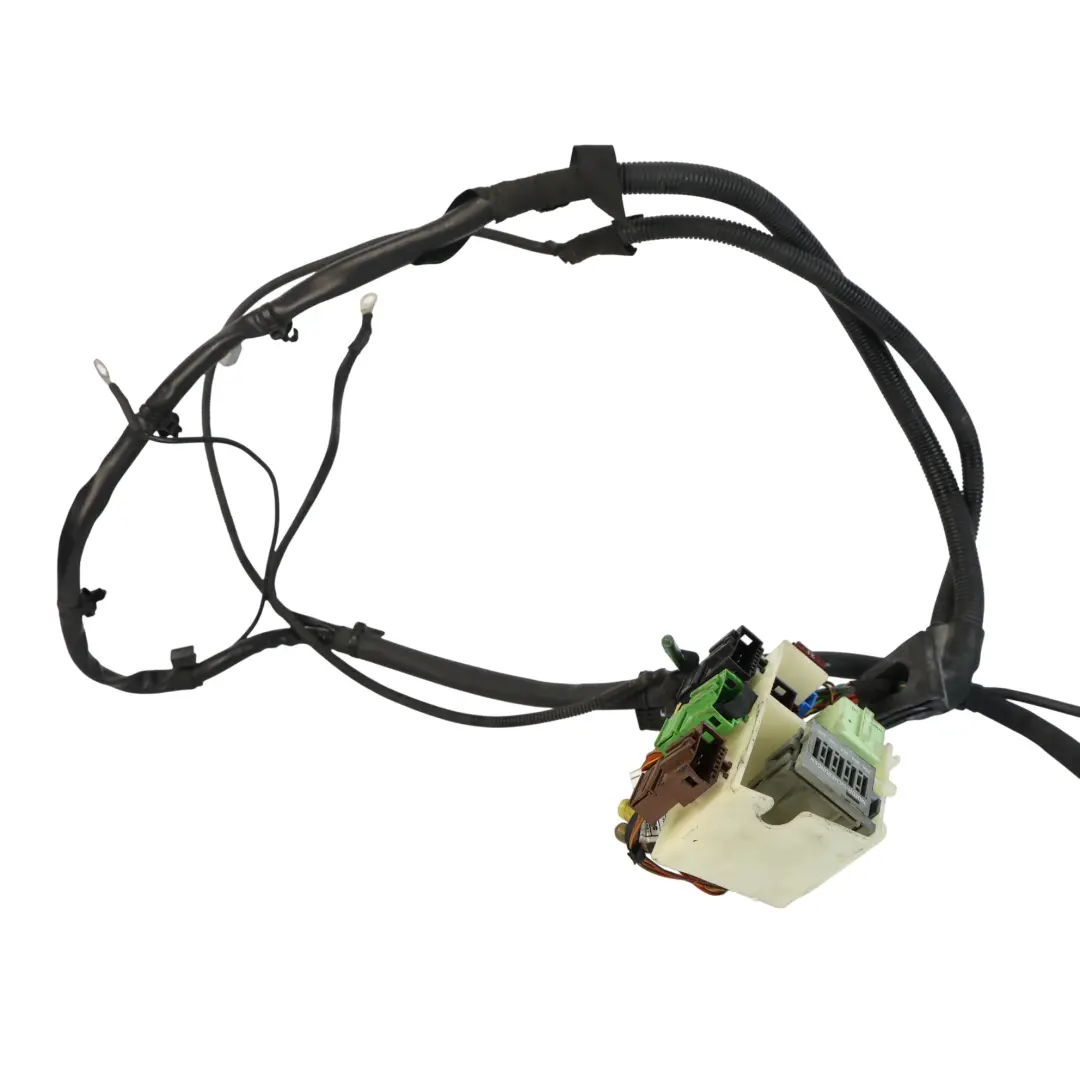

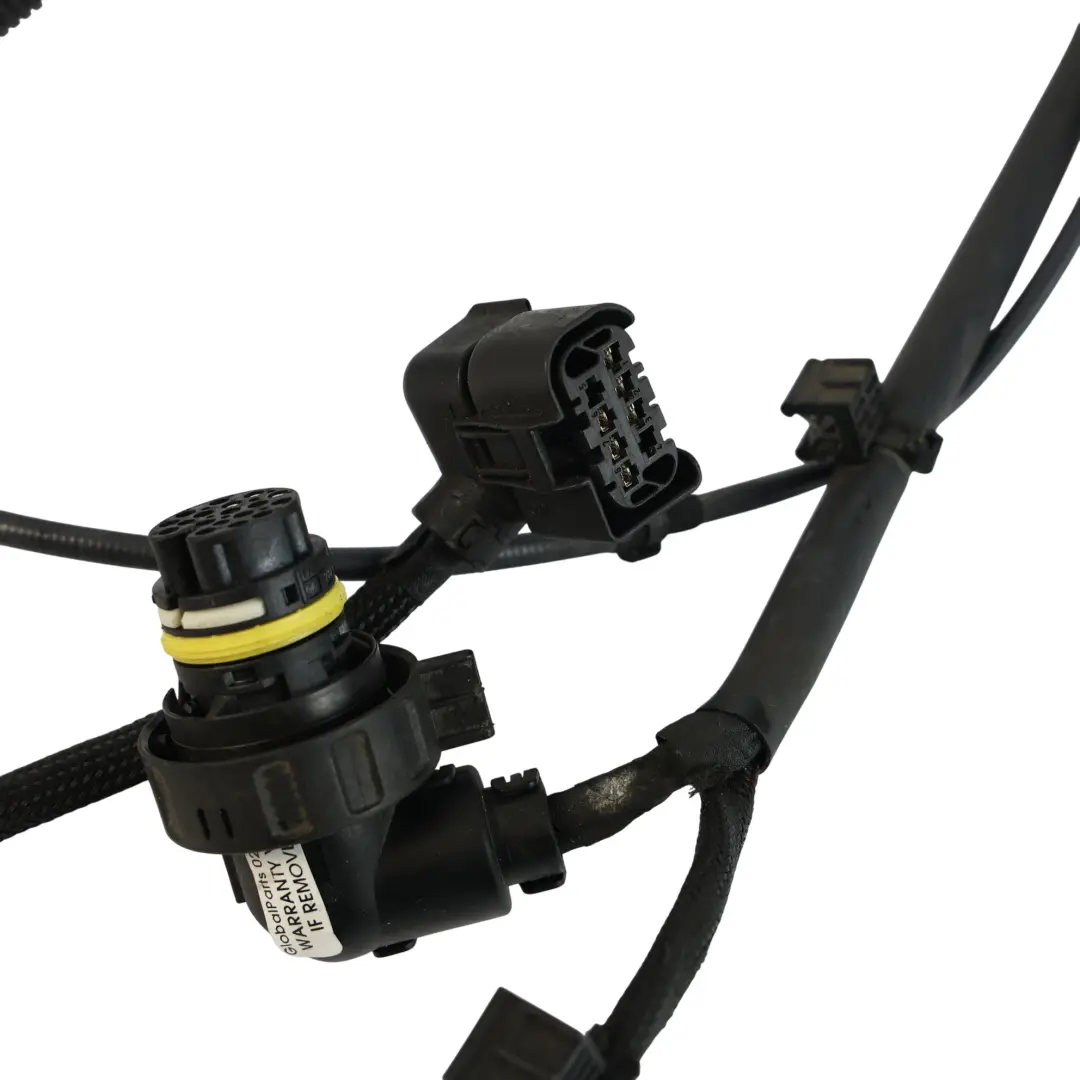

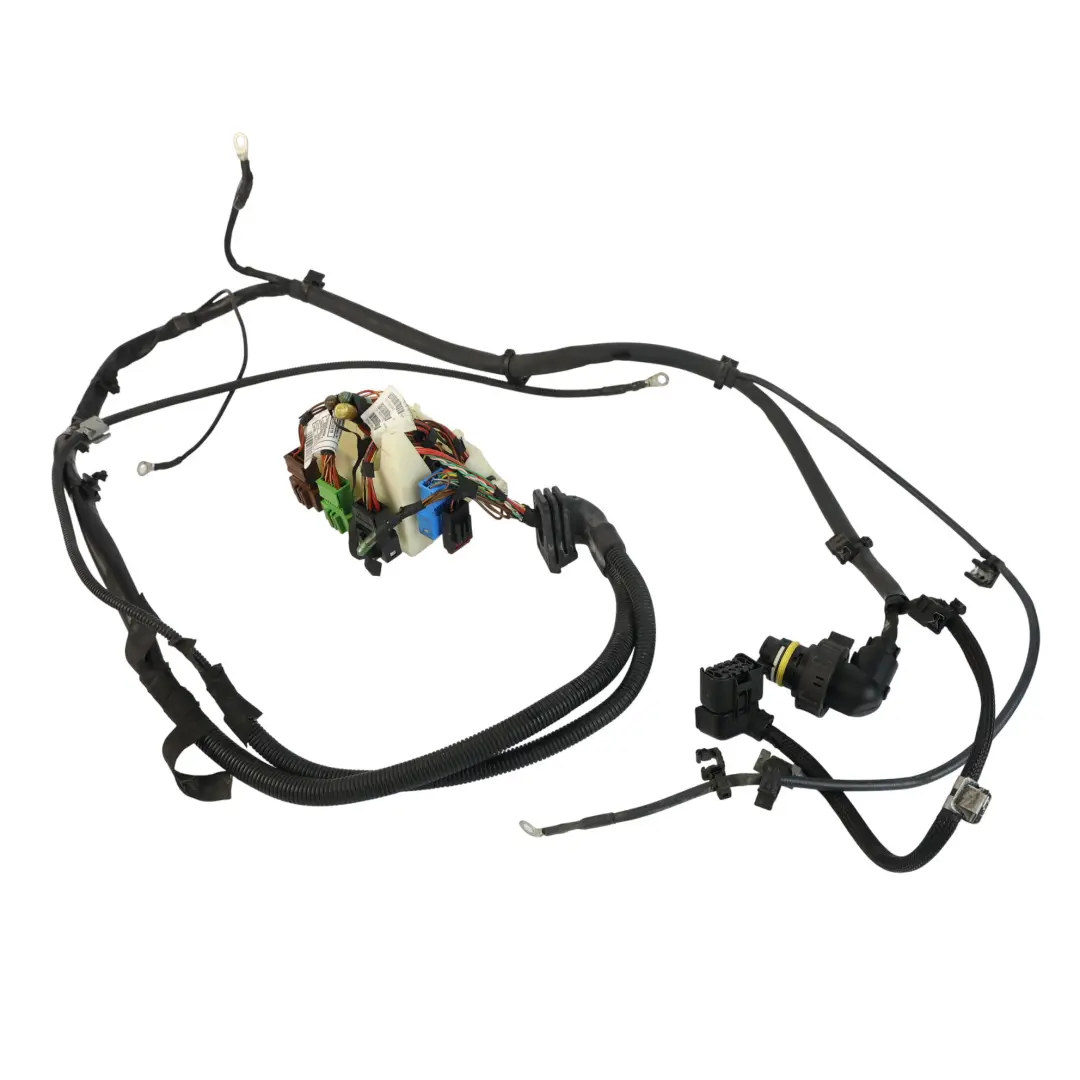

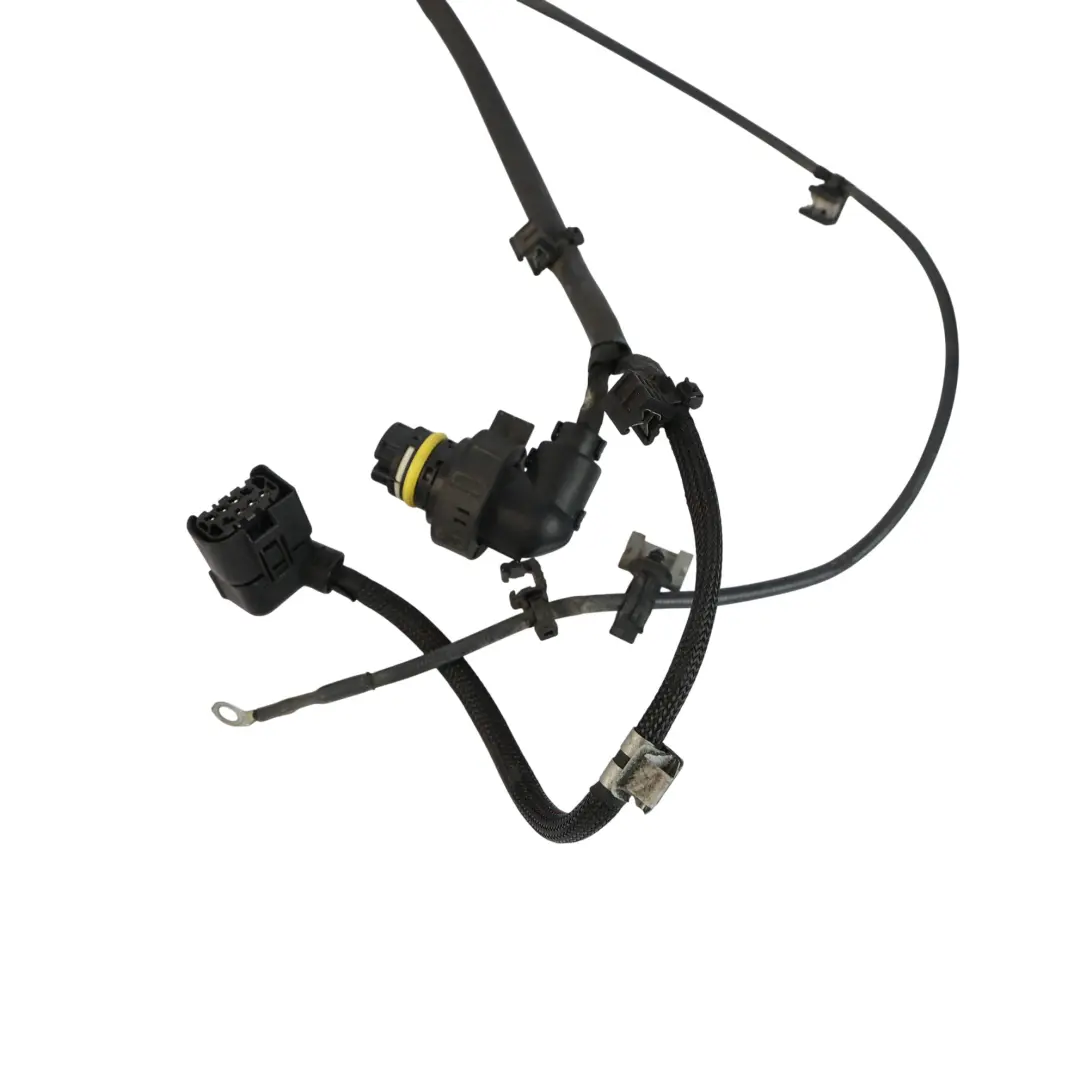

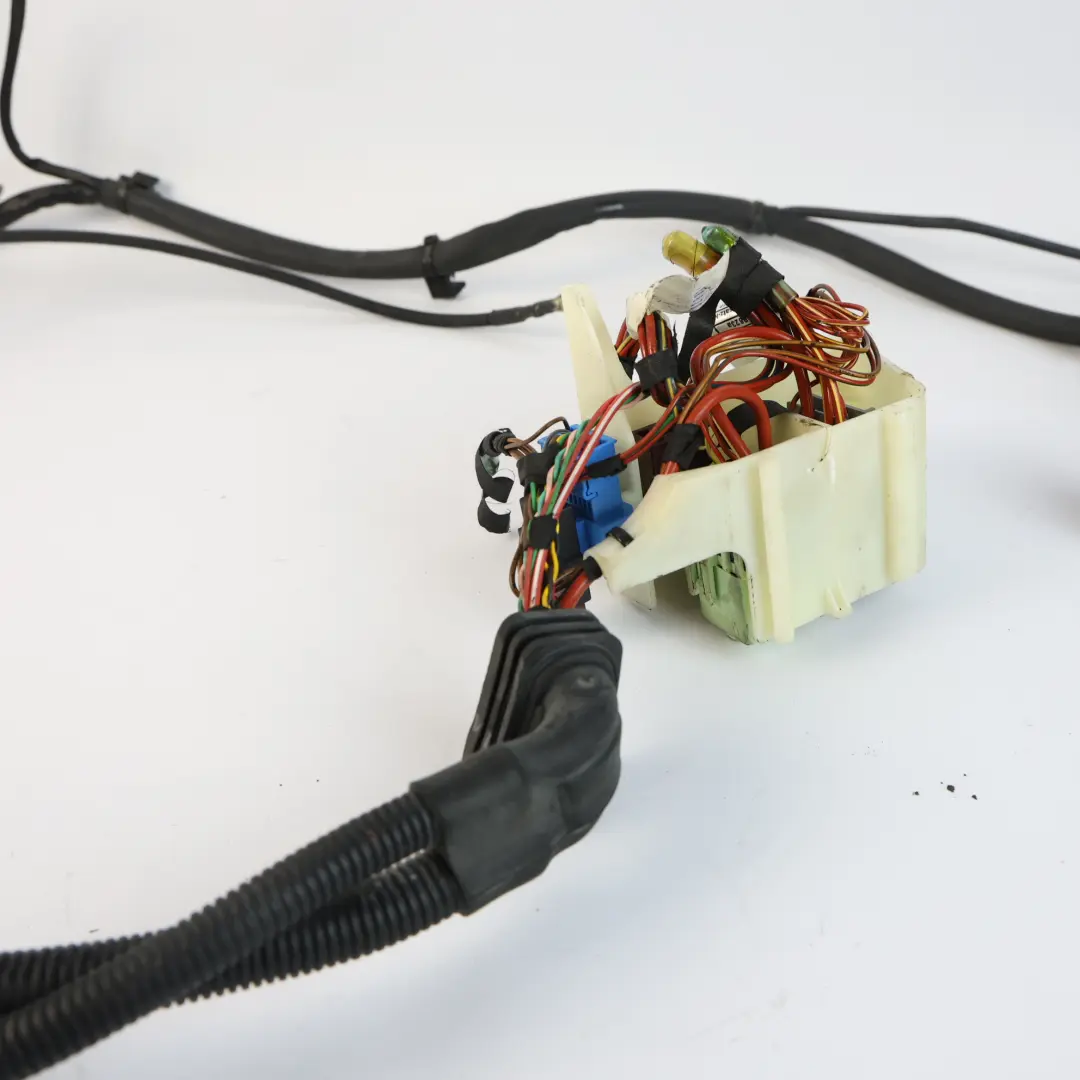

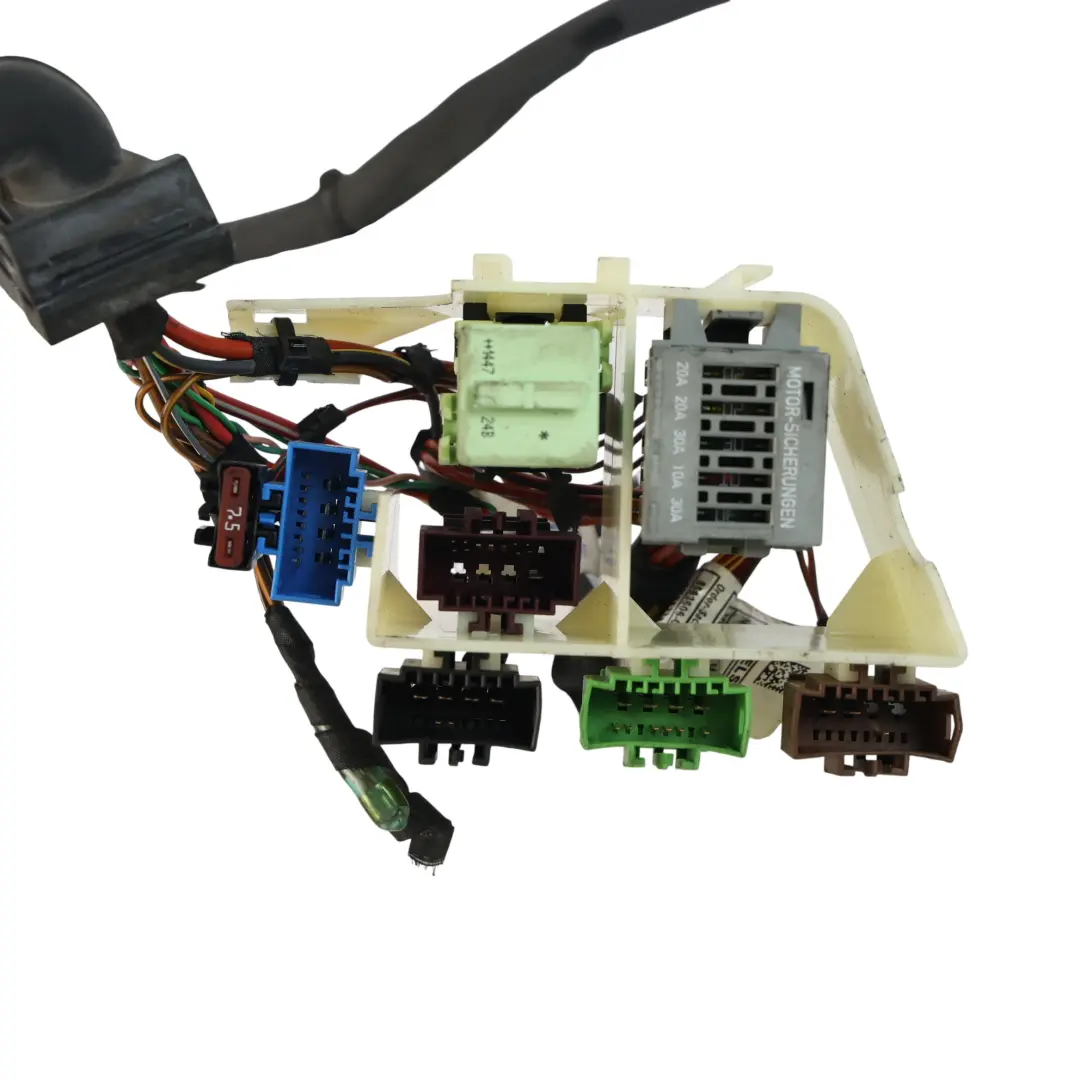

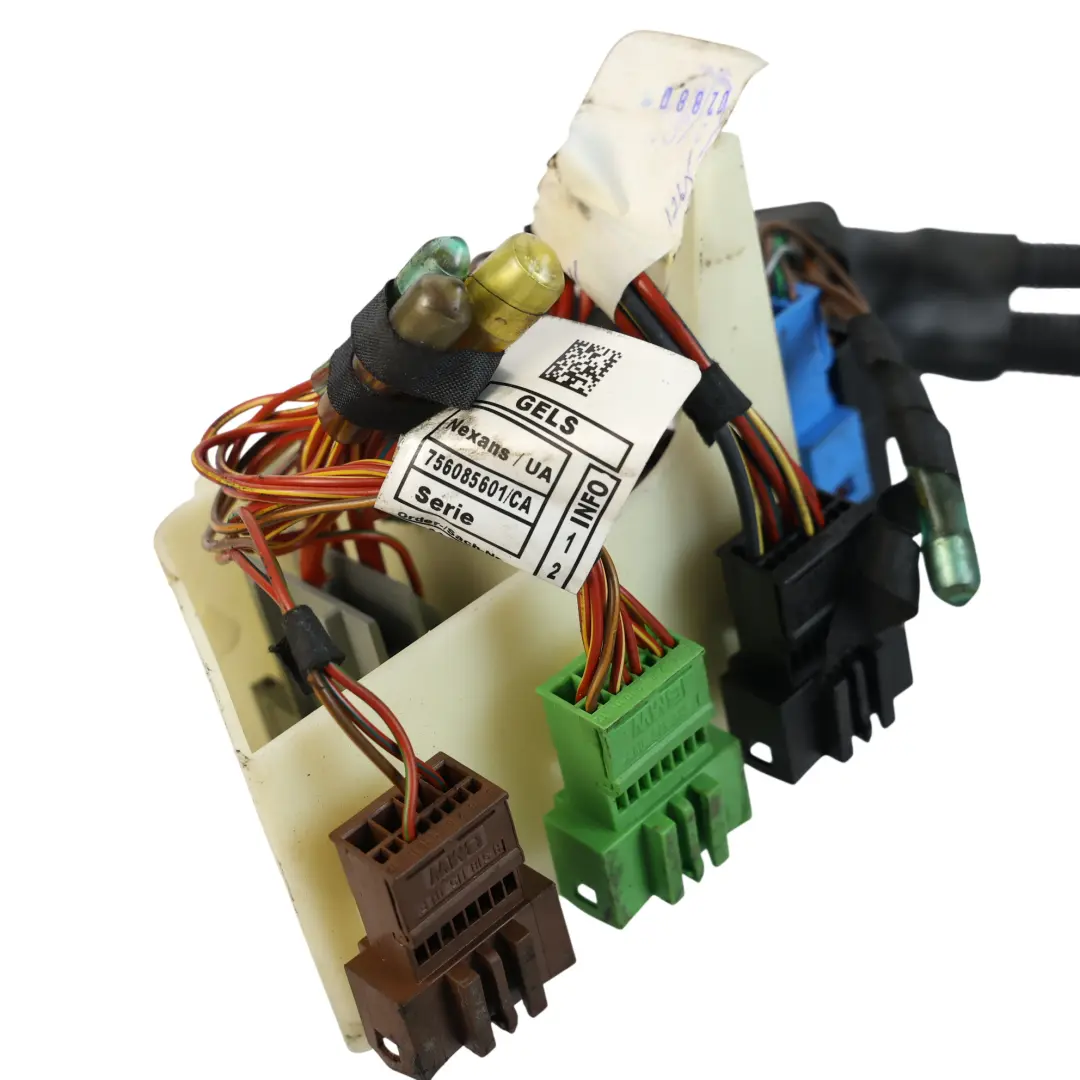

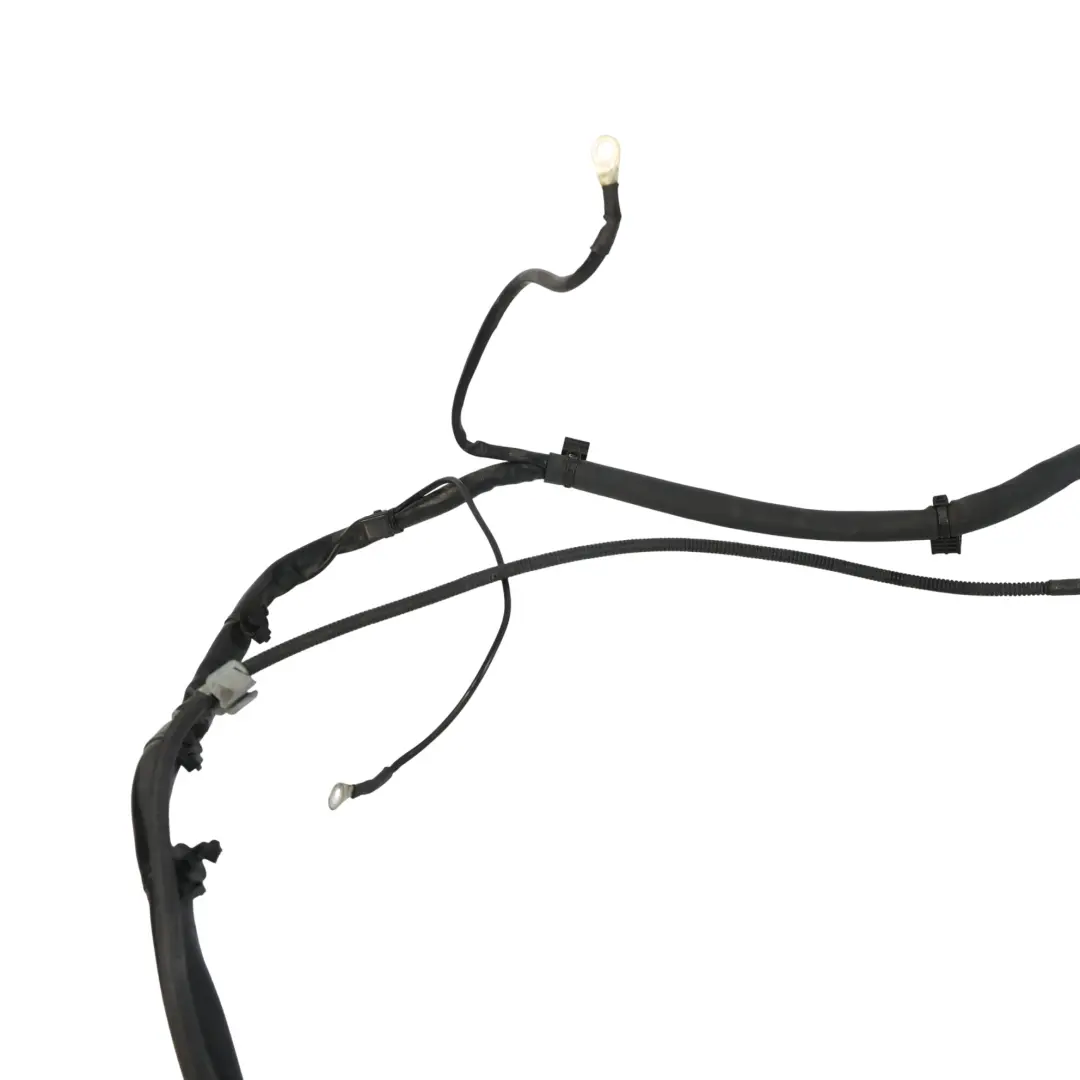

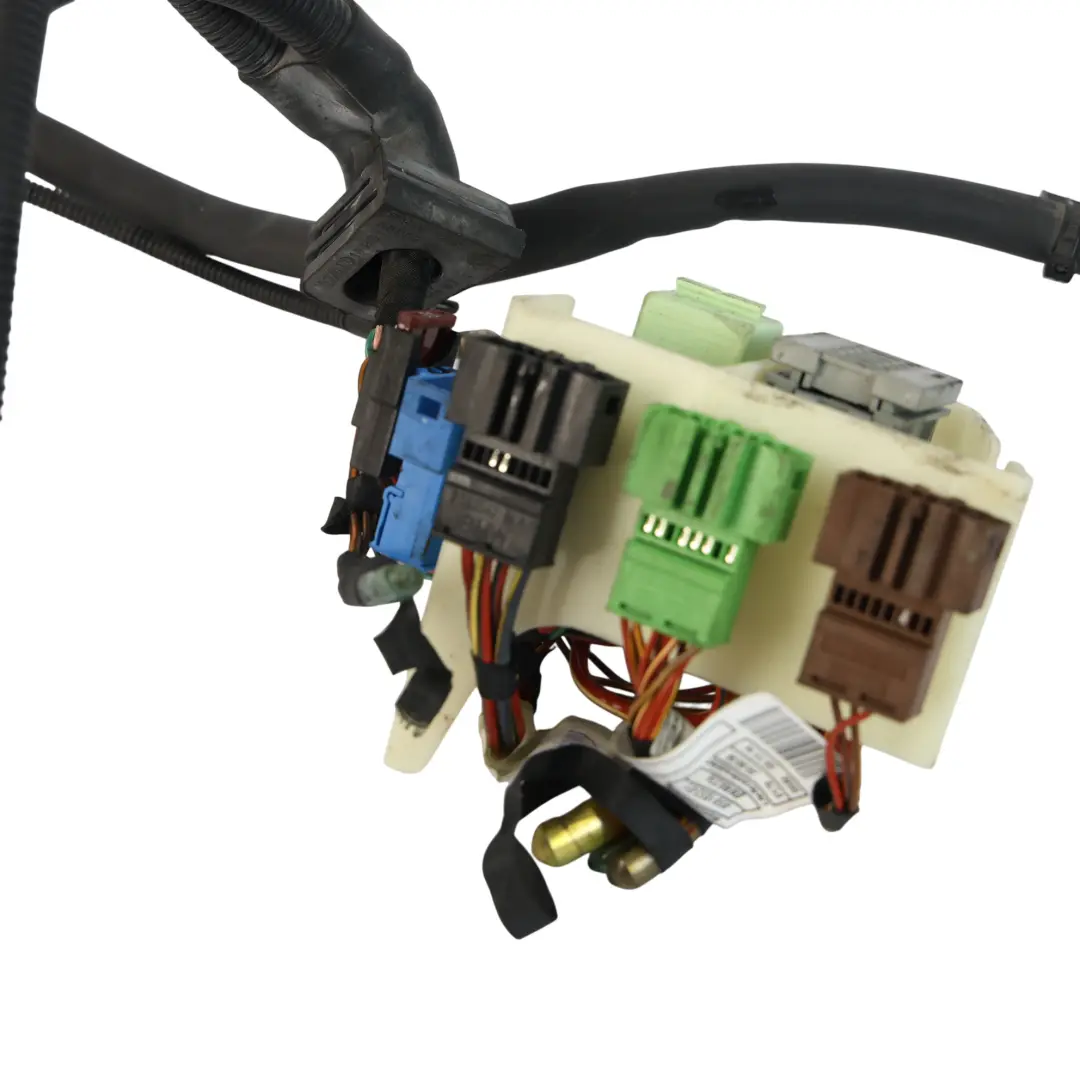

BMW X3 F25 X4 F26 Diesel Automatic Engine Wiring Harness Gearbox Cable 8583606

The BMW X3 F25 X4 F26 Diesel Automatic Gearbox Wiring Harness is a dedicated component of the powertrain electrical system, designed for BMW models with diesel engines and automatic transmissions. It ensures a stable electrical connection between the gearbox control unit and other vehicle modules, directly impacting the transmission's smooth operation and driving safety. By maintaining factory geometry and connectors, the harness allows for precise installation without altering the original wiring.

Specifications and technical data

• SKU: 8583606
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8583606
• Substitutable numbers: 8583606, 12518583606
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Other Starters, Alternators, ECUs & Wiring

Purpose and Compatibility

The offered gearbox wiring harness is structurally adapted for BMW X3 F25 and BMW X4 F26 models equipped with a diesel engine and an automatic transmission. Using the correct type of harness is crucial for the proper cooperation of the gearbox controller with sensors, solenoids, and other powertrain components.

This element is part of BMW's original electrical architecture, ensuring appropriate wire lengths, correct routing within the tunnel and engine bay, and matching connectors. This facilitates an organized installation process, eliminating the need for wiring modifications or adapters.

Function in the Powertrain

The gearbox wiring harness in the BMW X3 F25 / X4 F26 is responsible for transmitting signals between the automatic gearbox controller and:

• sensors for position and rotational speed in the gearbox,
• solenoids controlling gear changes,
• modules interacting with the powertrain (e.g., stabilization and traction control systems),
• the vehicle's electrical system in the engine bay and center tunnel area.

A correctly selected harness helps reduce signal interference, minimizes the risk of communication errors, and supports the smooth operation of the automatic gearbox. This is particularly important in diesel-powered vehicles, where precise cooperation between the engine and transmission affects driving comfort and fuel consumption.

Benefits of Using an Original BMW Harness

Using the factory gearbox wiring harness in the BMW X3 F25 / X4 F26 offers several practical advantages:

• maintaining original wire routing and mounting points,
• secure connection of connectors to the controller and gearbox components,
• reduced risk of installation errors typical for universal solutions,
• consistency with BMW's factory service documentation.

For workshops and users, this translates to shorter installation times, easier diagnostics, and more predictable powertrain performance. In the case of automatic transmissions, this directly impacts the smoothness of gear changes and the proper functioning of driving modes.

Product Characteristics and Condition

The offered BMW gearbox wiring harness is a used part, sourced from disassembly. This allows for an economical repair of the vehicle while maintaining the original manufacturer's specifications. This type of component is particularly useful for mechanical damage to the wiring (abrasions, breaks, damaged connectors) or after incorrect electrical modifications.

Before installation, a standard inspection of the insulation, connectors, and mounting points is recommended, as well as comparing the harness routing with the currently installed component. Proper wire routing and secure fastening in their holders minimize the risk of renewed damage during operation.
