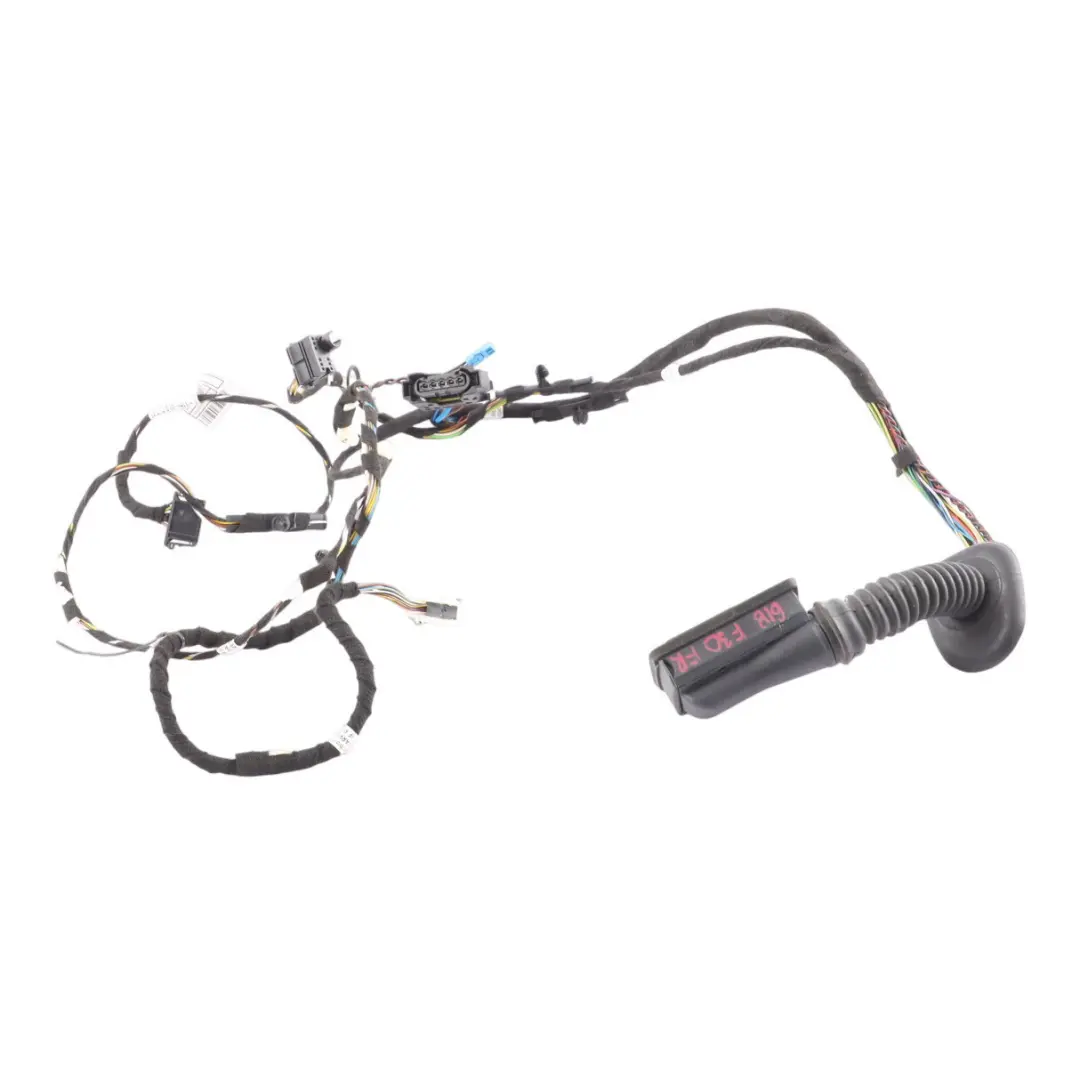

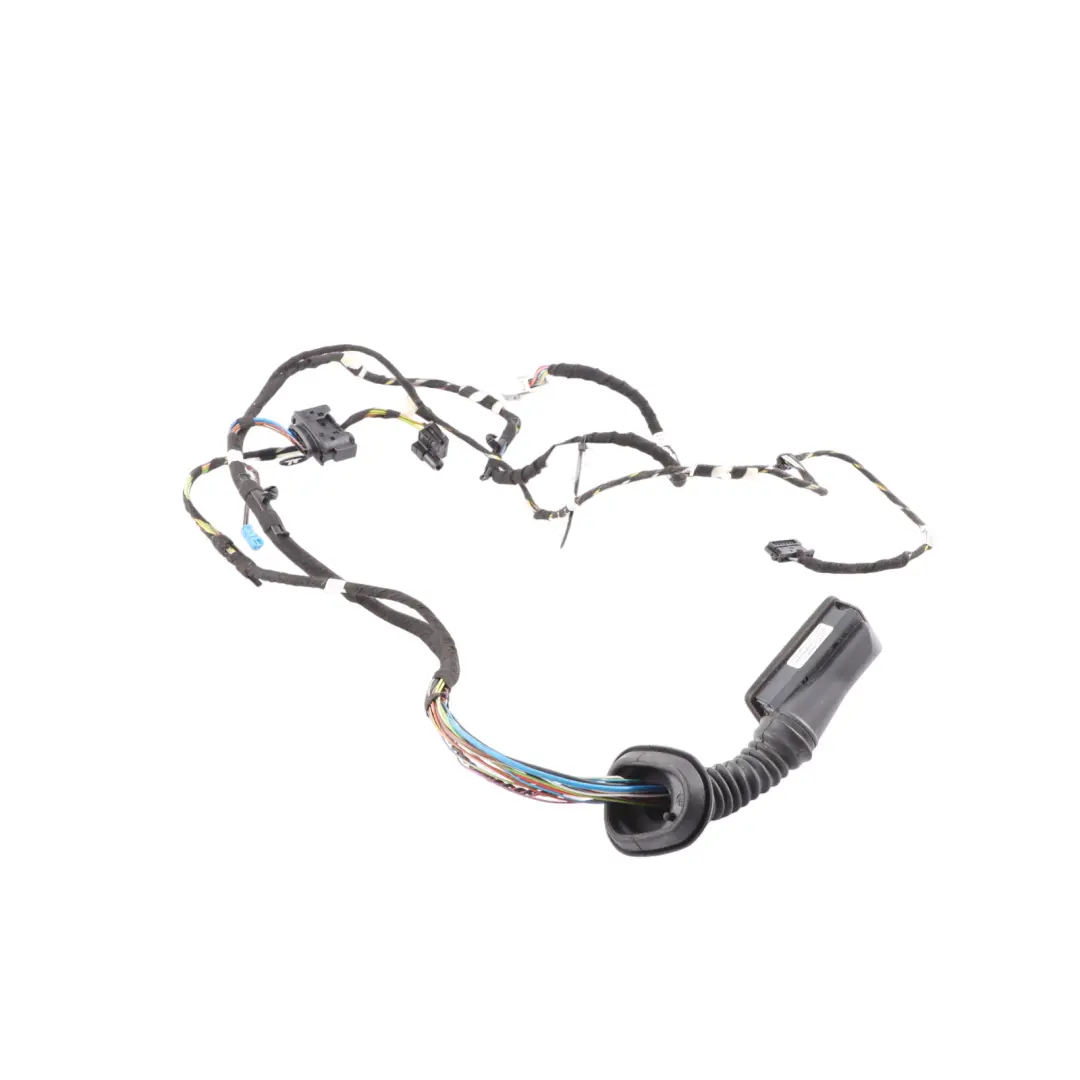

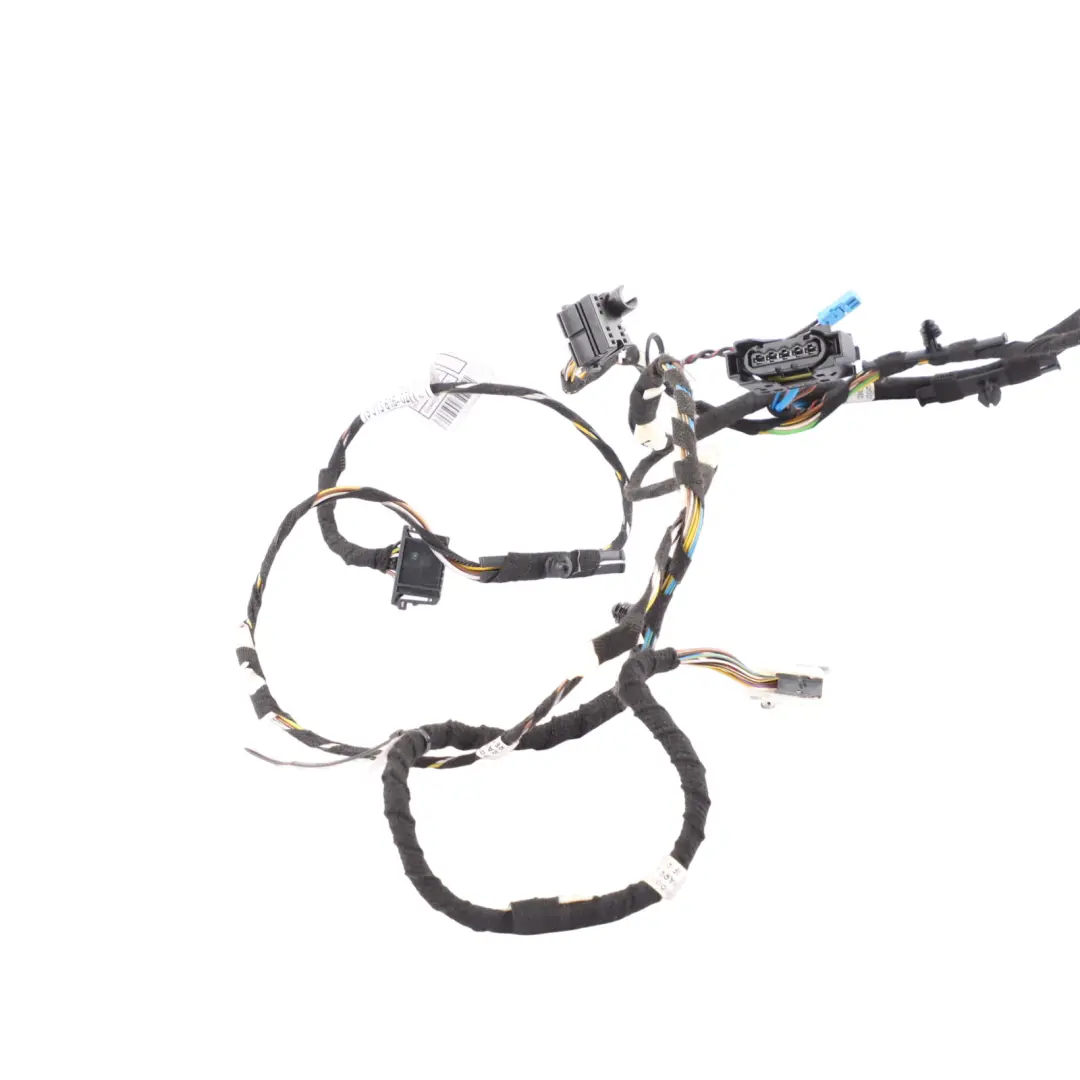

BMW F30 F31 Driver's Side Door Wiring Electrical Loom Harness Cable 9313616

BMW F30 F31 Driver's Side Door Wiring Electrical Loom Harness Cable is an original electrical installation component designed for the driver's side door area in BMW 3 Series F30/F31 models. It enables proper electrical connection between the door and the vehicle body, ensuring stable power supply and communication for all components located within the door. By maintaining factory geometry and connectors, the harness facilitates precise, professional replacement of damaged sections of the installation.

Specifications and technical data

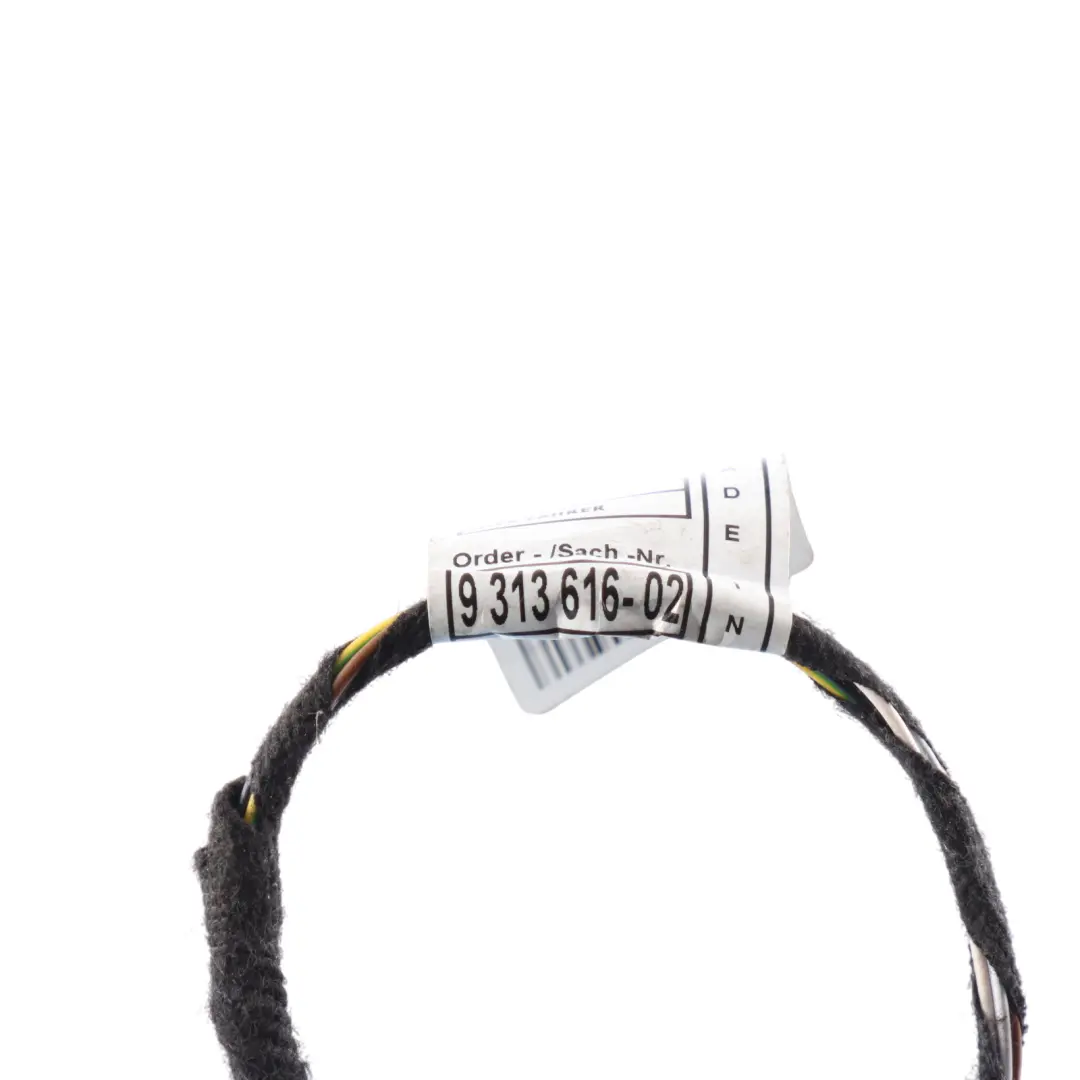

• SKU: 9313616
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9313616
• Substitutable numbers: 9313616
• Location on the vehicle: Front
• Category: Other Starters, Alternators, ECUs & Wiring

Purpose and function in the vehicle

The presented wiring harness is dedicated to the driver's door in the front section of the body, where it is responsible for transmitting signals and power to components located in the door. This includes, among others, circuits responsible for controlling the window, mirror, central locking, or lighting, depending on the specific vehicle configuration.

Its placement in the front body area means the harness operates under demanding conditions – with frequent opening and closing of the door, exposure to bending, and temperature changes. Using an original component allows for maintaining proper flexibility, wire routing, and correct positioning of connectors in factory mounting points.

Construction and advantages of the original BMW harness

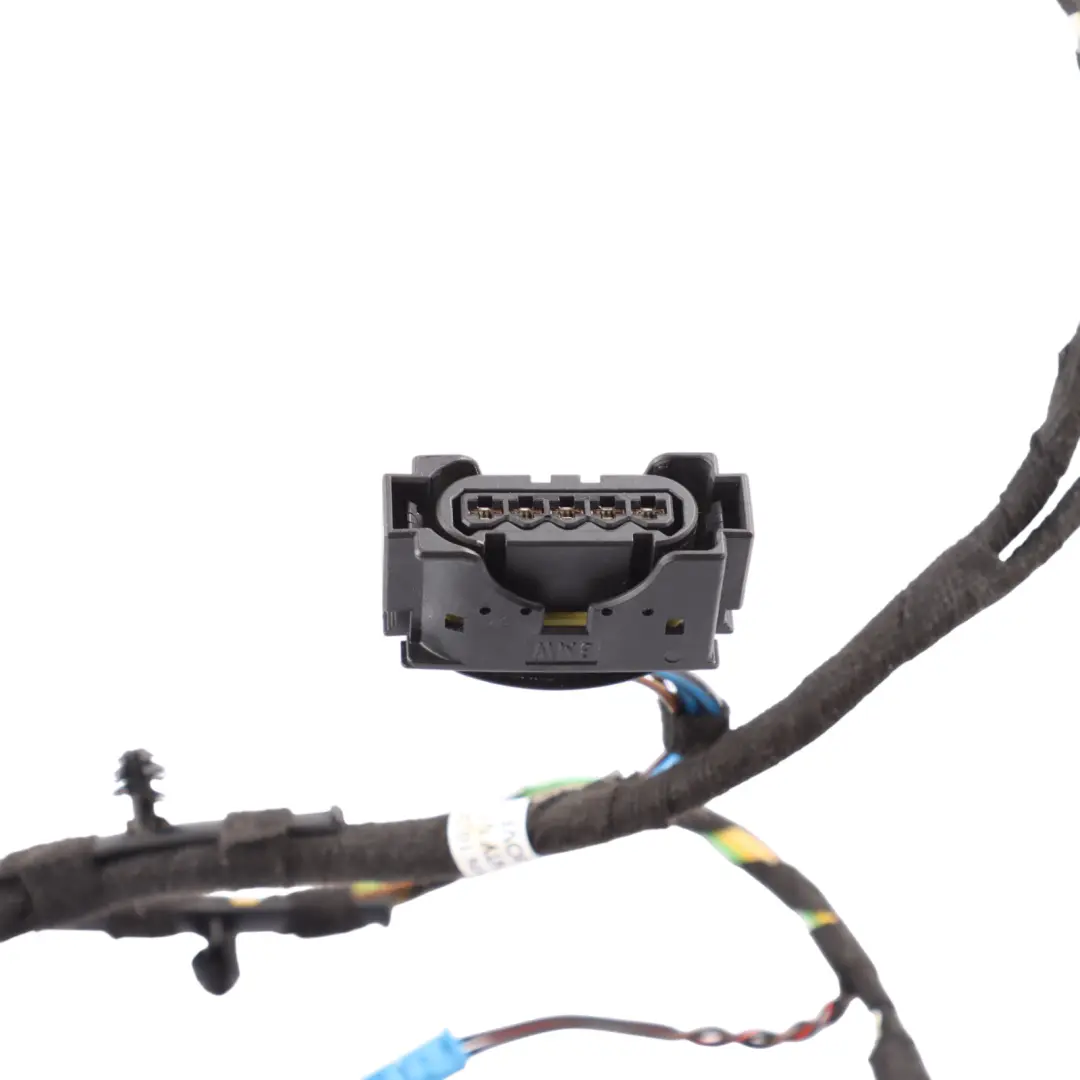

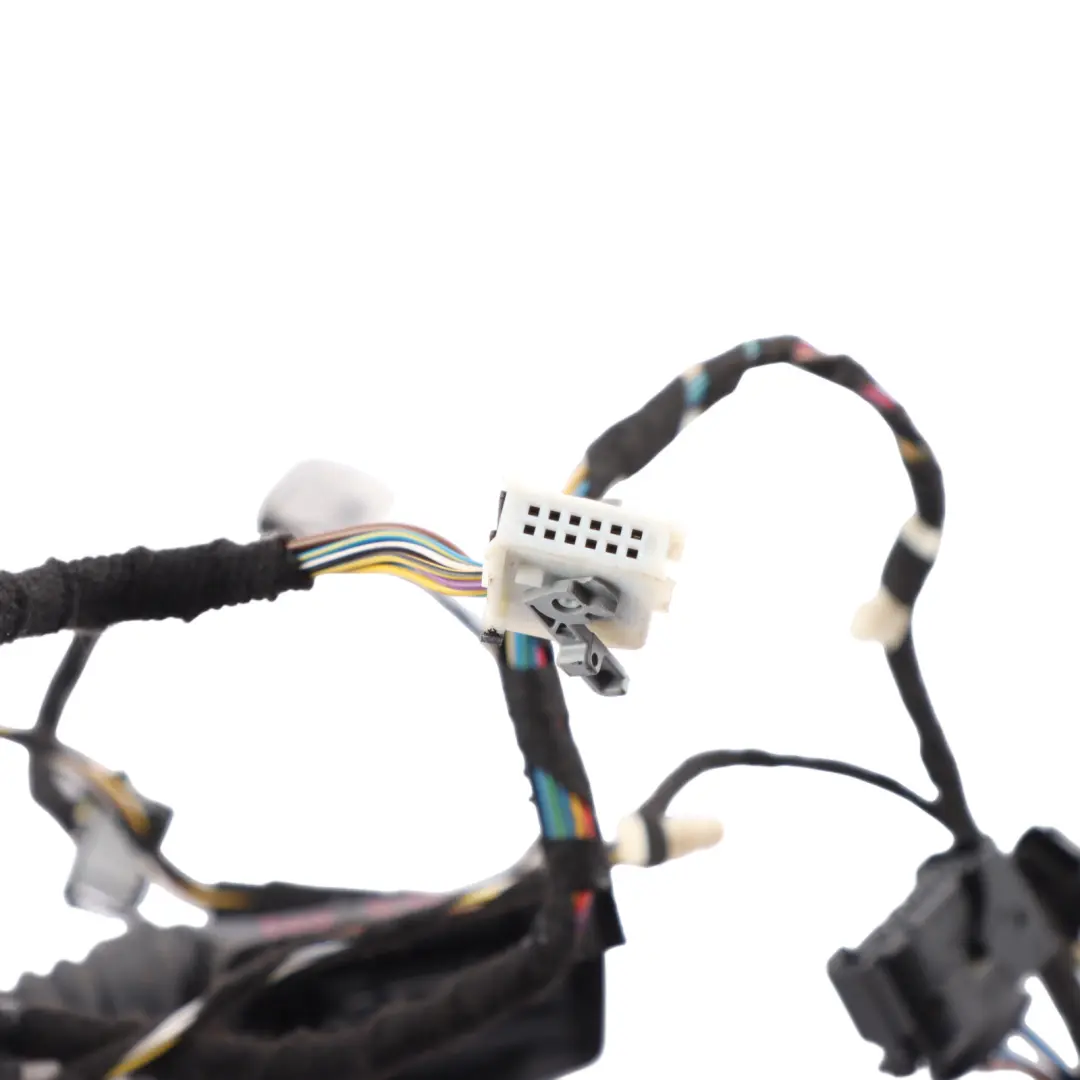

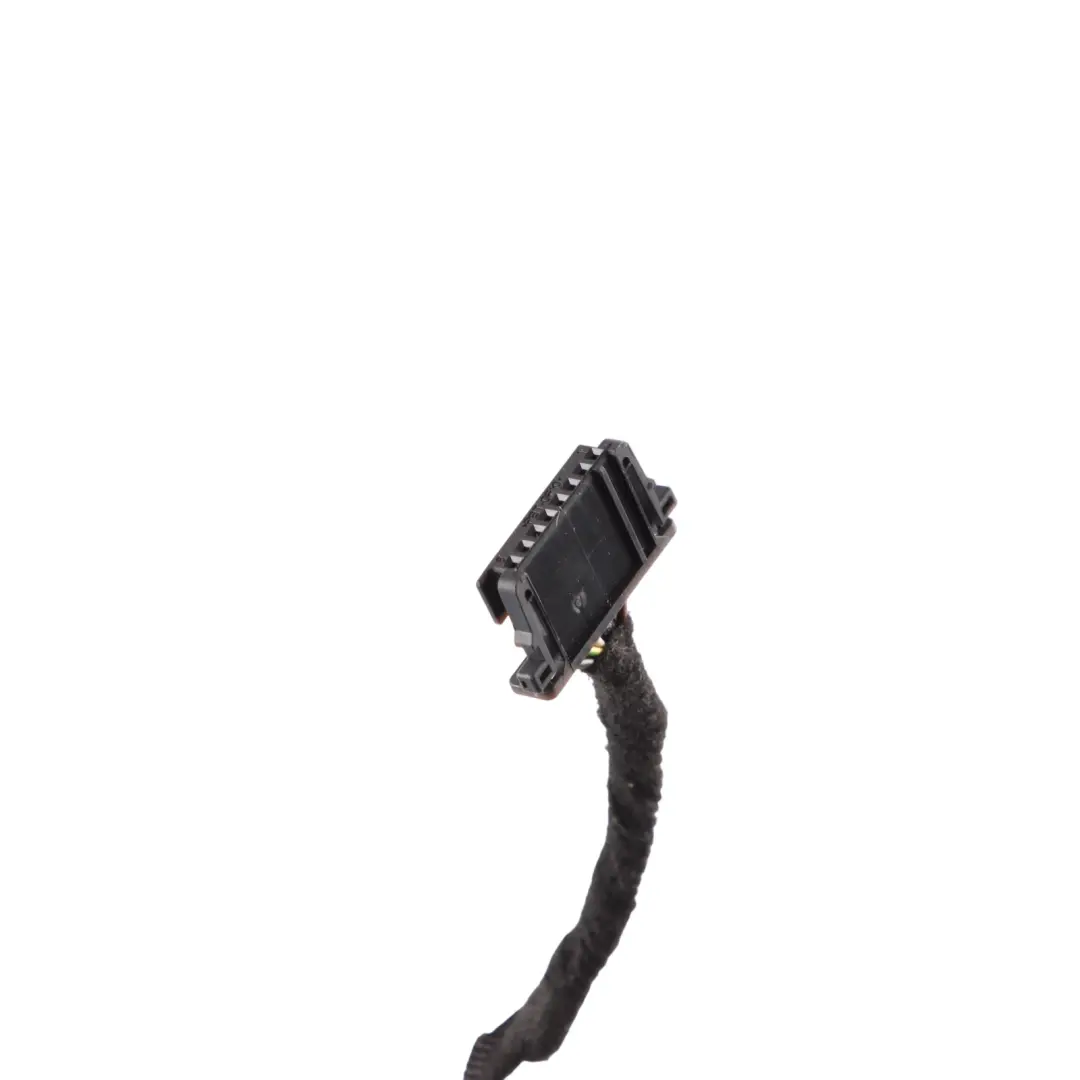

The driver's door harness for the BMW F30/F31 has been designed as a complete assembly solution, including appropriately selected wire gauges, factory connectors, and covers. As a result, it:

• ensures consistency with the vehicle's original electrical installation,
• minimizes the risk of assembly errors associated with DIY wiring repairs,

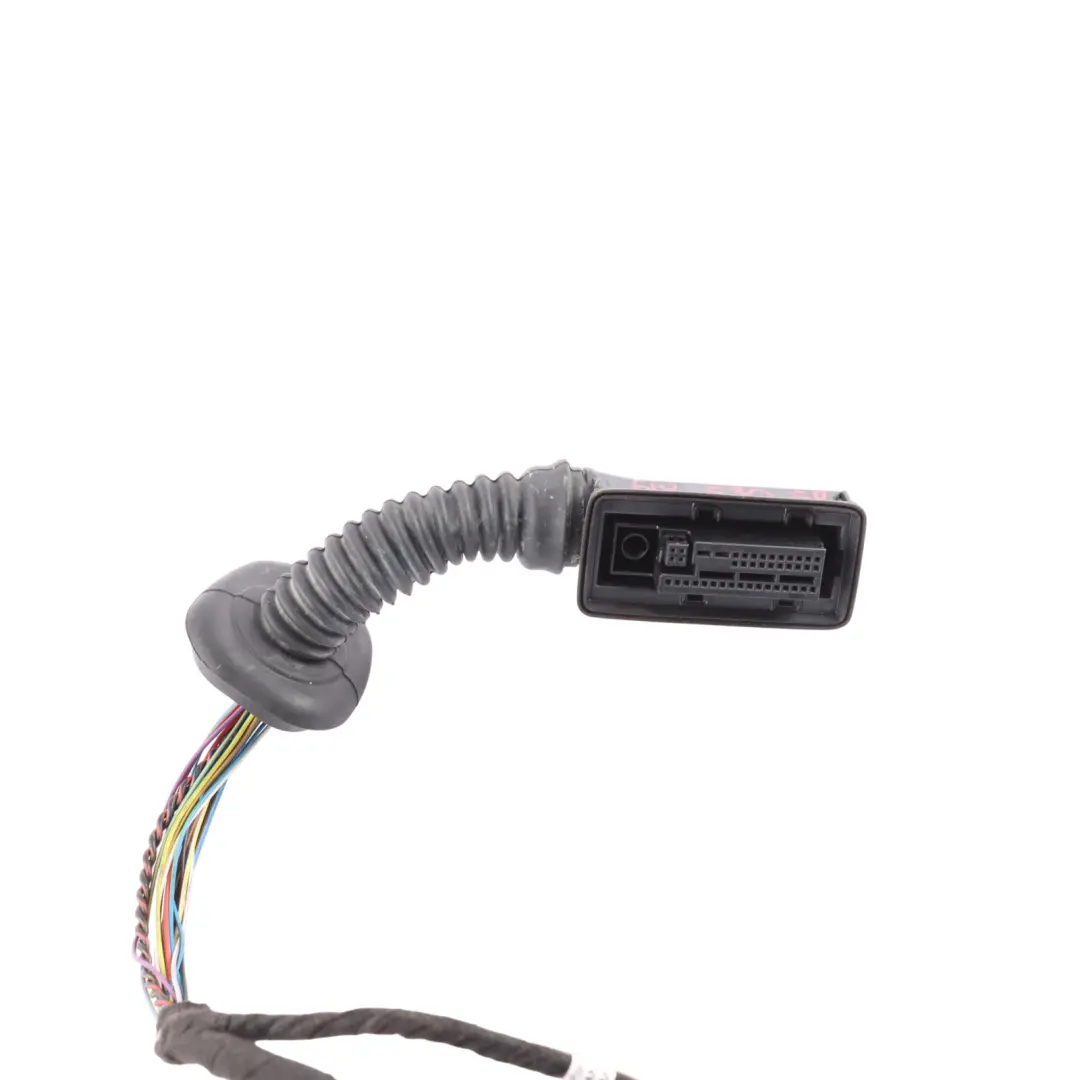

• maintains proper resistance to bending in the grommet between the pillar and the door,
• facilitates the diagnosis of potential electrical faults in the future.

Using a factory harness is particularly beneficial in cars equipped with advanced comfort systems, where signal stability and proper wire shielding are crucial for the trouble-free operation of control modules.

Condition, service application, and installation

The item comes from dismantling and is intended for re-installation in a vehicle as a service part. This type of harness is suitable both for repairs after mechanical damage (broken wires in the door grommet) and for restoring the installation after interference with the vehicle's electrical system.

In practice, installation involves disconnecting the factory connectors on the body and door sides and routing the harness according to the original path. Maintaining the correct wire route is essential to avoid excessive stress and subsequent insulation damage. Using original mounting points and clips allows for restoring the factory installation layout.

Benefits of using the original driver's door harness

Choosing an original wiring harness for the driver's door in the BMW F30/F31 brings a number of practical benefits:

• Compatibility with factory modules – connectors and wiring layout are adapted to original controllers and door equipment.
• Stable operation of comfort and safety systems – proper power supply and communication of door components reduce the risk of errors and fault messages.
• Restoration of the factory installation state – especially important after accident repairs or previous unprofessional electrical modifications.
• Simplified diagnostics – maintaining the original harness structure simplifies future service work.
