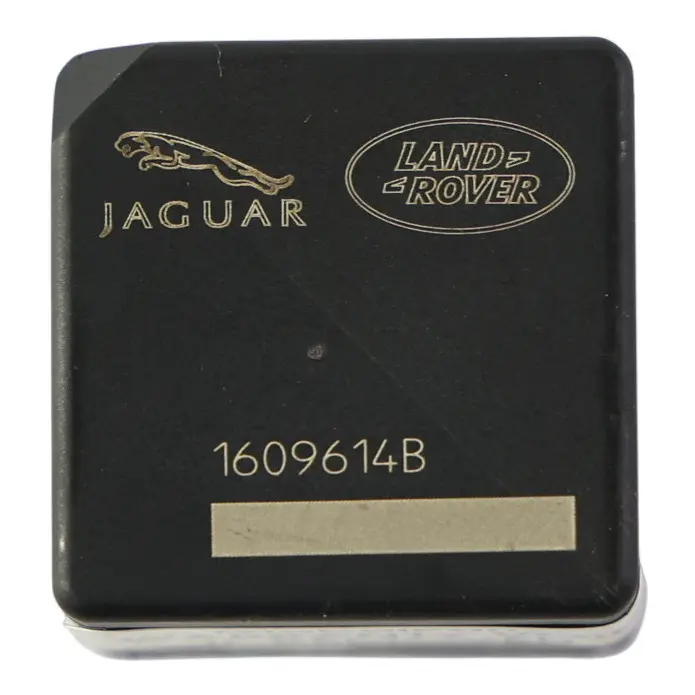

Range Rover Evoque L538 Relay 4-Pin Unit 12V 40A Black DH22-14B192-CA

Range Rover Evoque L538 Relay 4-Pin Unit 12V 40A Black is a component from the Relays category, designed for use in the electrical system of Land Rover vehicles. The compact 4-pin design and 40A current rating allow for stable control of selected circuits while maintaining an appropriate safety margin. The black housing facilitates aesthetic integration of the relay into the existing wiring harness and fuse box.

Specifications and technical data

• SKU: DH22-14B192-CA
• Mark: Land Rover
• Condition: Used
• OEM Part Number: DH22-14B192-CA
• Substitutable numbers: DH22-14B192-CA, DH2214B192CA, 1609614B
• Part type: Relay
• Color: Black
• Category: Relays

Application and function in the electrical system

The 4-pin 12V 40A relay used in the Range Rover Evoque L538 is responsible for switching high-current circuits using a low-current control signal. This relieves the load on switches and control modules, improving the durability of the entire electrical system. In typical applications, it can support lighting circuits, comfort equipment components, or selected auxiliary sub-assemblies, depending on the specific vehicle configuration.

Construction and operating parameters

The standard 4-pin configuration ensures a simple, clear connection diagram, which facilitates diagnostics and potential replacement. The 12V operating voltage is adapted to the electrical systems of passenger cars, and the maximum 40A current allows for safe operation in high-load circuits. The black housing is designed to allow installation in standard relay sockets used by the manufacturer.

Benefits of using an original Land Rover relay

Using a relay dedicated to the Range Rover Evoque L538 allows for maintaining consistency of electrical parameters with the factory installation design. Properly selected voltage and switching current values reduce the risk of contact overheating and improper operation of protection systems. The original solution from the Relays group also facilitates subsequent diagnostics – service diagrams and test procedures are prepared specifically for this type of component.

Performance characteristics and installation

The relay is a simple component, which translates into easy installation in the factory socket without the need for wiring modifications. Compact dimensions and the black color of the housing promote orderly installation in the relay box. Thanks to pin standardization, quick replacement is possible during service work, which reduces vehicle downtime.

Why choose a used OEM relay

A used OEM relay for the Range Rover Evoque L538 is a solution that allows you to maintain compliance with factory specifications while optimizing repair costs. A component of this type, sourced from an original Land Rover installation, is designed with real-world loads and operating conditions in the given model in mind. For many users, it is a reasonable compromise between quality and price, especially in the case of electrical components with a simple design.
