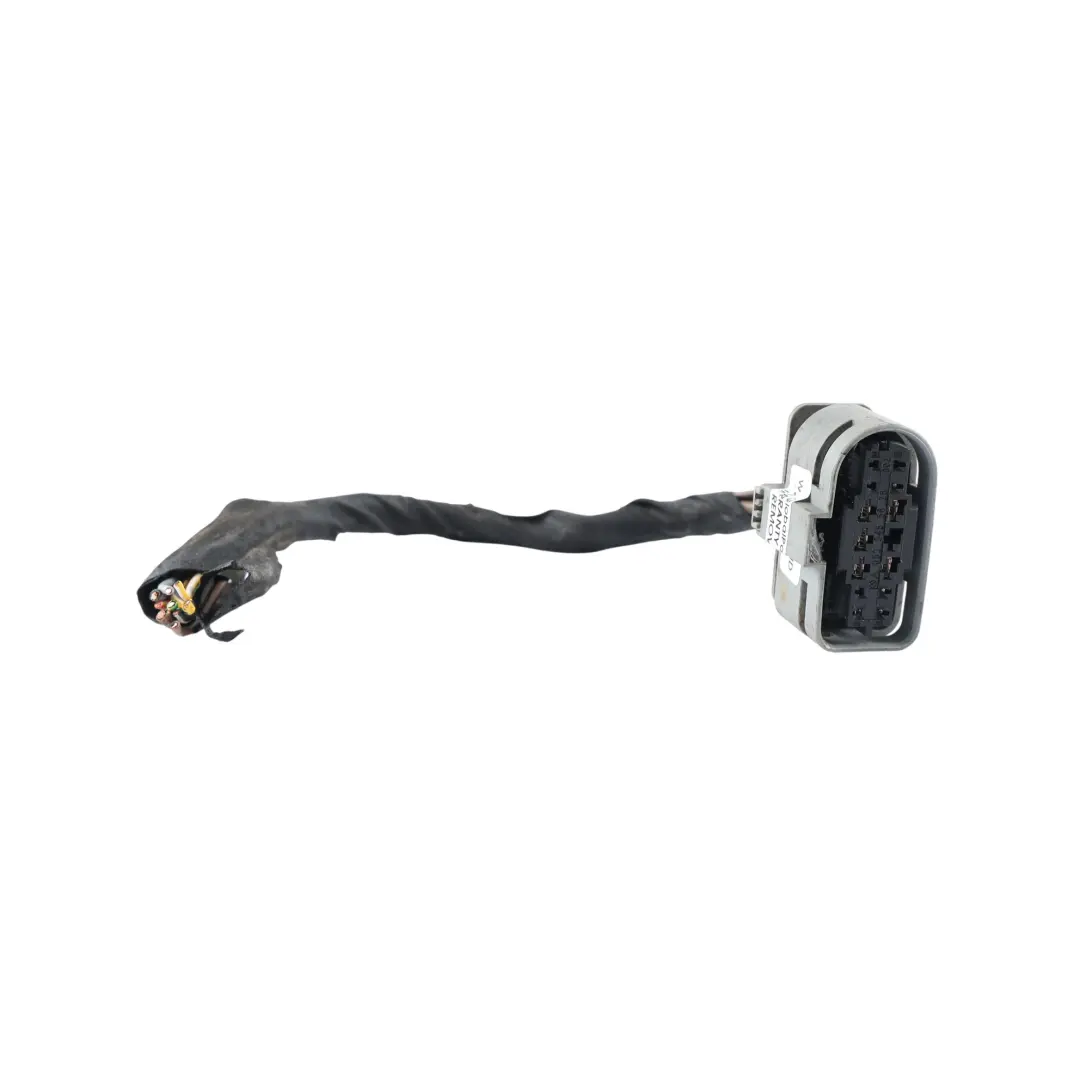

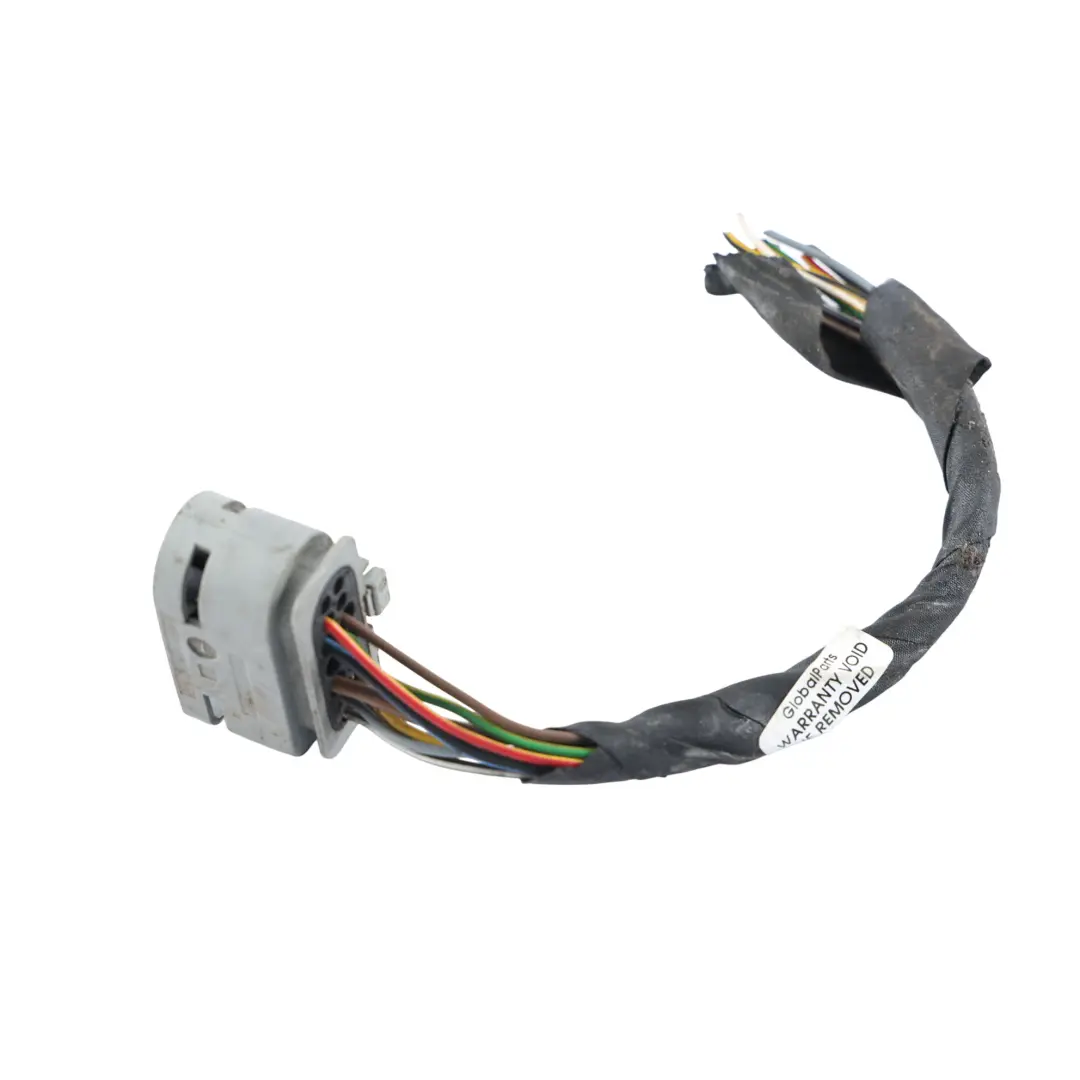

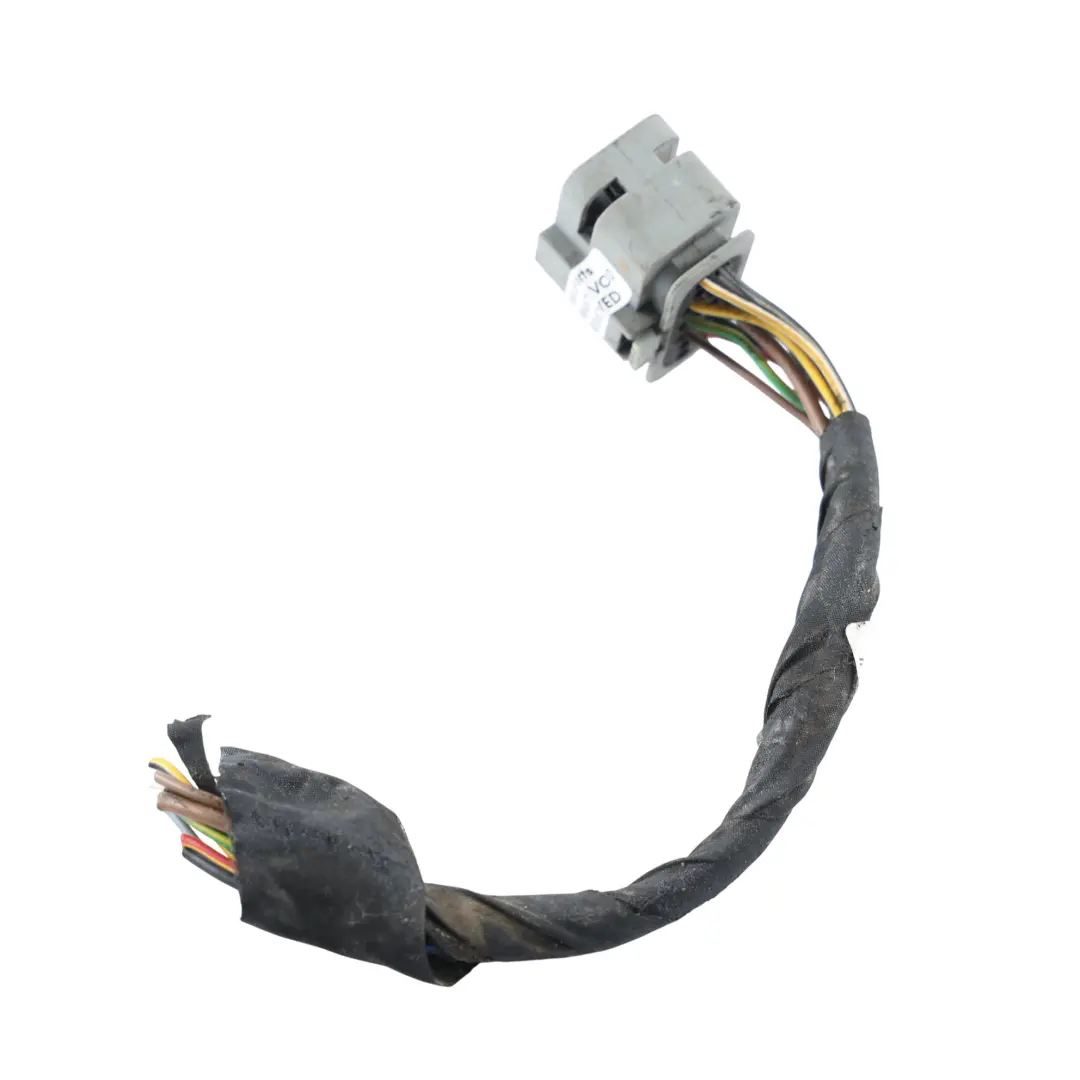

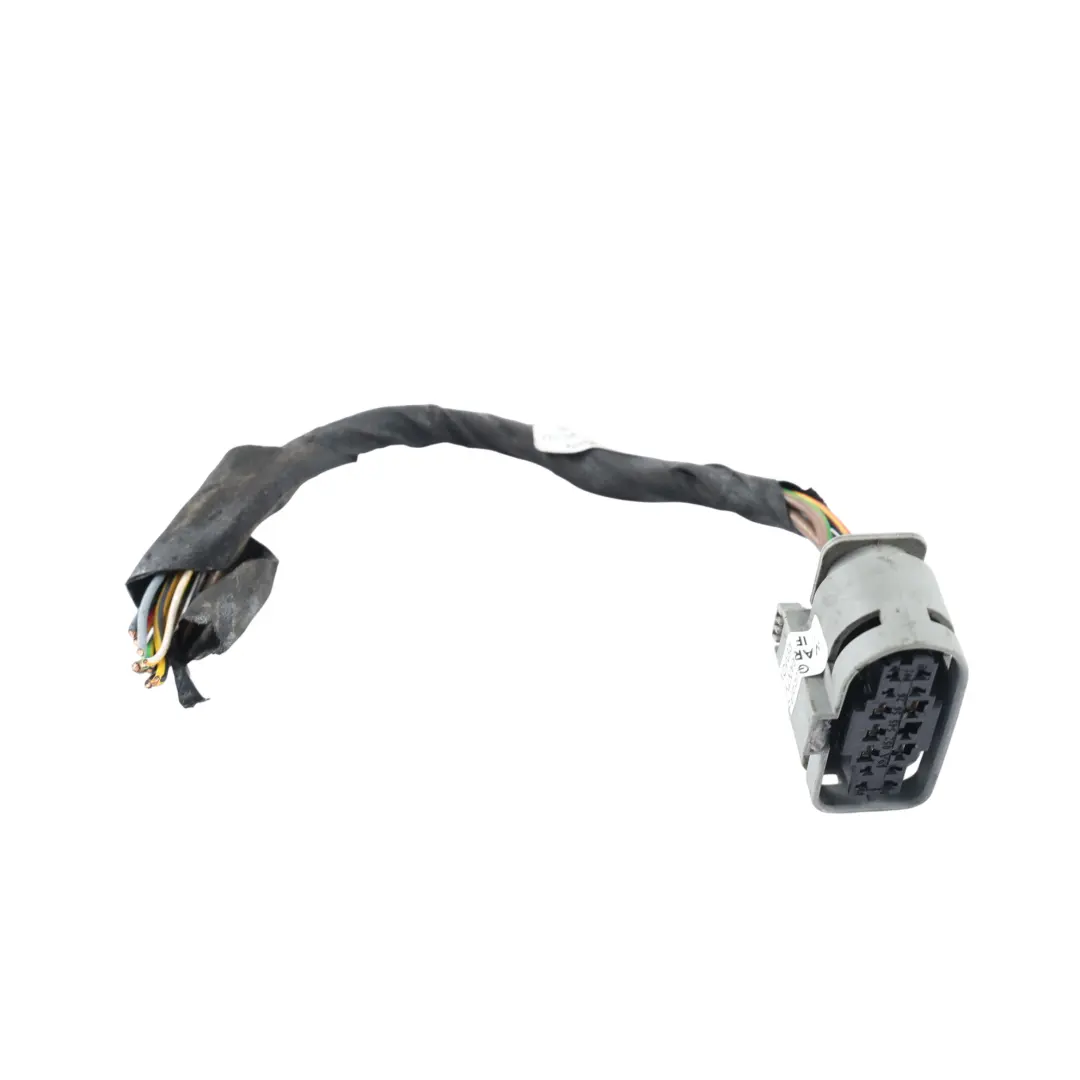

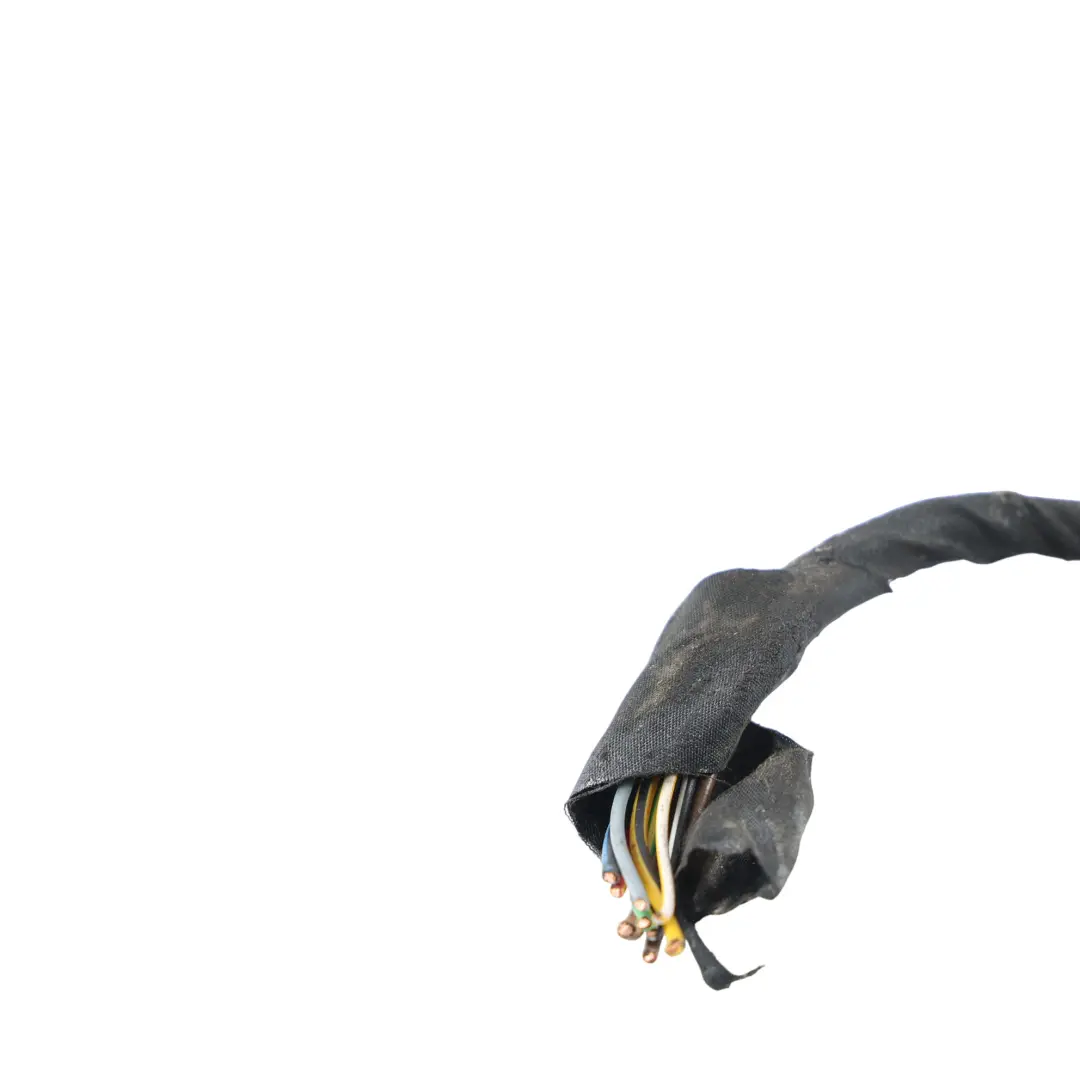

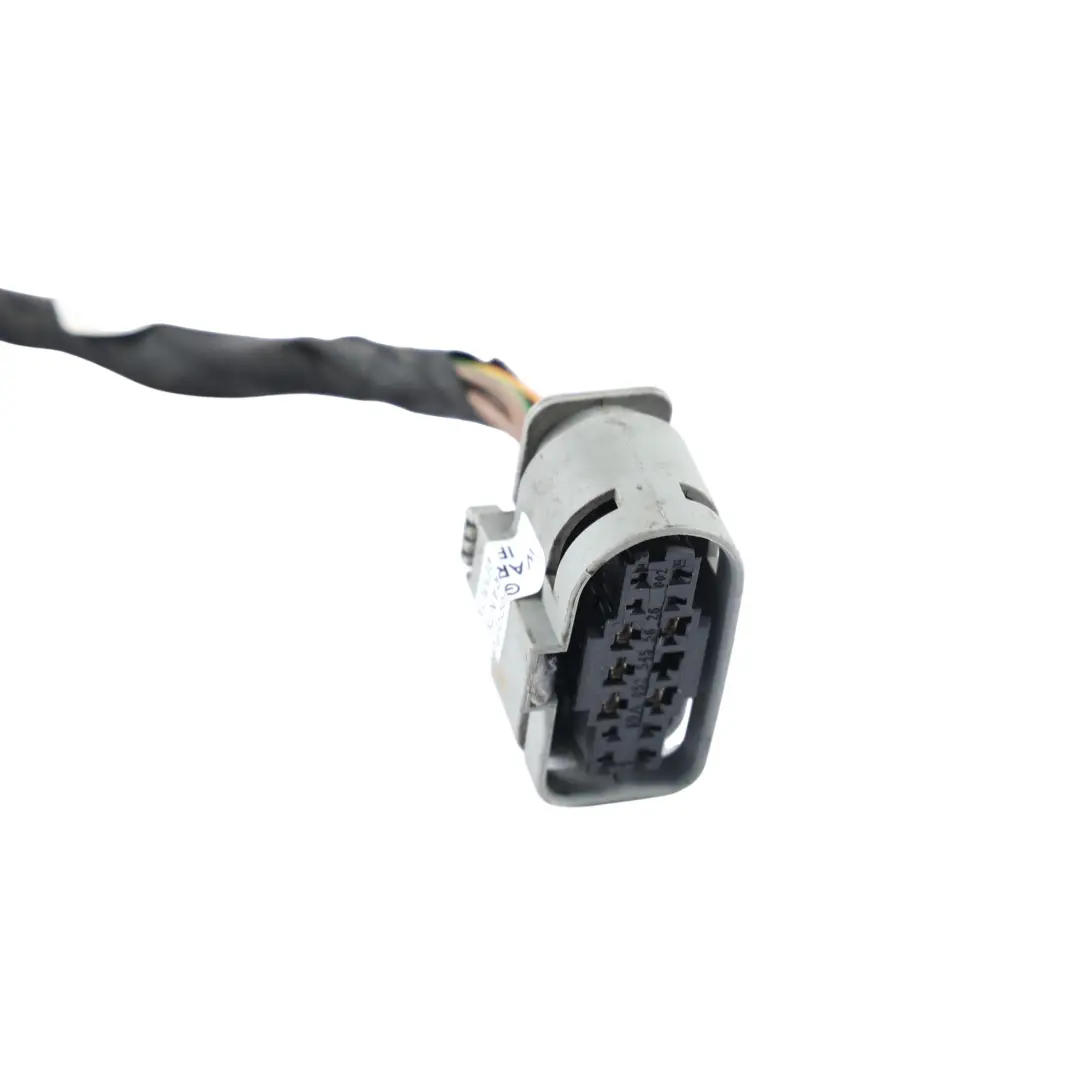

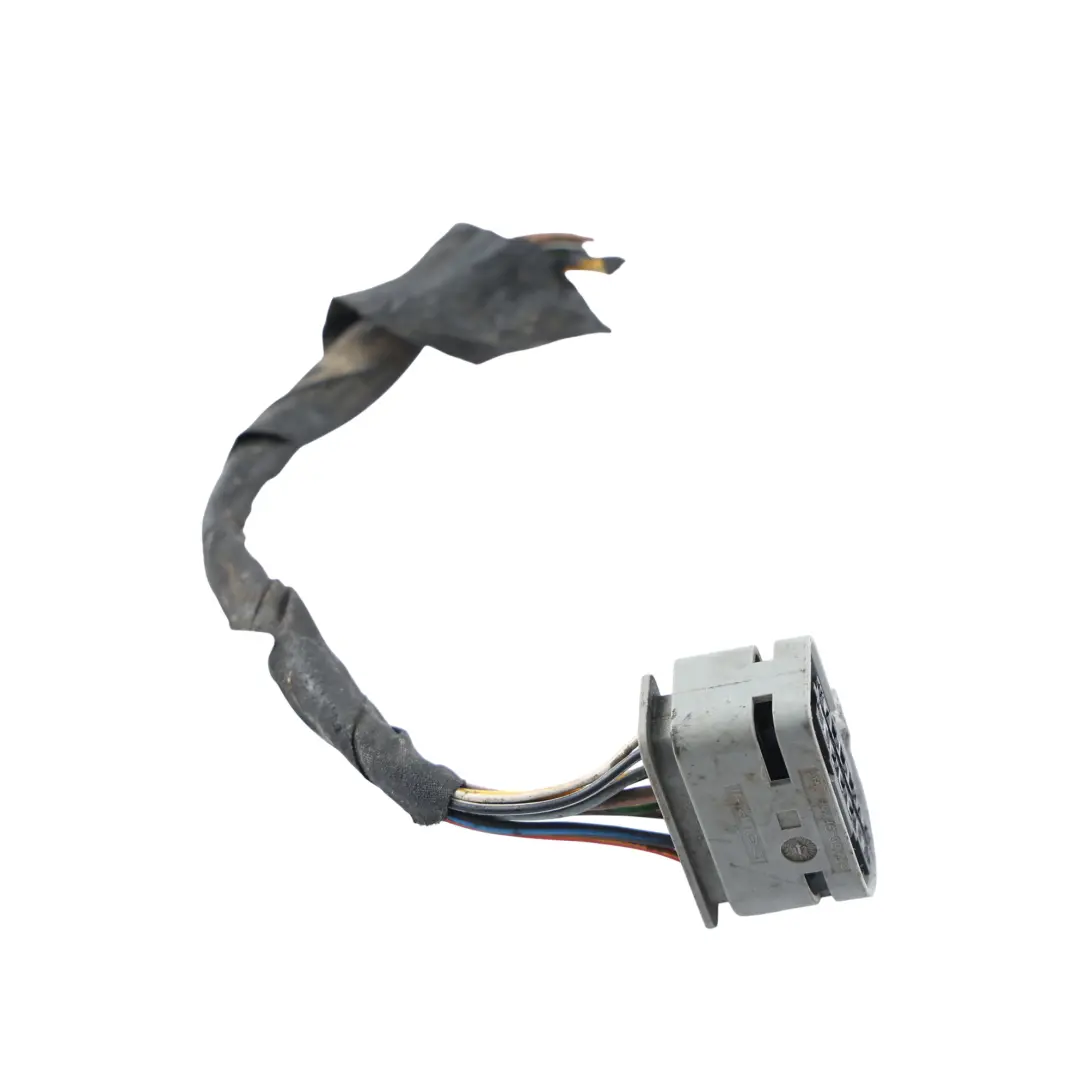

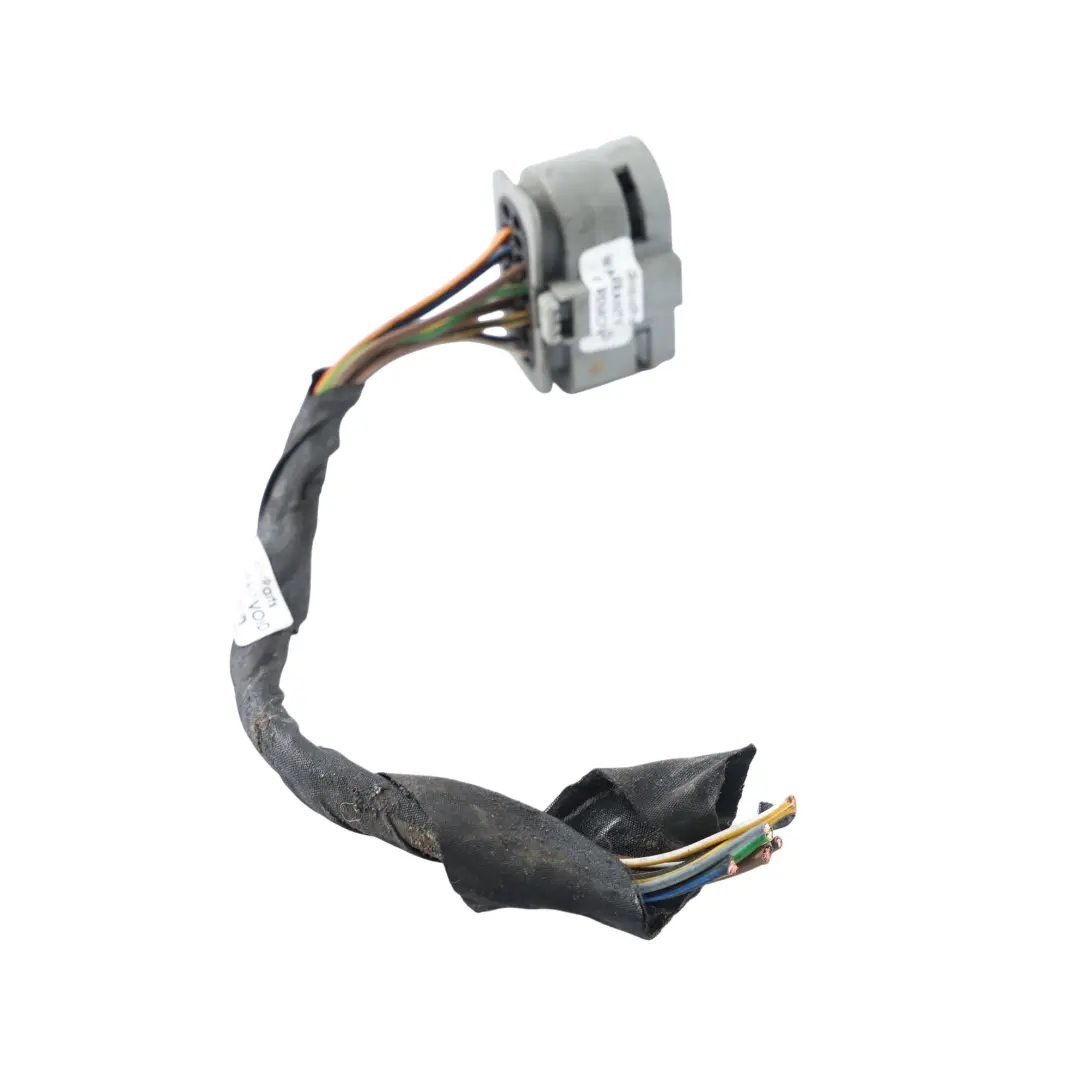

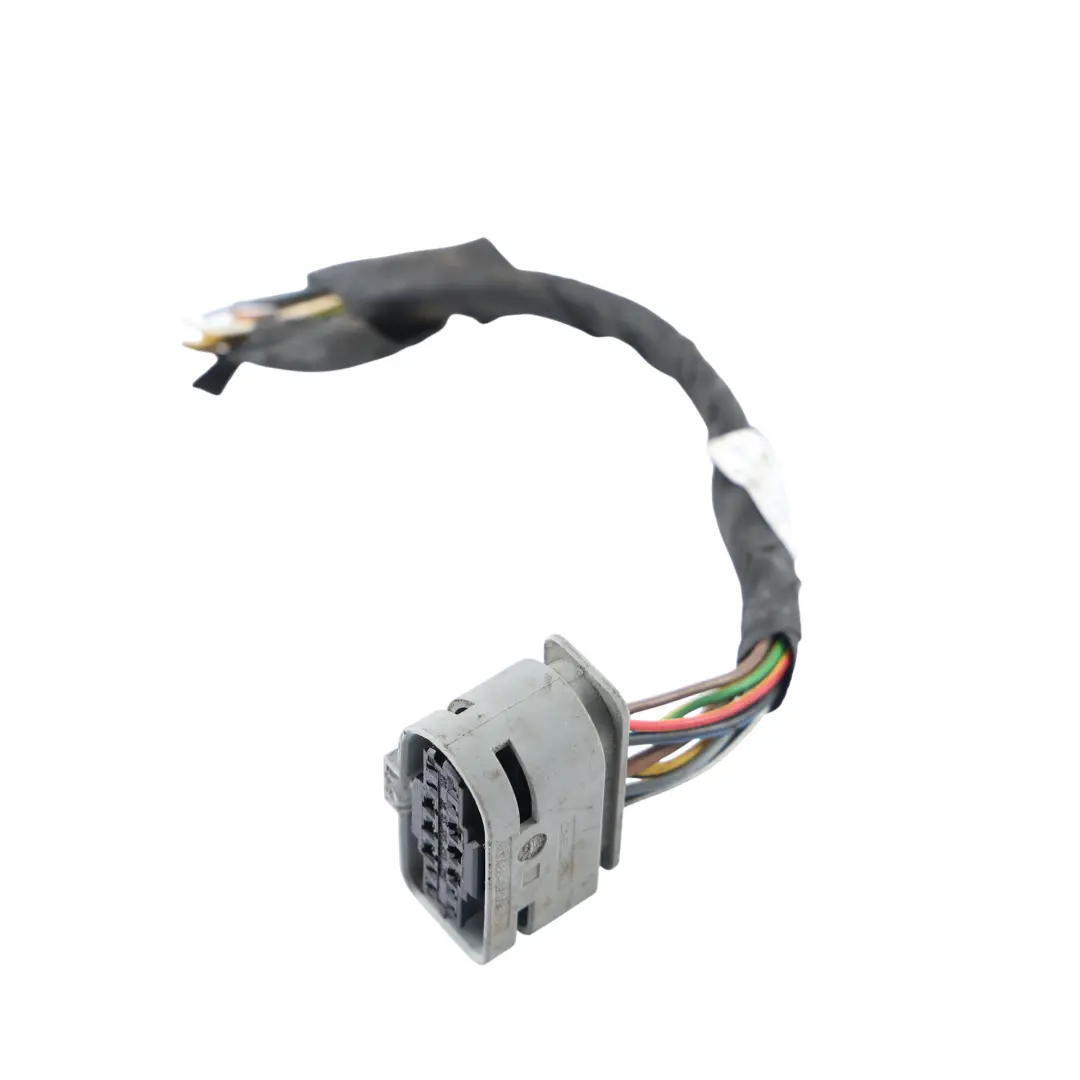

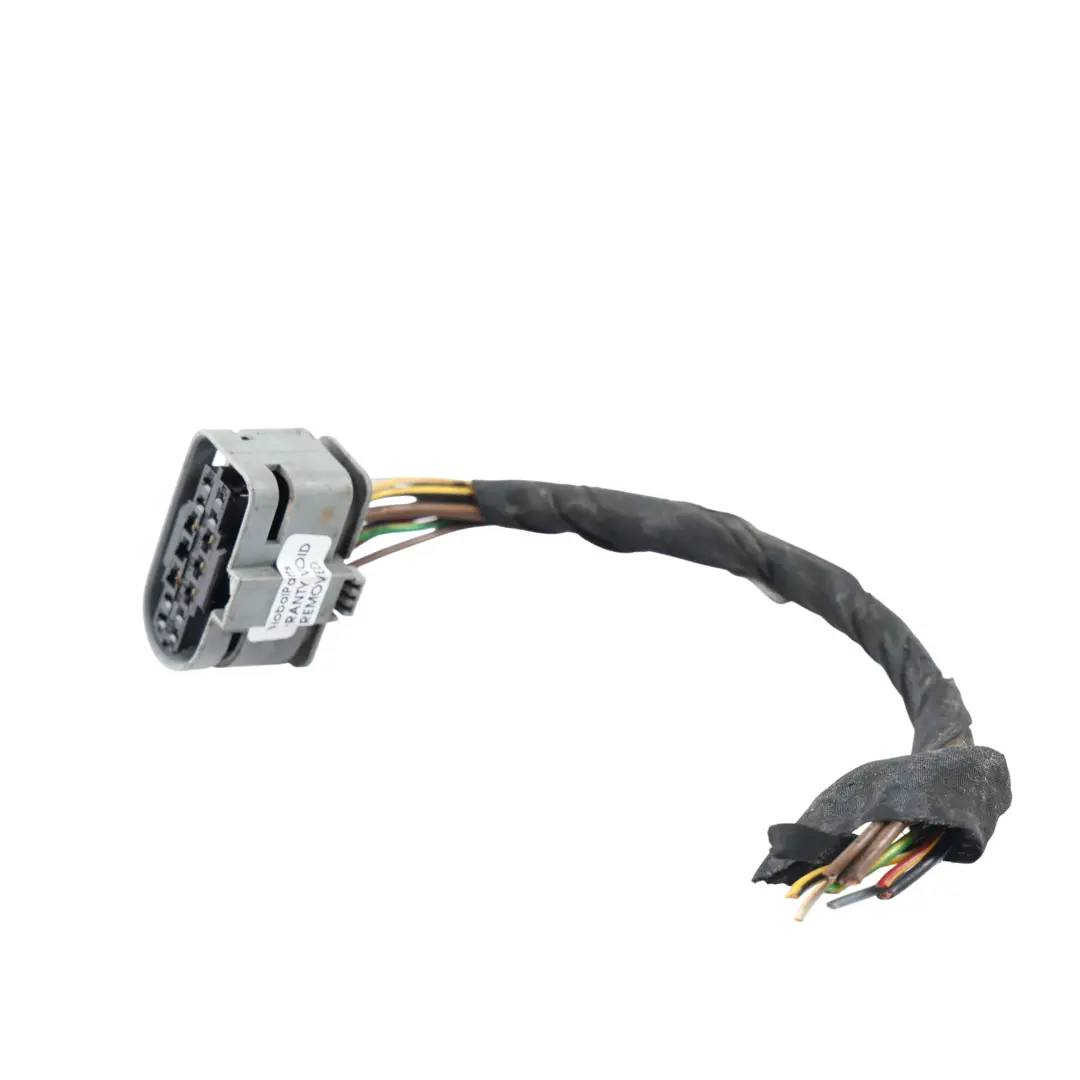

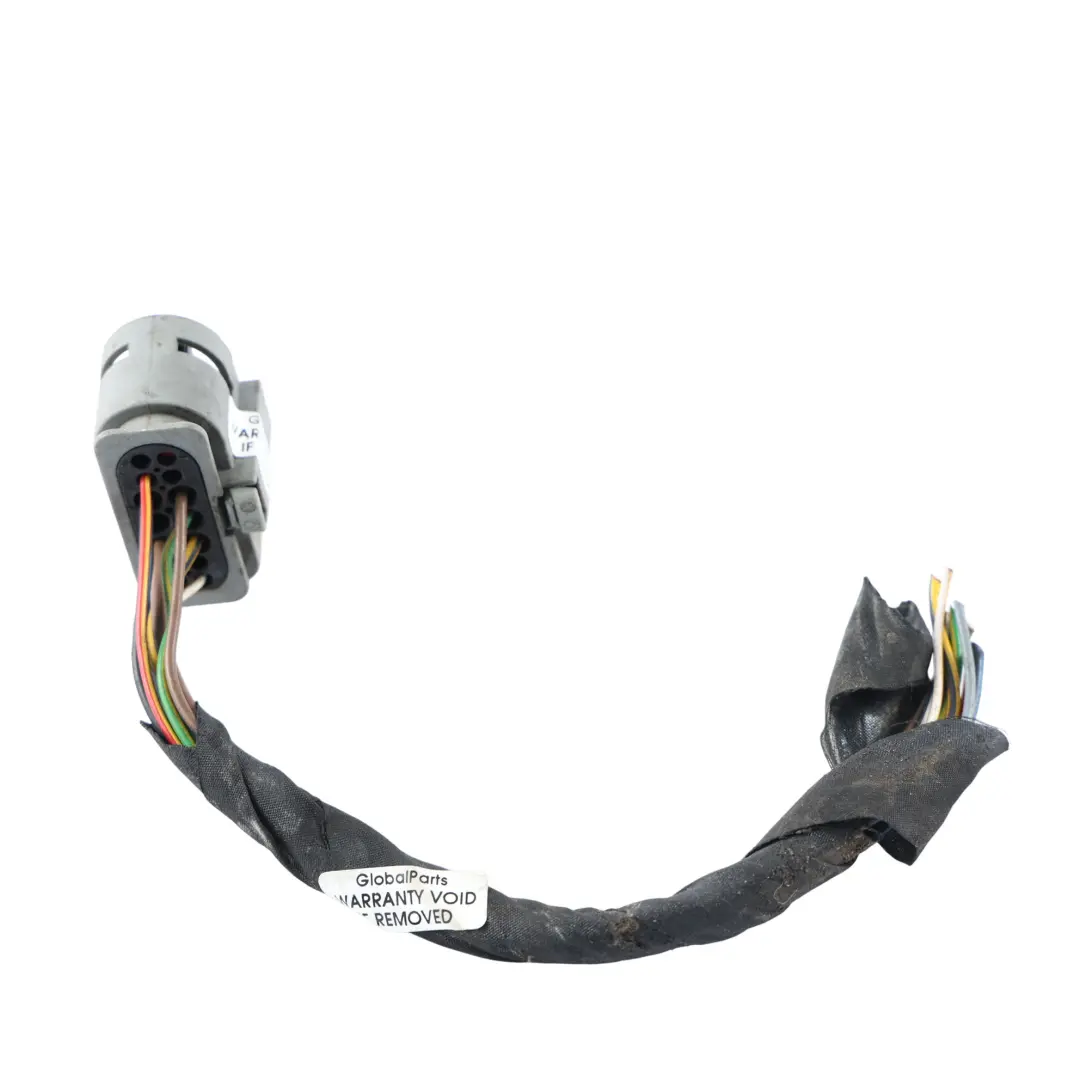

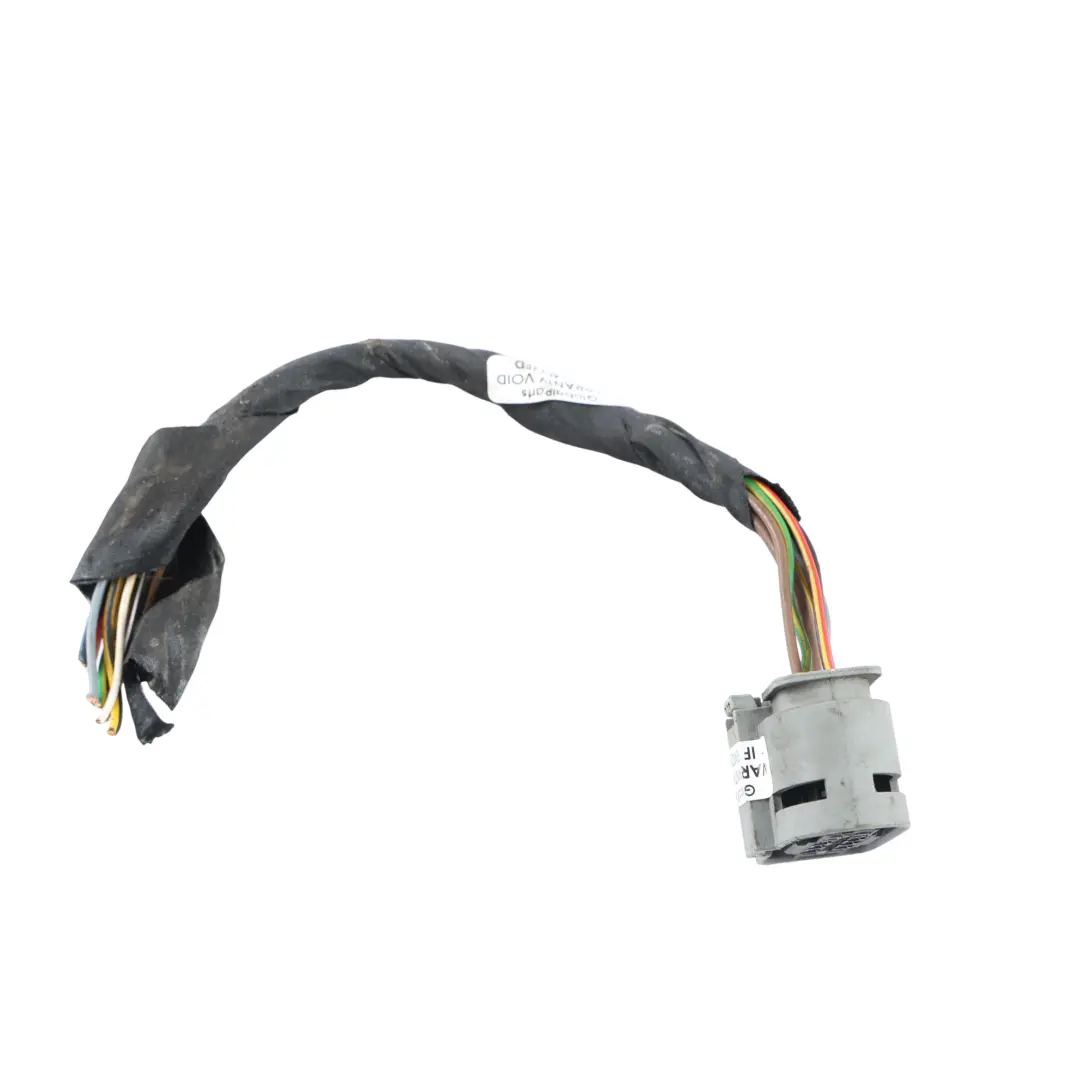

Mercedes W203 W204 Wiring Cable Headlight Bi-Xenon Front Left N/S A2048204539

Mercedes W203 W204 Wiring Cable Headlight Bi-Xenon Front Left N/S is a specialized electrical installation component designed to support the driver-side bi-xenon headlight. It is responsible for a stable connection between the lamp and the vehicle's electrical system, ensuring proper power supply and control of lighting functions. By maintaining the factory wiring architecture, it provides a solution compatible with Mercedes factory lighting systems.

Specifications and technical data

• SKU: A2048204539-3
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A2048204539
• Substitutable numbers: A2048204539, A 204 820 45 39
• Location on the vehicle: Front, Left
• Part type: Wiring Pigtail
• Category: Sockets, Connectors & Wiring

Purpose and function of the bi-xenon headlight wiring

The presented wiring is dedicated to the front left bi-xenon headlight in Mercedes C-Class family models, allowing for the preservation of the original control method for low and high beam lights within a single lamp. The component belongs to the Wires, plugs, and connectors group, responsible for the safe transmission of signals and power between the headlight and the vehicle's electrical system. The wiring enables proper operation of the lighting system by:

• dedicated cable routing for powering headlight modules,
• maintaining the correct order and type of connectors,
• reducing the risk of installation errors compared to universal modifications.

Construction and vehicle fitment

The wiring has been designed for a specific location on the vehicle – front, left side – which facilitates cable routing in accordance with factory mounting paths. Appropriately selected segment lengths and branch layouts allow for an aesthetic and technically correct installation in the front body section. This solution is particularly beneficial for:

• replacing damaged or melted headlight wiring,
• restoring the original bi-xenon lighting configuration,
• repairs after collisions in the front left part of the vehicle.

Benefits of using original Mercedes wiring

Using wiring dedicated to Mercedes vehicles allows for compliance with factory electrical parameters and lighting control logic. The appropriate selection of wire cross-sections, insulation, and connector types promotes stable operation of the bi-xenon headlight and reduces the risk of communication problems in the installation. Key advantages include:

• factory fitment for a specific vehicle location,
• consistency with the original electrical system architecture,
• reducing the need for modifications and soldering of wires.

Application in service and lighting repairs

The left-side bi-xenon headlight wiring is suitable for both professional service centers and workshops specializing in the Mercedes brand. It facilitates the restoration of full lighting functionality after mechanical or thermal damage, or following improper installation modifications. By maintaining the original wiring layout, the headlight can be integrated with the rest of the vehicle's installation in an orderly manner. If you are planning a comprehensive repair or upgrade of the front electrical system in your Mercedes and need other components from the same group, such as wiring sections, dedicated plugs, or complete lamp harnesses, check the available parts in the Mercedes wires, plugs, and connectors category. If you are interested in a broader context regarding the selection of used OEM components in vehicle systems, it is worth reading an article discussing the advantages of original drivetrain components – check the guide on choosing a used OEM drive axle, which shows why factory parts can be a beneficial solution in other areas of the car as well.
