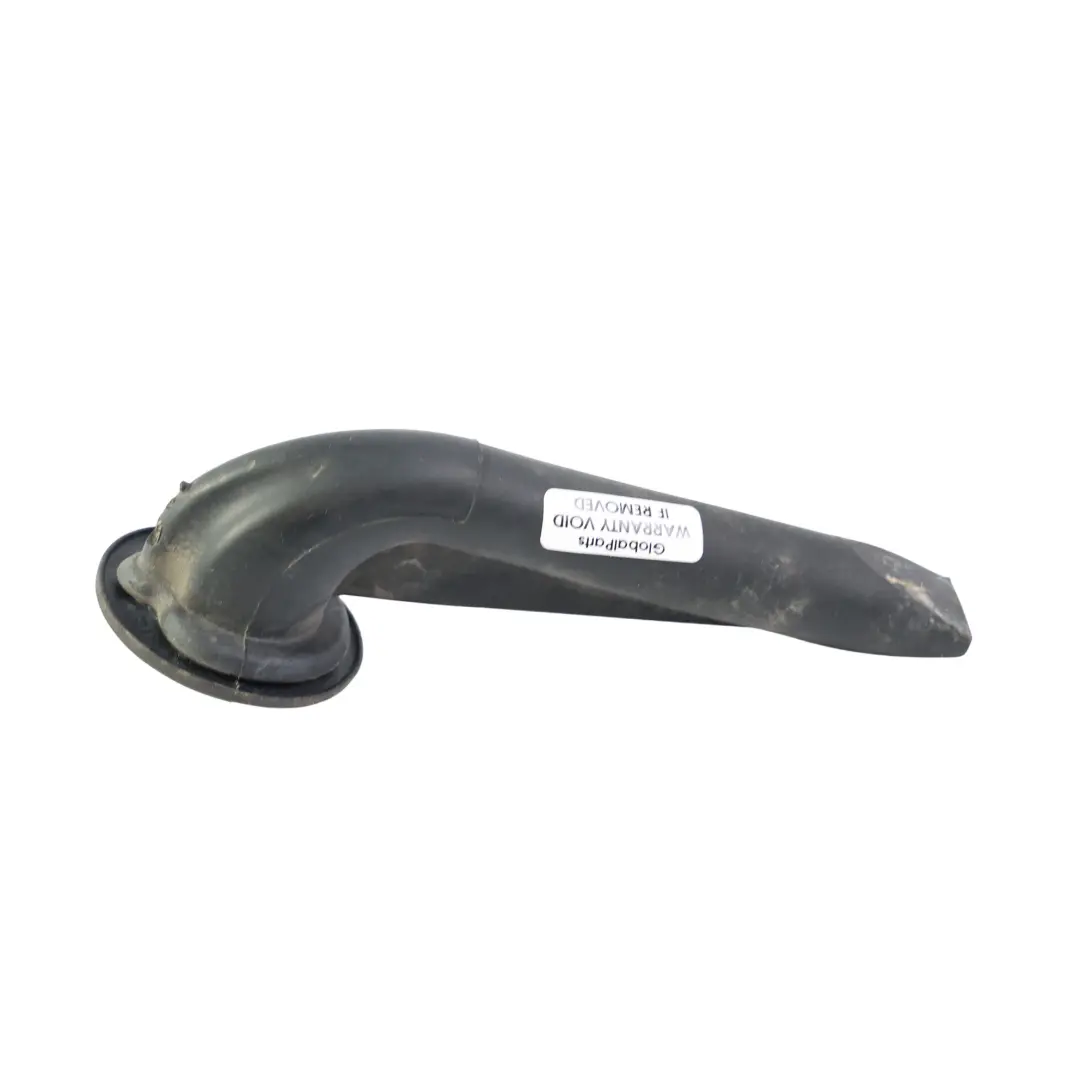

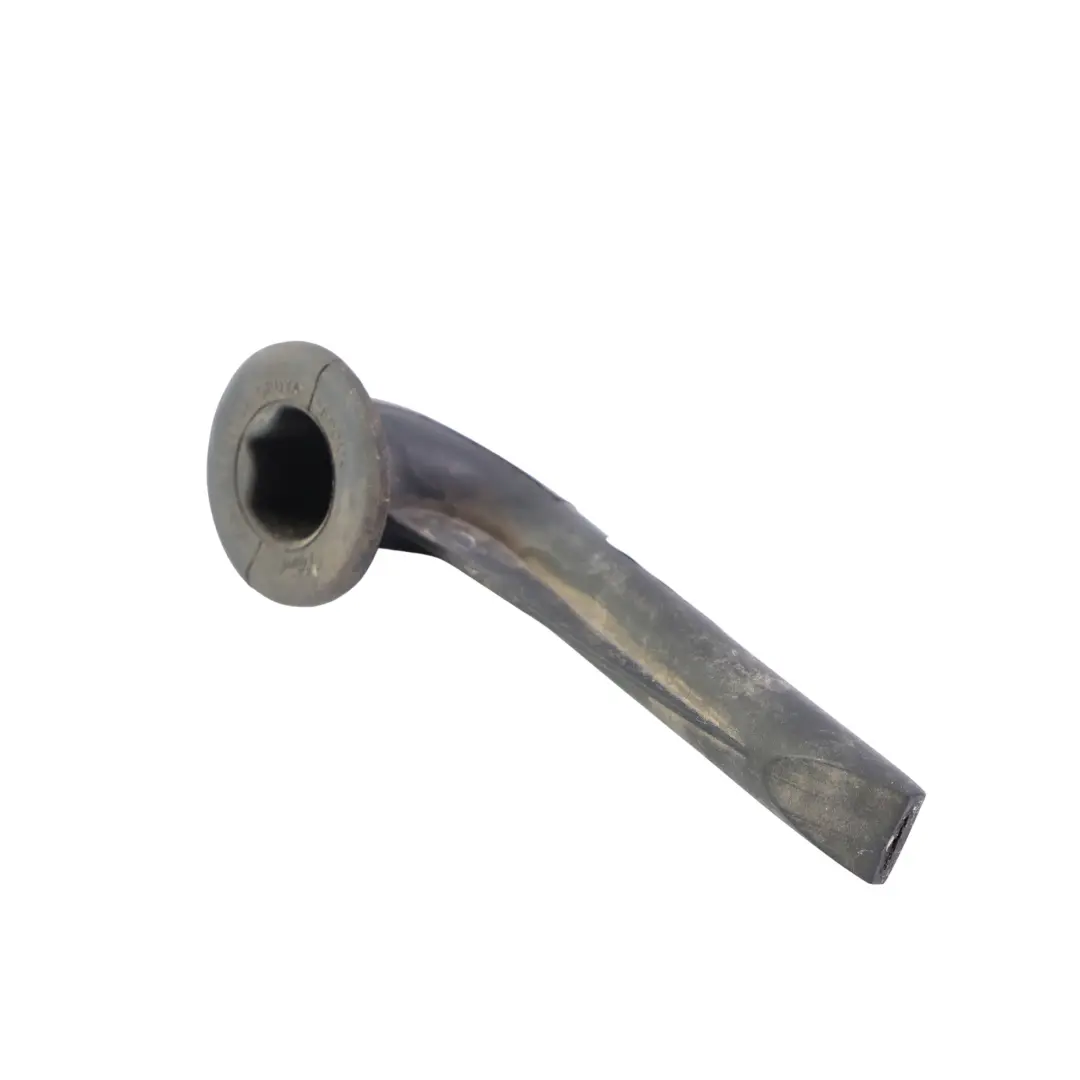

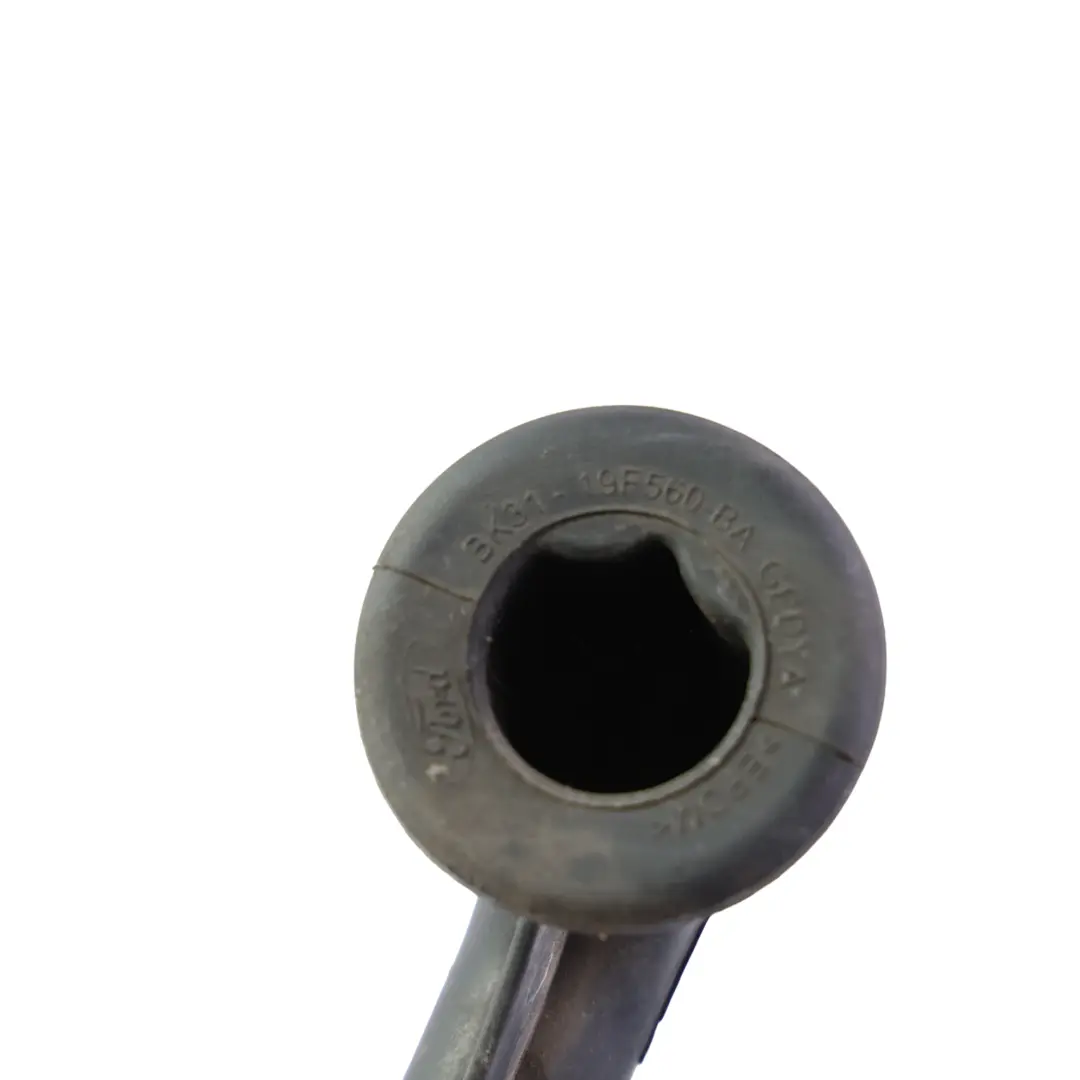

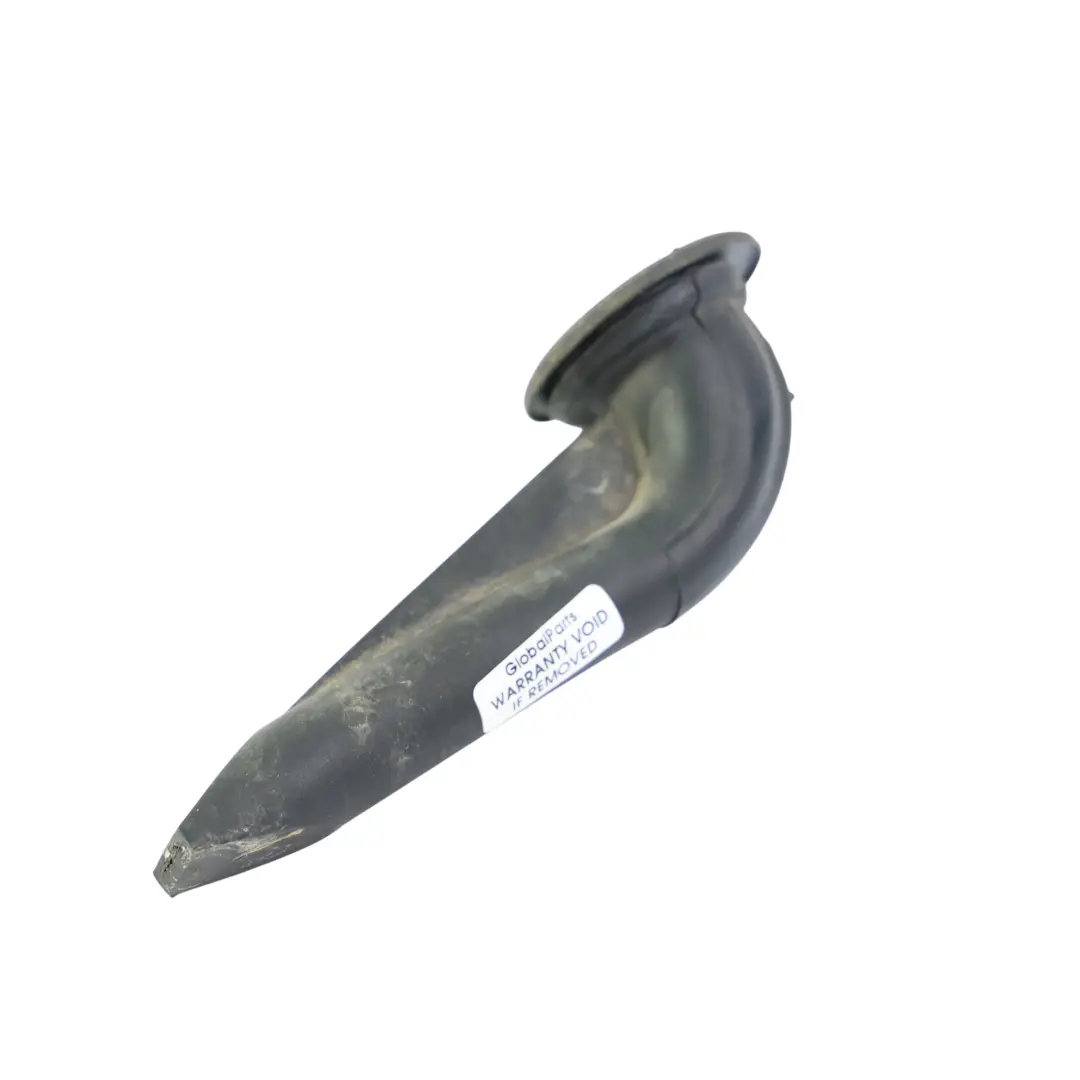

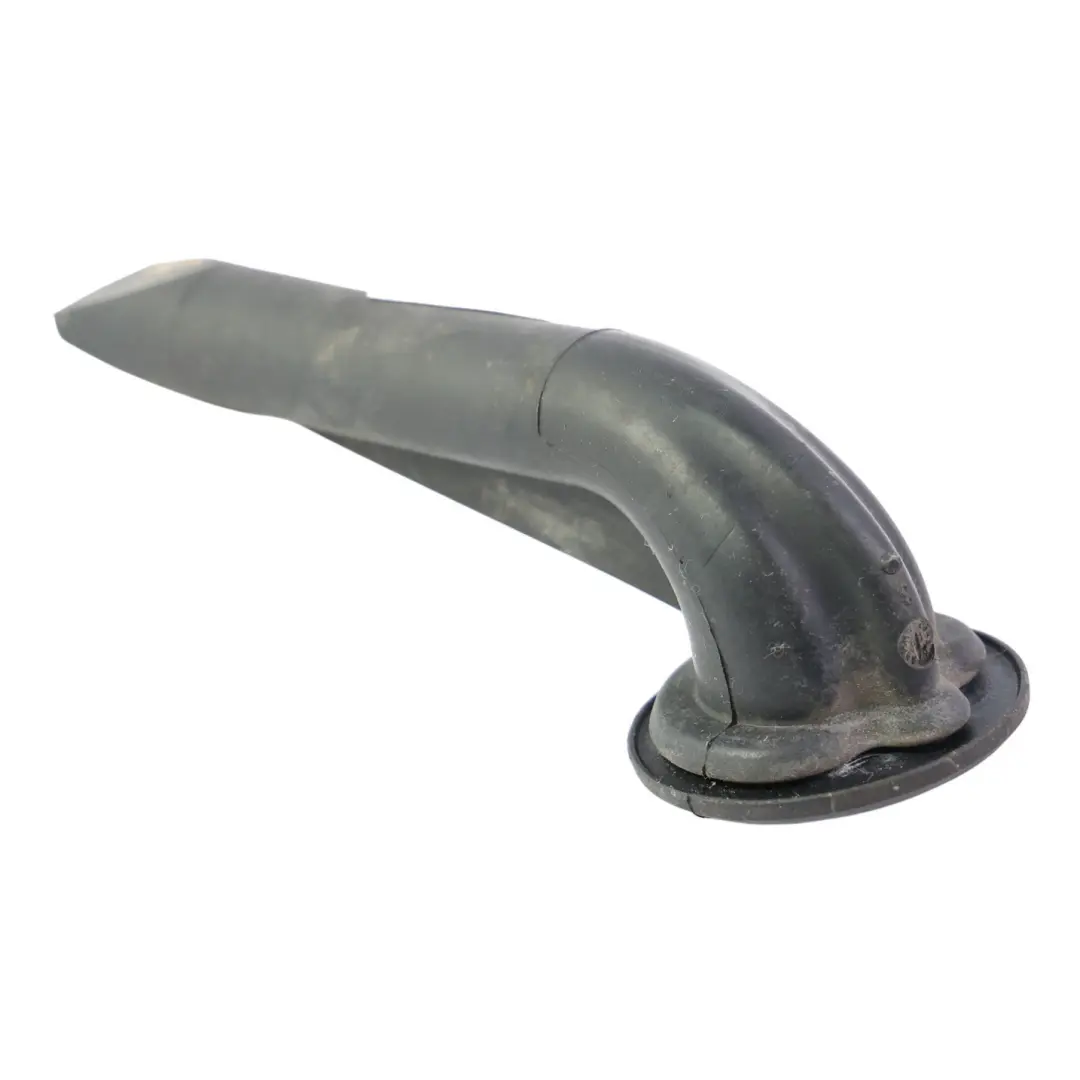

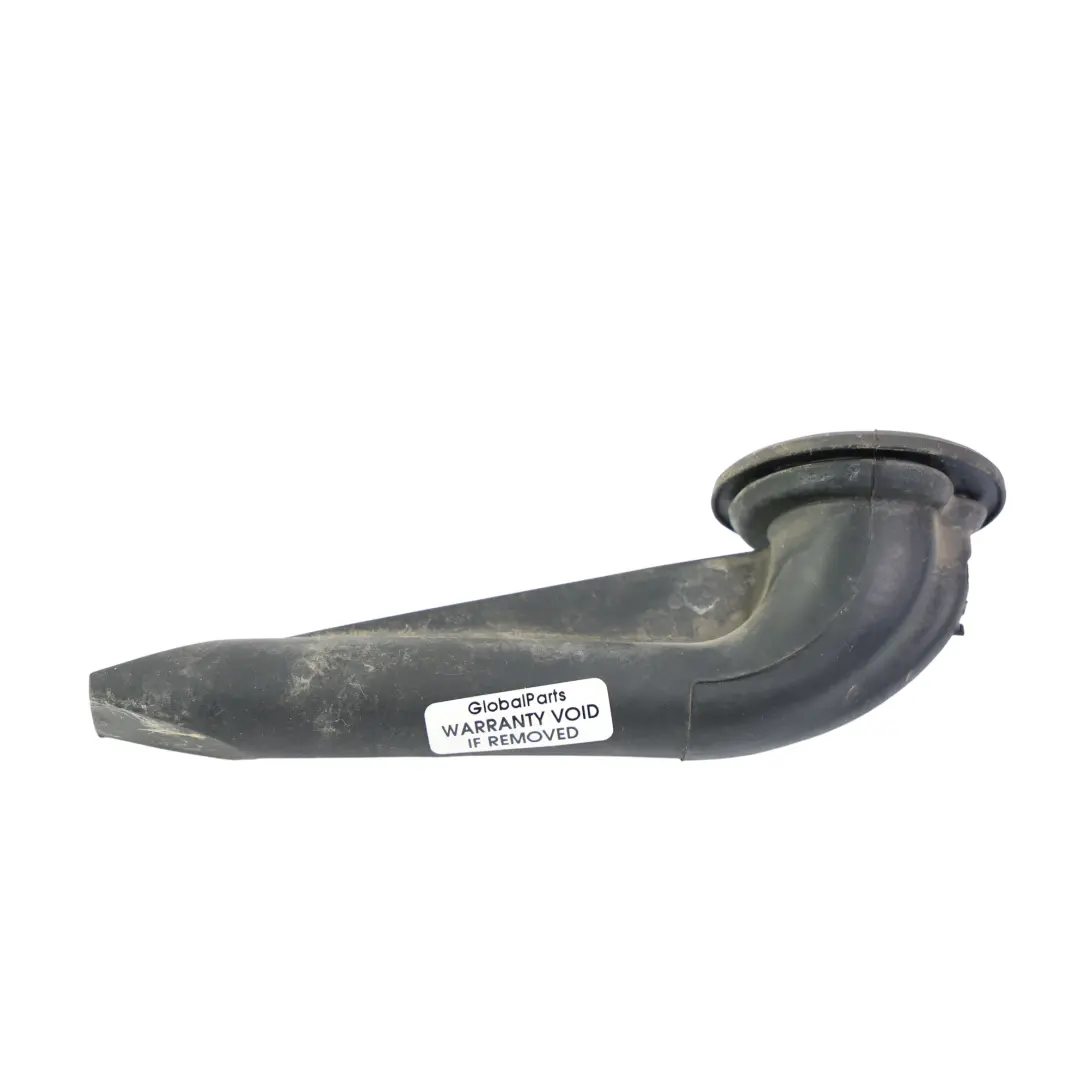

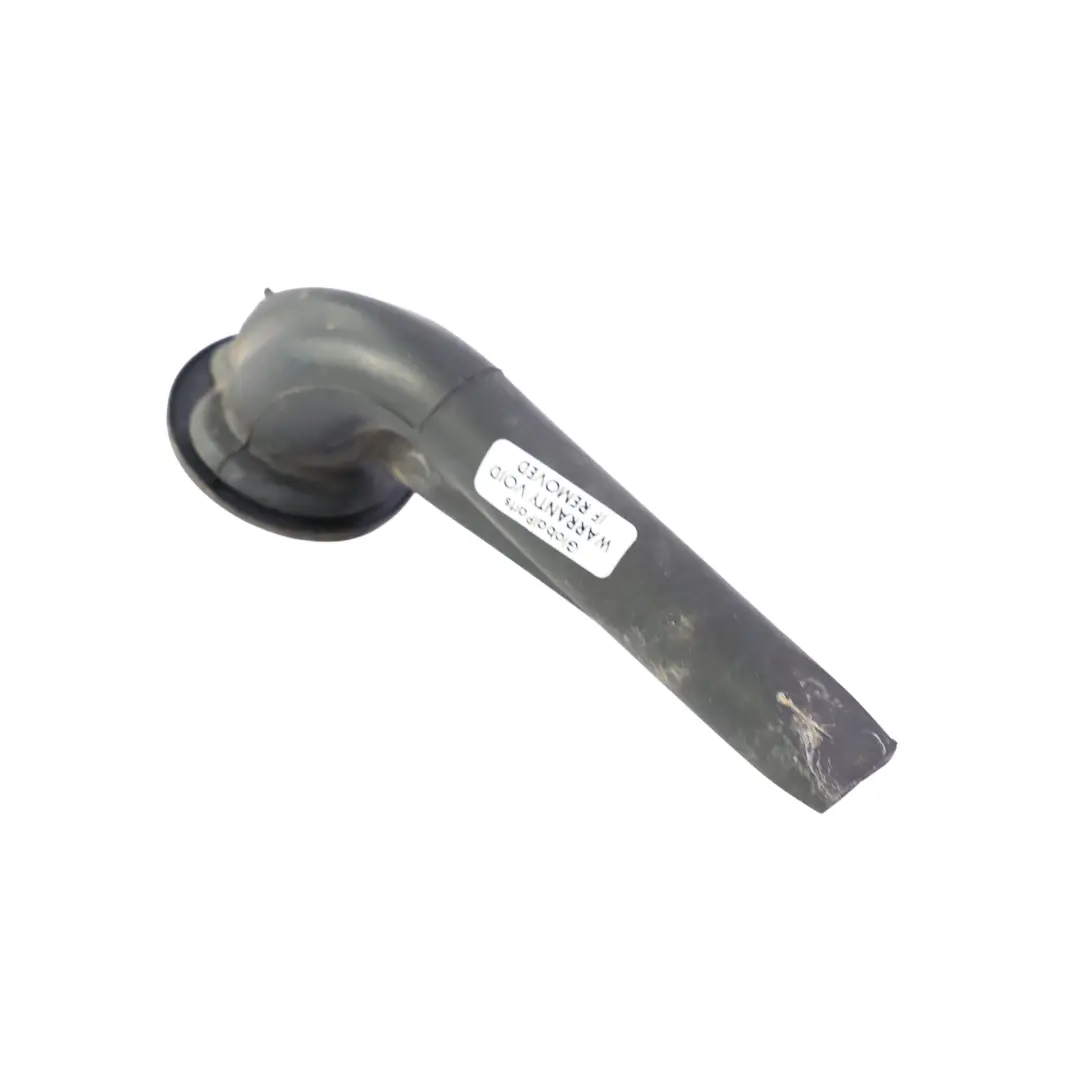

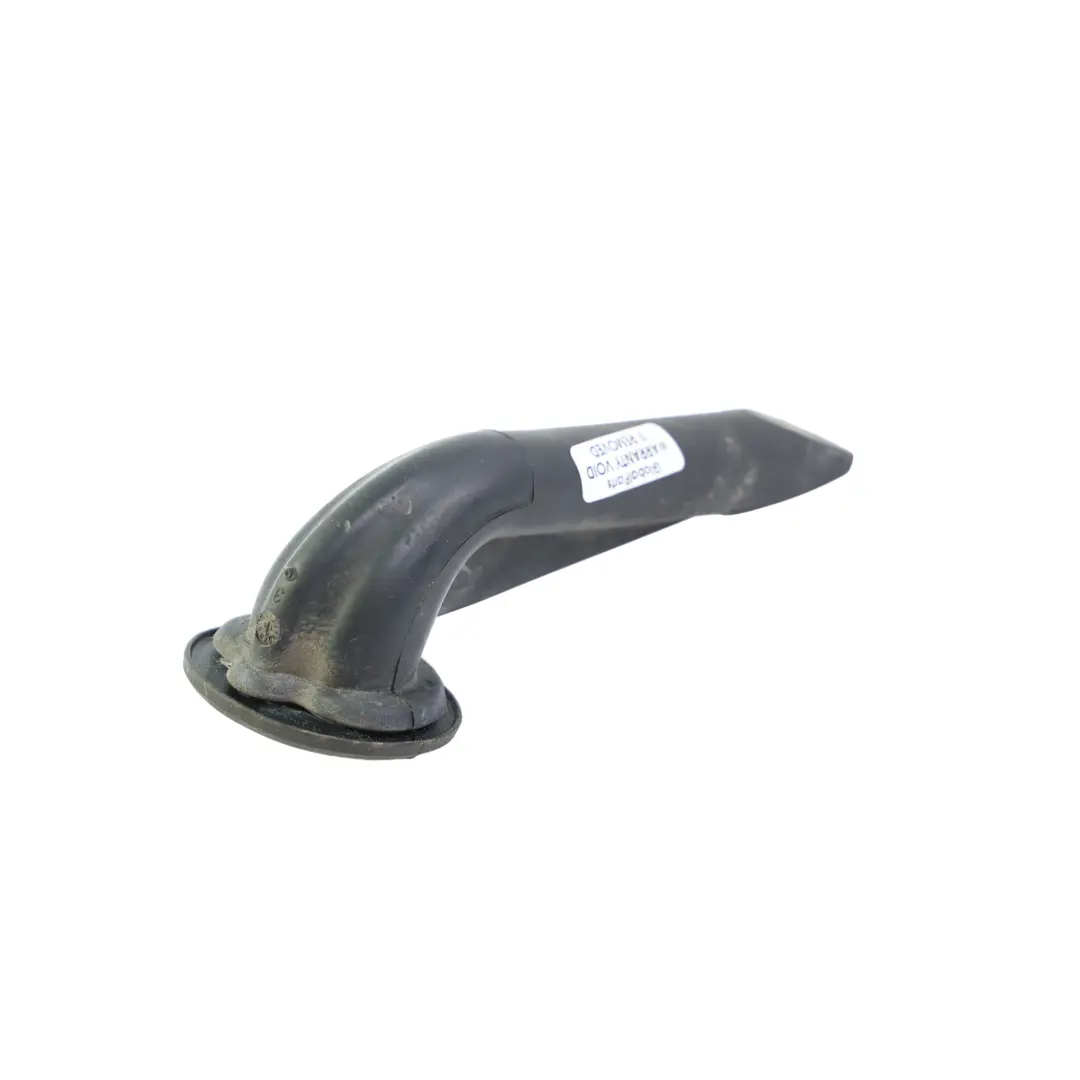

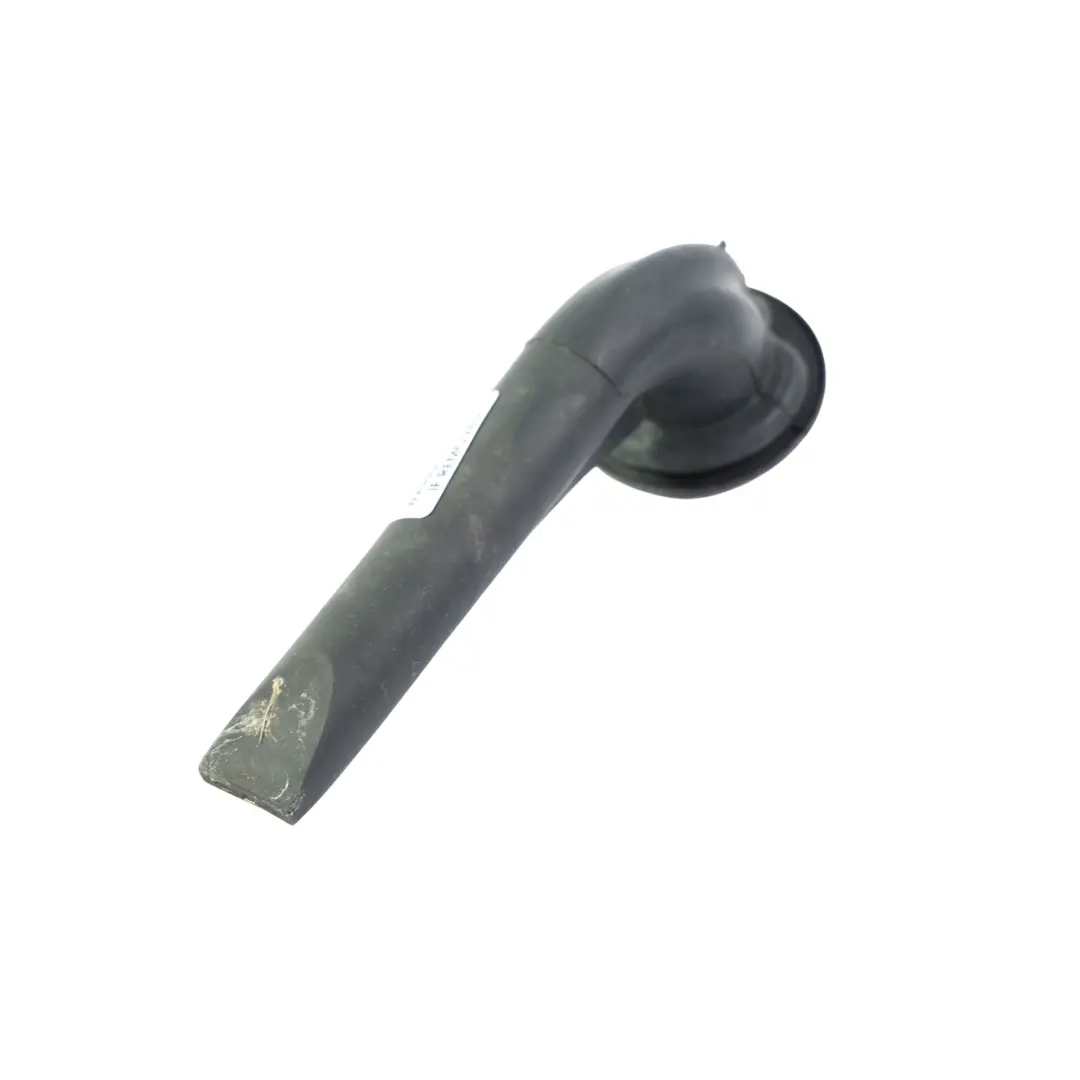

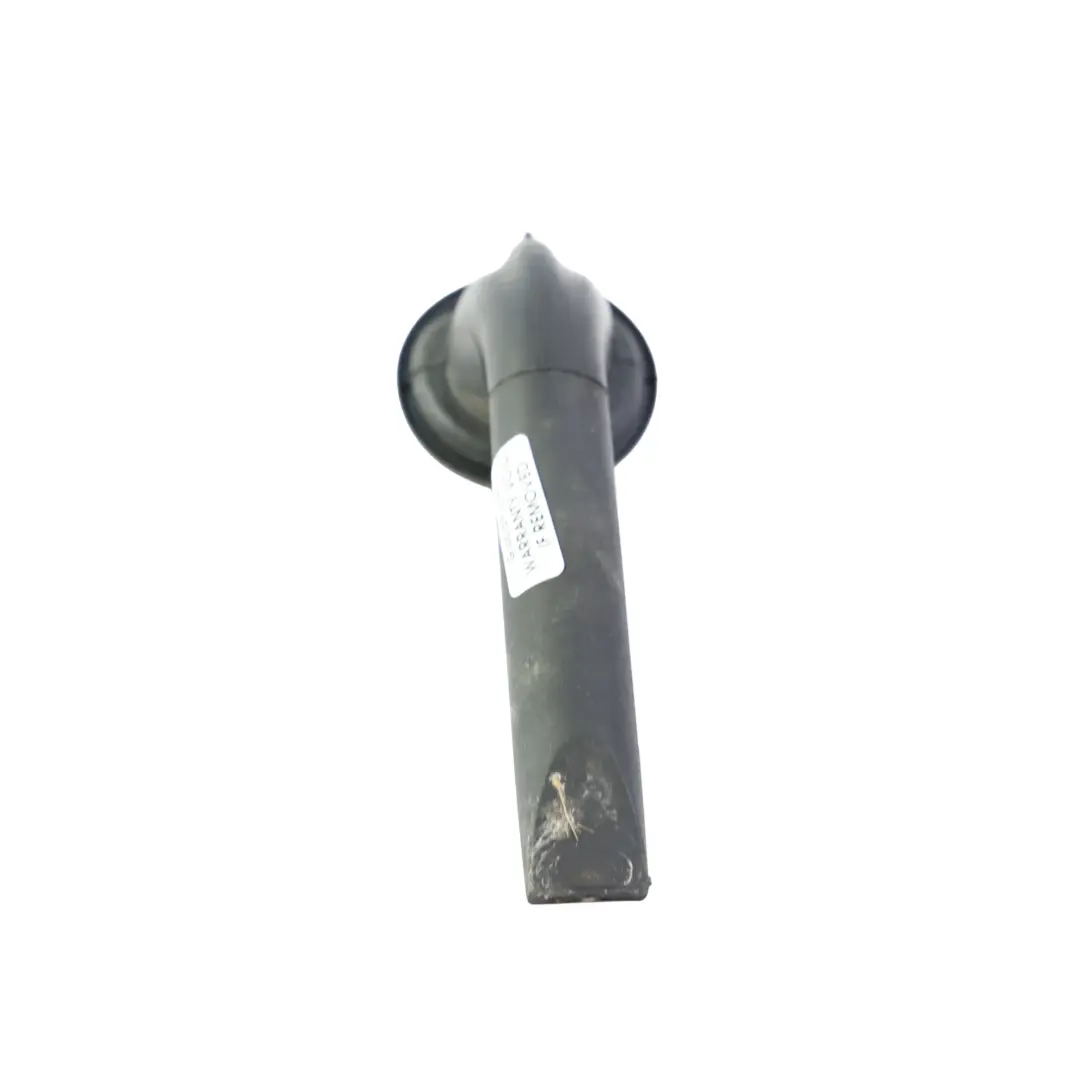

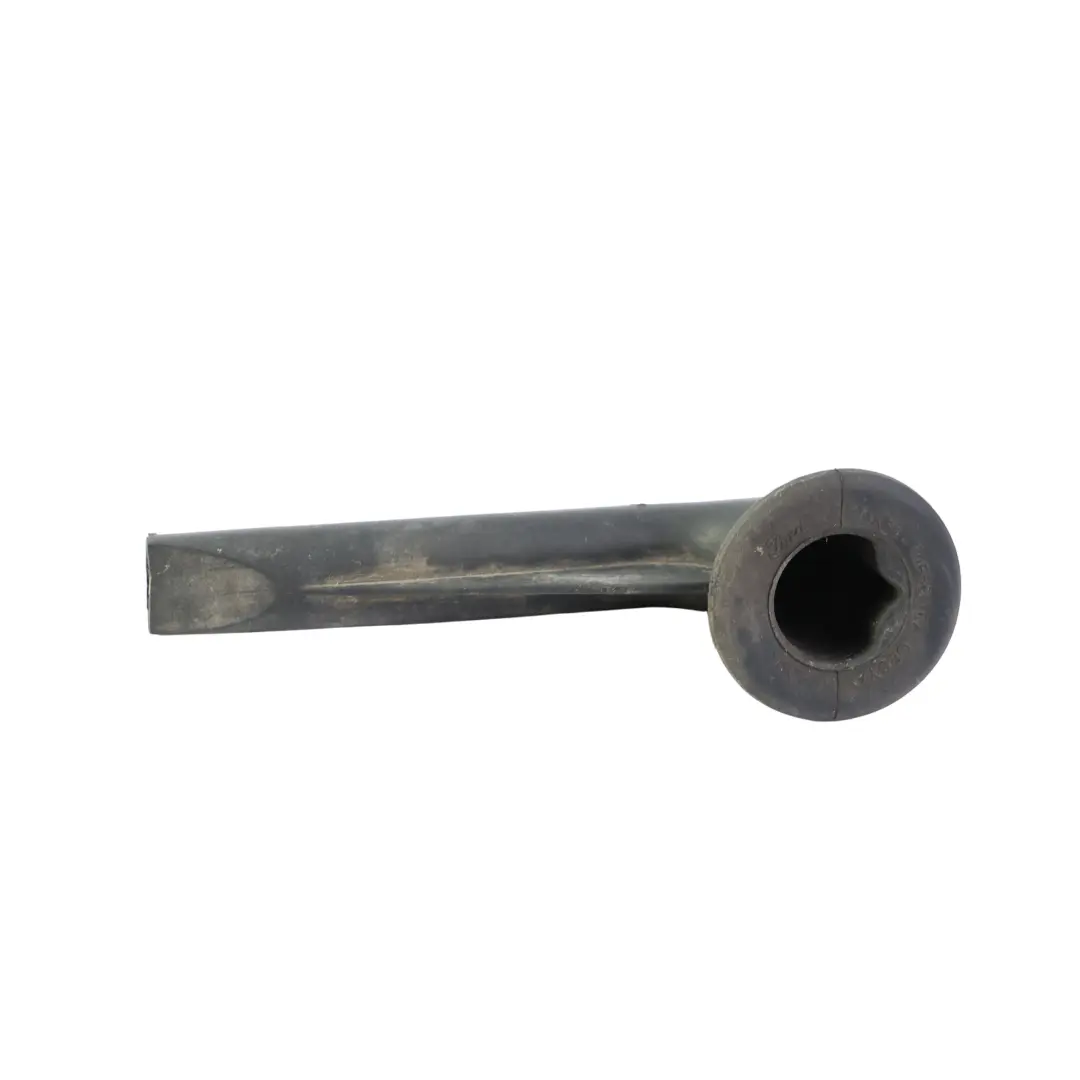

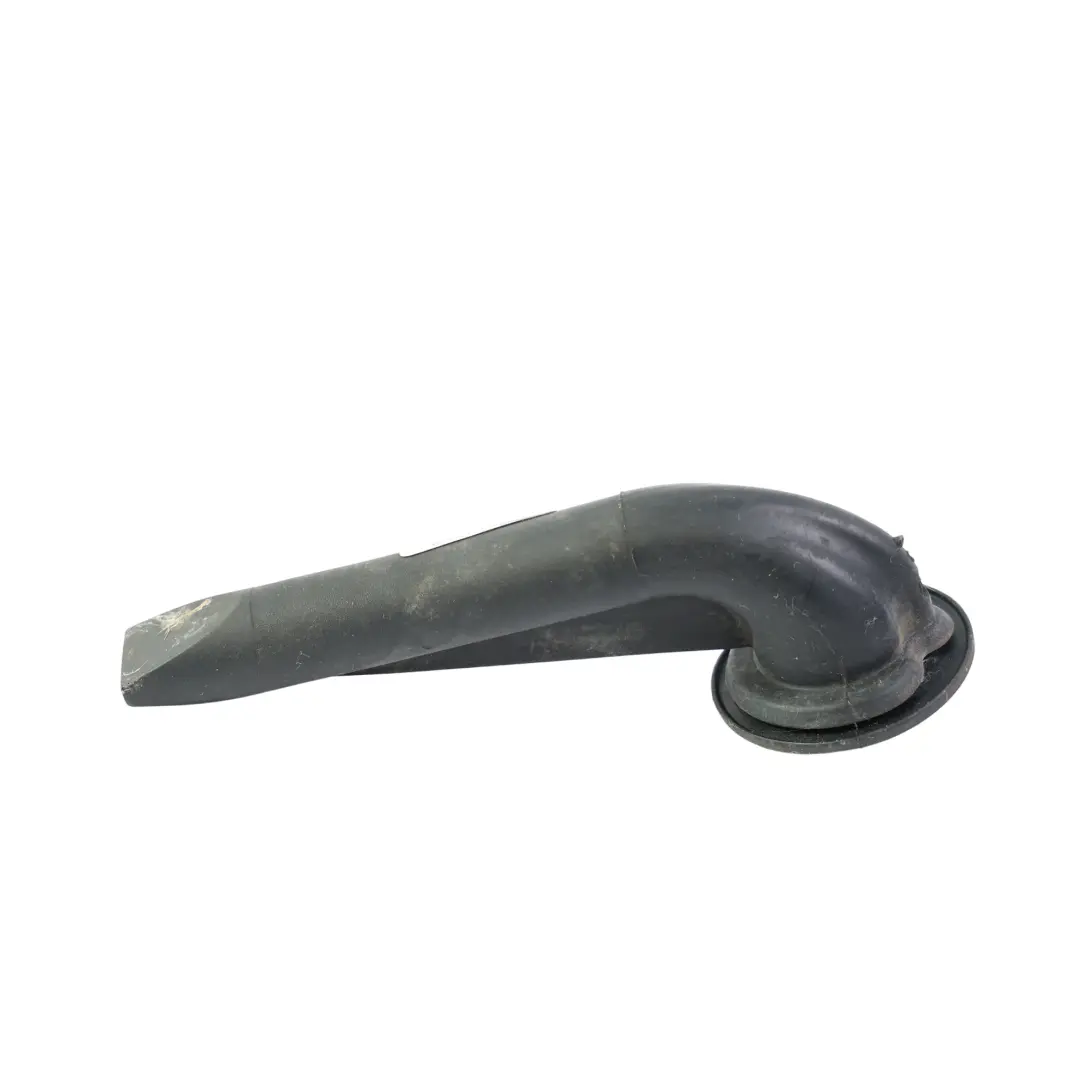

Ford Transit Mk8 Windscreen Scuttle Panel Water Drip Guide BK31-19F560-BA

Ford Transit Mk8 Windscreen Scuttle Panel Water Drip Guide is a precisely engineered component of the water drainage system located around the windscreen, dedicated to Ford vehicles. It is responsible for the controlled drainage of water from the scuttle panel, which helps protect the engine bay, electrical installation, and body components from excessive moisture.

Specifications and technical data

• SKU: BK31-19F560-BA
• Mark: Ford
• Condition: Used
• OEM Part Number: BK31-19F560-BA
• Substitutable numbers: BK31-19F560-BA, BK3119F560BA, 1830419
• Part type: Window Trim
• Category: Window Seals, Gaskets & Trims

Purpose and function in the Ford Transit Mk8

The water drip guide for the scuttle panel in the Ford Transit Mk8 operates in a critical area under the windscreen, where rainwater and water from vehicle washing accumulate. Its task is to direct the flow of liquid so that it does not penetrate the areas around electrical harnesses, body components susceptible to corrosion, and engine auxiliary components. A properly selected guide helps maintain stable conditions in the scuttle area, reduces the risk of corrosion, and supports the long-term tightness of the system. In combination with elements from the Window seals and trims group, it creates a cohesive system of protection against water and contaminants.

Construction and body fitment

The element has been designed as part of the original Ford Transit Mk8 body architecture, with appropriately shaped flow channels and mounting points. Thanks to this, the guide works in conjunction with the scuttle panel and adjacent seals, ensuring a predictable direction of water drainage. The original origin from the Ford brand means that the correct geometry is maintained, which translates into proper fitment with factory mounting holes and adjacent body elements. This is particularly important during post-collision repairs or when replacing worn-out components of the drainage system.

Benefits of using the original guide

Using a dedicated water drip guide in the Ford Transit Mk8 allows for the restoration of proper operating conditions in the scuttle zone after mechanical damage, disassembly, or corrosion of previous elements. A properly functioning water drain reduces the risk of:

• water stagnation in the scuttle area,
• accelerated corrosion of sheet metal and mounts,
• moisture in nearby electrical components,
• unwanted leaks into the vehicle interior. For fleet users and workshops servicing the Ford Transit Mk8, this is a practical solution that helps maintain stable vehicle operation and reduce the risk of additional repairs resulting from uncontrolled water flow.

Condition of the element and service application

The offered guide comes from the used parts segment, which allows for economical repair while maintaining the original design and fitment to the body. This is a beneficial solution for vehicles used intensively, where both functionality and rational service costs are important. The element will prove useful when replacing damaged or missing components in the scuttle zone, as well as during comprehensive body and paint work, when it is necessary to restore the factory water drainage system.

Related categories and technical advice

If you are planning a comprehensive repair or upgrade of the window and scuttle zone in your Ford and need other elements from the same group, such as window seals, finishing strips, or additional sealing profiles, check the available parts in the Ford window seals and trims category. When selecting used body components and sealing elements, it is worth paying attention to the compliance of the manufacturer's markings and the actual condition of the part. To better prepare for your purchase and avoid assembly mistakes, you can use the practical tips described in the article No more bad purchases! How to professionally choose used car parts, saving time and nerves. If you are simultaneously carrying out repairs within the fuel system, information regarding the safe selection of dismantled elements, available in the guide Fuel dosing problems: what to look for when buying a used injection pump and fuel rails?, may also be useful.
