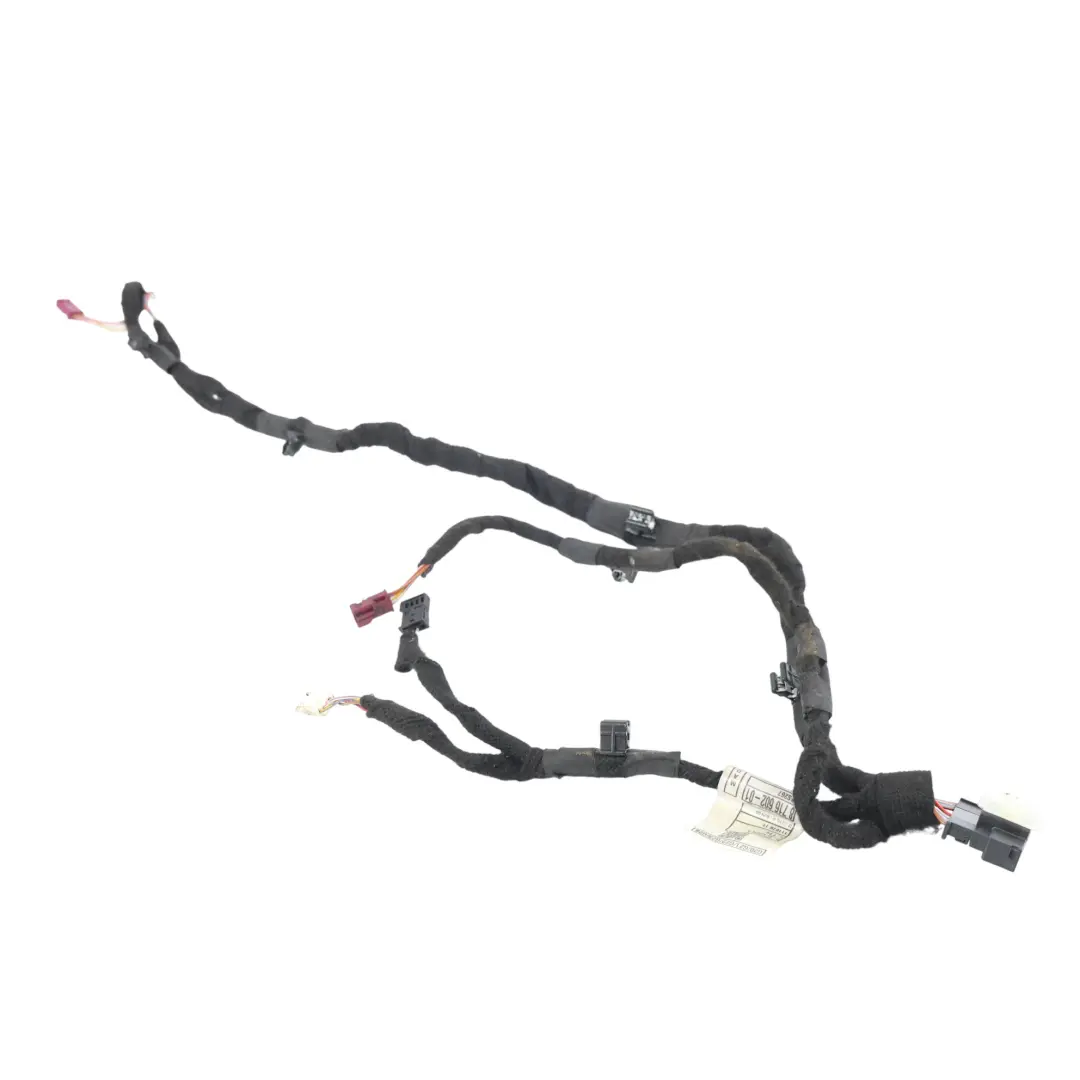

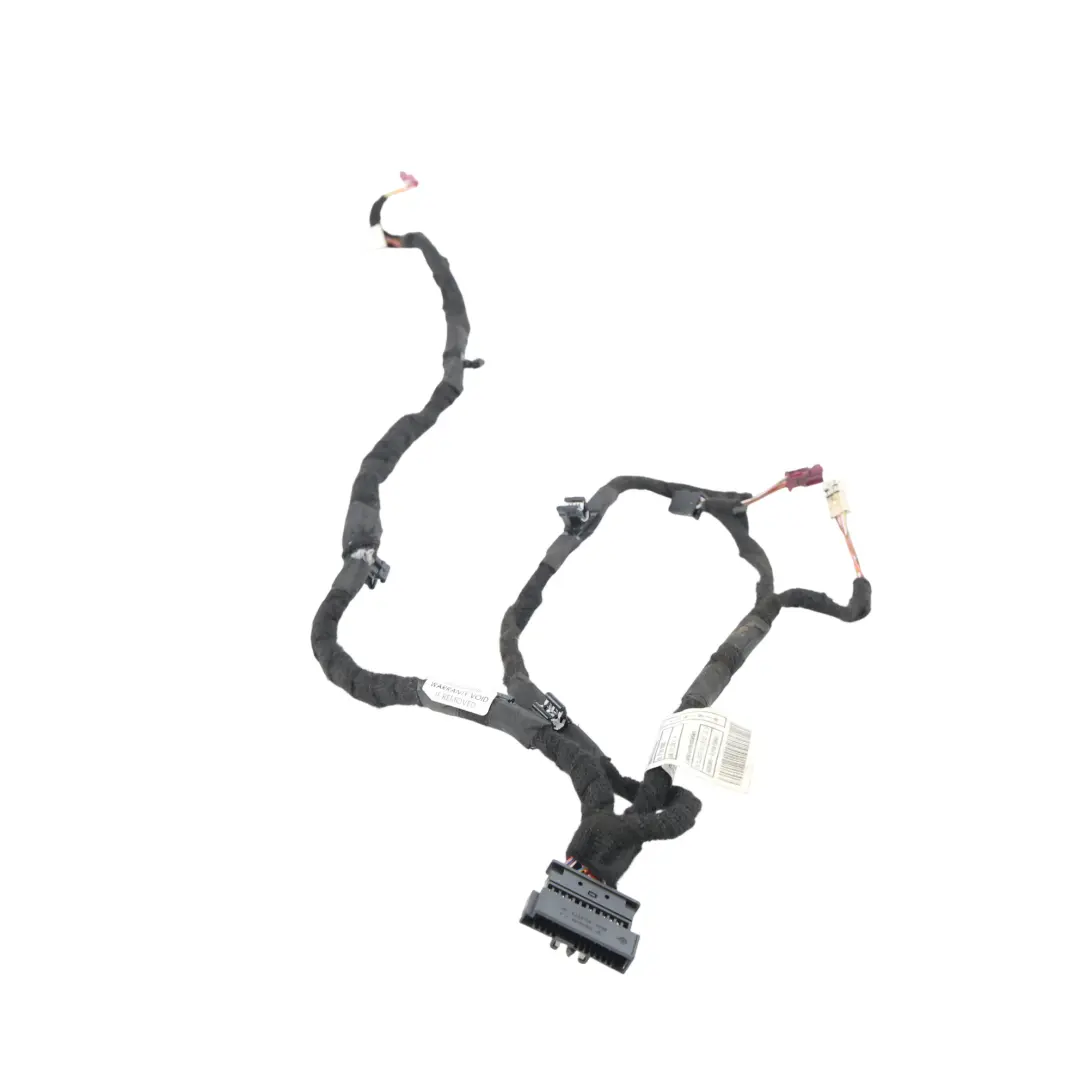

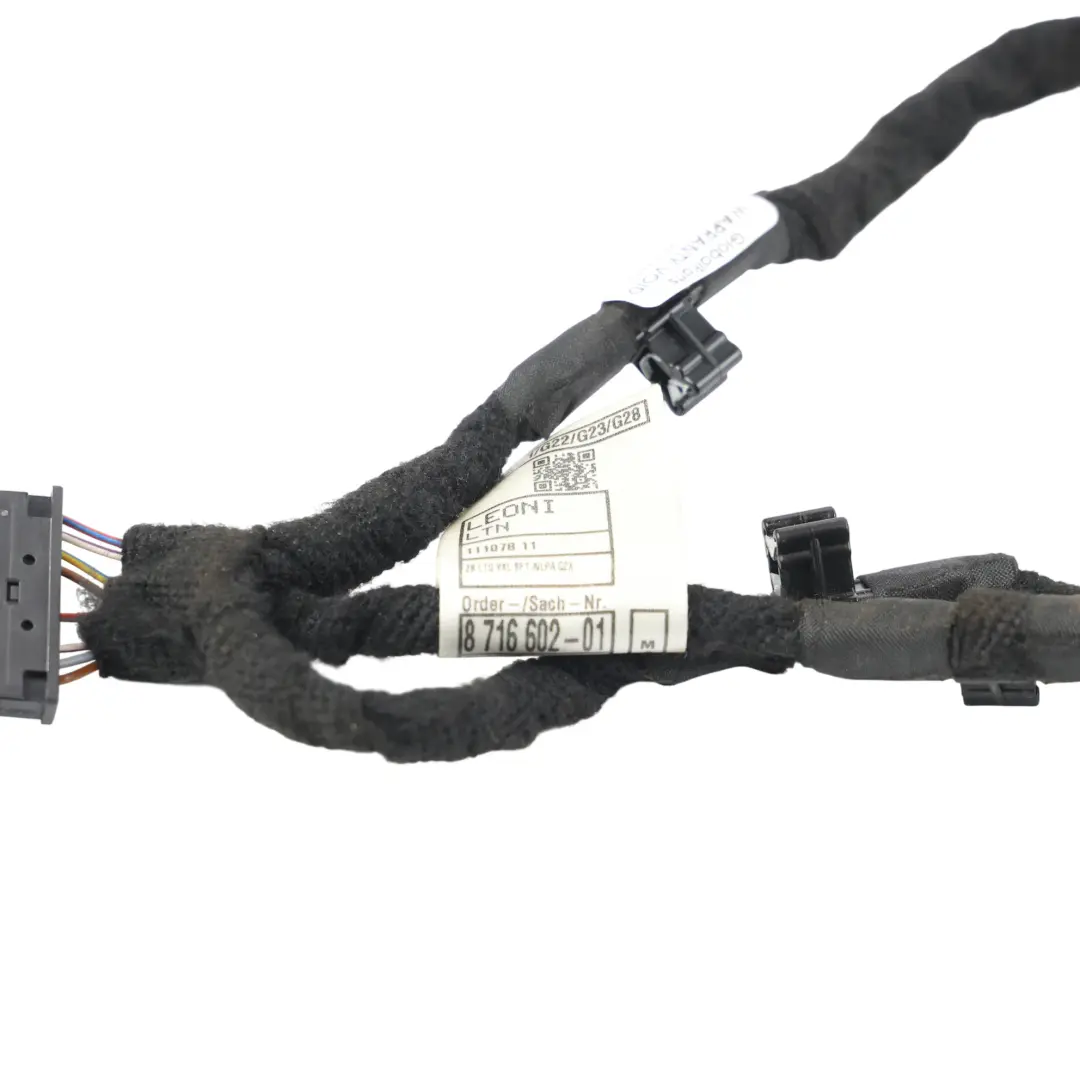

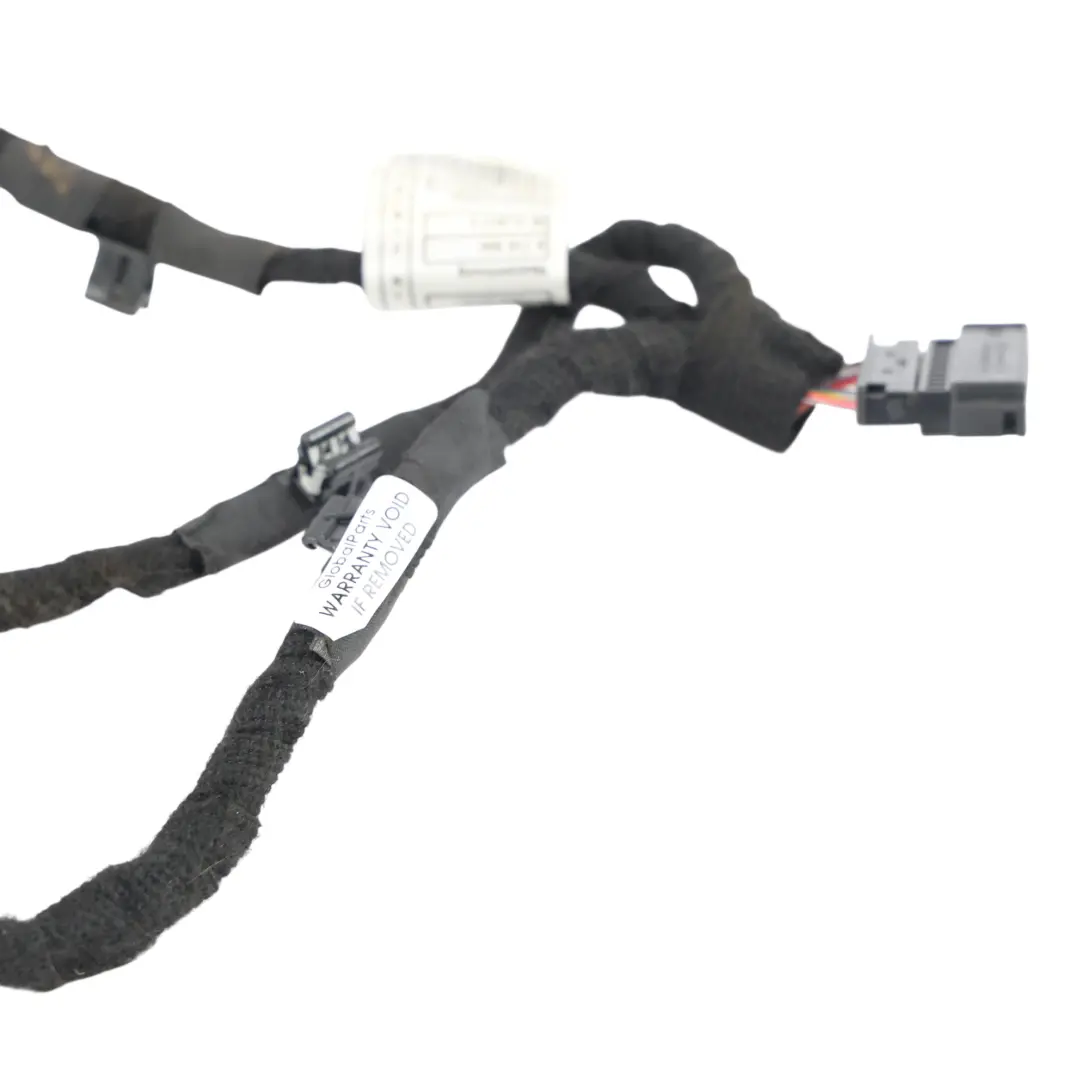

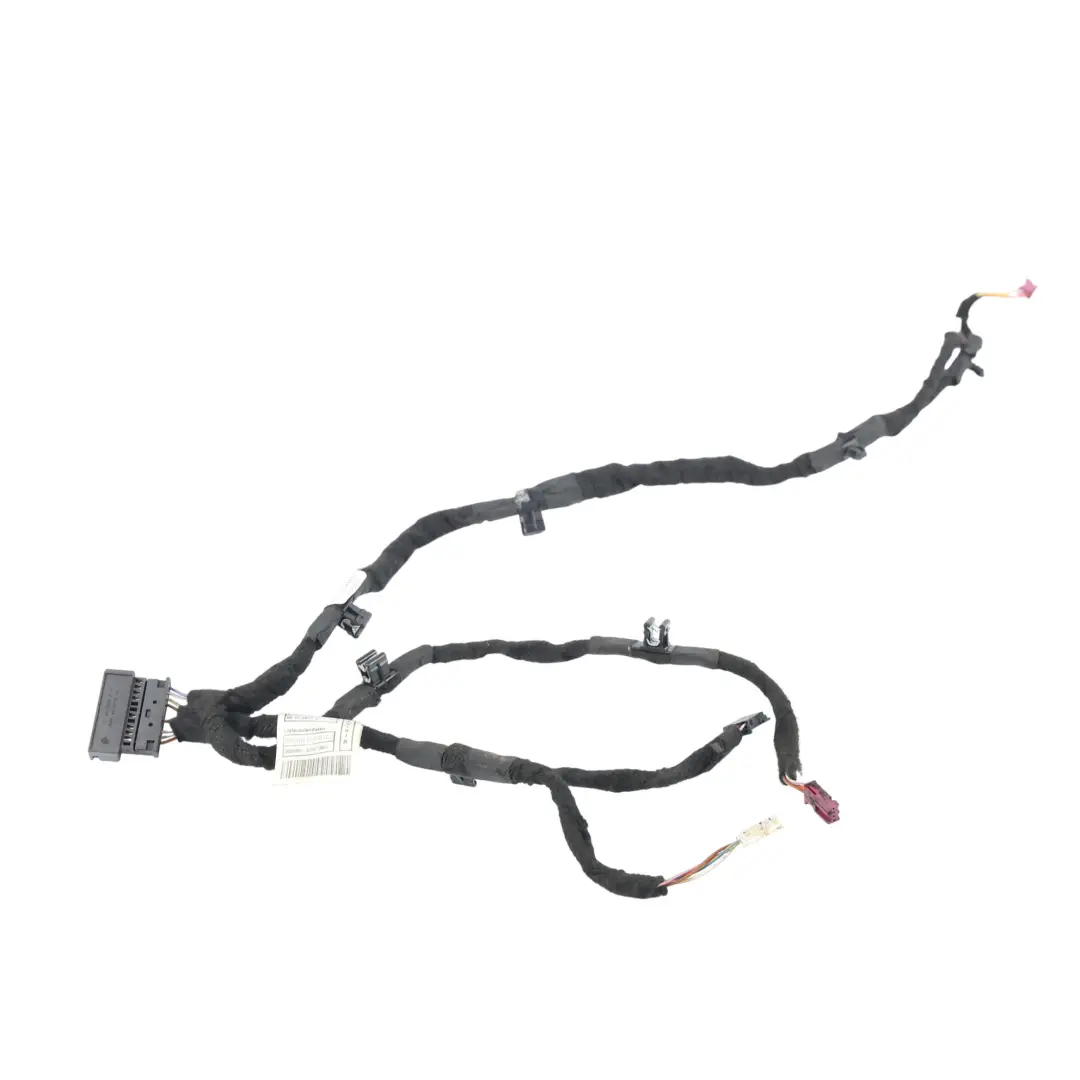

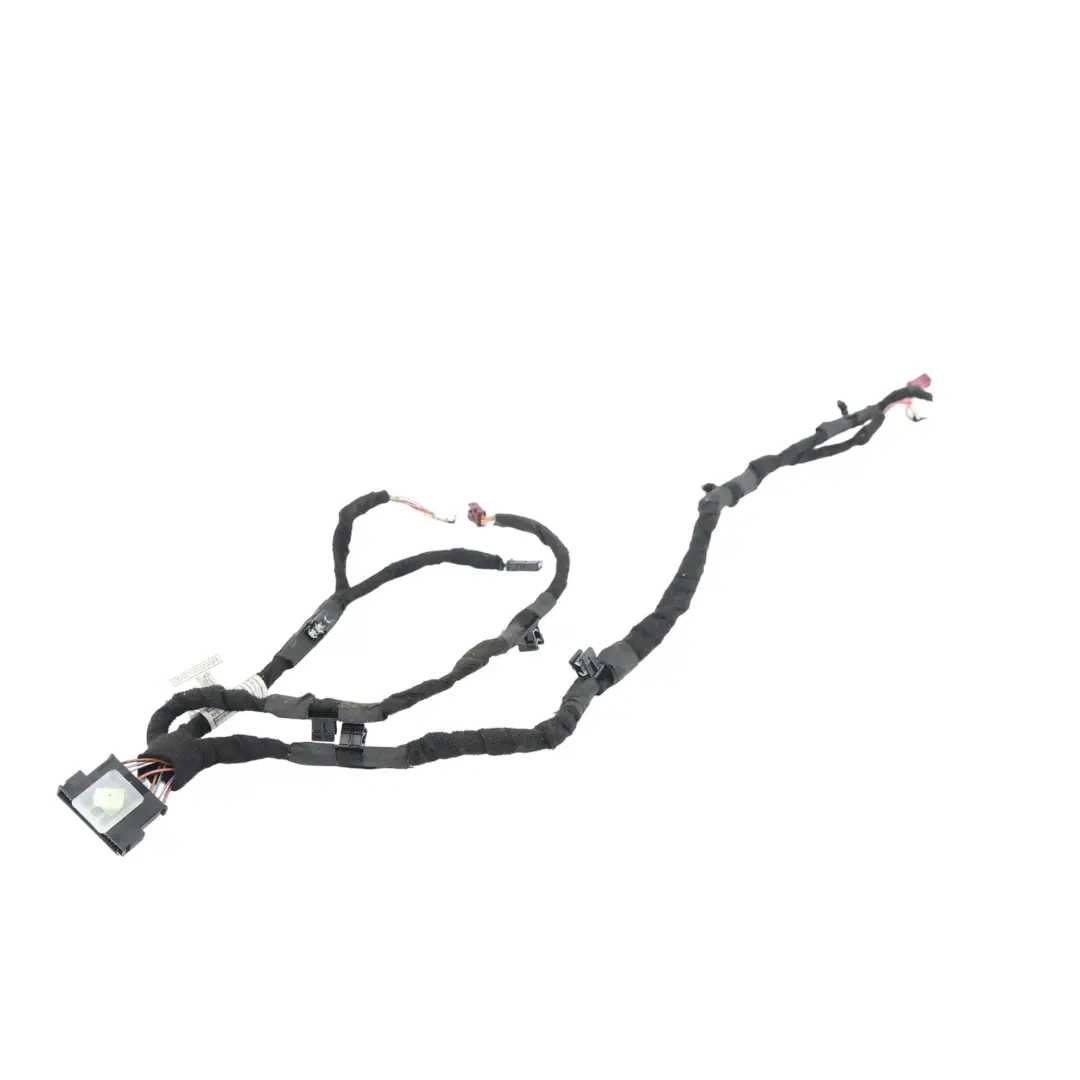

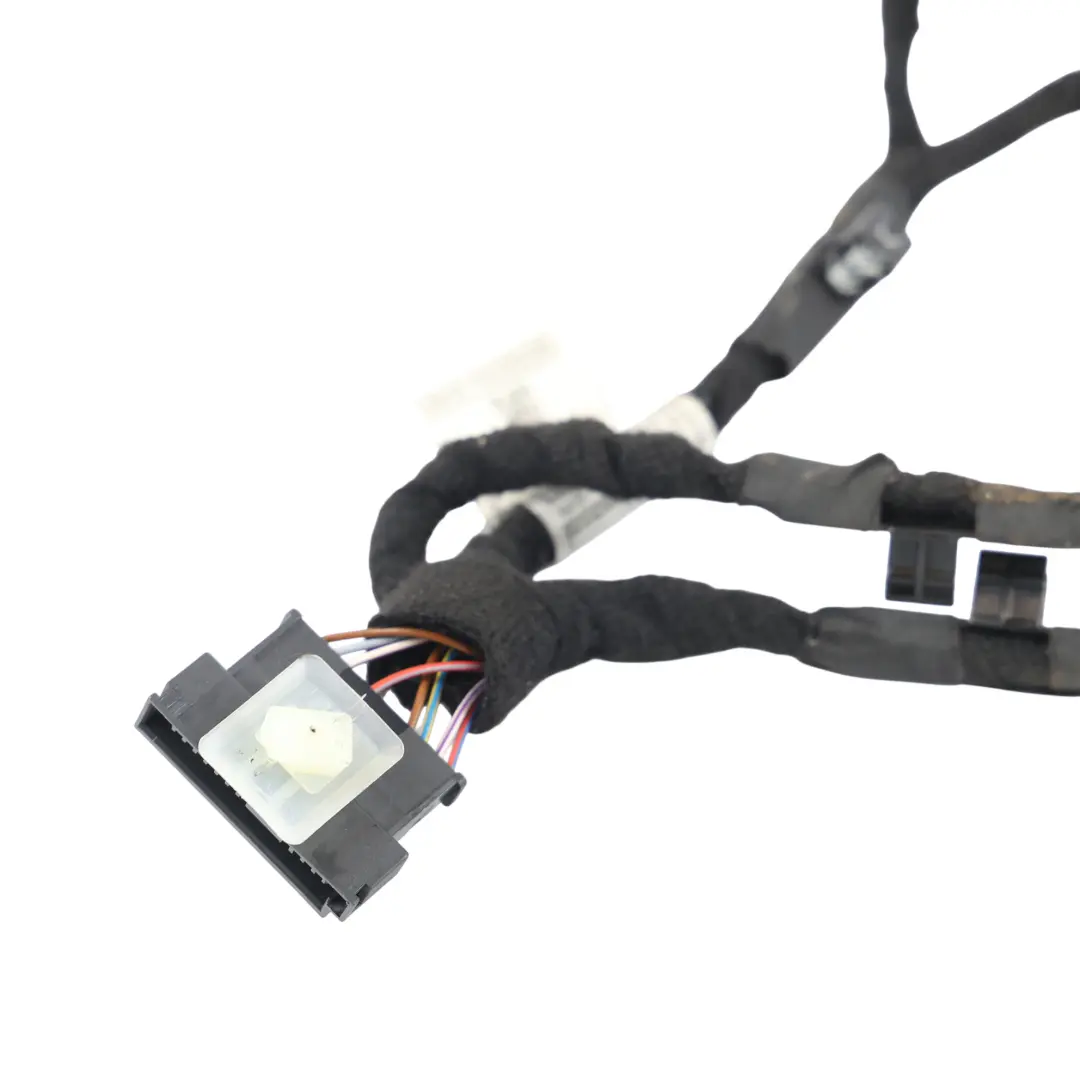

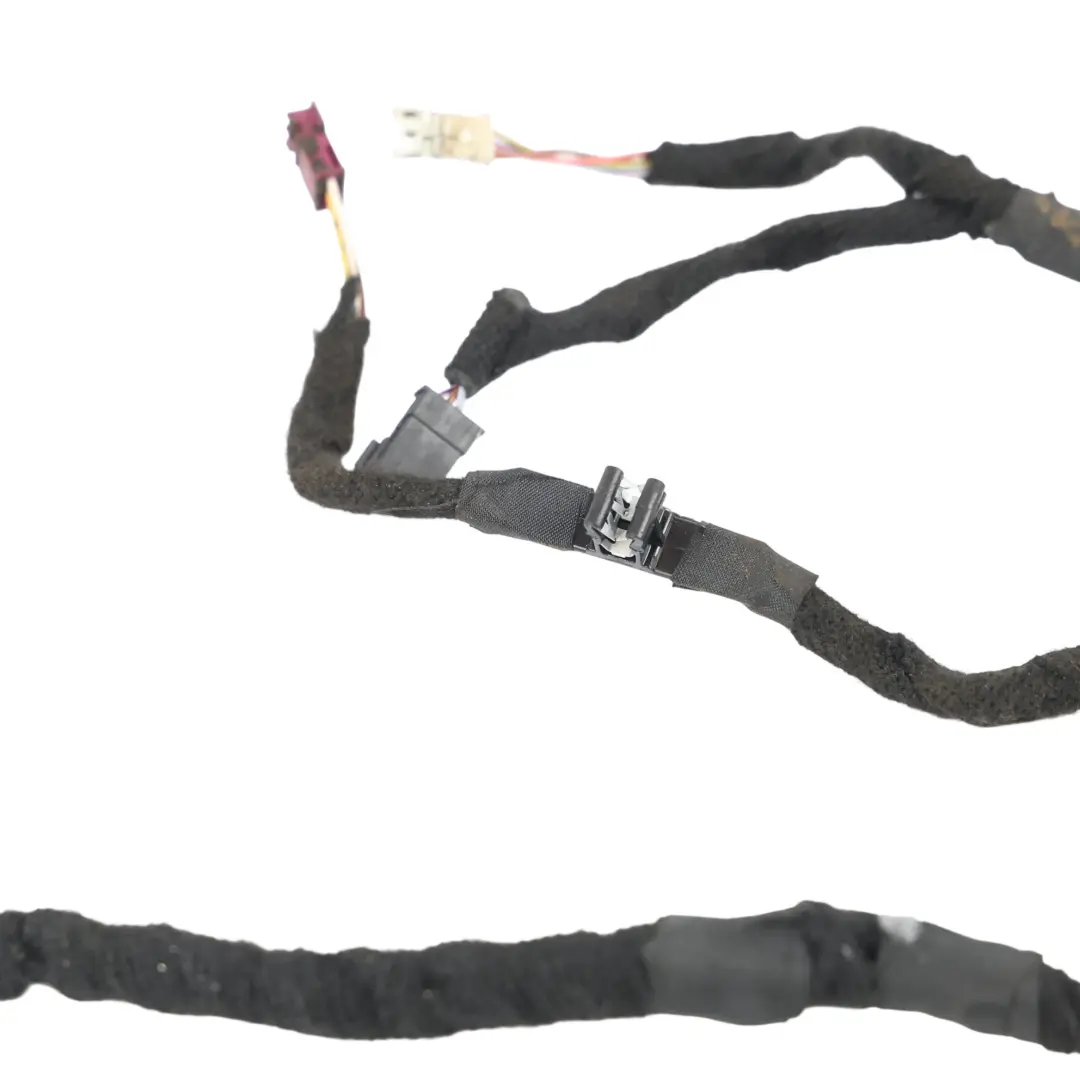

BMW G20 Front Door Wiring Loom LED Light Harness Passenger Side 8716602

BMW G20 Front Door Wiring Loom LED Light Harness Passenger Side is a factory electrical installation component designed for the front right door of the BMW 3 Series G20 model equipped with LED lighting. It enables the correct connection of door modules, controllers, motors, and lighting elements, ensuring stable communication with the vehicle's electrical system. This is a practical solution for workshops and users looking for an original door wiring harness for professional repair or replacement.

Specifications and technical data

• SKU: 8716602
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8716602
• Substitutable numbers: 8716602, 8716604, 61128716604
• Location on the vehicle: Front
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

The presented harness belongs to the Wires, harnesses, and connectors group and is designed to operate in the front part of the vehicle, within the right door area. It is responsible for transmitting signals and power between the body installation and components located in the door, such as:

• LED lighting in the door panel,
• comfort control elements (e.g., buttons, modules),
• motors and mechanisms located in the door,
• sensors and other electrical receivers.

Thanks to its design dedicated to the BMW 3 Series G20, the harness maintains the correct routing geometry, which reduces the risk of abrasion, insulation damage, and electrical system interference.

Construction, compatibility, and installation

The harness was developed by BMW as an OEM component, which means it is a perfect fit for factory mounting points and grommets in the front right door. The connectors used are prepared for compatibility with original door modules and components, without the need for any installation modifications.

The plug-and-play solution facilitates service work – after correctly routing the wires and plugging in the connectors, the installation can be quickly verified for the proper operation of LED lighting and other door functions. This is a beneficial solution both for post-accident repairs and for replacing a damaged harness resulting from wear and tear.

Characteristics of the used component

The offered harness is a used component, sourced from dismantling, which allows for maintaining the original specification while optimizing repair costs. This type of component is particularly valued in professional workshops specializing in BMW service, where compliance with the factory installation and predictable behavior in the vehicle's electrical system are essential.

Choosing an original door harness instead of replacements reduces the risk of issues with connector compatibility, wire length, or mounting point placement, which translates into more efficient installation and fewer potential faults after the repair.

Service application and benefits of installation

The front right door LED wiring harness for the BMW G20 will prove particularly useful in situations where:

• the installation has been damaged as a result of a collision or mechanical interference,
• there are problems with power supply or communication of components in the front right door,
• it is necessary to replace the complete harness instead of performing time-consuming repairs on individual wires.

By using an original element from the Wires, harnesses, and connectors group, you can maintain the consistency of the electrical installation, which is important for computer diagnostics and future service work. It is a practical choice for users who care about the technical correctness of the repair and for workshops specializing in the BMW brand.

If you are planning a comprehensive repair or upgrade of the door electrical installation area in your BMW and need other elements from the same group, such as additional harnesses, wires, or connectors, check out the available parts in the BMW Wires, harnesses, and connectors category.
