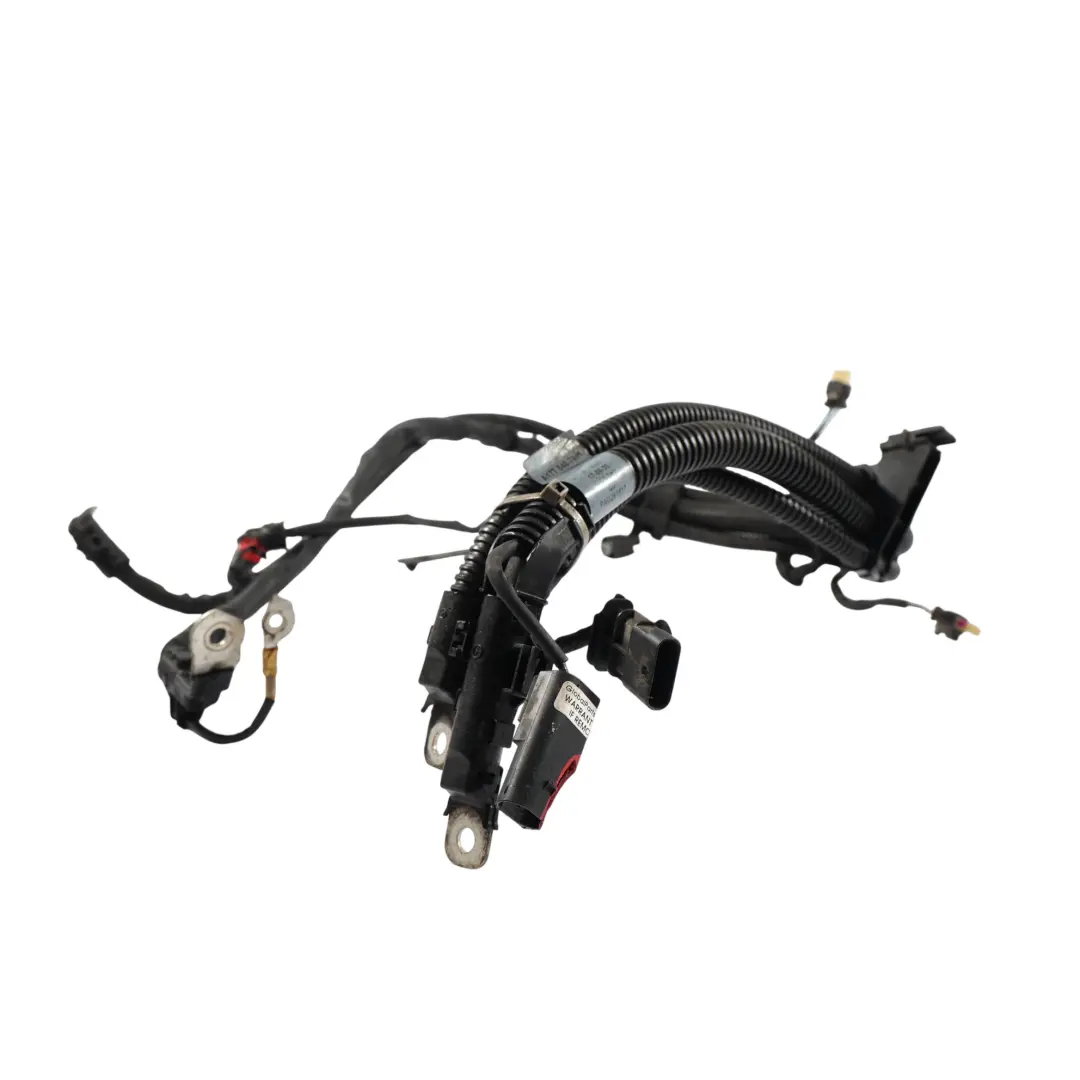

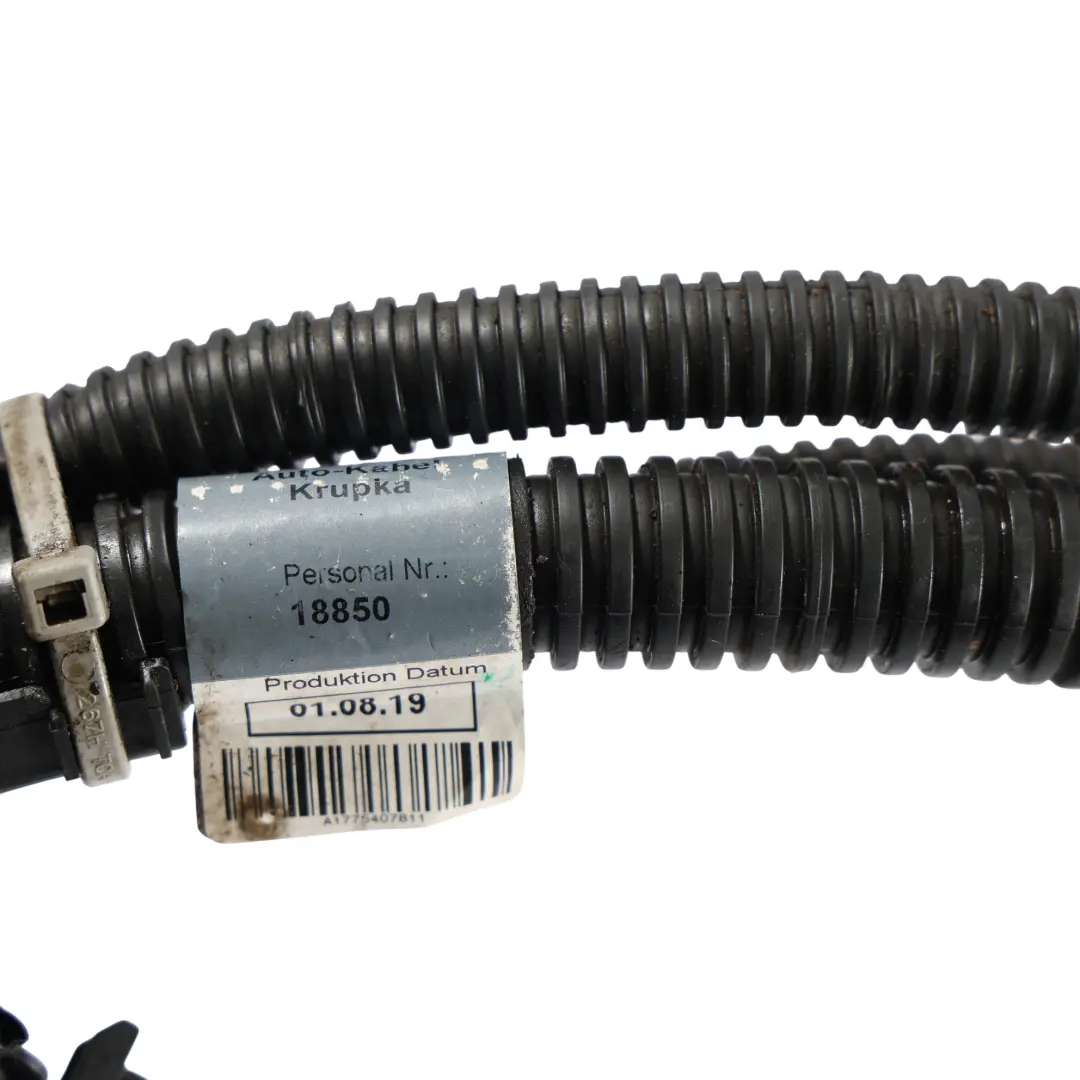

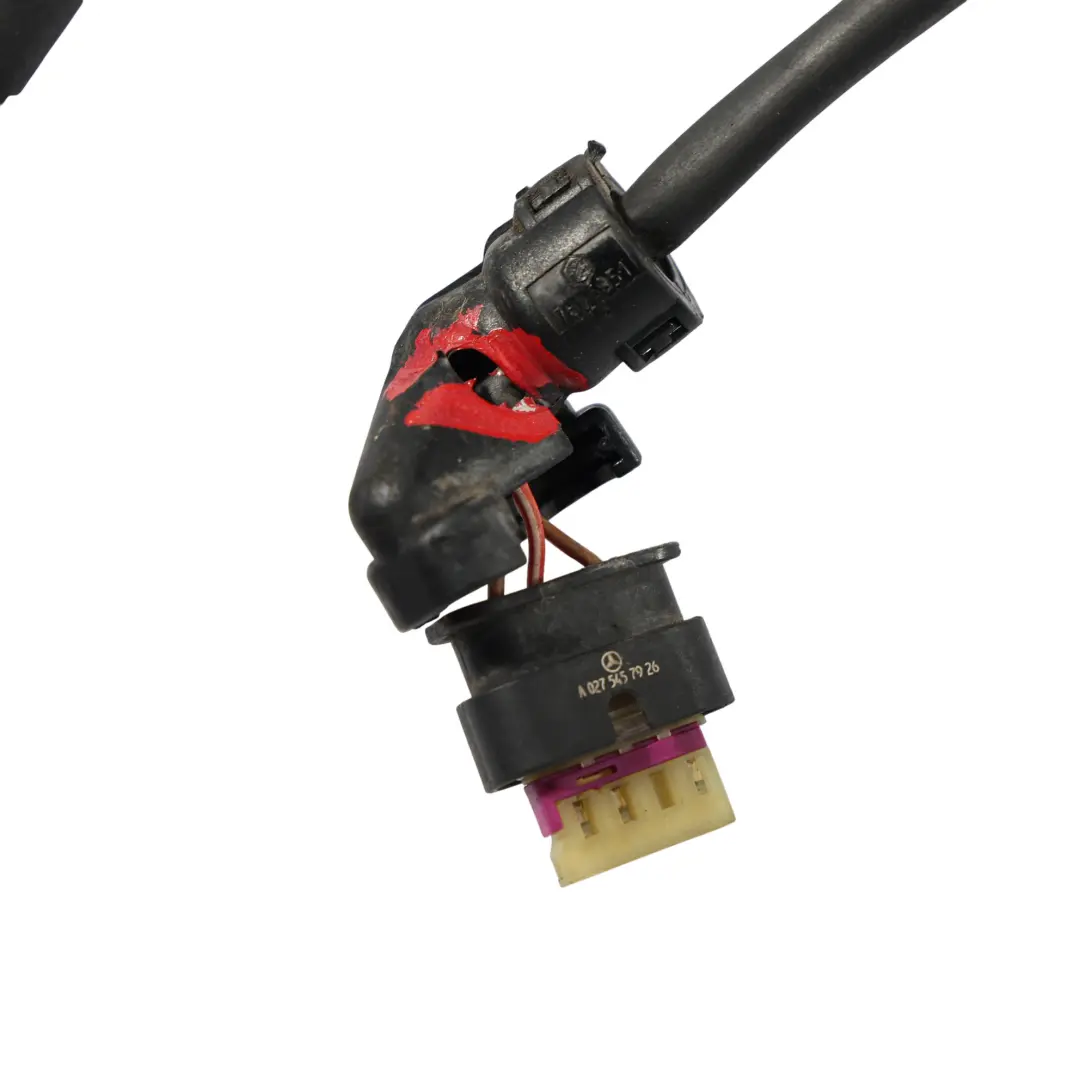

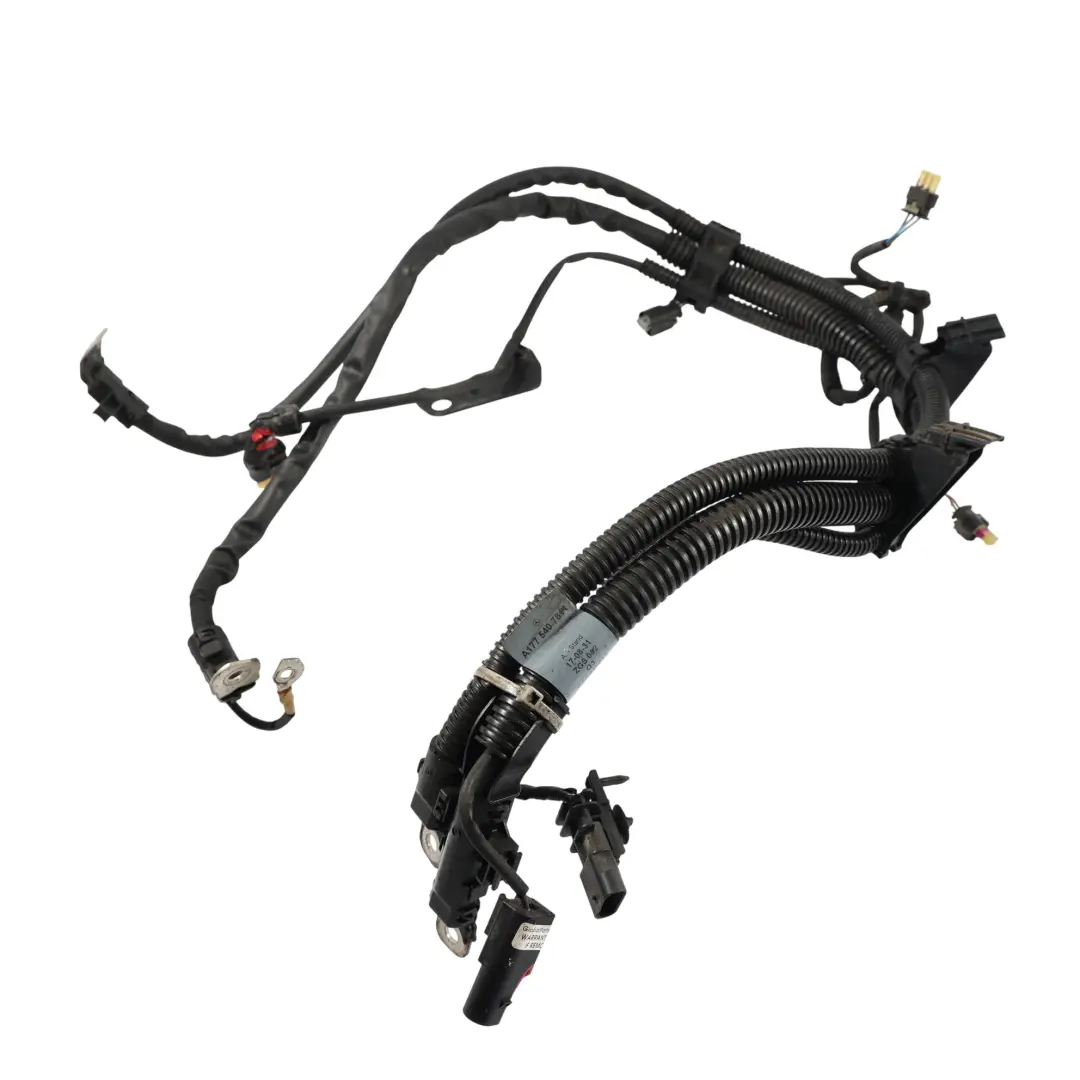

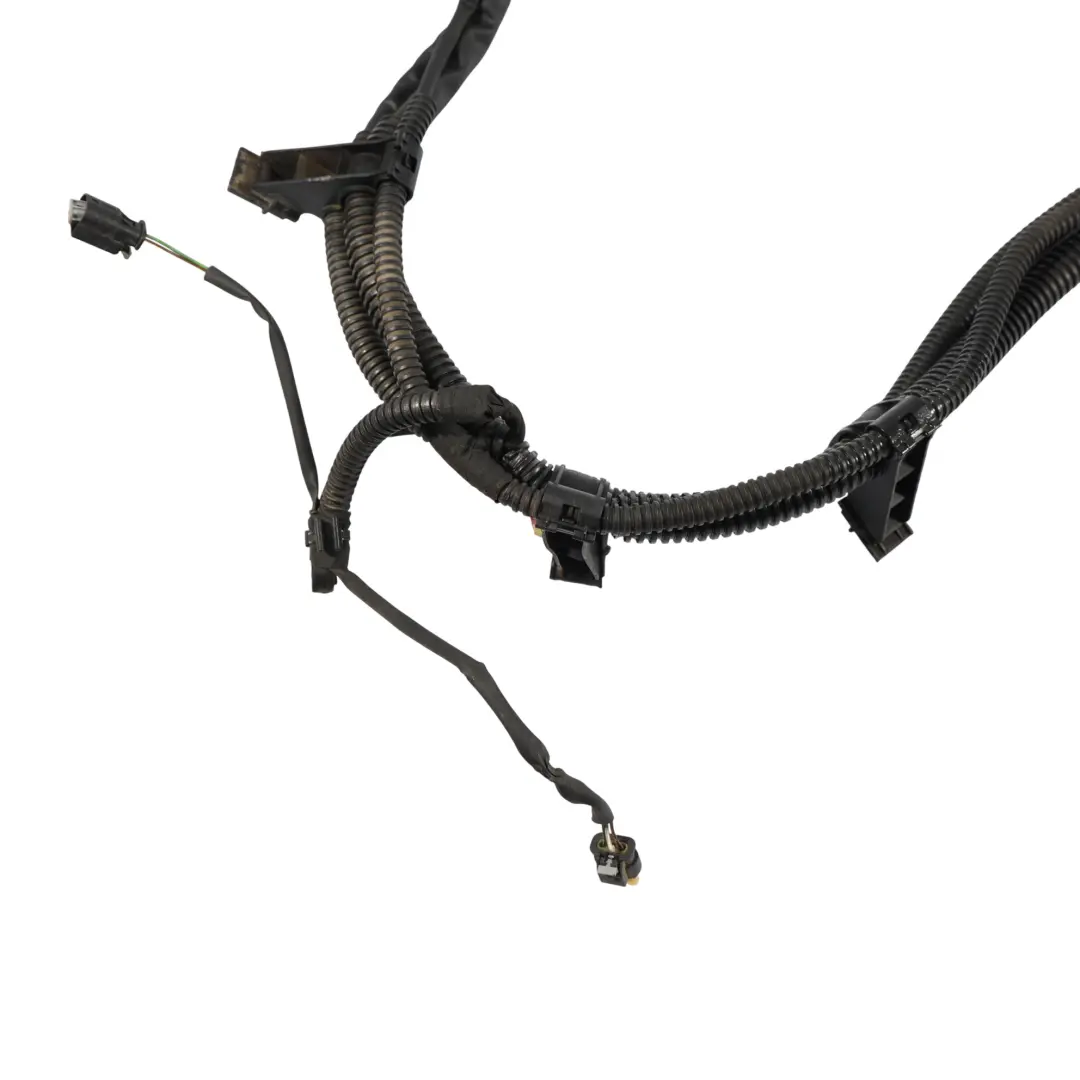

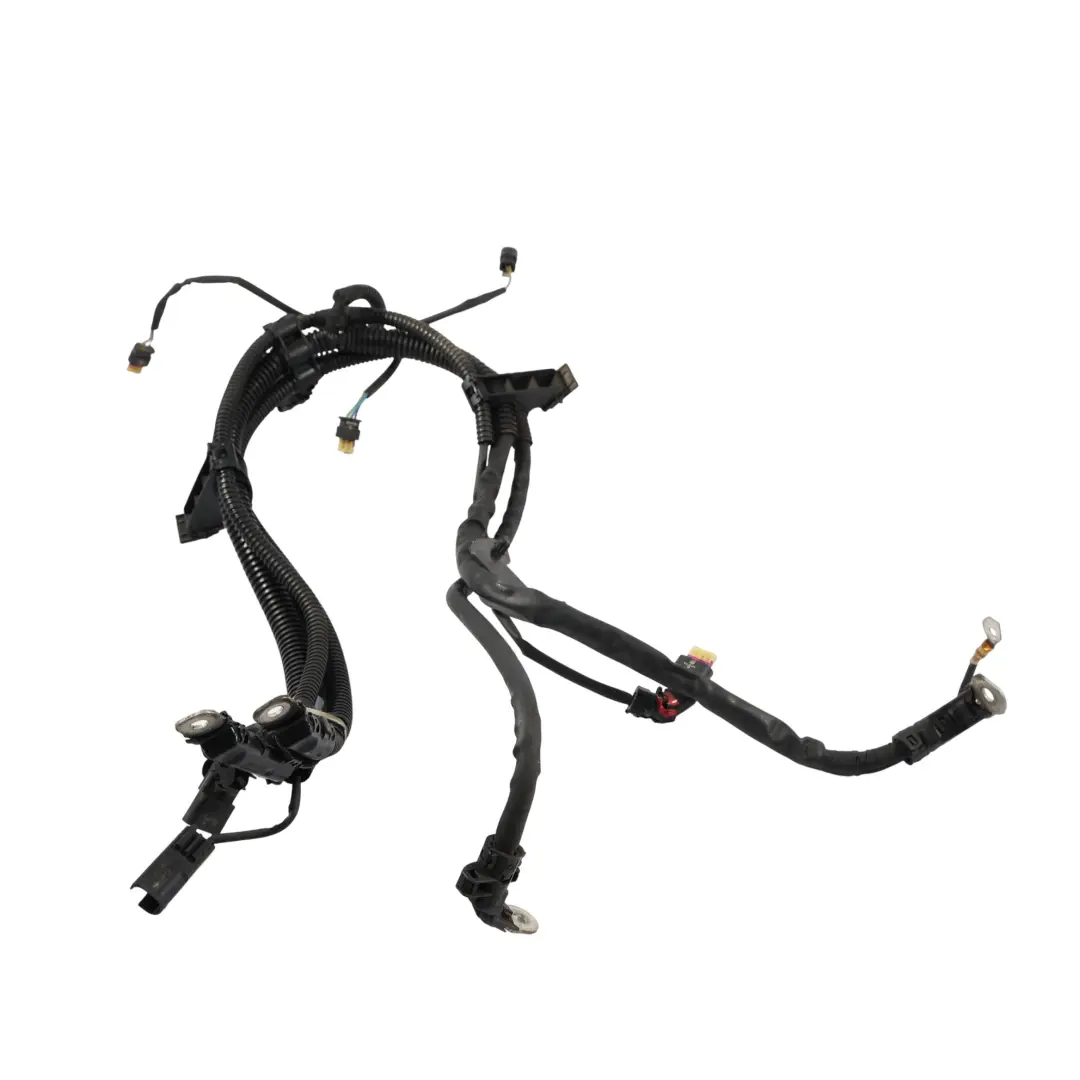

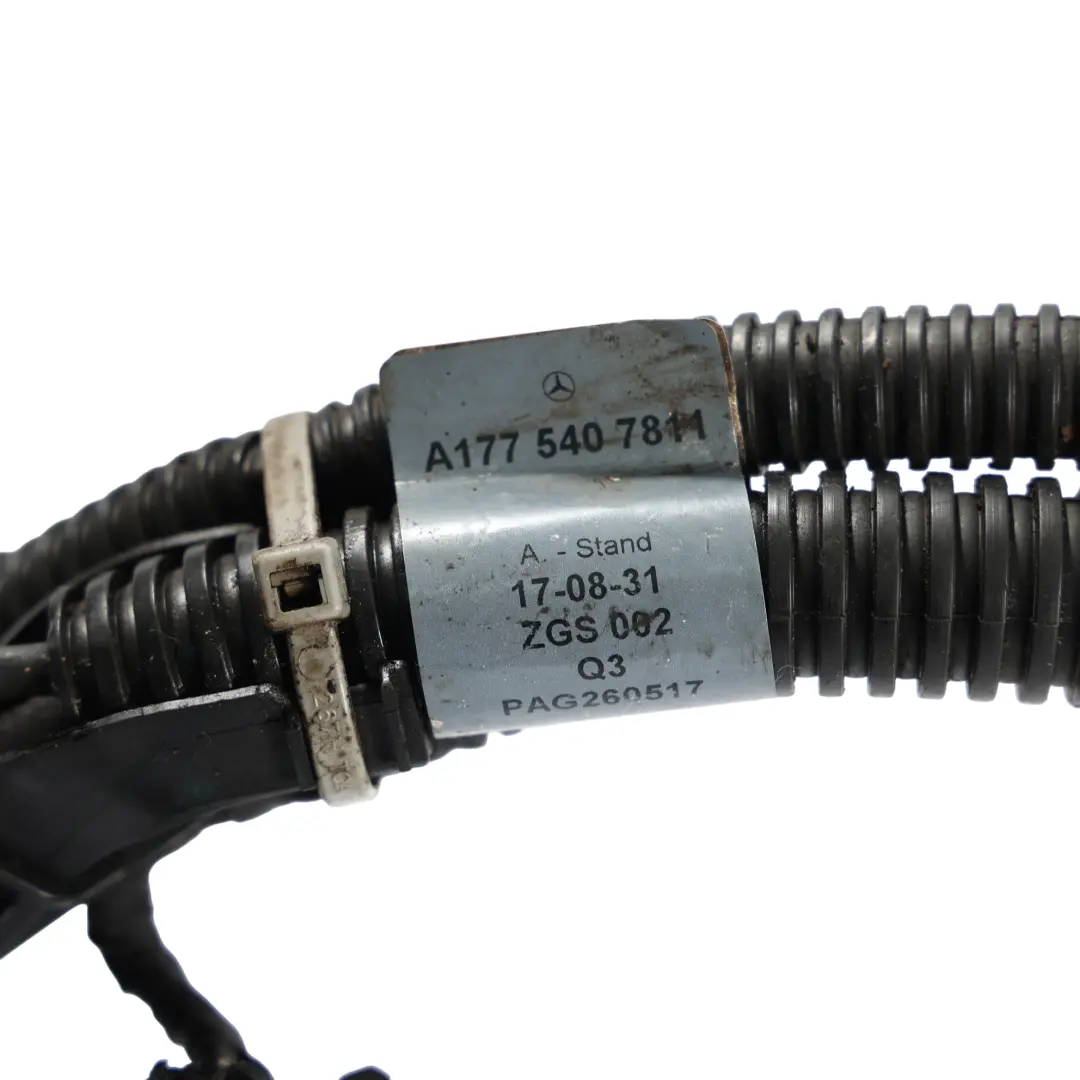

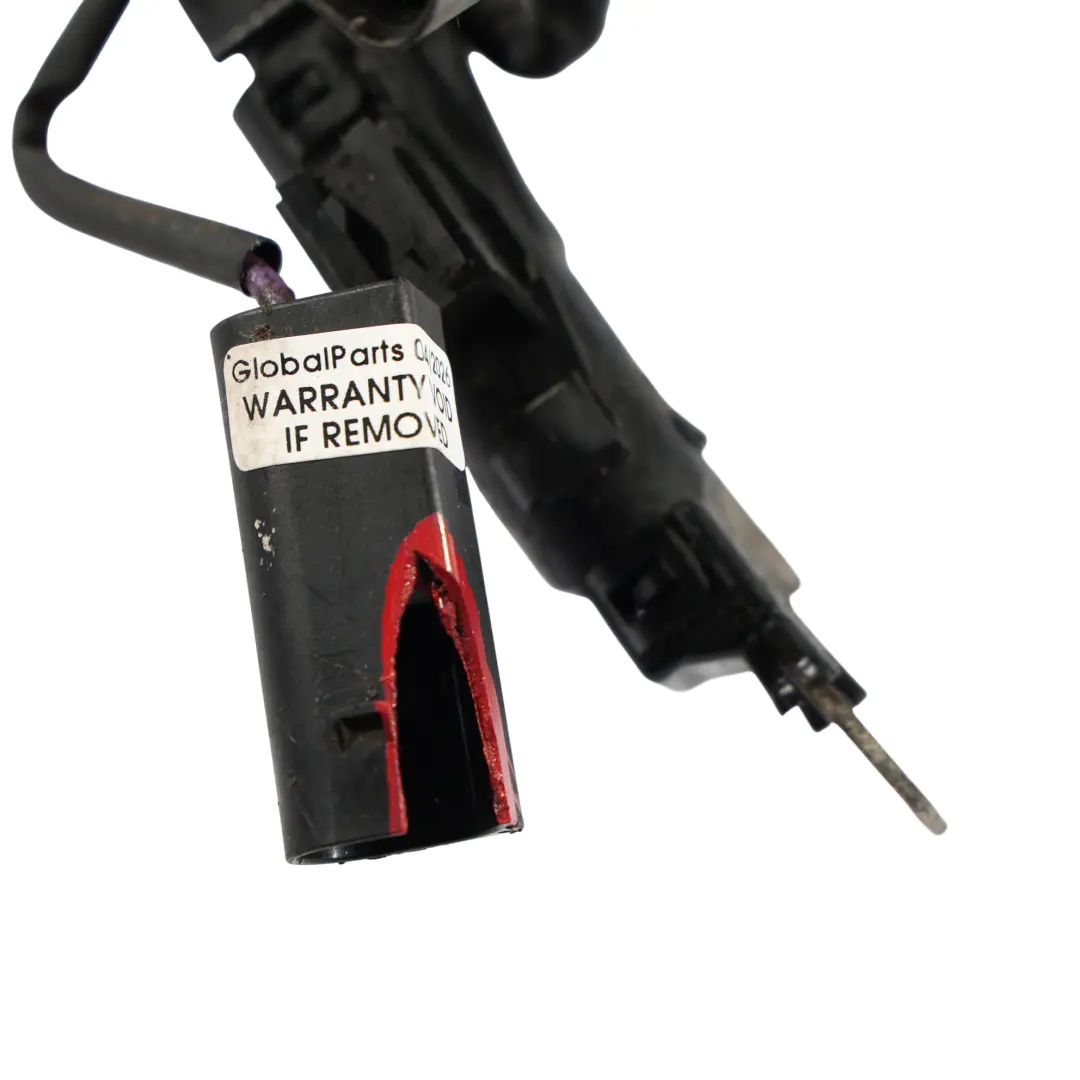

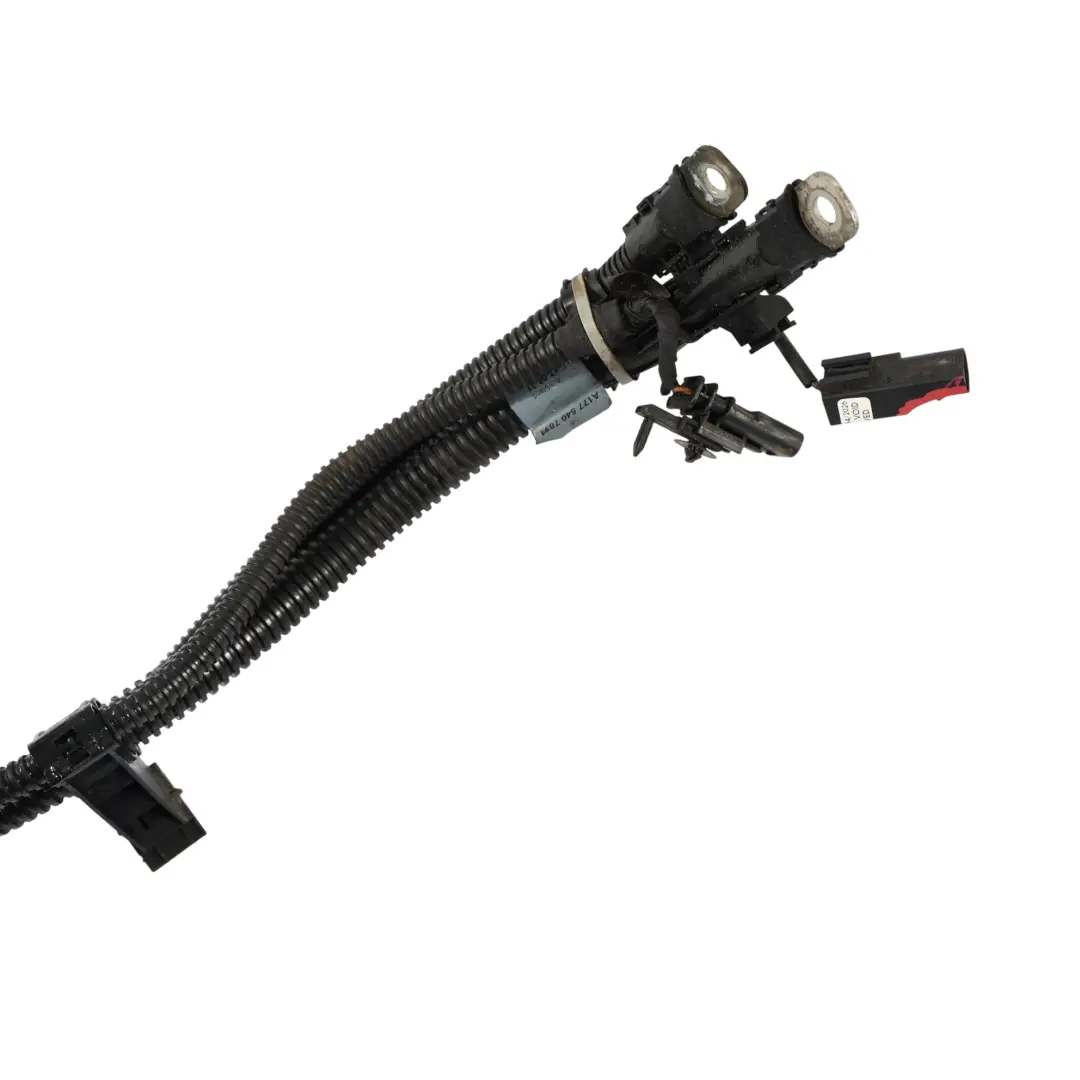

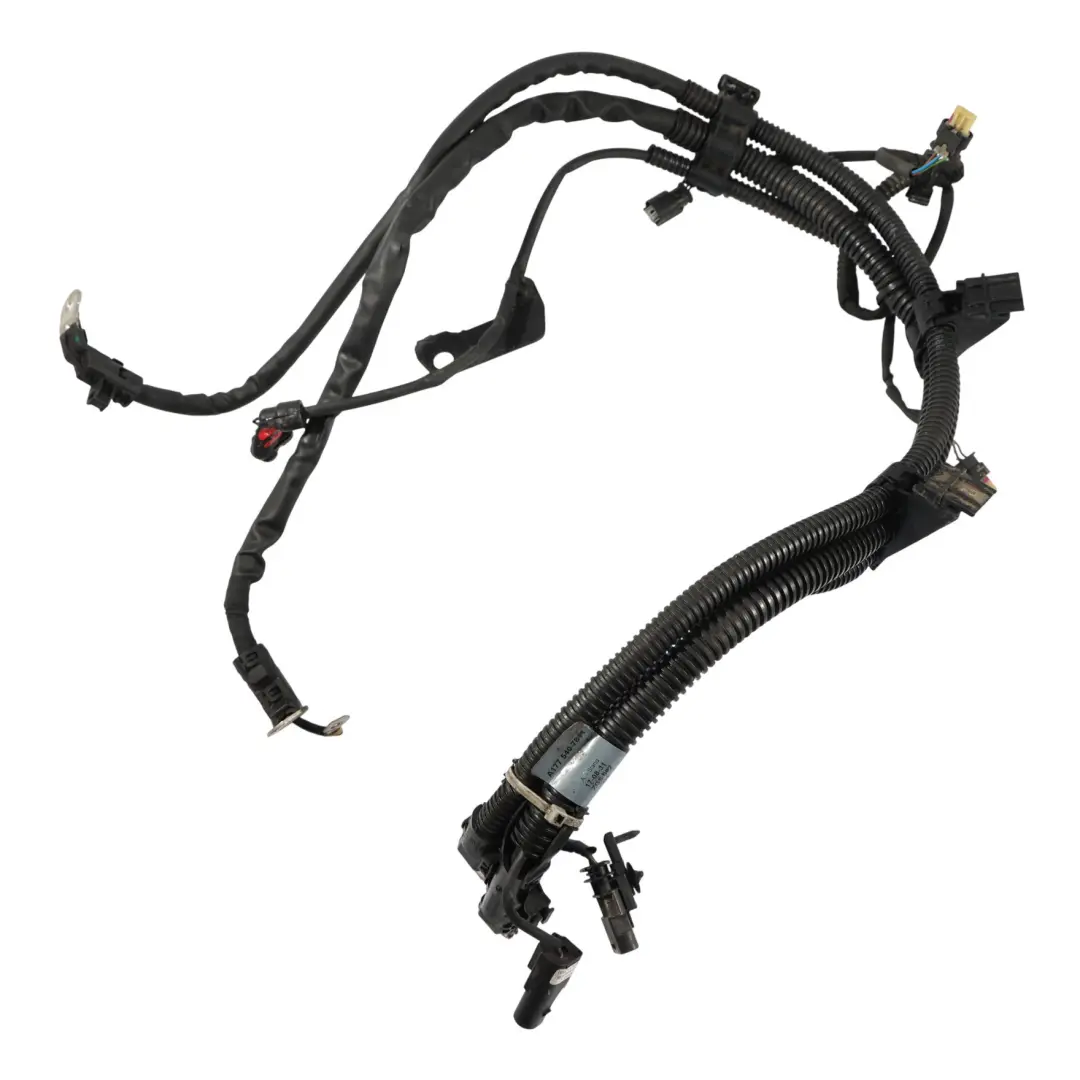

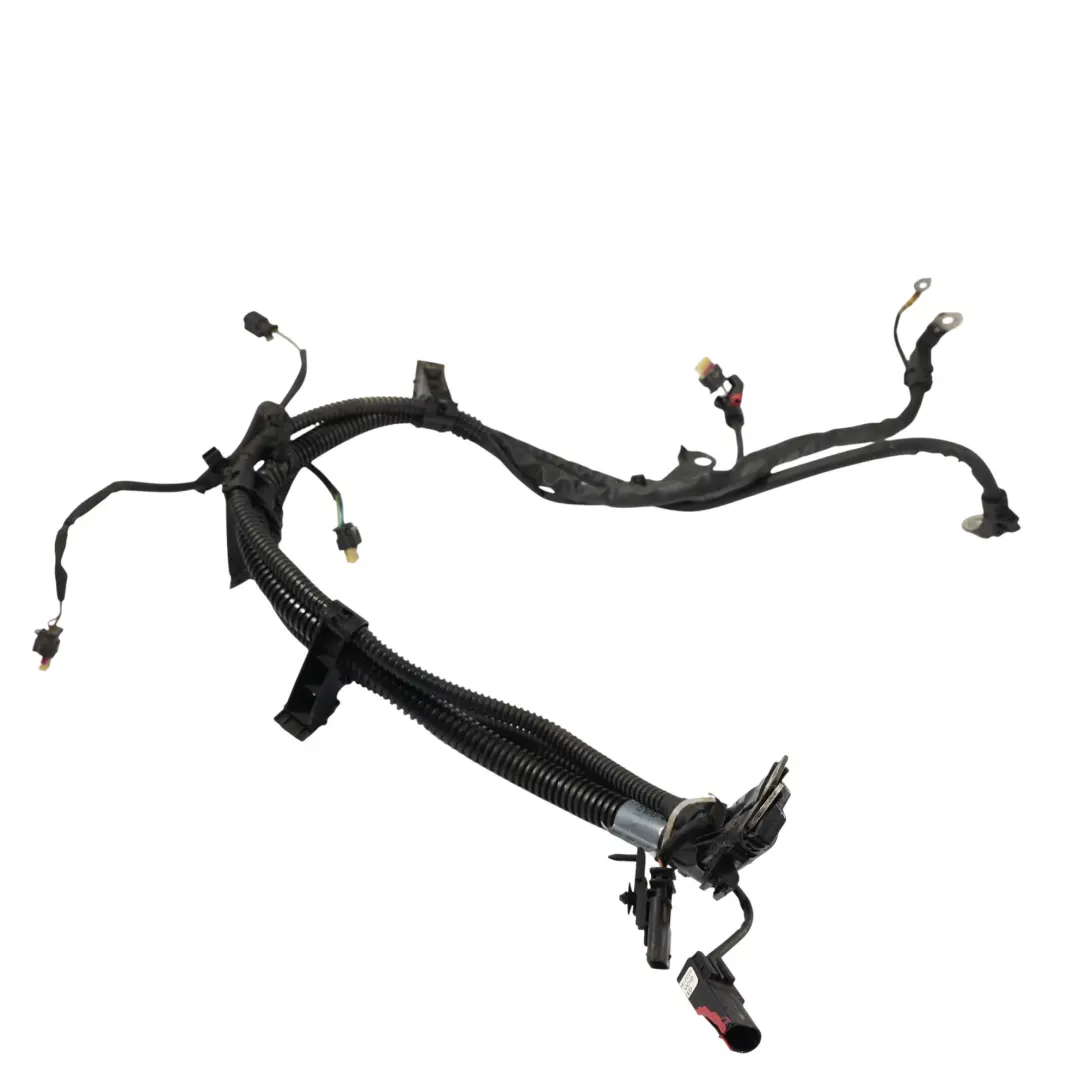

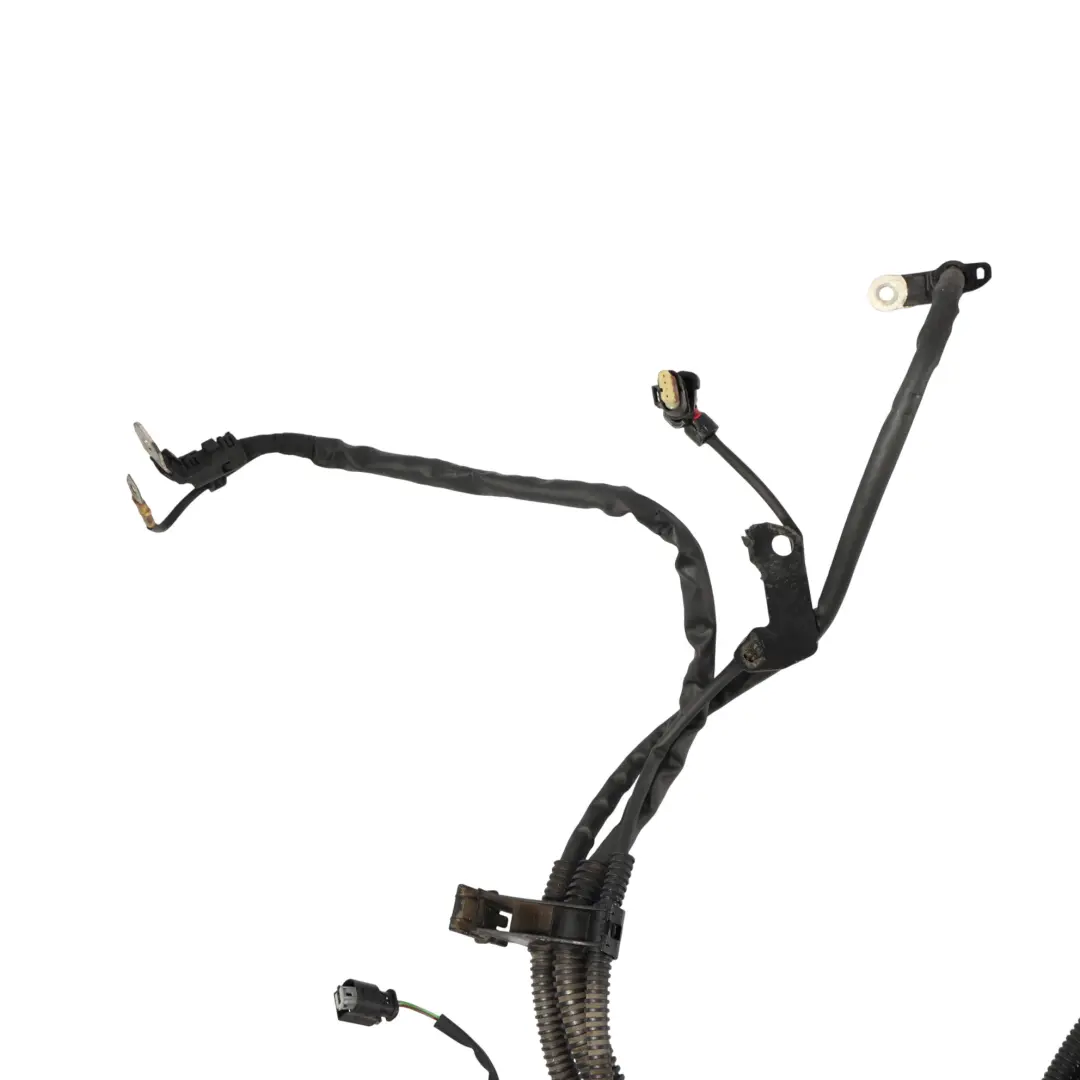

Mercedes W177 OM608 HV Battery Alternator Starter Harness Loom Cable A1775407811

Mercedes W177 OM608 HV Battery Alternator Starter Harness Loom Cable is a specialized component from the Cables, harnesses, and connectors group, designed for the power supply and starting system in diesel-powered vehicles. It is responsible for a stable connection between the battery, alternator, and starter, ensuring reliable starting and proper charging of the electrical system in Diesel units.

Specifications and technical data

• SKU: A1775407811
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A1775407811
• Substitutable numbers: A1775407811, A 177 540 78 11
• Fuel type: Diesel
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the electrical system

The described harness is a component dedicated to Mercedes compact class W177 series models with the OM608 engine, where it is responsible for energy transmission between the battery, alternator, and starter. A correctly selected harness in this area is crucial for:

• efficient starting of the Diesel power unit,
• stable battery charging by the alternator,
• limiting voltage drops in critical sections of the installation,
• safe routing of cables in the engine compartment.

Thanks to a design compliant with manufacturer standards, the harness maintains proper cable cross-sections, mounting points, and routing geometry, which facilitates installation and minimizes the risk of mechanical damage during operation.

Benefits of using an original Mercedes harness

Using a factory harness in the starting and charging system of a Mercedes with a diesel engine translates into a number of practical benefits. The most important include:

• Compatibility with the OM608 unit – proper cable lengths, connector types, and connection points to the battery, alternator, and starter are maintained.
• Stable operation of the starting system – correct cable cross-sections limit heating and voltage drops during high starting currents characteristic of Diesel engines.
• Safe installation routing – original mounts and cable routing paths reduce the risk of chafing, short circuits, and unwanted vibrations.
• Easier diagnostics and service – compliance with factory documentation facilitates work for electricians and mechanics.

Product characteristics and application in Diesel engines

The harness has been designed with the specifics of diesel units in mind, where starting currents are higher than in gasoline engines. The appropriate construction of cables and connectors allows for:

• reliable engine starting even at lower ambient temperatures,
• maintaining the proper battery charging level during city and highway driving,
• maintaining voltage stability in the onboard installation under high load from electrical consumers.

The product comes from the Mercedes brand, which means maintaining the vehicle manufacturer's quality standards and matching the electrical architecture of the specific W177 generation.

Condition, installation, and practical aspects

The item is offered as a used part, which represents a reasonable compromise between cost and functionality when repairing the starting or charging system. When replacing the harness, it is recommended to:

• check ground points and the condition of battery terminals,
• verify the correct fastening of cables in factory holders,
• verify the condition of the alternator and starter to avoid overloading the newly installed harness.

A well-selected and correctly installed harness in the battery–alternator–starter area helps restore proper operation of the electrical system, reduce starting problems, and minimize the risk of failures related to cable overheating.
