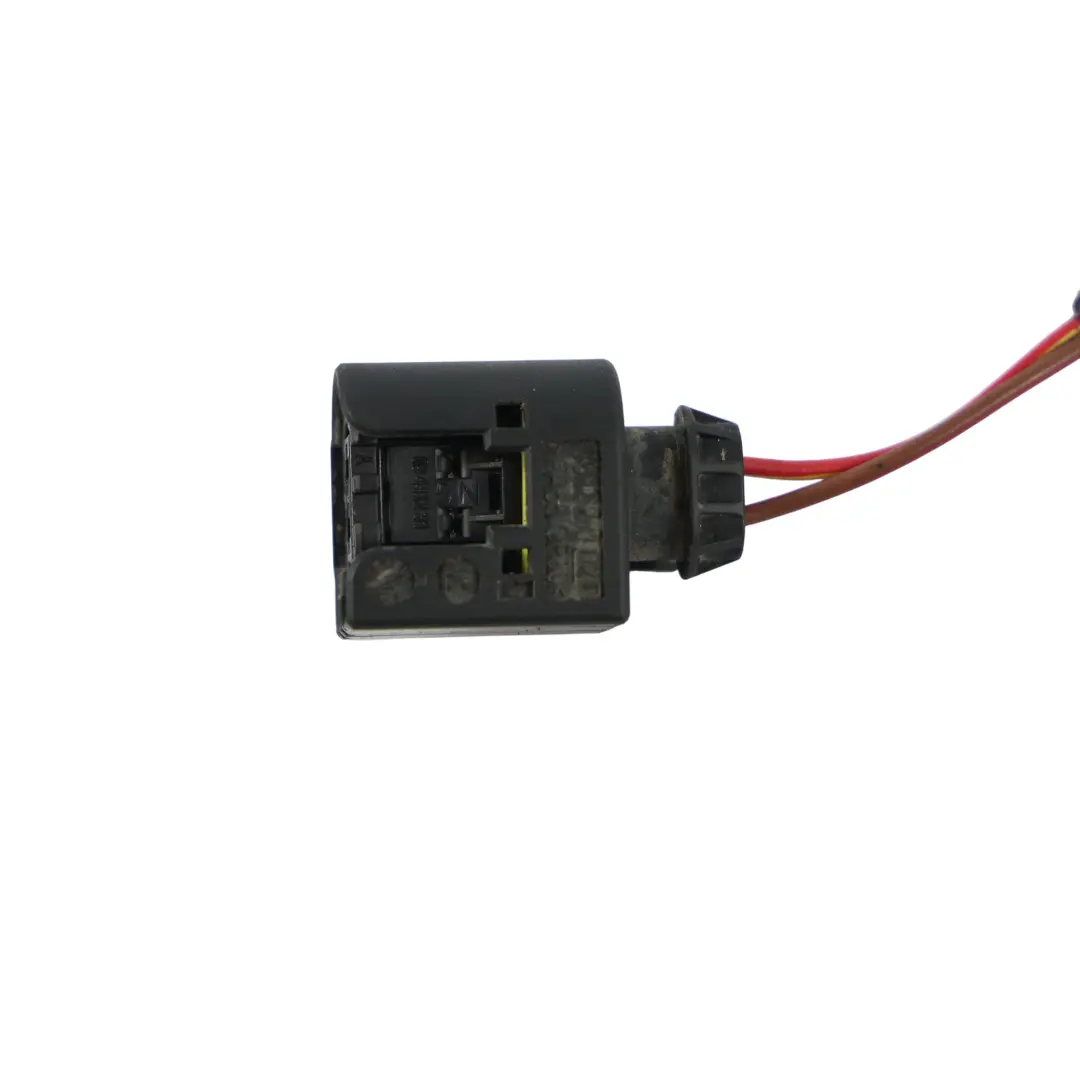

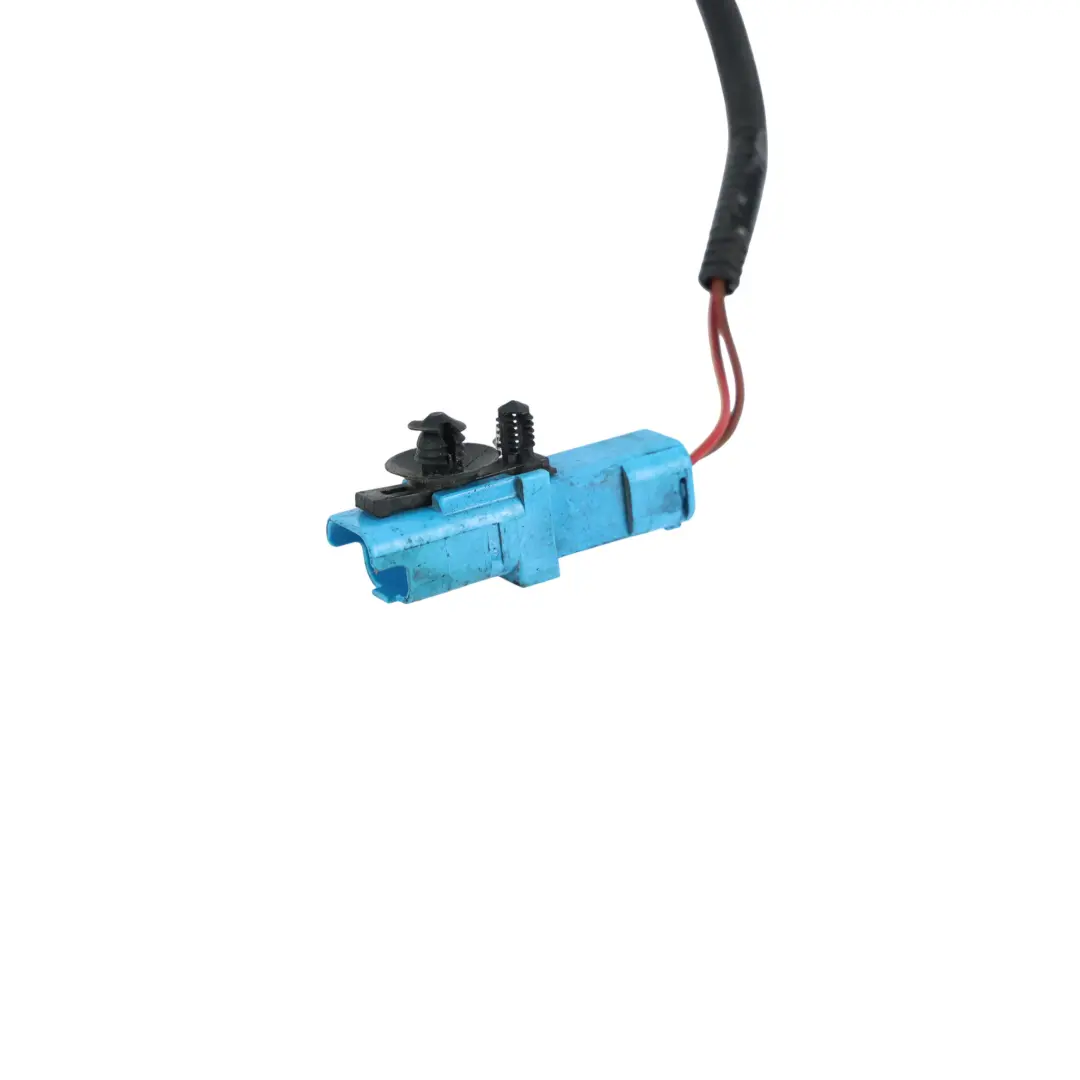

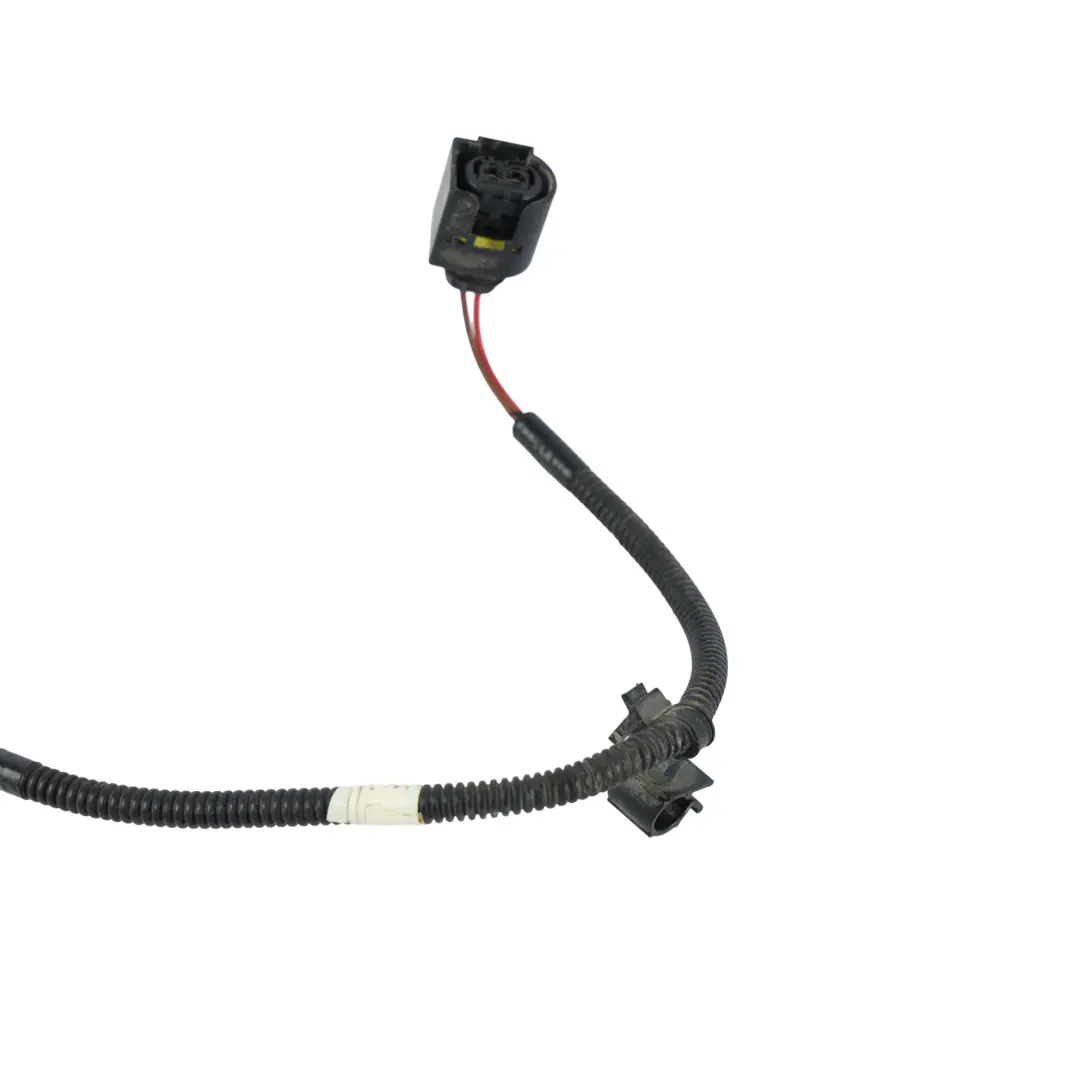

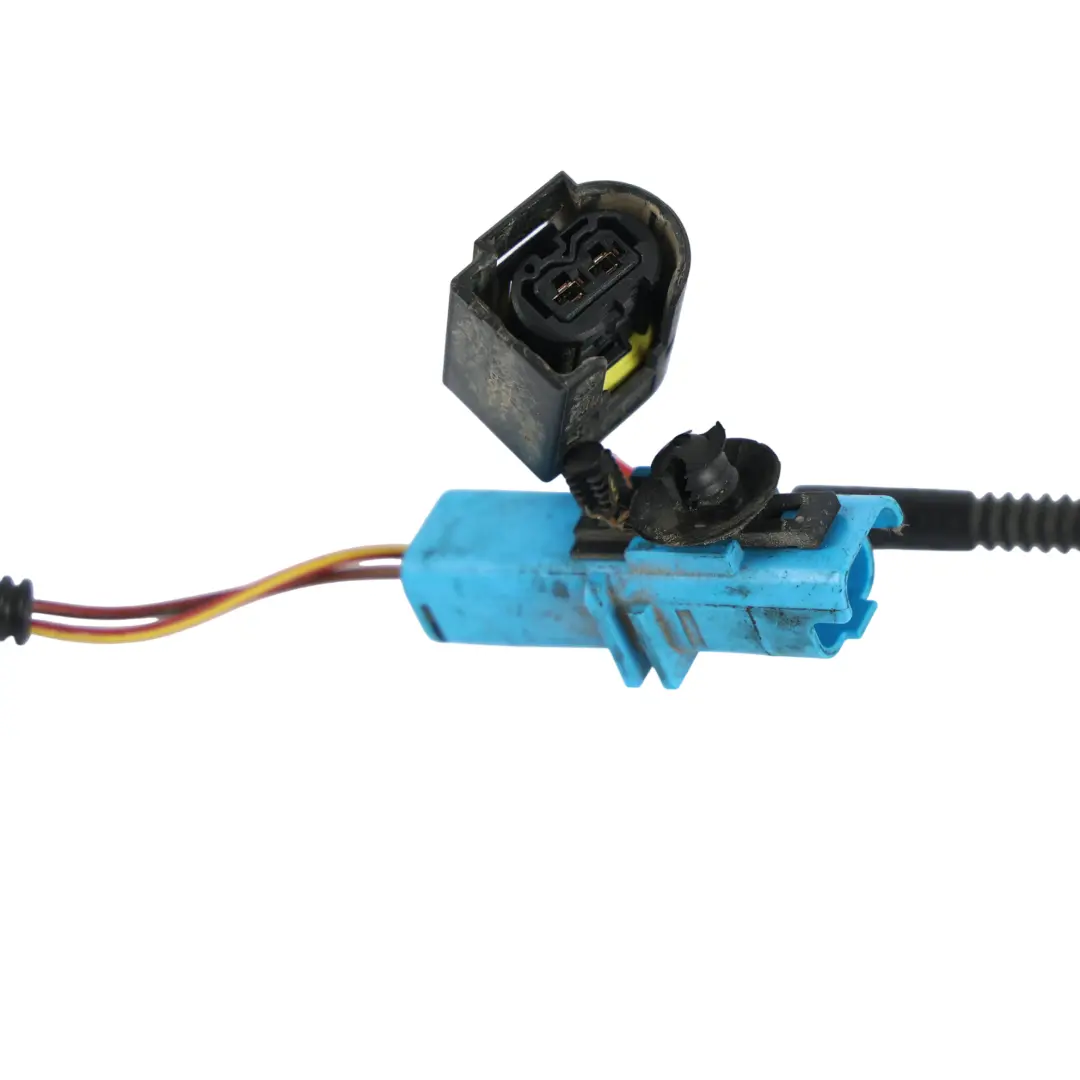

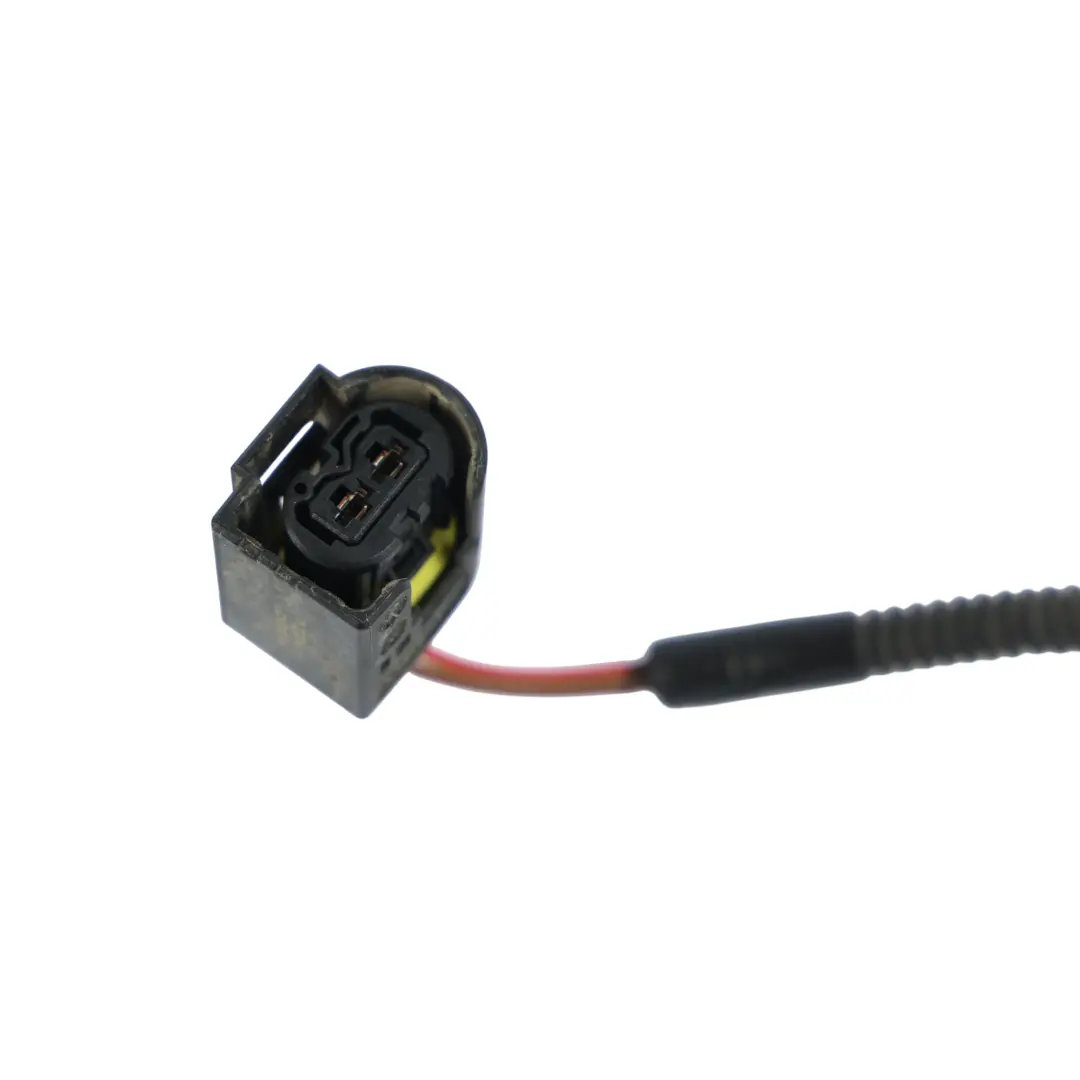

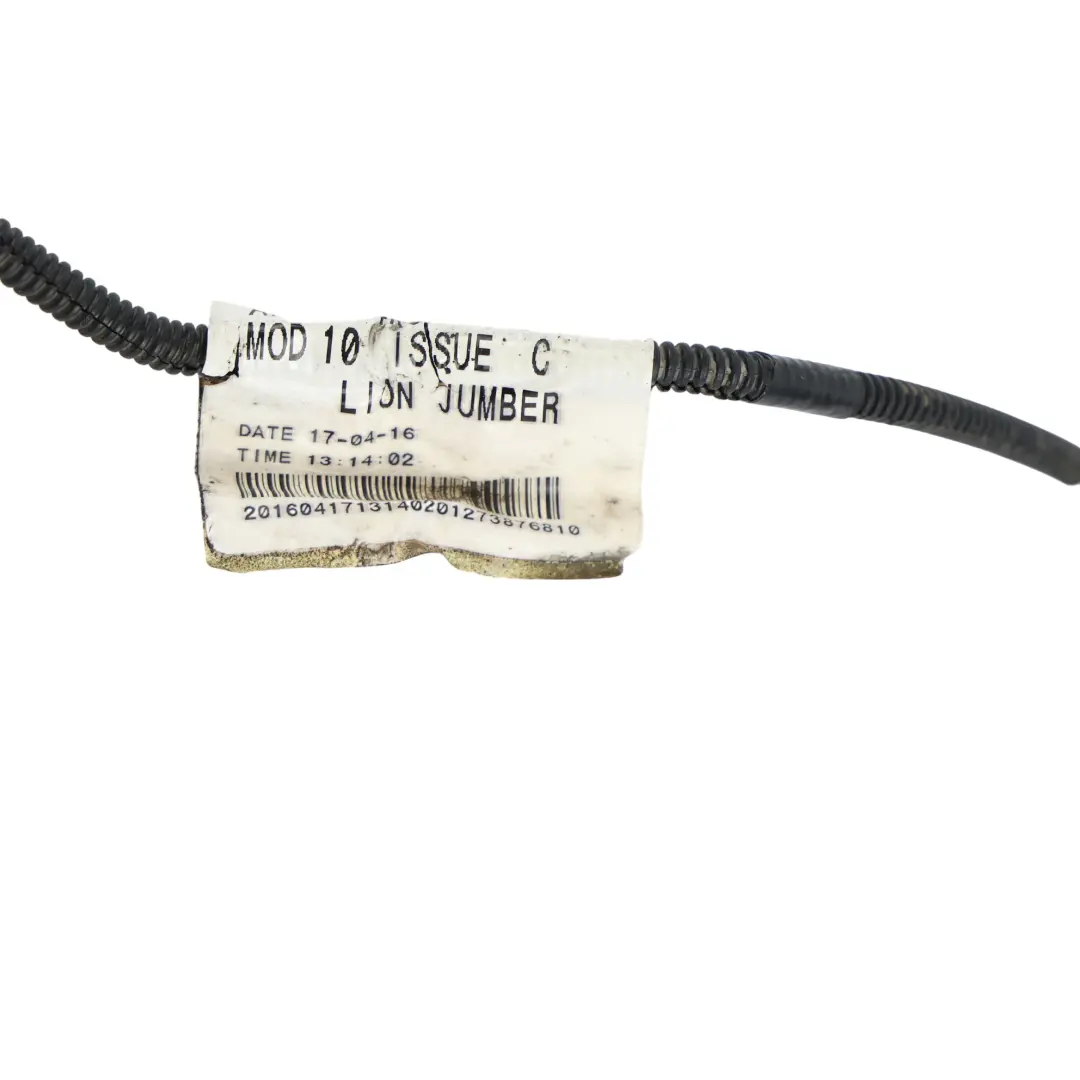

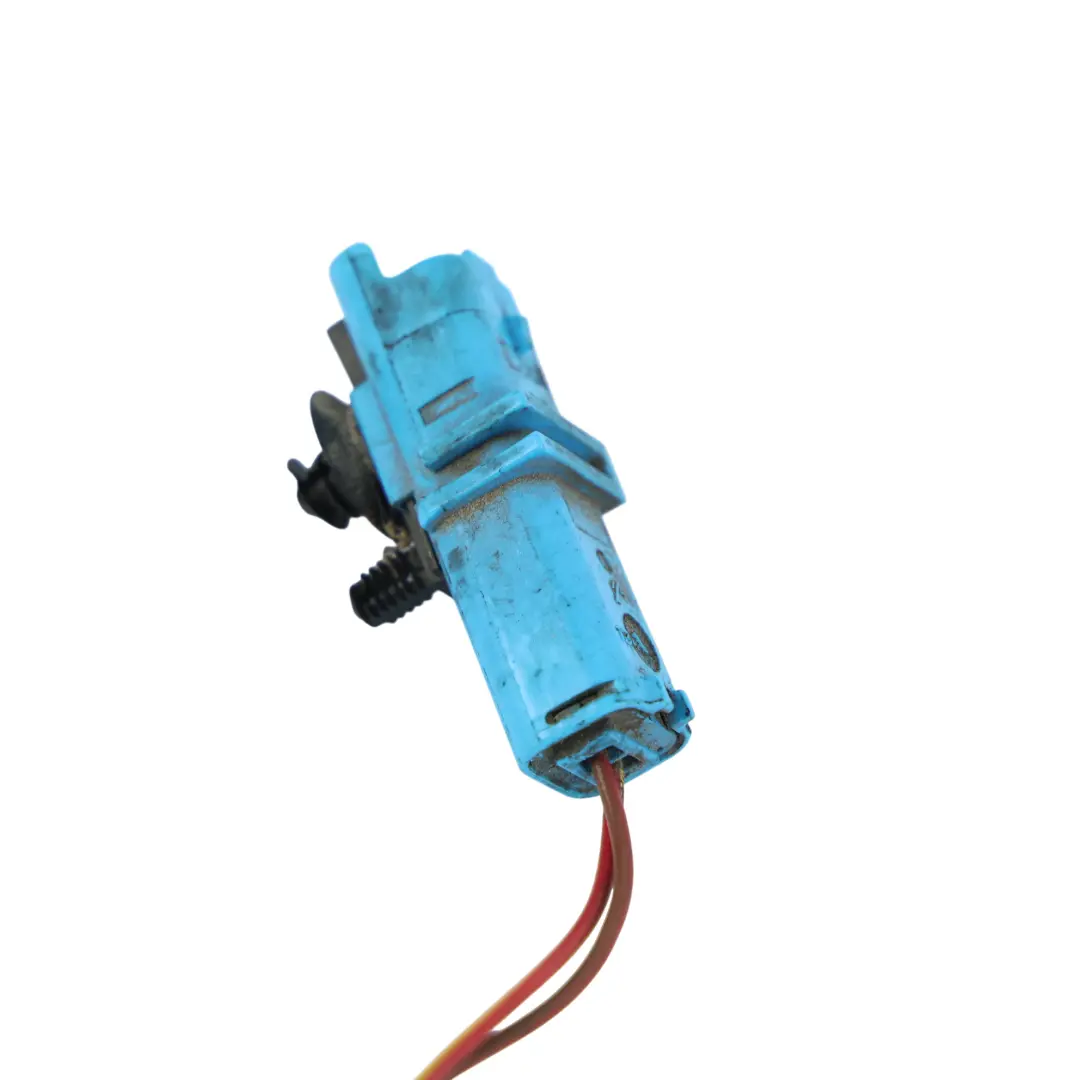

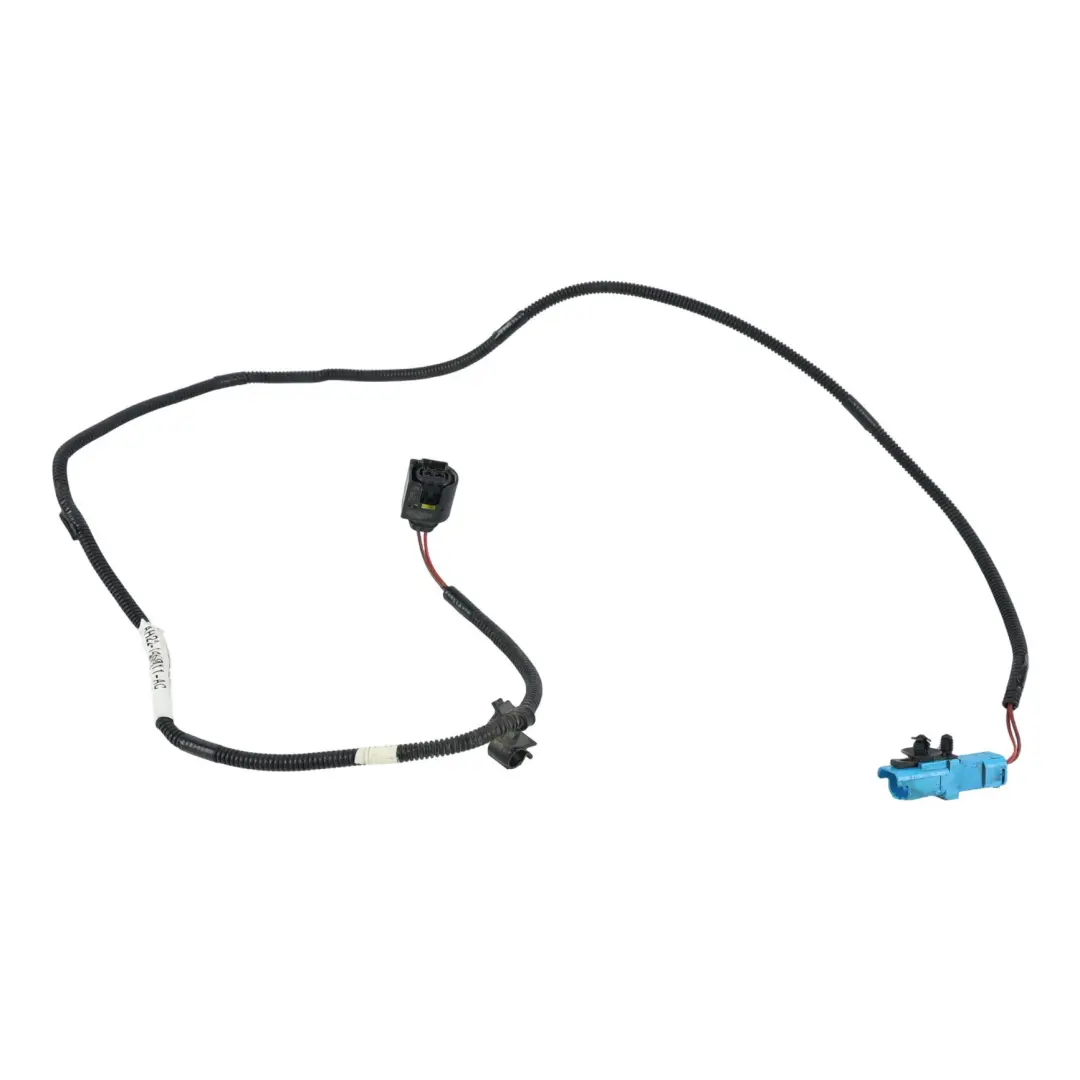

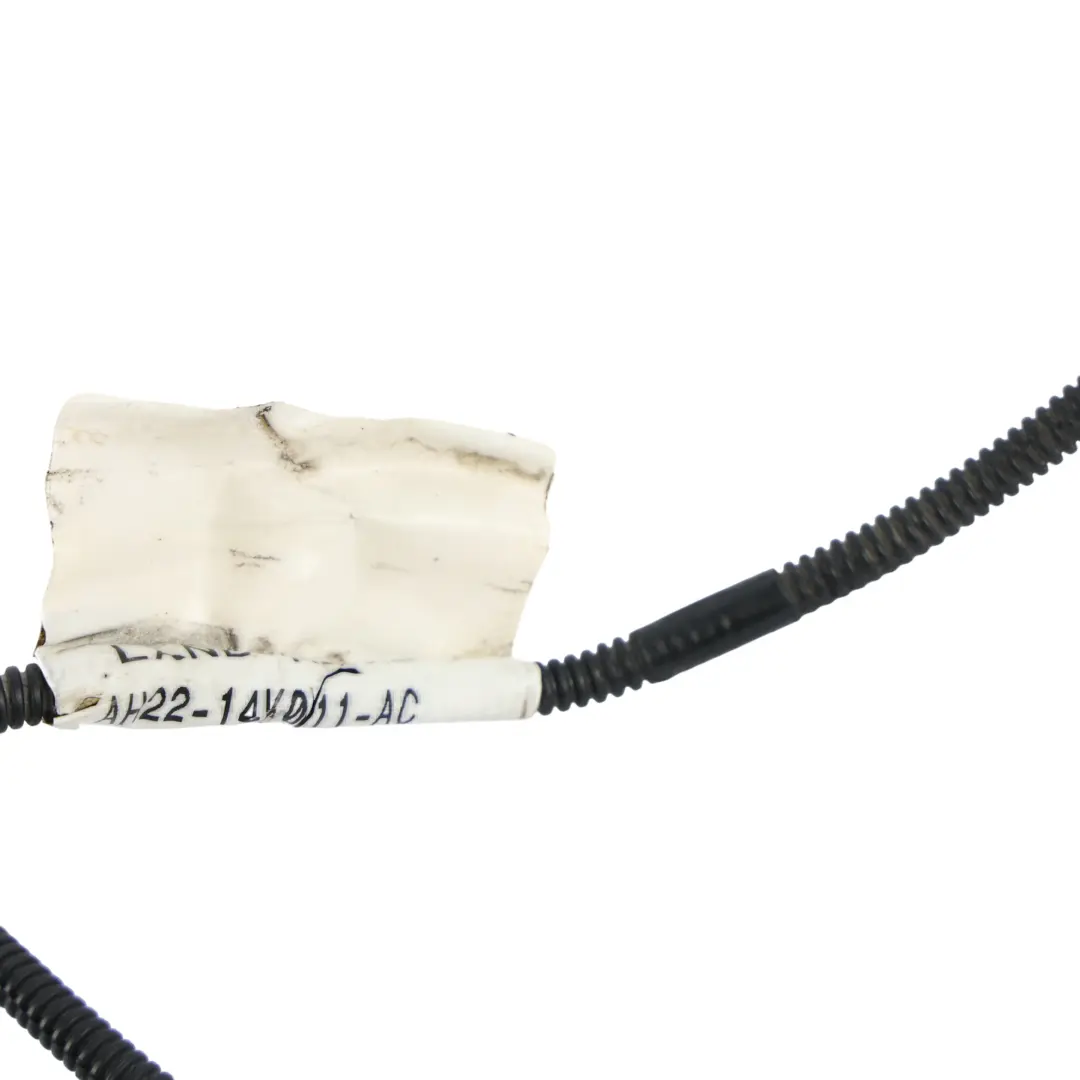

Land Rover Discovery 4 L319 Radiator Wiring Loom Harness AH22-14K011-AC

The Land Rover Discovery 4 L319 Radiator Wiring Harness is an original electrical system component designed for precise connection of radiator accessories to the vehicle's main wiring loom. Thanks to its factory-fitted geometry and connectors matched to the Discovery 4 model's specifications, this part ensures stable power supply and correct electrical communication within the cooling system. It's a practical solution for users who want to restore proper system functionality without the need for modifications.

Specifications and technical data

• SKU: AH22-14K011-AC
• Mark: Land Rover
• Condition: Used
• OEM Part Number: AH22-14K011-AC
• Substitutable numbers: AH22-14K011-AC, AH2214K011AC, LR071679
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Application in Land Rover Discovery 4 L319

The presented radiator wiring harness has been specifically designed for the Land Rover Discovery 4 L319 model, ensuring proper cable routing, appropriate lengths, and compatible connectors. It is responsible for safely delivering signals and power to components located near the radiator, such as sensors and control modules, minimizing the risk of voltage drops and interference.

By maintaining the original design, installation is carried out in existing mounting points, without the need to interfere with the vehicle's factory wiring. This is particularly important in off-road vehicles, where resistance to vibrations and correct cable routing directly impact reliability in demanding operating conditions.

Construction and Technical Function

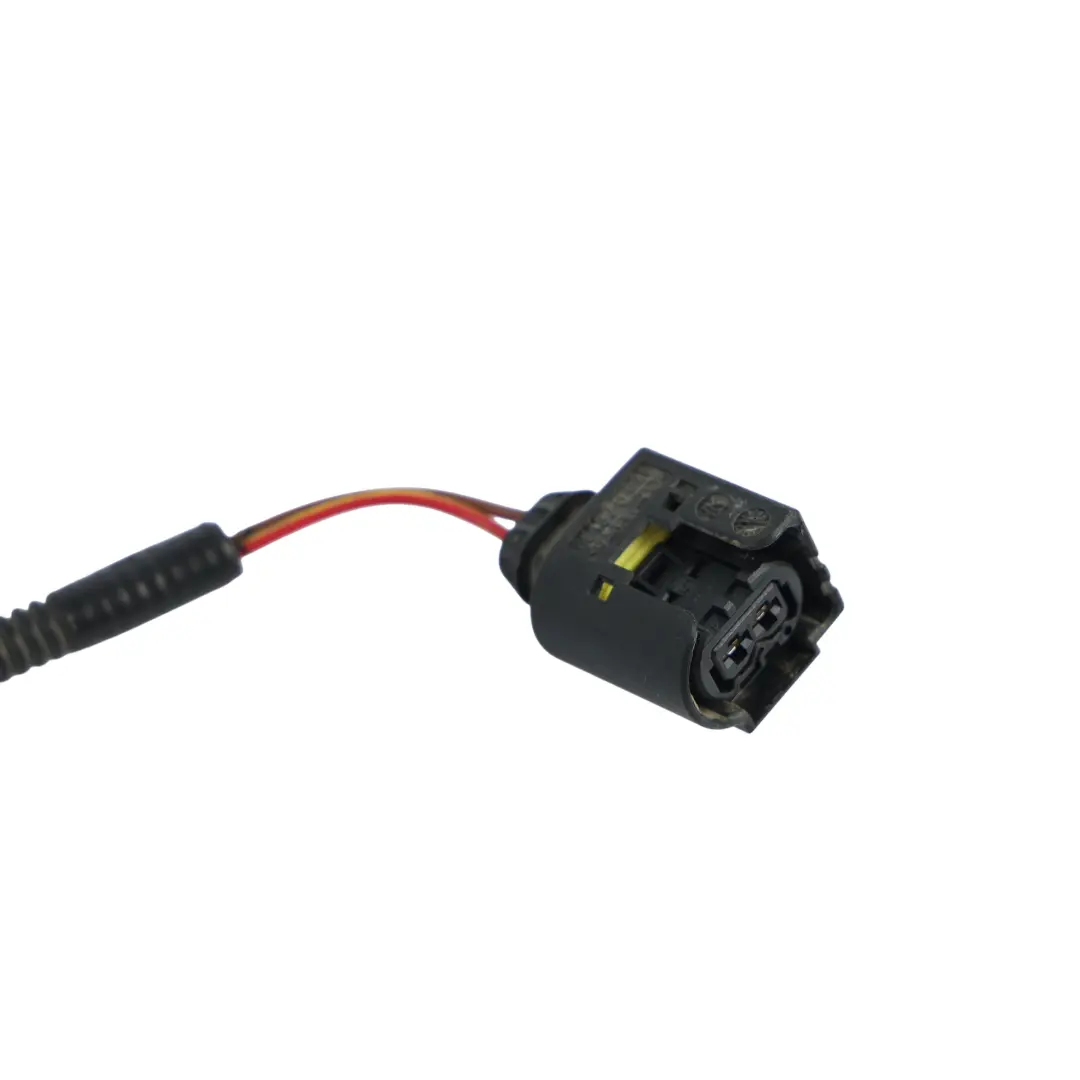

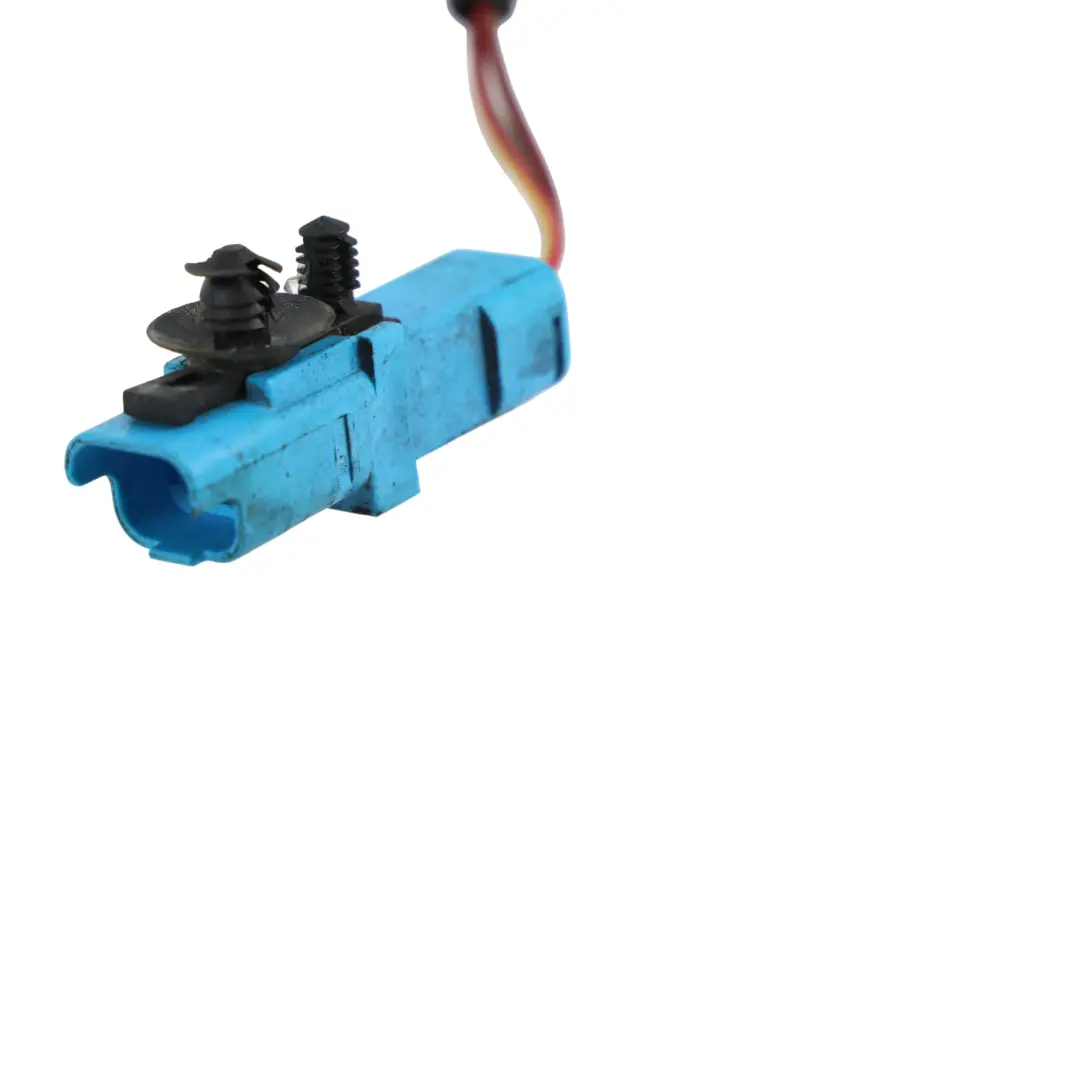

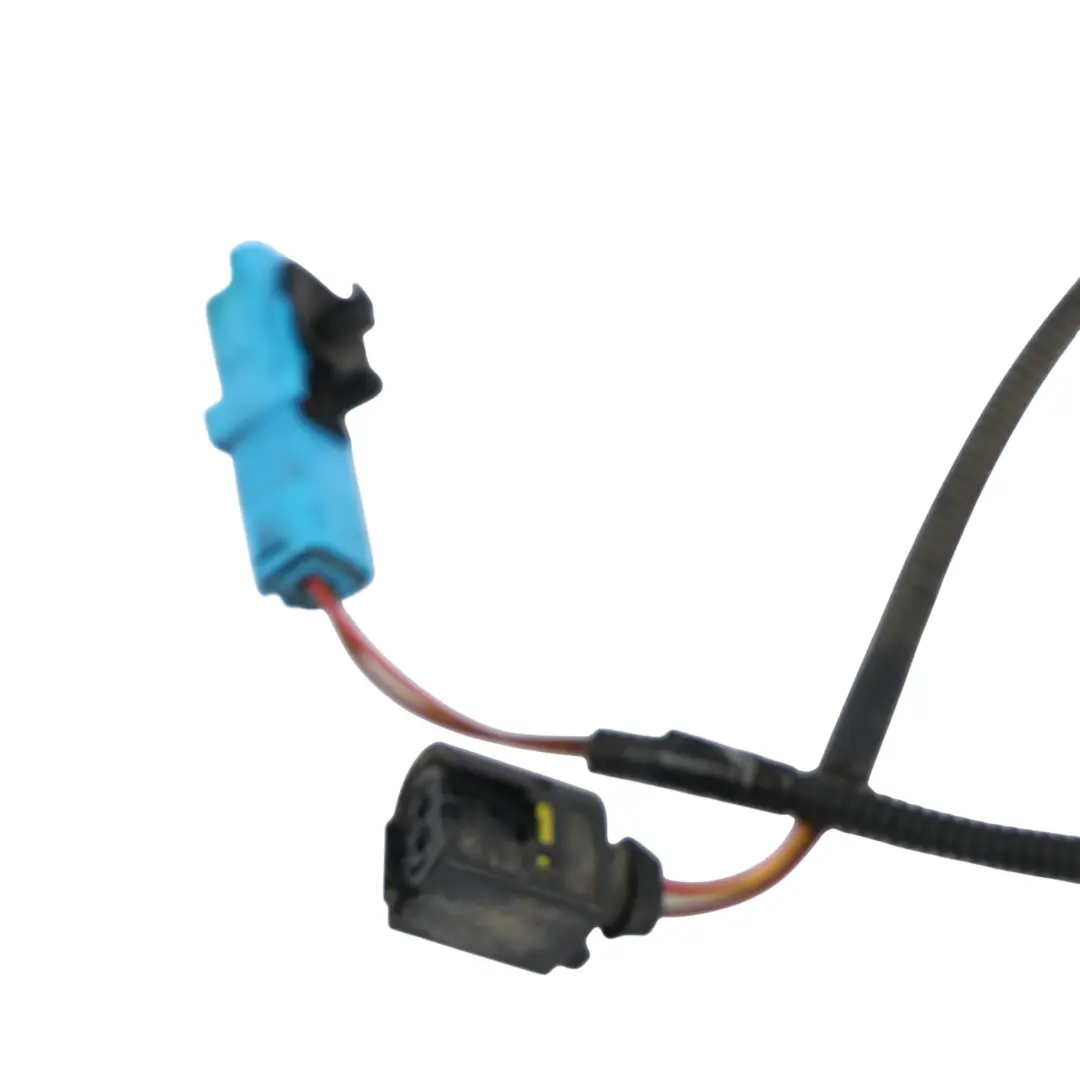

This harness belongs to the Cables, Harnesses, and Connectors group, meaning it serves as a dedicated link between individual cooling system components and the vehicle's main electrical system. The connectors used are matched to factory sockets, which reduces the risk of installation errors and eliminates the need for soldering or using adapters.

The cable routing within this harness is optimized for protection against the heat generated by the radiator and engine components. Proper cable management helps to reduce mechanical stress, thereby decreasing the risk of insulation abrasion and subsequent electrical failures.

Benefits of Using an Original Harness

Using an original harness in the Discovery 4 L319 helps maintain the integrity of the entire electrical system in the front of the vehicle. This solution is particularly beneficial for vehicles equipped with advanced temperature control systems, where the stability of sensor signals affects the engine control unit's operation.

• Factory-fitted to the geometry of the engine bay and radiator.
• Compatible connectors eliminate the need for wiring modifications.
• Facilitates easier installation and removal during cooling system servicing.
• Consistent with other Land Rover electrical system components.

For workshops specializing in the Land Rover brand, using such a harness means faster diagnostics and replacement, and for the user – greater predictability of the cooling system's operation in daily use.

Condition and Part Selection

This component is part of the original Land Rover range, which helps ensure compliance with the manufacturer's service documentation and electrical diagrams. When selecting a harness, it is advisable to pay attention to compatibility with the specific equipment version of the Discovery 4 L319, so that all connectors match the components installed in the vehicle.

In the case of replacing a damaged or modified installation, using this harness allows for the restoration of the factory cable routing in the radiator area, which facilitates subsequent service work and reduces the risk of problems accessing other components in the engine bay.

Expanding Service Work within the Installation

If you are planning a comprehensive repair or upgrade of the electrical system in the front of your Land Rover and require other parts from the same group, such as additional harnesses, cable sections, or service connectors, check the available parts in the Land Rover Cables, Harnesses, and Connectors category.
