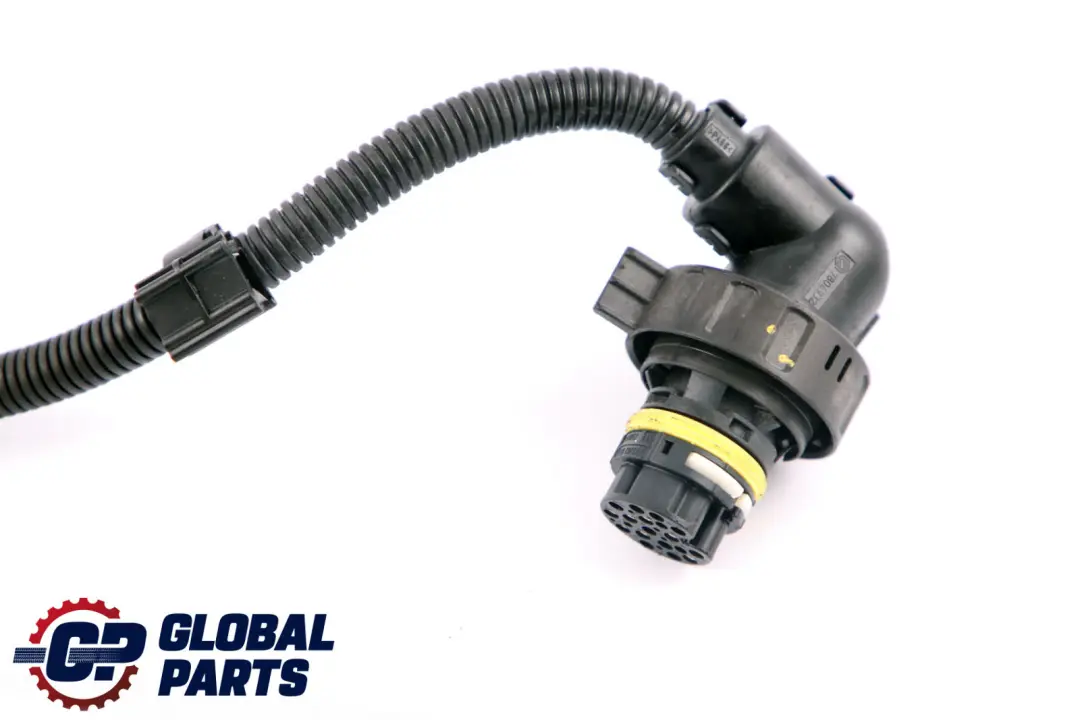

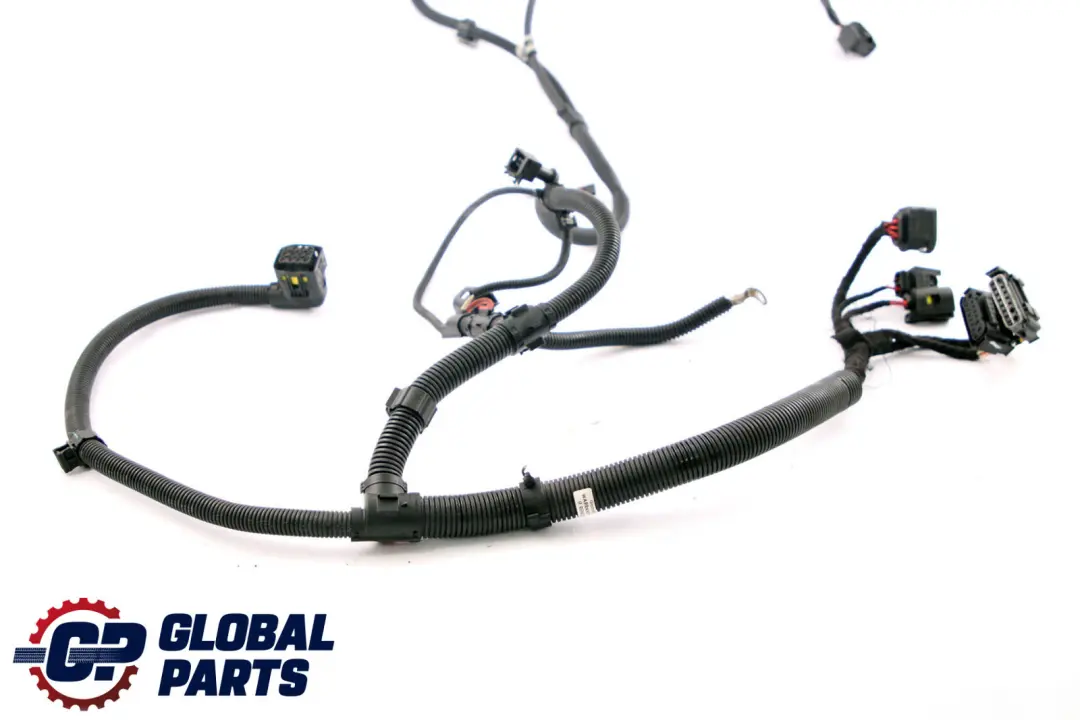

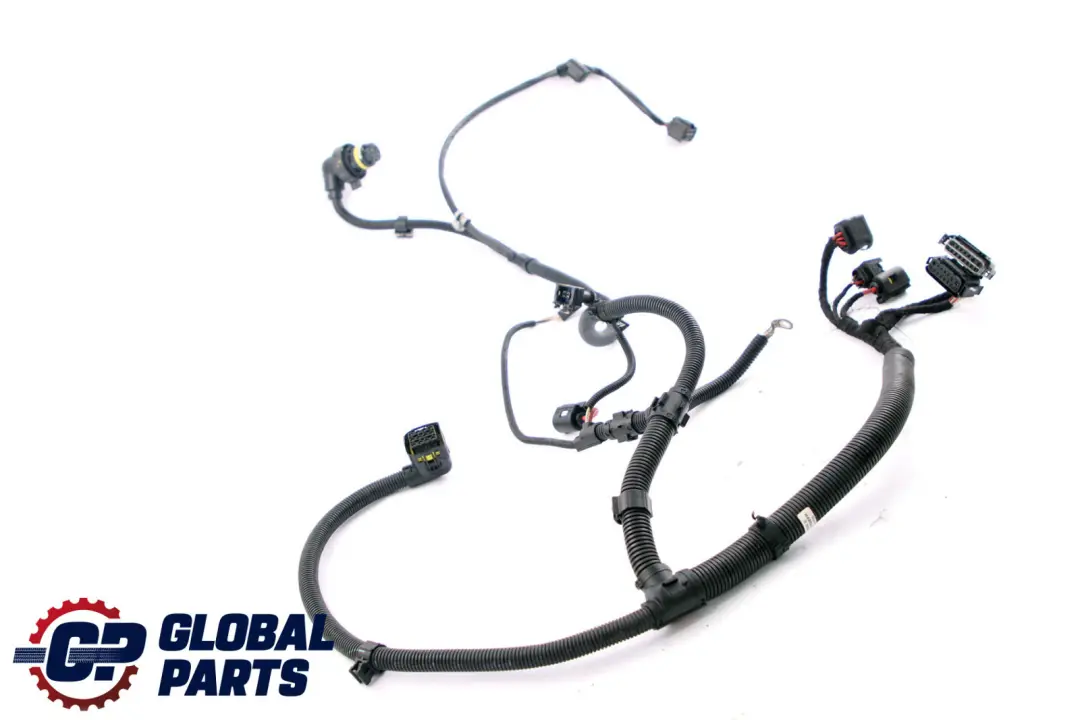

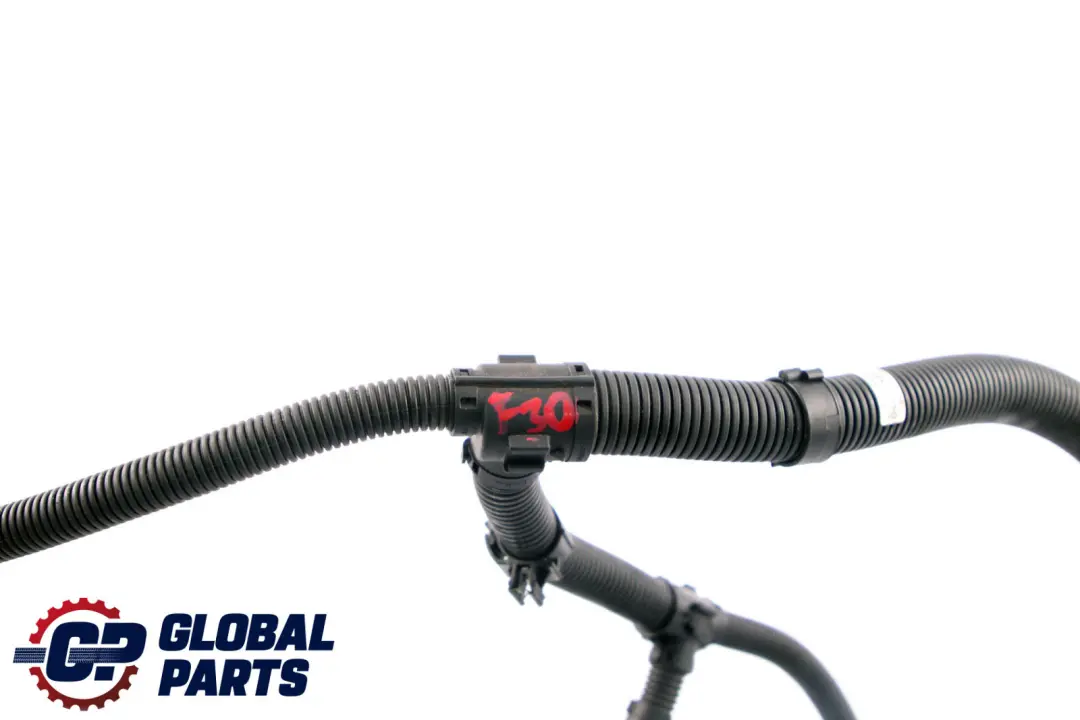

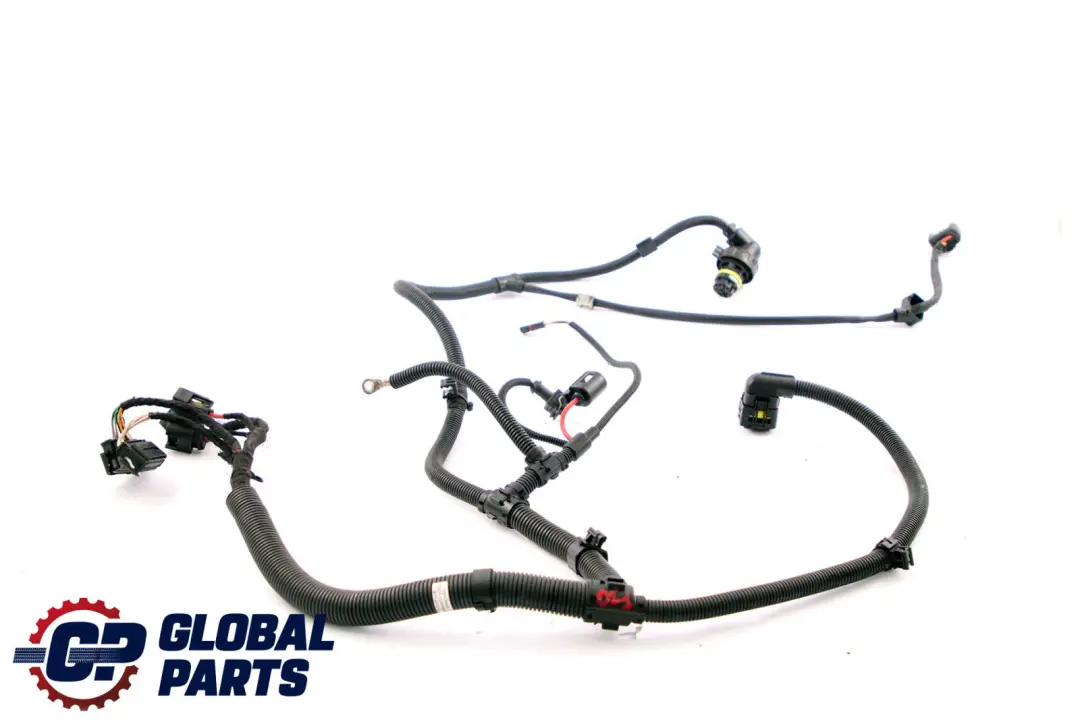

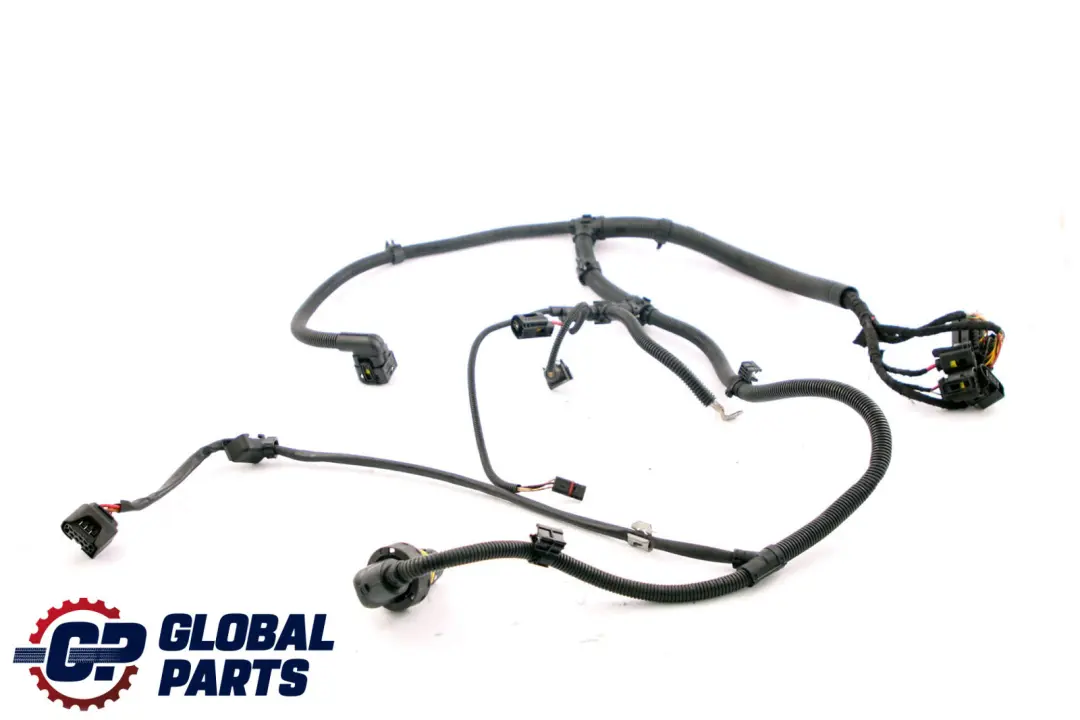

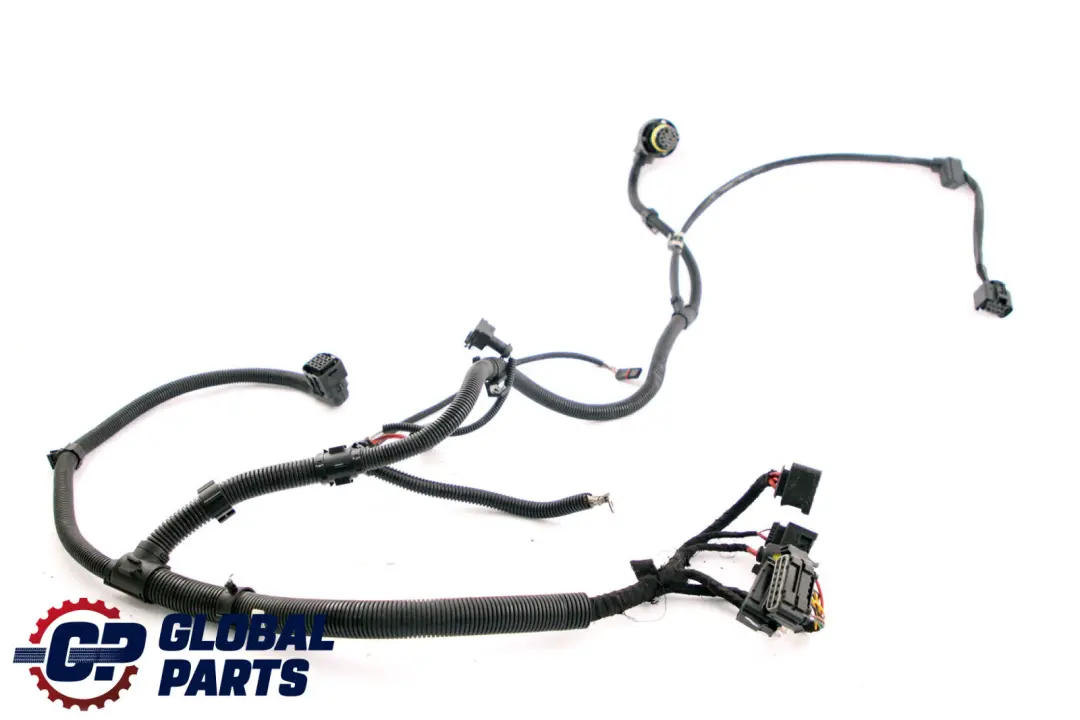

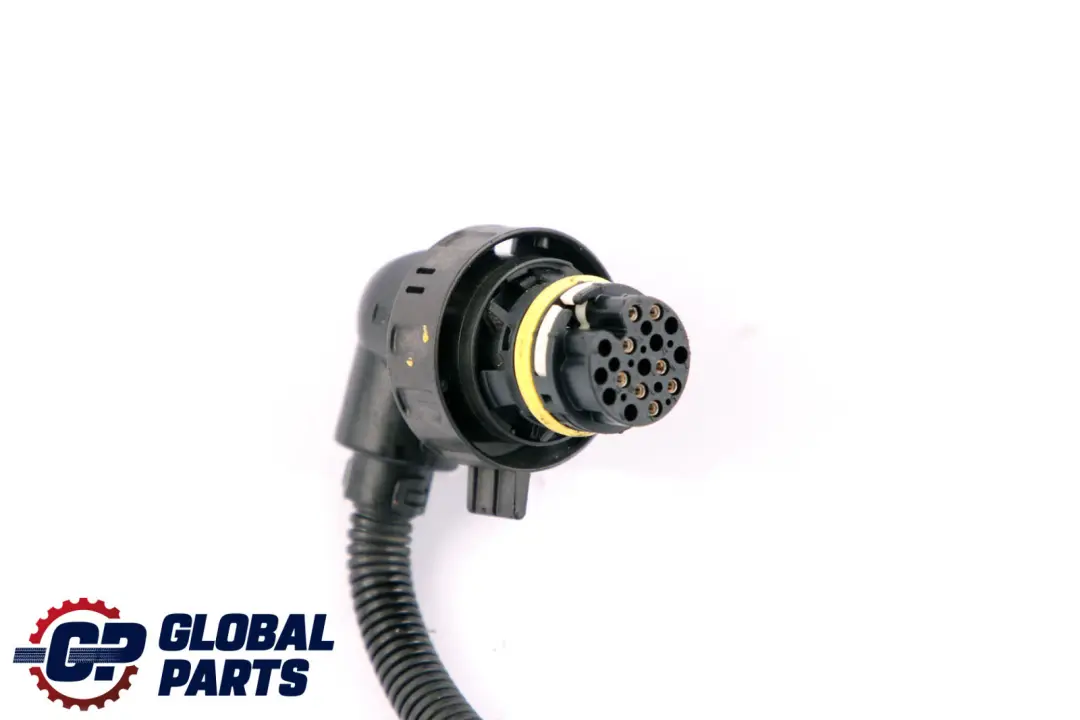

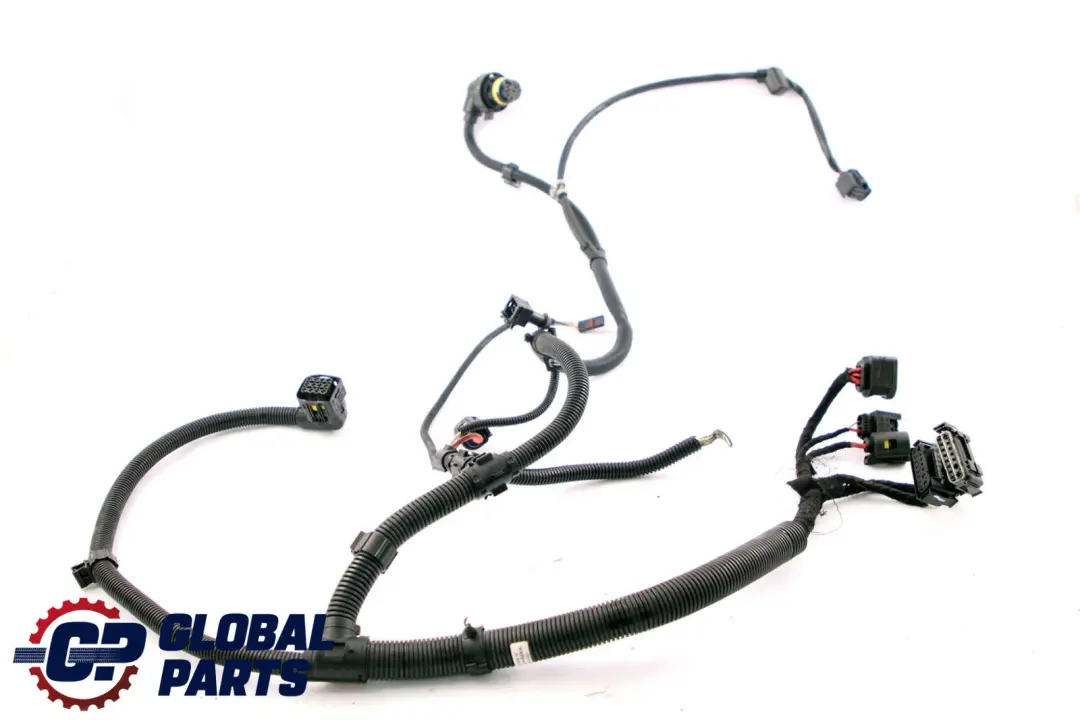

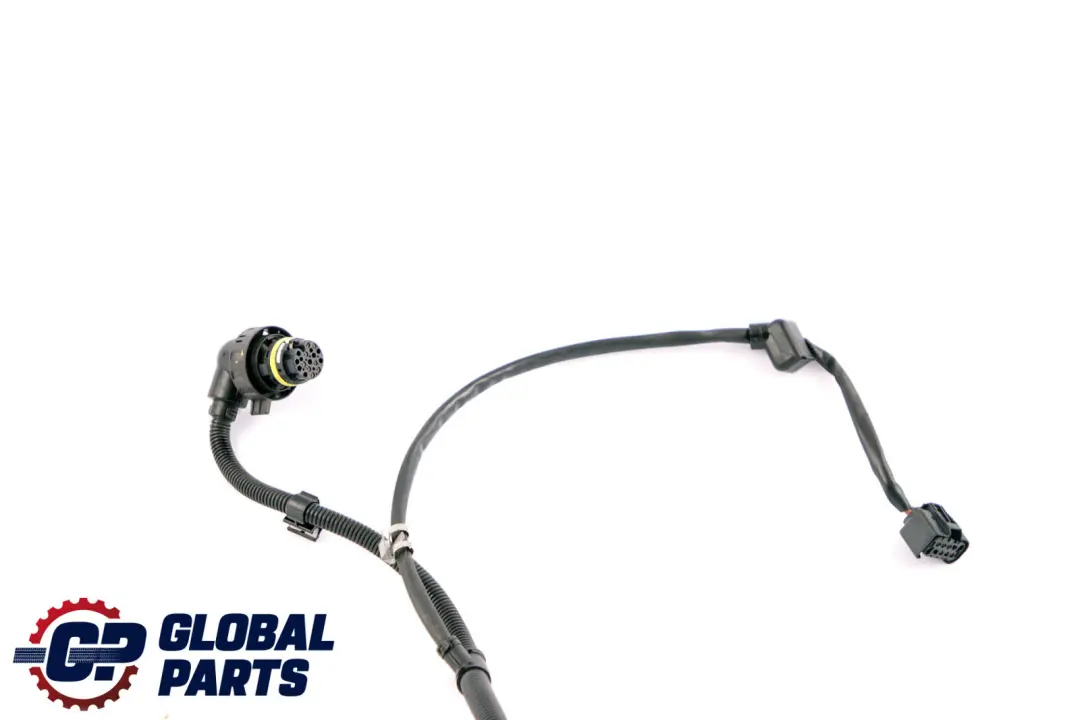

BMW F30 F31 F32 N20 Motor Caja Cambios Módulo Cableado Loom Arnés

BMW F30 F31 F32 N20 Motor Cable Harness Gearbox is an item from the Cables, harnesses, and connectors category, designed for use in the powertrain of BMW models with the N20 engine. The product ensures proper electrical connection between the engine and the gearbox, which translates to stable operation of controllers and sensors, and safe functioning of the entire system.

Especificaciones y datos técnicos

• Código SKU: 7634057
• Marca: BMW
• Condición: Usado
• Número de pieza OEM: 7634057
• Números sustituibles: 12537634057, 7634057, EM
• Categoría: Cableado, arneses y conectores

Application in BMW with N20 Engine

The presented harness is dedicated to BMW F-series vehicles with the N20 unit, where it is responsible for transmitting signals between sensors, actuators, and control modules of the engine and gearbox. Thanks to the appropriate routing of wires and matched connectors, this element allows for maintaining the factory logic of the electrical installation, which is crucial for the correct operation of control and diagnostic systems.

Construction and Performance Parameters

The harness belongs to the group of elements referred to as cables, harnesses, and connectors, meaning it includes a complete set of wires and factory connectors adapted to a specific engine and gearbox configuration. The wire cross-sections used and the branching layout are selected based on current loads and resistance to conditions in the engine compartment, such as elevated temperature or vibrations.

The arrangement of connectors allows for routing the installation according to the original mounting points in the body and on the powertrain. This ensures the correct distance from hot and moving components, which reduces the risk of insulation abrasion and signal transmission interference.

Benefits of Using an Original BMW Harness

Using an original engine harness and gearbox cable in a BMW with an N20 engine allows for:

• maintaining compliance with the factory electrical installation specification,
• ensuring proper cooperation with control modules and sensors,
• minimizing the risk of diagnostic errors resulting from incorrect connections,
• reducing installation time thanks to matched wire lengths and factory connectors.

For vehicles equipped with advanced electronic systems, such as modern electronically controlled gearboxes, a correctly selected harness directly impacts the smoothness of gear changes and the stability of the entire powertrain.

Condition, Verification, and Part Selection

The item comes from the BMW offering and is classified as used, allowing for economical repair while maintaining the original specification. Before installation, a standard visual inspection of the insulation, connectors, and branching points is recommended, as well as comparing the shape and arrangement of connectors with the removed harness to confirm full compatibility with the specific vehicle configuration.

In case of doubts during selection, manufacturer markings and reference numbers assigned to this harness can be helpful, allowing you to verify compatibility with a specific engine and gearbox version in BMW catalogs or parts selection systems.
