BMW F30 Cableado Puerta Pasajero Delantero Cables Loom Arn?s F31 9286236

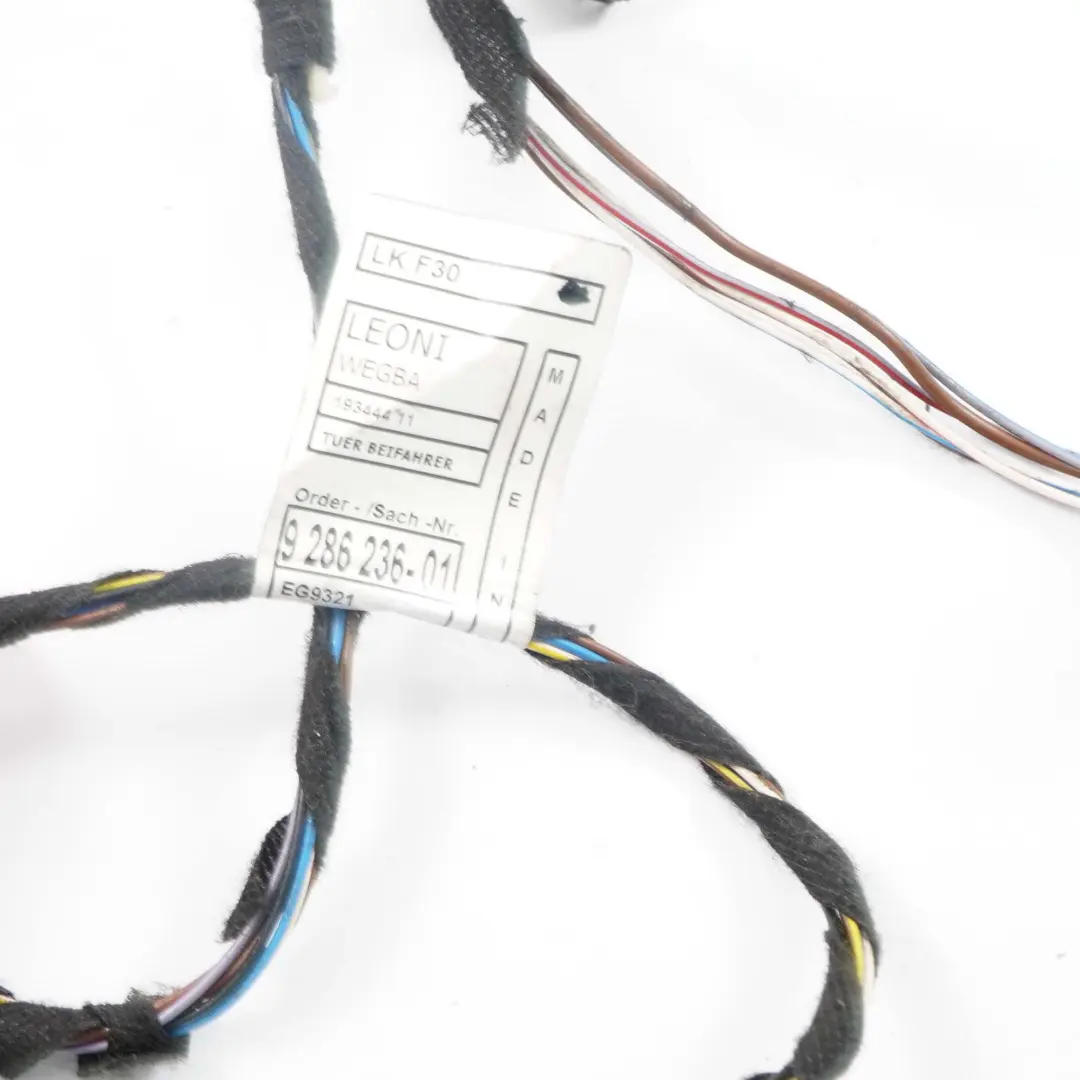

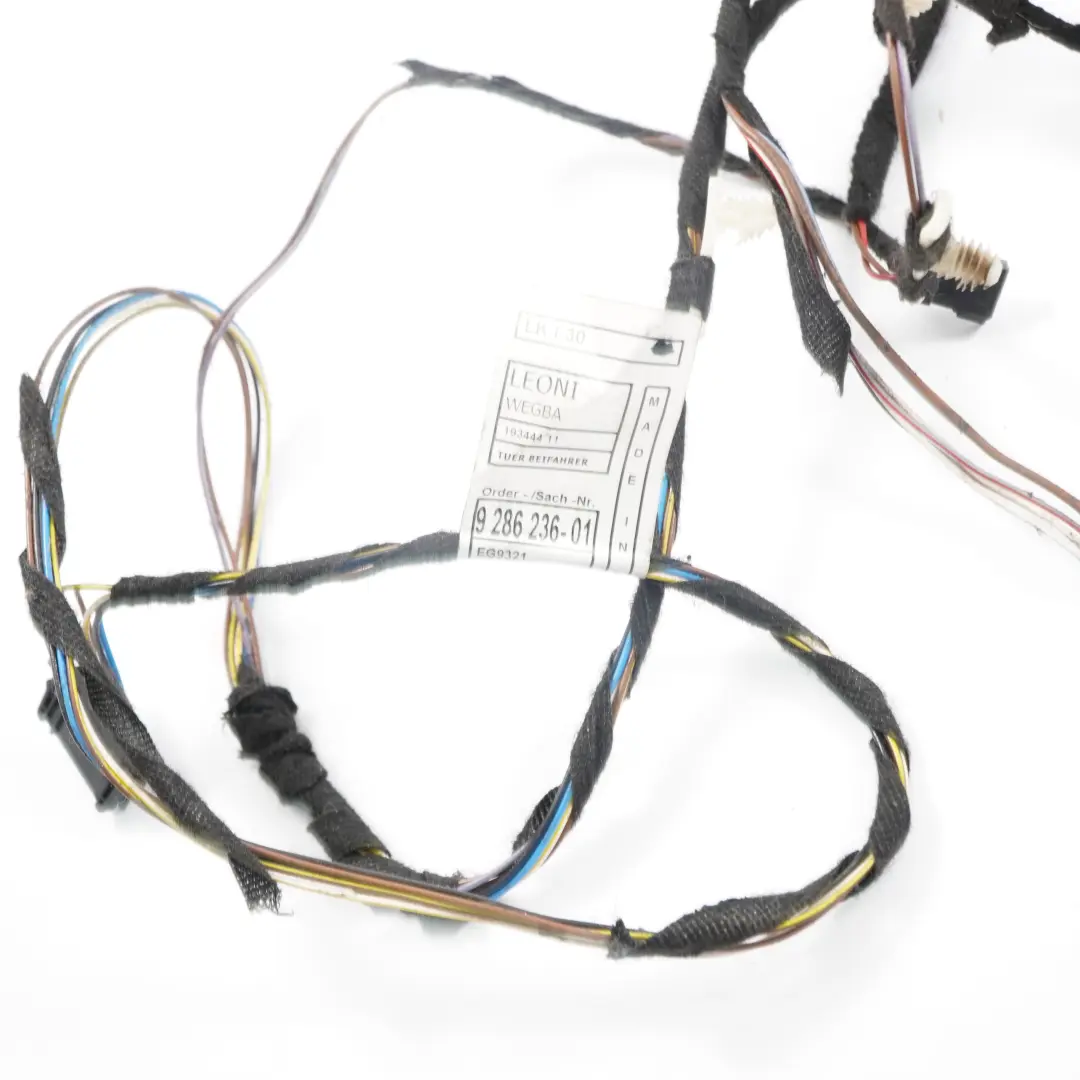

BMW F30 Cable Harness for Passenger Door is an original electrical installation component designed for the front body area, responsible for a stable electrical connection in the passenger door. This factory harness, as part of the Cables, Harnesses, and Connectors group, ensures proper power supply and communication between body modules and door accessories. A used OEM component allows for a technically correct repair without the need for installation modifications.

Especificaciones y datos técnicos

• Código SKU: 9286236
• Marca: BMW
• Condición: Usado
• Número de pieza OEM: 9286236
• Números sustituibles: 61129286236, 9286236, BG
• Ubicación en el vehículo: Frente
• Categoría: Cableado, arneses y conectores

Purpose and Function in the Vehicle

The presented BMW F30 Cable Harness for Passenger Door operates in the front part of the vehicle, in the passenger side door area. It is responsible for transmitting signals and power to the elements located in the door, such as window controls, central locking, or other electrical consumers intended by the manufacturer for the specific equipment.

Thanks to factory wiring and original connectors, the harness enables:

• maintaining compatibility with the factory BMW electrical architecture,
• a secure connection with body modules and the pillar installation,
• reducing the risk of communication errors in comfort systems.

Construction and Installation Fit

The element belongs to the Cables, Harnesses, and Connectors group, meaning it is designed as a complete harness with appropriately selected wire gauges, insulation, and factory connectors. The arrangement of branches and mounting points is adapted to the construction of the passenger door in the BMW F30, facilitating wiring in original locations.

Key installation advantages include:

• factory connector terminations, eliminating the need for soldering or custom adapters,
• geometry adapted to the front body area on the passenger side,
• possibility of installation in place of a damaged harness without interfering with the vehicle's main installation.

Benefits of Using an Original BMW Harness

Using an original BMW component in the passenger door area allows for maintaining the consistency of the electrical installation with the manufacturer's specifications. Unlike universal solutions, the factory harness is prepared for specific component placement and current loads, which promotes long-term, stable operation of comfort systems.

A used component from this group is a sensible solution for operational repairs when the existing harness has suffered mechanical damage or wire corrosion. This allows for restoring correct installation functionality without excessive costs, while maintaining the vehicle's original electrical concept.

Compatibility Verification and Application

Before purchasing, it is recommended to compare the door equipment configuration and connector layout with the removed harness to confirm compatibility with the specific BMW F30 version. Referring to manufacturer markings in service documentation or parts catalogs may also be helpful, facilitating the selection of the correct element from the Cables, Harnesses, and Connectors group.

If you are planning a comprehensive repair or upgrade of the front door area in your BMW and need other elements from the same group, such as additional harnesses, wire sections, or door installation connectors, check the available parts in the BMW Cables, Harnesses, and Connectors category.
